Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

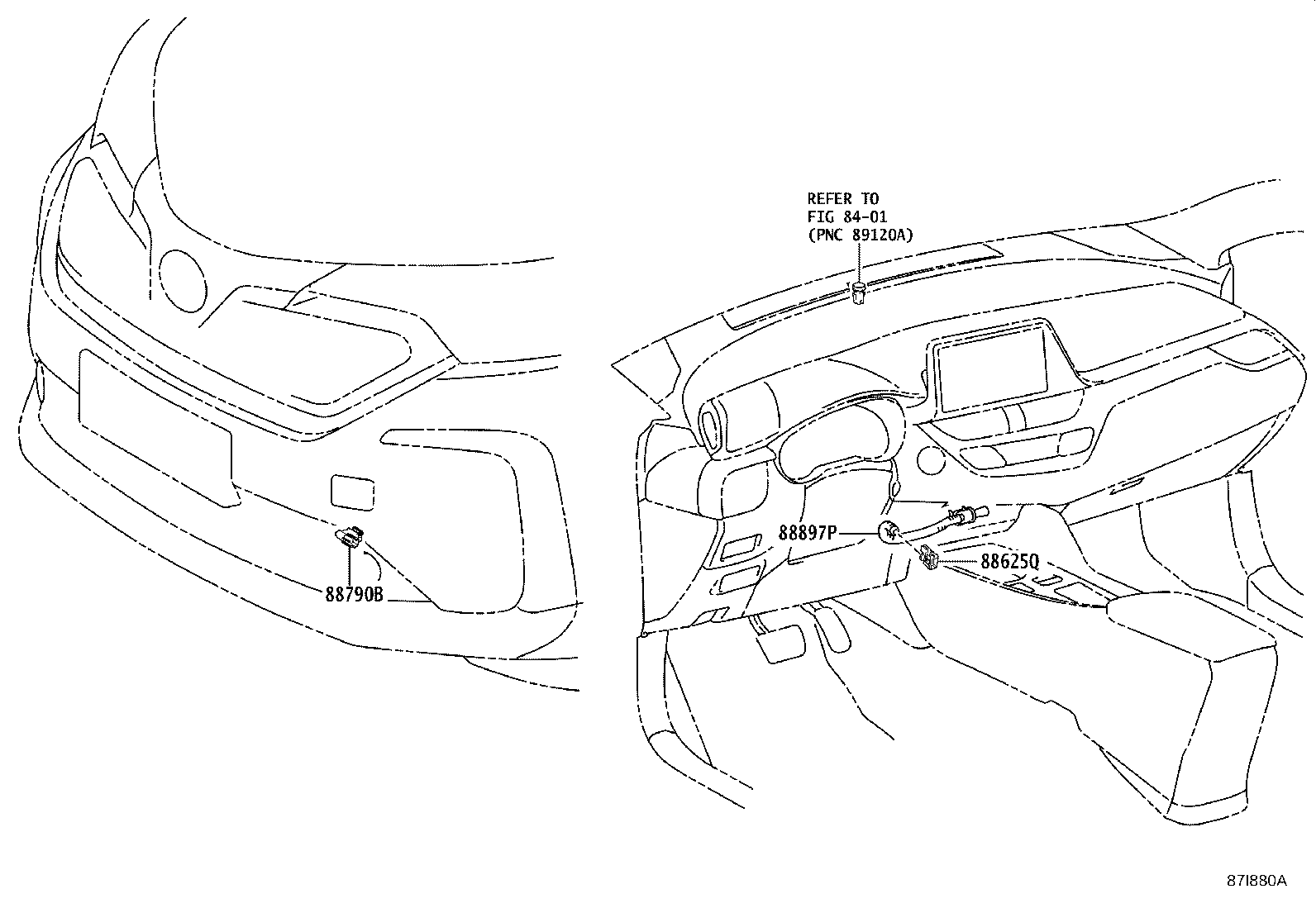

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-07050 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2021-09 → —
|
KPX10 | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2020-05 → 2021-08
ended
|
KPX10 | — | |
| 88790B — Thermistor Assy | ||||
| 88790-07010 |
Thermistor Assy
2021-09 → —
|
KPX10 | — | |
| 88790-28100 |
Thermistor Assy
2020-05 → 2021-08
ended
|
KPX10 | — | |
| 88897P — Aspirator | ||||
| 88505-F4050 |
Aspirator
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
