Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

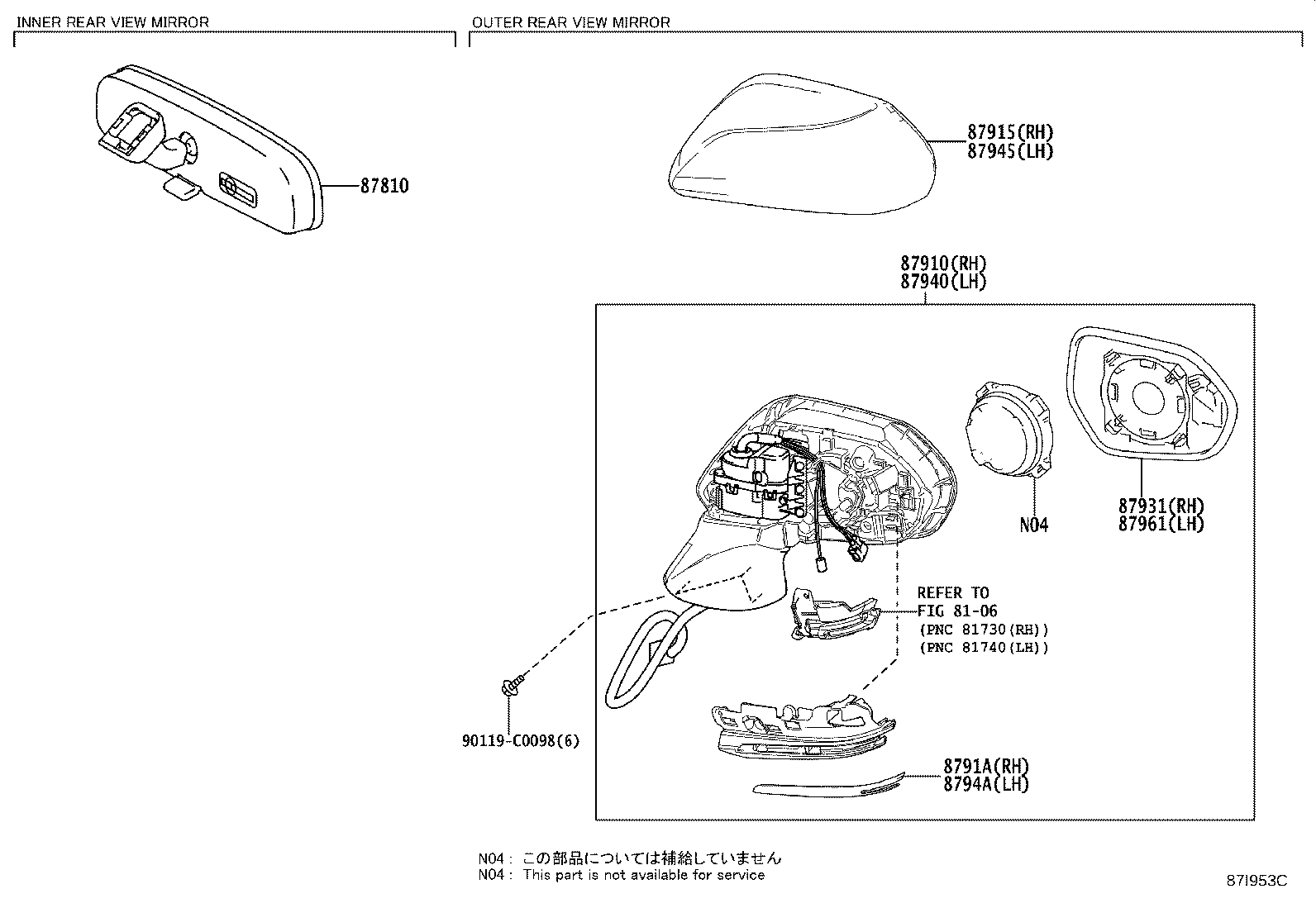

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-F4030 |
Mirror Assy, Inner Rear View
2020-05 → 2021-02
ended
|
KPX10 | — | |
| 87810-F4050 |
Mirror Assy, Inner Rear View
2021-02 → —
|
KPX10 | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-F4210 note |
Mirror Assy, Outer Rear View, RH
2020-05 → 2021-01
ended
|
KPX10 D,N | — | |
| 87910-F4211 note |
Mirror Assy, Outer Rear View, RH
2021-02 → —
|
KPX10 D,N | — | |
| 87910-F4220 note |
Mirror Assy, Outer Rear View, RH
2020-05 → 2021-01
ended
|
KPX10 E | — | |
| 87910-F4221 note |
Mirror Assy, Outer Rear View, RH
2021-02 → —
|
KPX10 E | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-06914 note |
Cover, Outer Mirror, RH
2020-05 → —
|
KPX10 | — | |
| 8791A — Cover, Outer Mirror, RH NO.2 | ||||
| 8791A-06890 |
Cover, Outer Mirror, RH NO.2
2020-05 → 2022-07
ended
|
KPX10 | — | |
| 87931 — Outer Mirror, RH | ||||
| 87931-F4210 |
Outer Mirror, RH
2020-05 → 2022-07
ended
|
KPX10 D,N | — | |
| 87931-F4220 |
Outer Mirror, RH
2020-05 → 2022-07
ended
|
KPX10 E | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-F4141 note |
Mirror Assy, Outer Rear View, LH
2020-05 → 2021-01
ended
|
KPX10 D,N | — | |
| 87940-F4142 note |
Mirror Assy, Outer Rear View, LH
2021-02 → —
|
KPX10 D,N | — | |
| 87940-F4151 note |
Mirror Assy, Outer Rear View, LH
2020-05 → 2021-01
ended
|
KPX10 E | — | |
| 87940-F4152 note |
Mirror Assy, Outer Rear View, LH
2021-02 → —
|
KPX10 E | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-06914 note |
Cover, Outer Mirror, LH
2020-05 → —
|
KPX10 | — | |
| 8794A — Cover, Outer Mirror, LH NO.2 | ||||
| 8794A-06890 |
Cover, Outer Mirror, LH NO.2
2020-05 → 2022-07
ended
|
KPX10 | — | |
| 87961 — Mirror Outer, LH | ||||
| 87961-F4140 |
Mirror Outer, LH
2020-05 → 2022-07
ended
|
KPX10 D,N | — | |
| 87961-F4150 |
Mirror Outer, LH
2020-05 → 2022-07
ended
|
KPX10 E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
