Toyota Yaris Cross

2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 3 illustrations

Illustrations

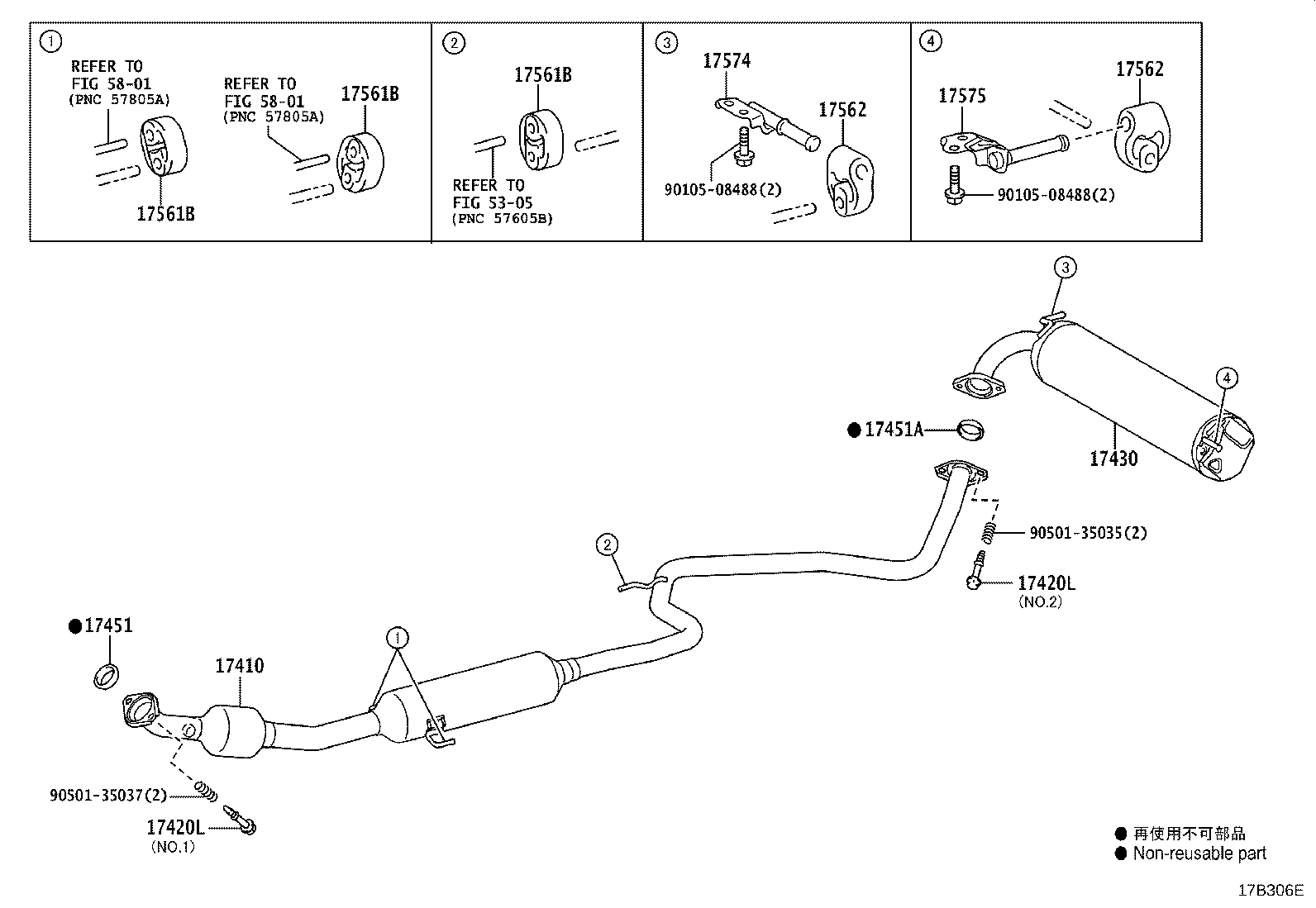

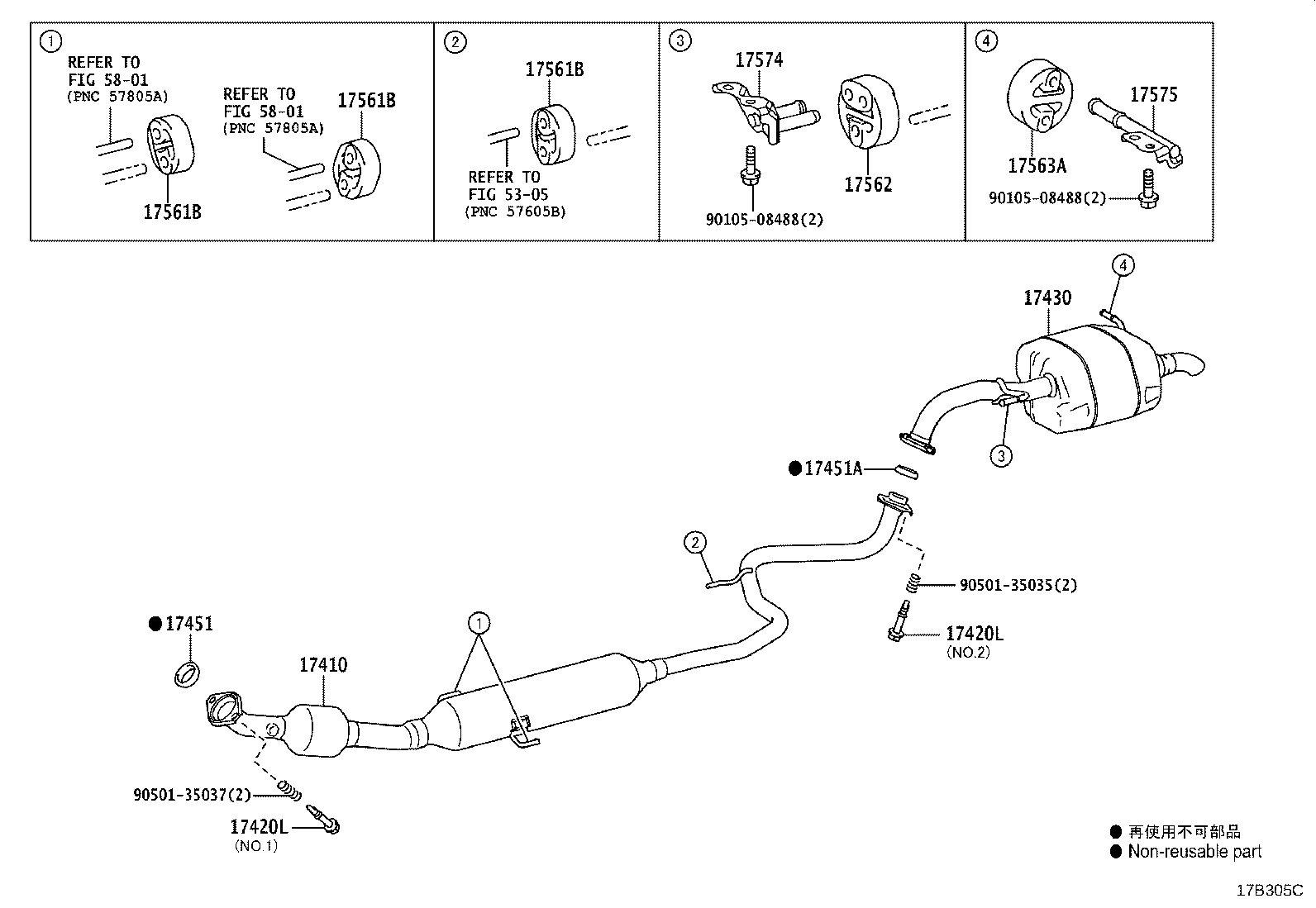

Figure 17B307C 17B307C 2020-08 → — Figure 17B305C 17B305C 2020-08 → — Figure 17B306E 17B306E 2020-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17420L Bolt, Flange(FOR EXHAUST PIPE)
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
