Toyota Yaris Cross

2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 3 illustrations

Illustrations

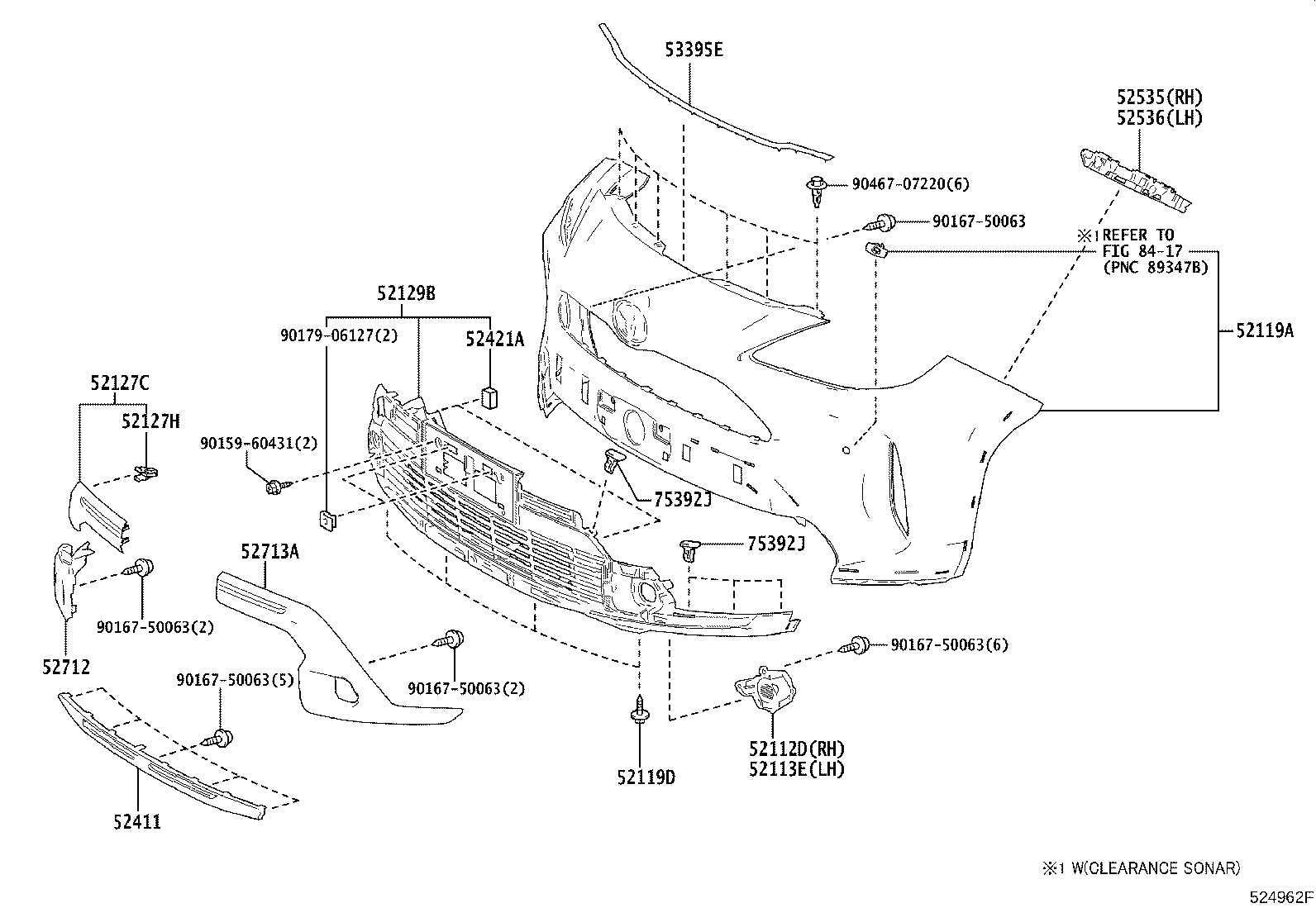

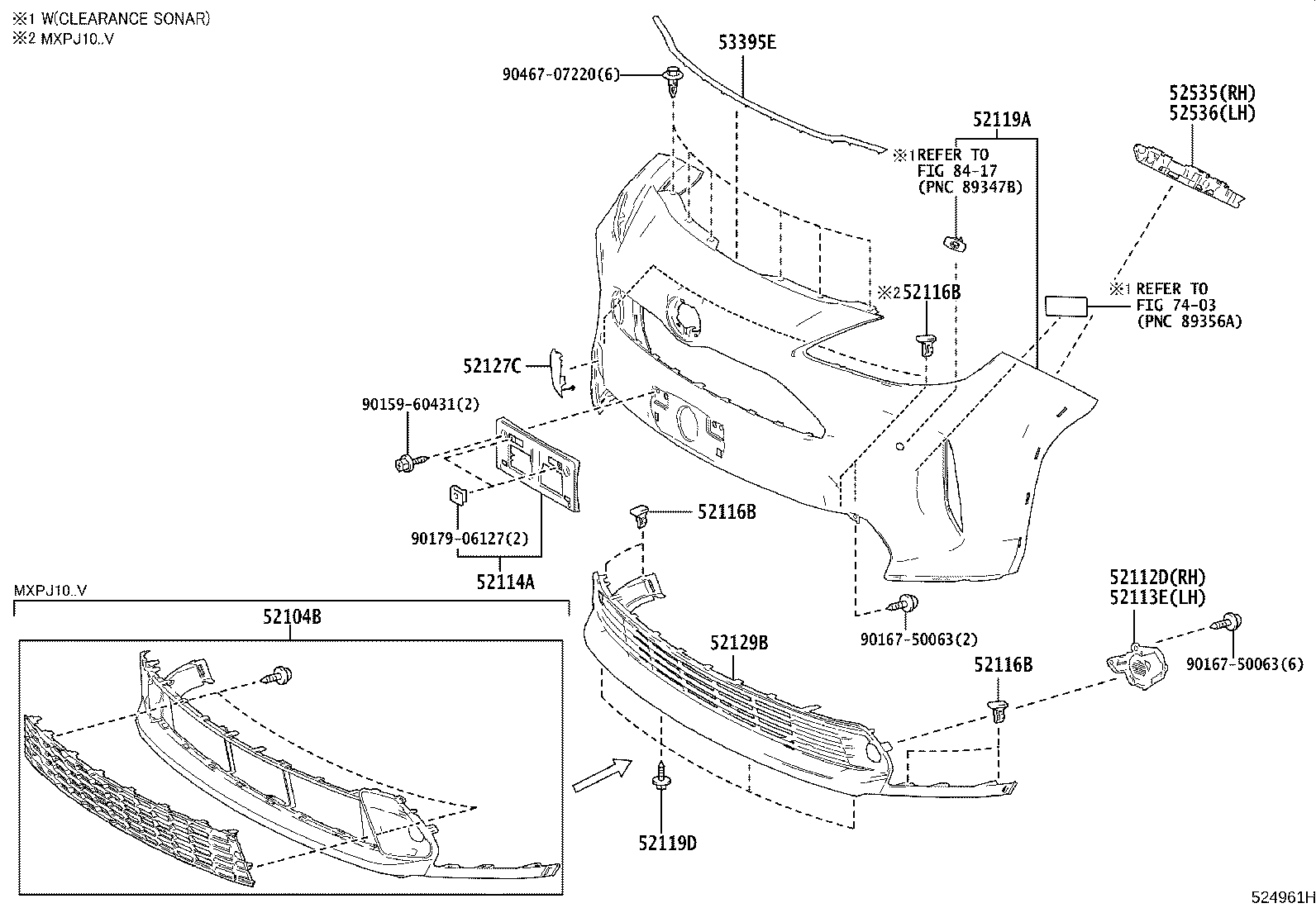

Figure 524947 524947 2020-08 → — Figure 524961H 524961H 2020-08 → — Figure 524962F 524962F 2020-08 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451L Bolt, NO.1
52102B Extension Sub-assy, Front Bumper, RH
52103A Extension Sub-assy, Front Bumper, LH
52104B Cover Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113E Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127H Clip, Front Bumper Hole Cover
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52411 Guard, Front Bumper
52421A Pad, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53395E Seal, Hood TO Front End Panel
75392J Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
