Toyota Yaris Cross

2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

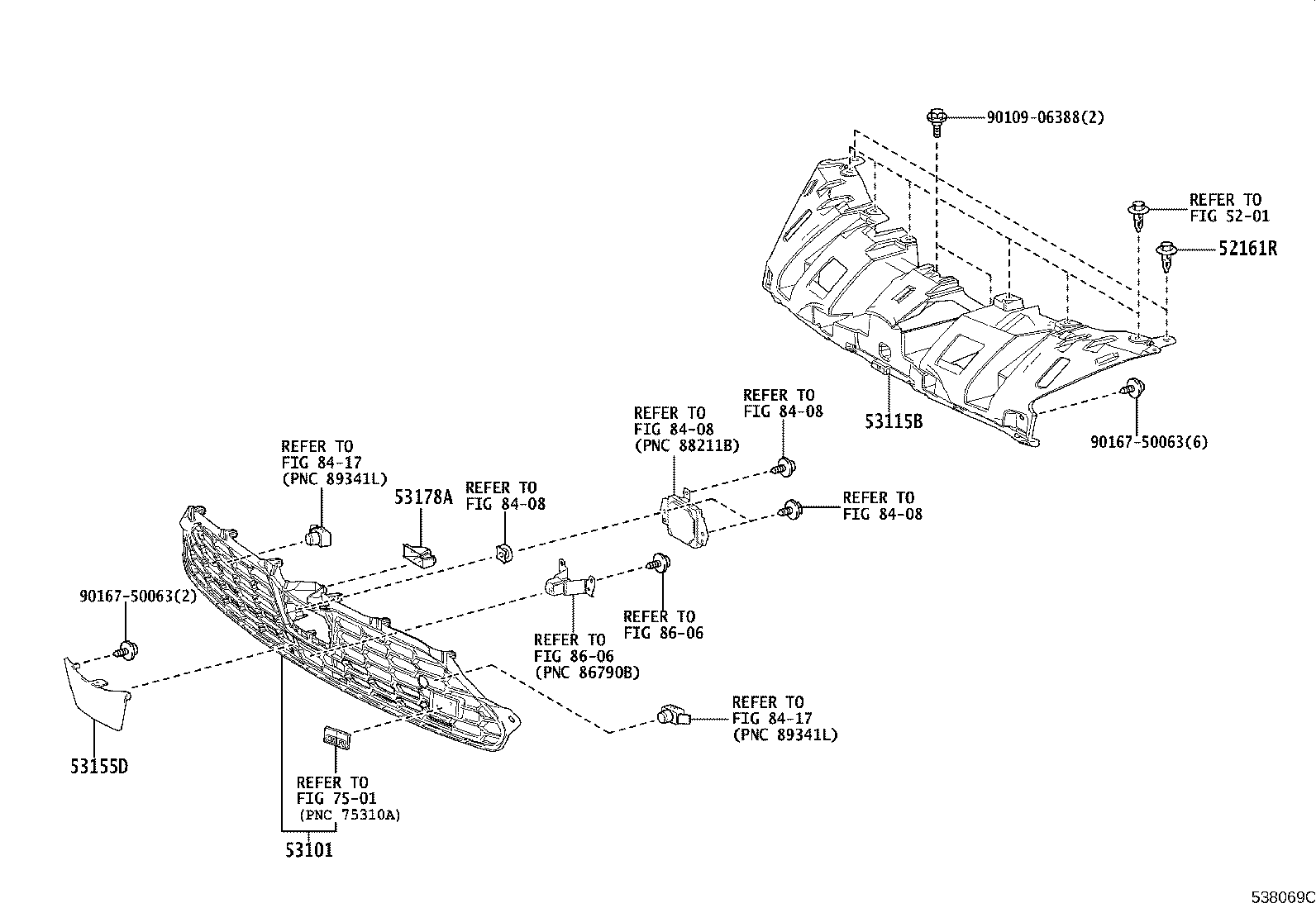

Figure 537416E 537416E 2020-08 → — Figure 538069C 538069C 2022-05 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53115B Bracket, Radiator Grille
53155D Seal, Radiator Grille, NO.1
53178A Bracket, Radiator Grille, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
