Toyota Yaris Cross

2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 2 illustrations

Illustrations

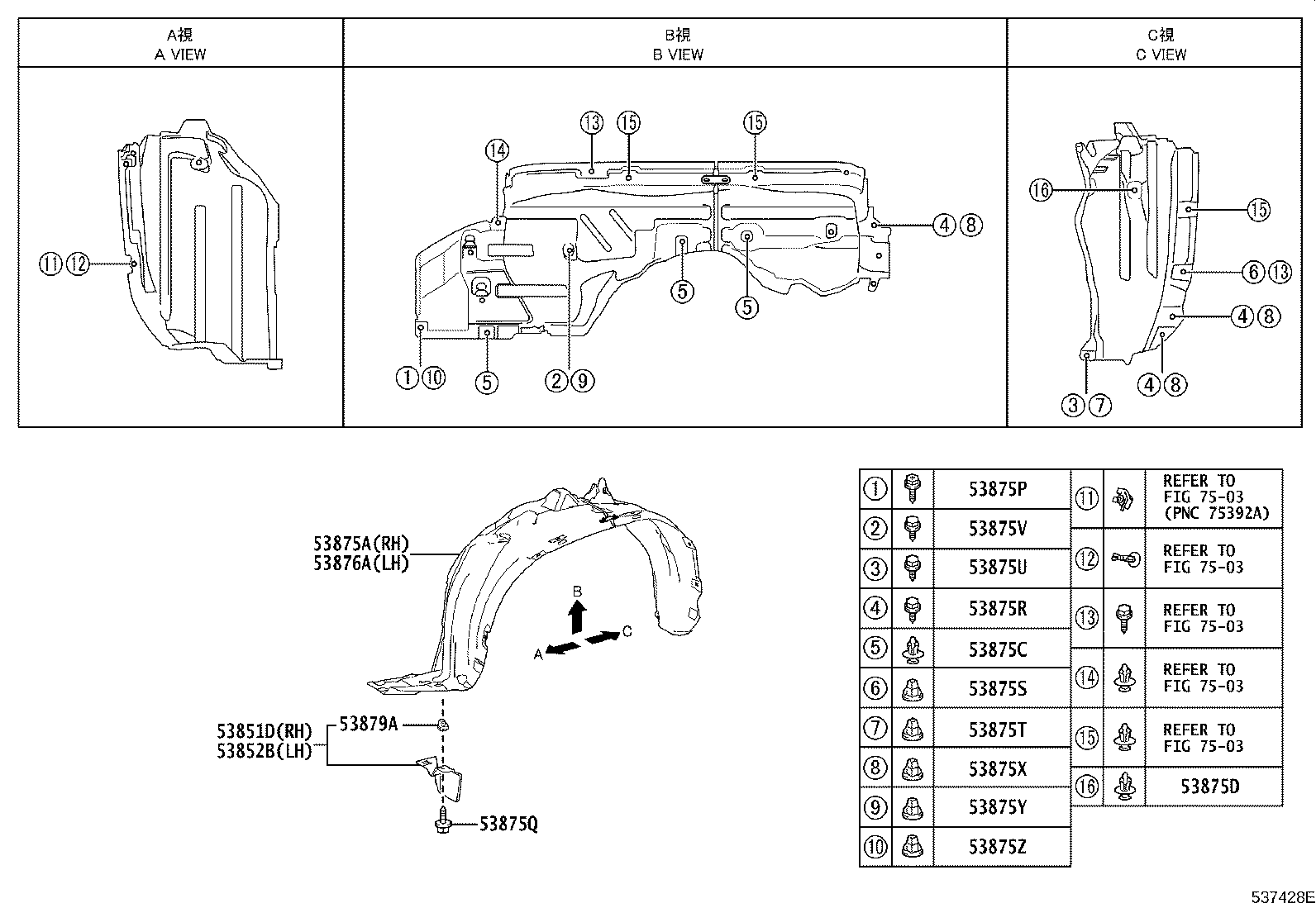

Figure 537429B 537429B 2020-08 → — Figure 537428E 537428E 2020-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875S Grommet, NO.1
53875T Grommet, NO.2
53875U Screw, NO.4
53875V Screw, NO.5
53875X Grommet, NO.3
53875Y Grommet, NO.4
53875Z Grommet, NO.5
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
