Toyota Yaris Cross
2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General
Supported model
Data version 2024-01

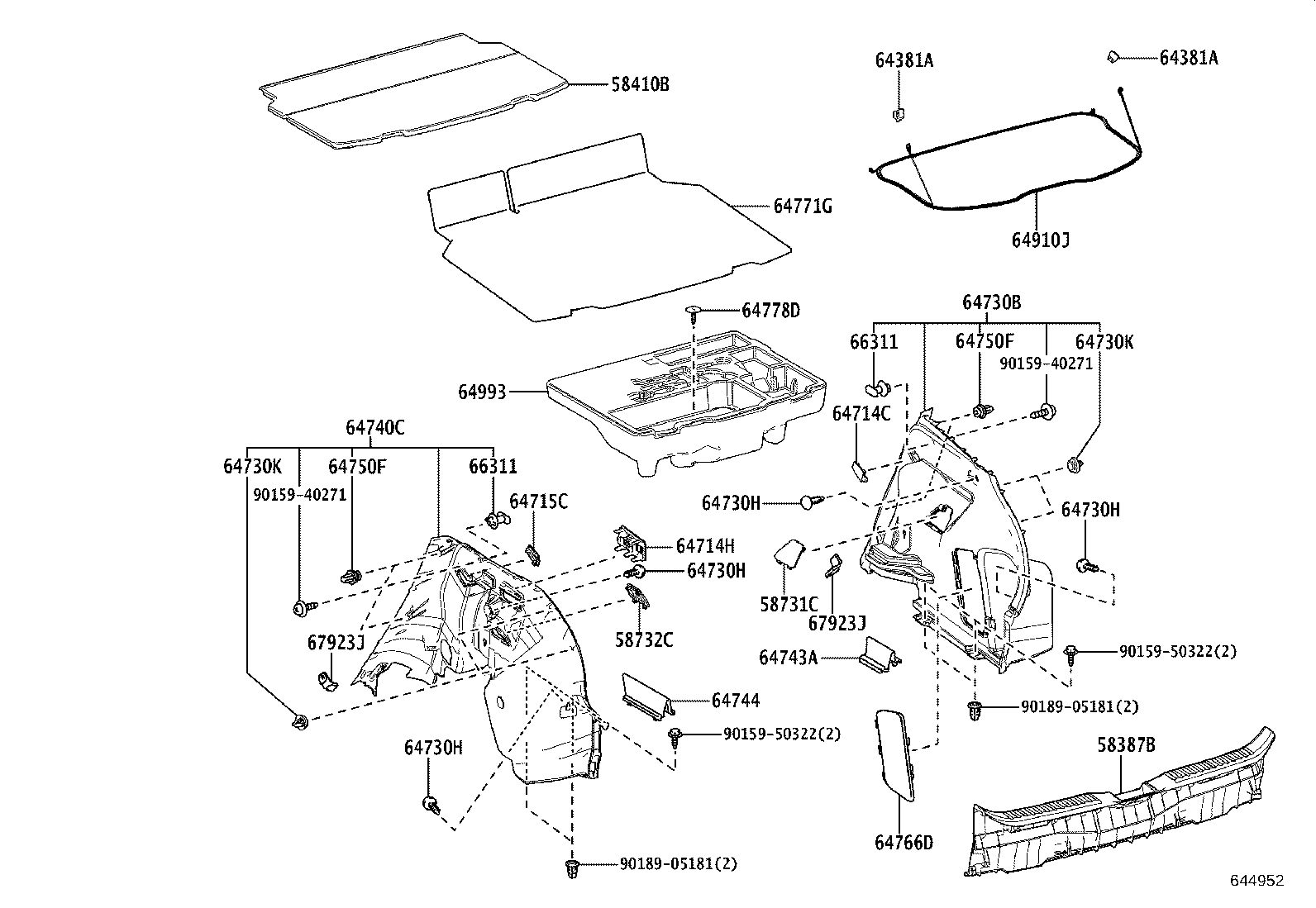

Deck Board & Deck Trim Cover
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58393E | Support, Deck Board Set |
| 58410B | Board Assy, Deck |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 64342A | Clip |
| 64381A | Hanger, Package Tray Trim |
| 64714C | Cover, Deck Side Trim, RH |
| 64714H | Cover, Deck Side Trim, NO.1 |
| 64715C | Cover, Deck Side Trim, LH |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766D | Cover, Deck Side Trim Jack |
| 64771G | Cover, Spare Wheel |
| 64777J | Cushion, Spare Wheel |
| 64778D | Protector, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
| 66311 | Hook, Rope |
| 67923J | Clamp(FOR DECK TRIM SIDE PANEL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
