Toyota Yaris Cross

2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

82 part groups · 4 illustrations

Illustrations

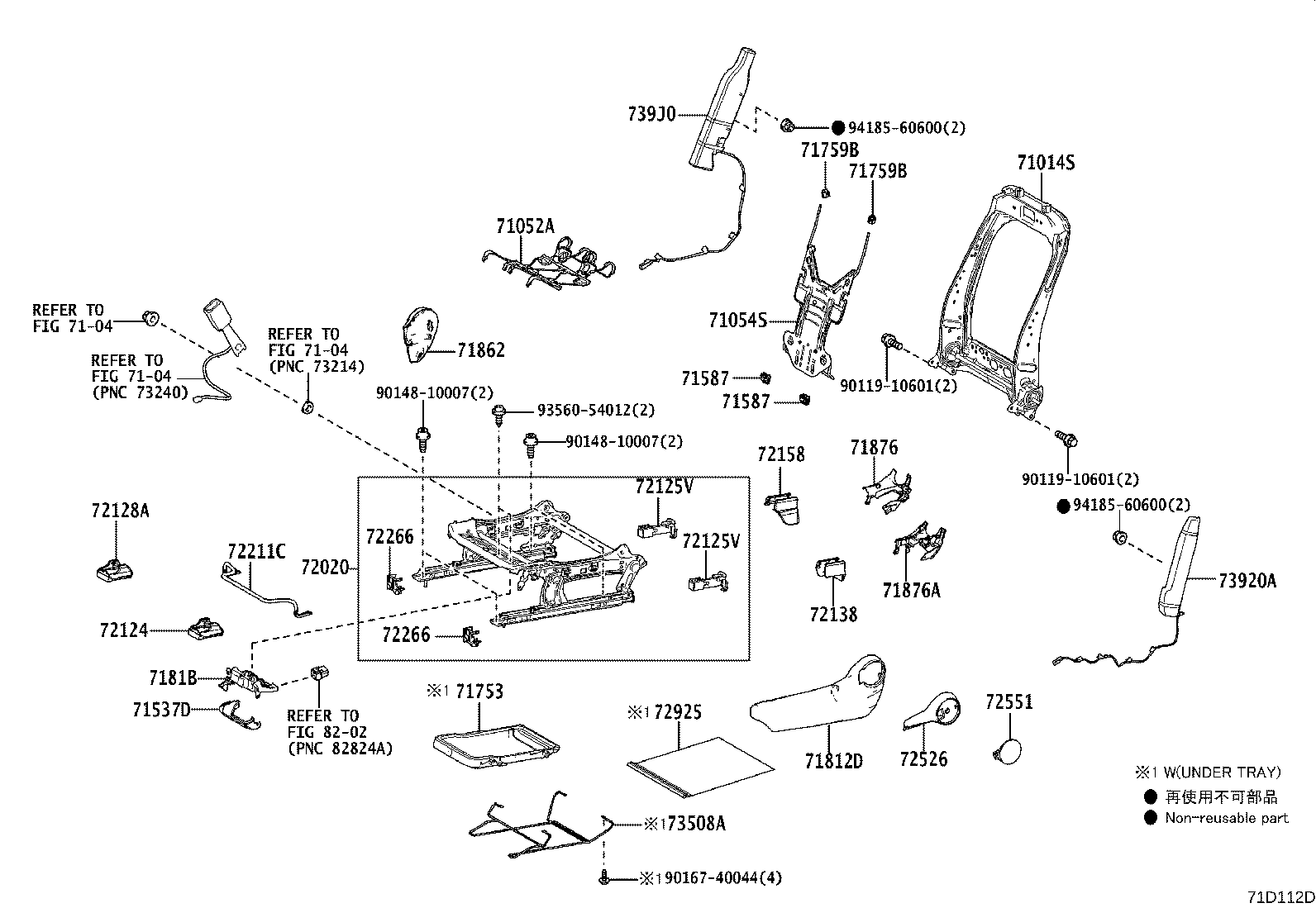

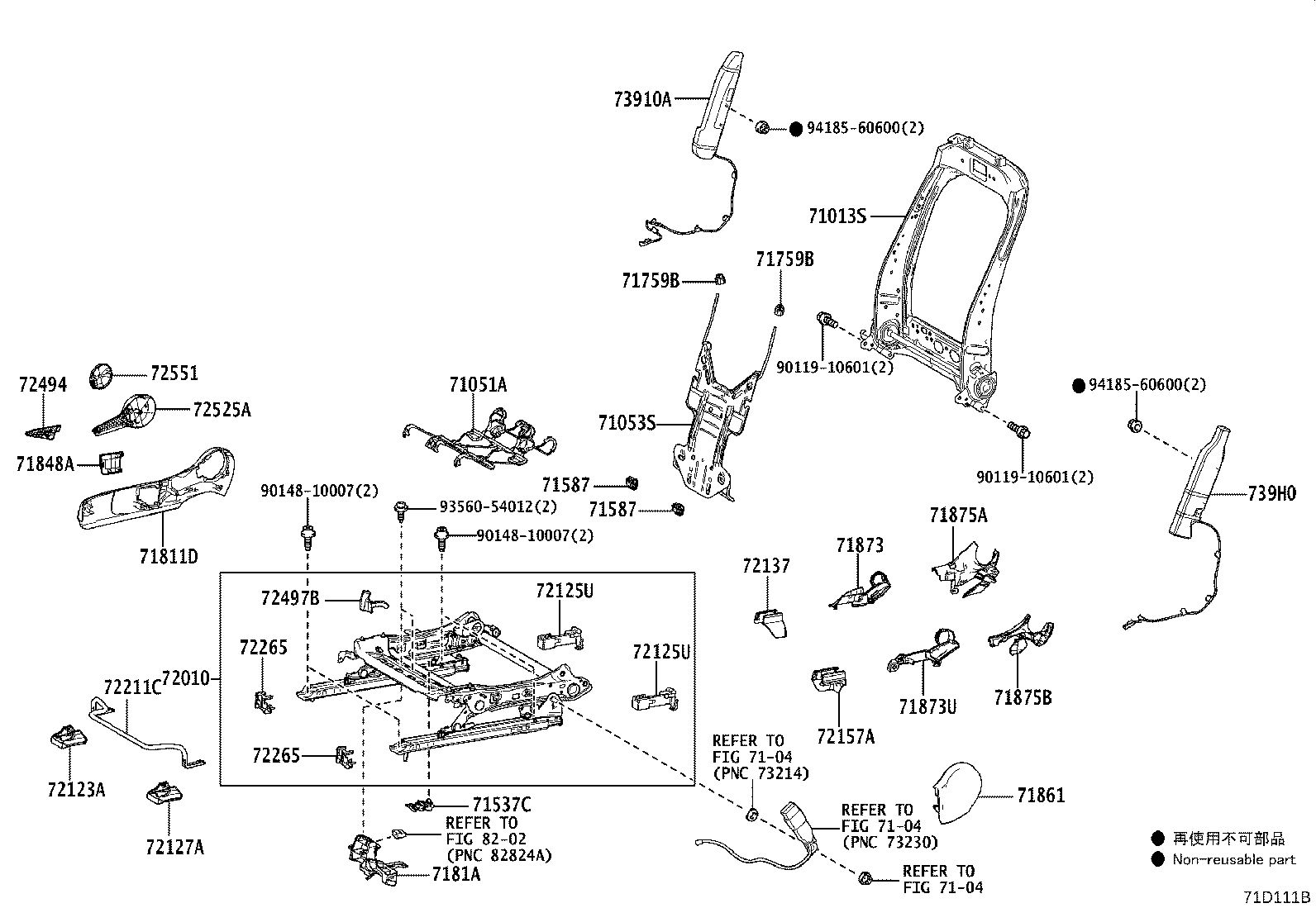

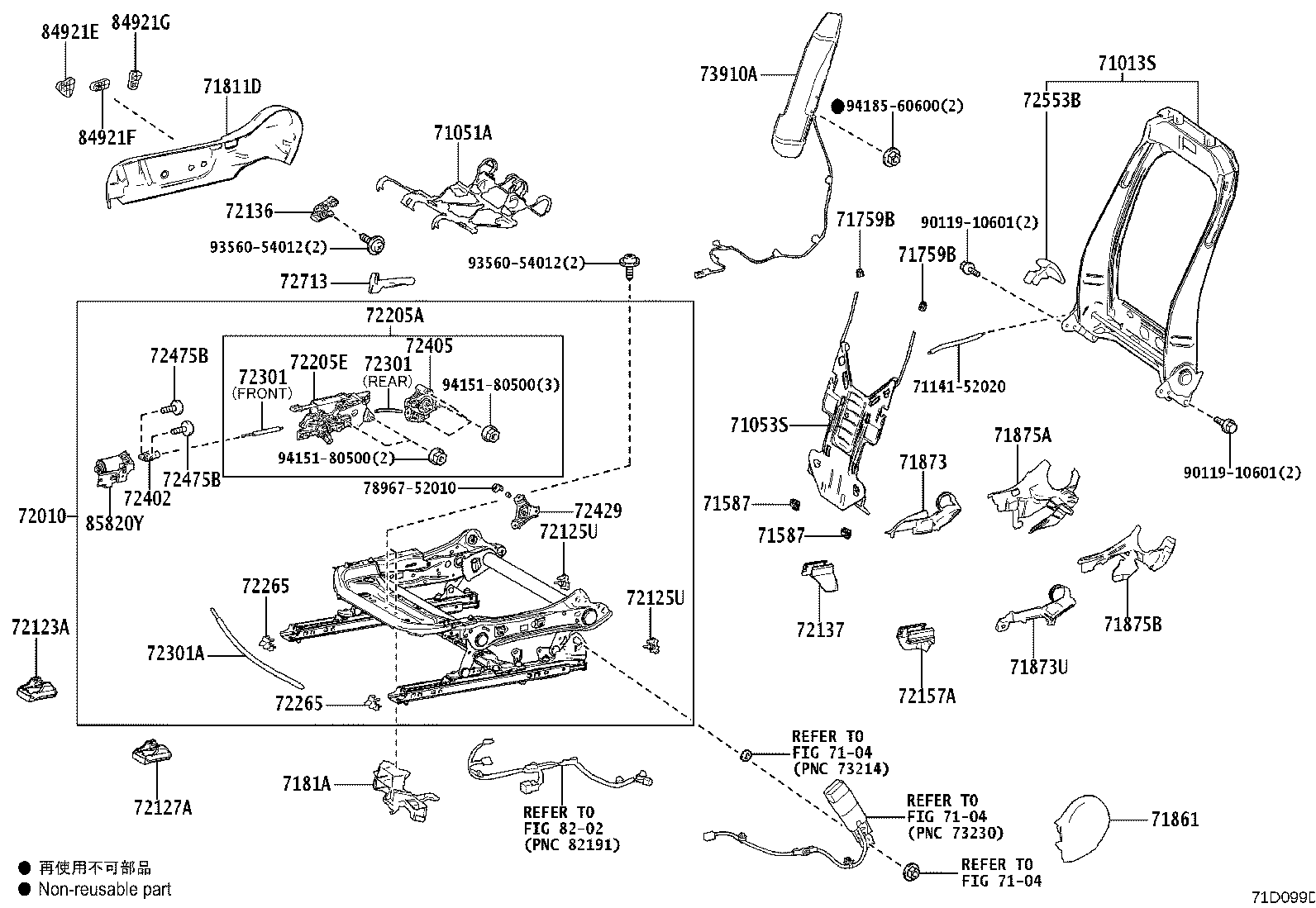

Figure 71D110 71D110 2020-08 → — Figure 71D099D 71D099D 2020-08 → — Figure 71D111B 71D111B 2020-08 → — Figure 71D112D 71D112D 2020-08 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71751 Hanger, Seat Cover
71753 Tray, Front Seat Under
71759B Hook, Front Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71848A Cap, Seat Adjuster Cover, RH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873U Shield, Front Seat Cushion, Lower RH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125U Cover, Seat Track, Upper Rear RH
72125V Cover, Seat Track, Upper Rear LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72136 Spacer, Seat Track, Lower NO.1
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72205A Housing Sub-assy, Power Seat, NO.1
72205E Housing Sub-assy, Power Seat, NO.1
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72301 Wire Sub-assy, Seat Track Equalizing
72301A Wire Sub-assy, Seat Track Equalizing, RH
72402 Housing Sub-assy, Cable Side
72405 Housing Sub-assy, Front Seat Vertical
72429 Plate, Front Seat Adjuster, RH
72475B Screw, Front Seat Horizontal Jack, Outer
72494 Handle, Vertical Adjusting, RH
72497B Cover, Vertical Adjuster Bracket, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72551 Cover, Reclining Hinge, NO.1
72553B Protector, Reclining Cover, RH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72925 Cover, Front Seat Cushion
73508A Rail Sub-assy, Front Seat Under Tray, NO.2
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
739H0 Airbag Assy, Front Seat Center, RH
739J0 Airbag Assy, Front Seat Center, LH
79197A Rivet
82667D Holder, Connector
84921E Knob, Power Seat Switch
84921F Knob, Power Seat Switch
84921G Knob, Power Seat Switch
85820Y Motor Assy, Power Seat
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
