Toyota Yaris Cross
2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General
Supported model
Data version 2024-01

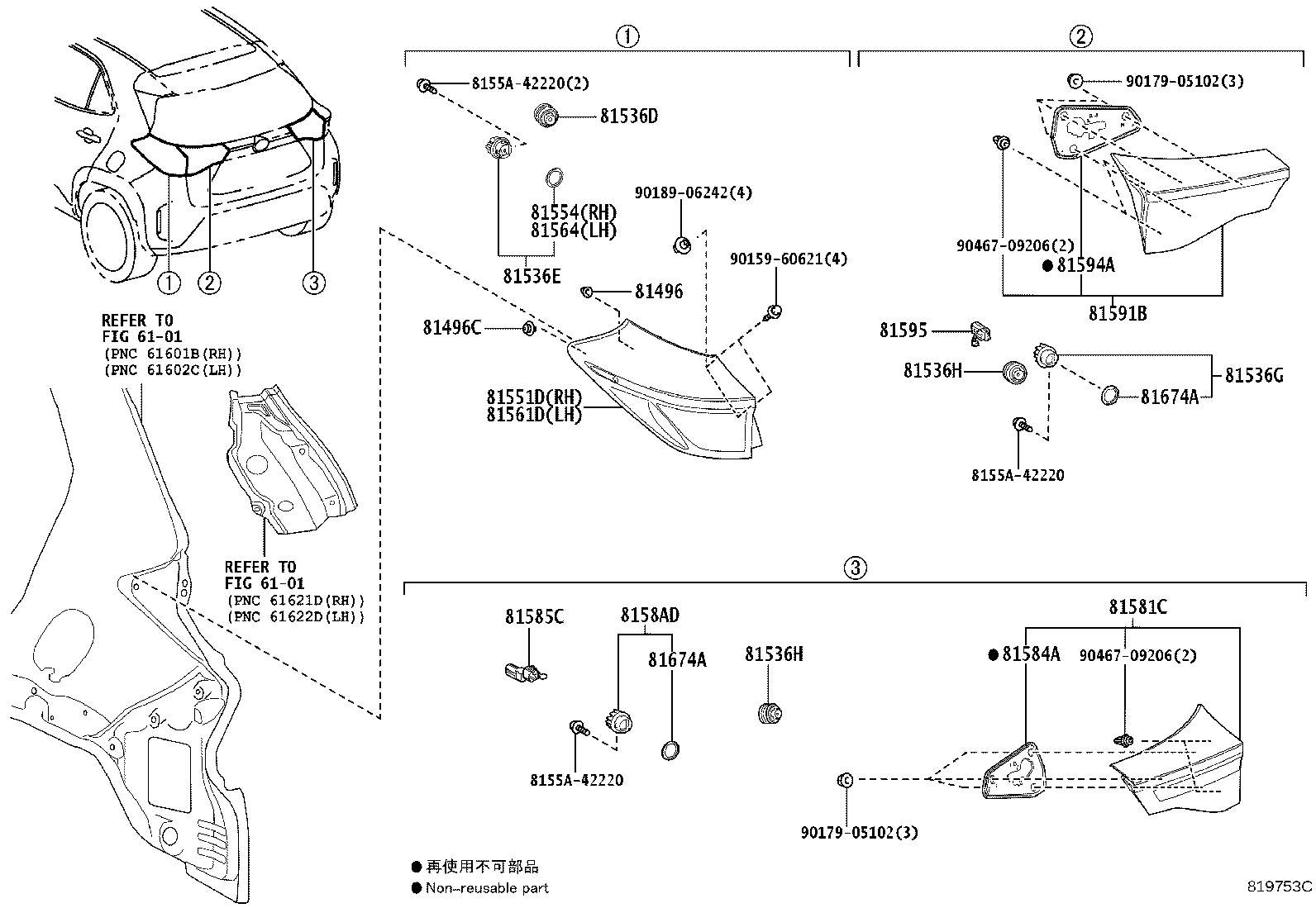

Rear Combination Lamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81536C | Led, Tail & Stop Lamp |
| 81536D | Led, Taillamp |
| 81536E | Led, Stop Lamp |
| 81536G | Led, Back-up Lamp |
| 81536H | Led, Taillamp, NO.2 |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 8158AD | Led, Rear Fog Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
| 81674A | Gasket, Back-up Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
