Toyota Yaris Cross

2020-08 → present · chassis MXPB10,MXPJ1# · catalogue 541310 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

8 part groups · 2 illustrations

Illustrations

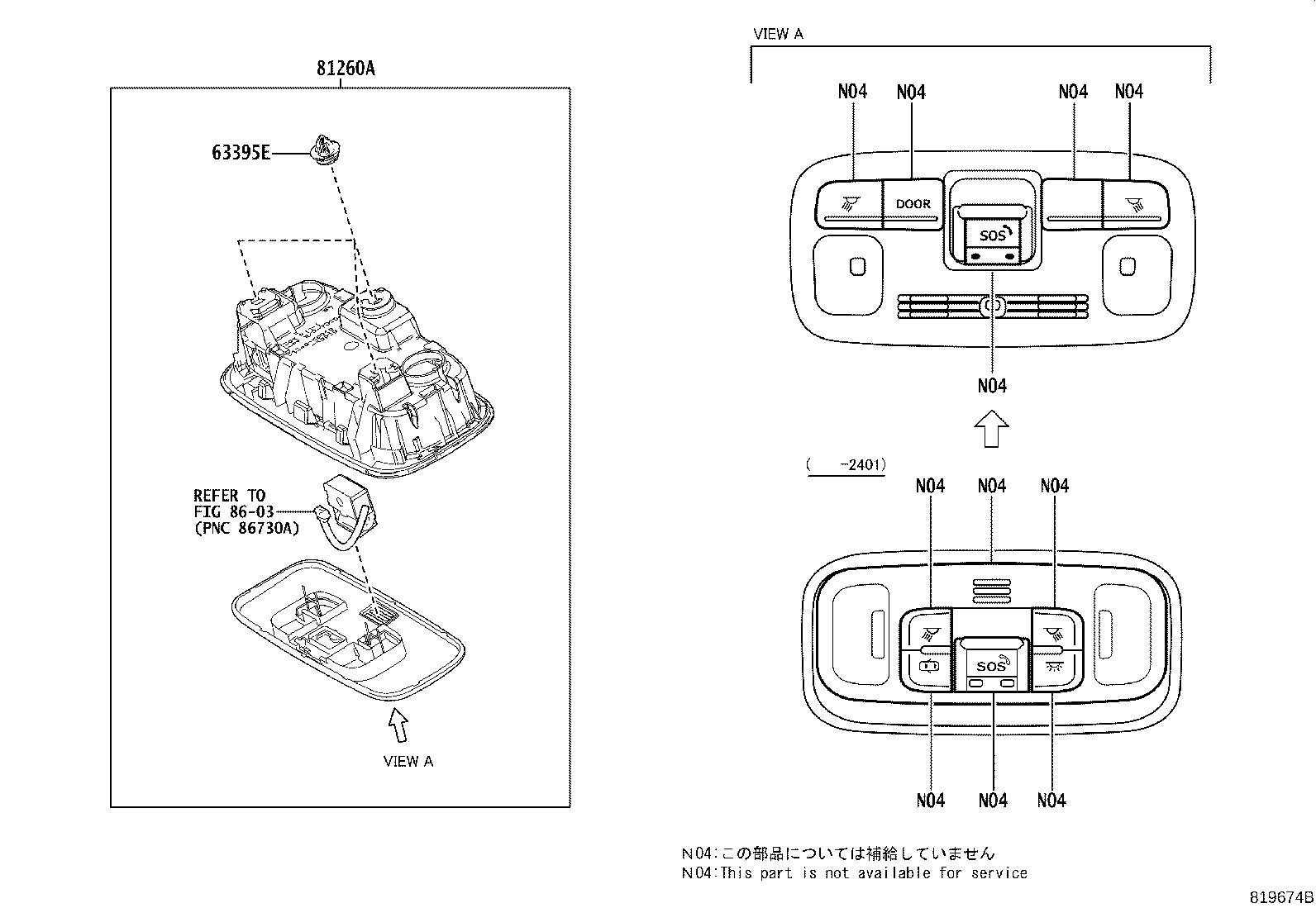

Figure 819673C 819673C 2020-08 → — Figure 819674B 819674B 2020-08 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
