Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · General
Supported model
Data version 2023-11

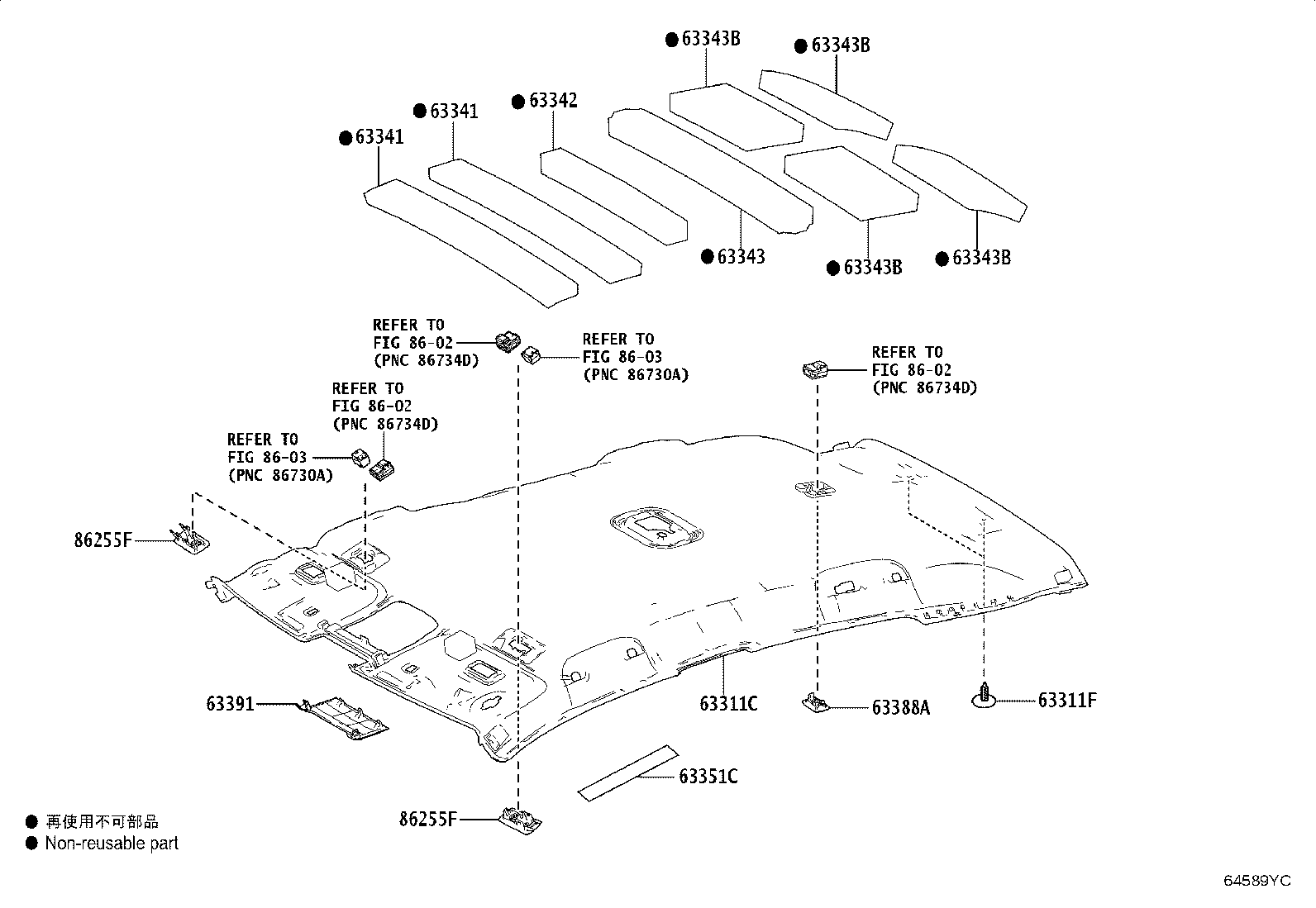

Roof Headlining & Silencer Pad
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63311C | Headlining, Roof |
| 63311F | Clip, Roof Headlining, NO.1 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63343B | Pad, Roof Silencer, Rear |
| 63351C | Pad, Roof Headlining |
| 63388A | Cover, Roof Headlining Holder |
| 63391 | Trim, Roof Headlining, Front |
| 63398 | Plate, Roof Headlining Support |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
