Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · General
Supported model
Data version 2023-11

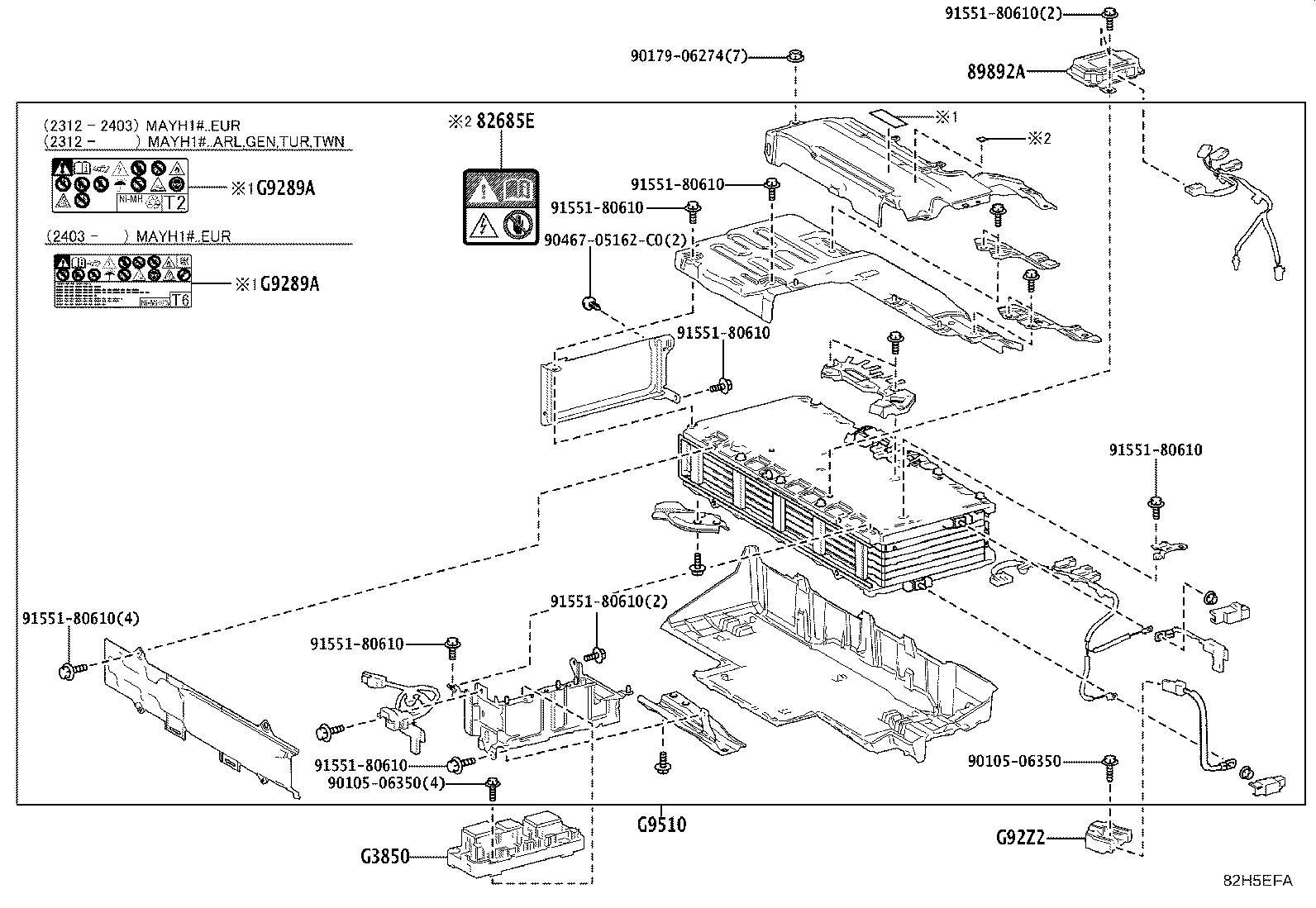

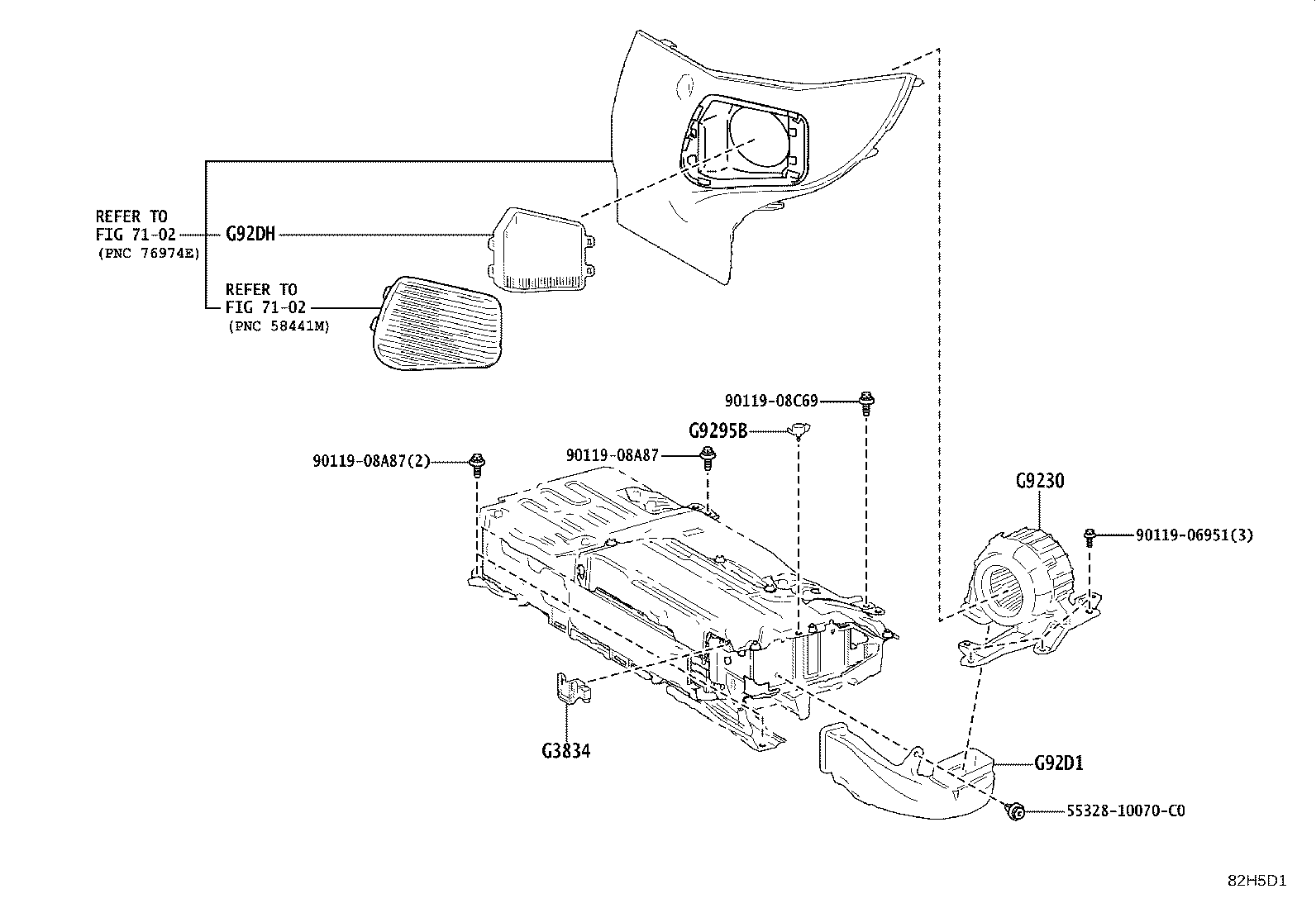

Battery & Battery Cable
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28885B | Hose, Battery |
| 82651E | Block, Terminal |
| 82670J | Block Assy, Junction |
| 82685E | Plate, Service Plug Caution |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |
| G3850 | Box Assy, Traction Battery Device, NO.1 |
| G9230 | Blower Assy, Battery Cooling |
| G9289A | Label, Battery Caution |
| G9295B | Striker, Battery Cover Lock |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
