Toyota Lexus Lbx
2024-08 → present · chassis GAYA16 · catalogue 544210 · General
Supported model
Data version 2024-08

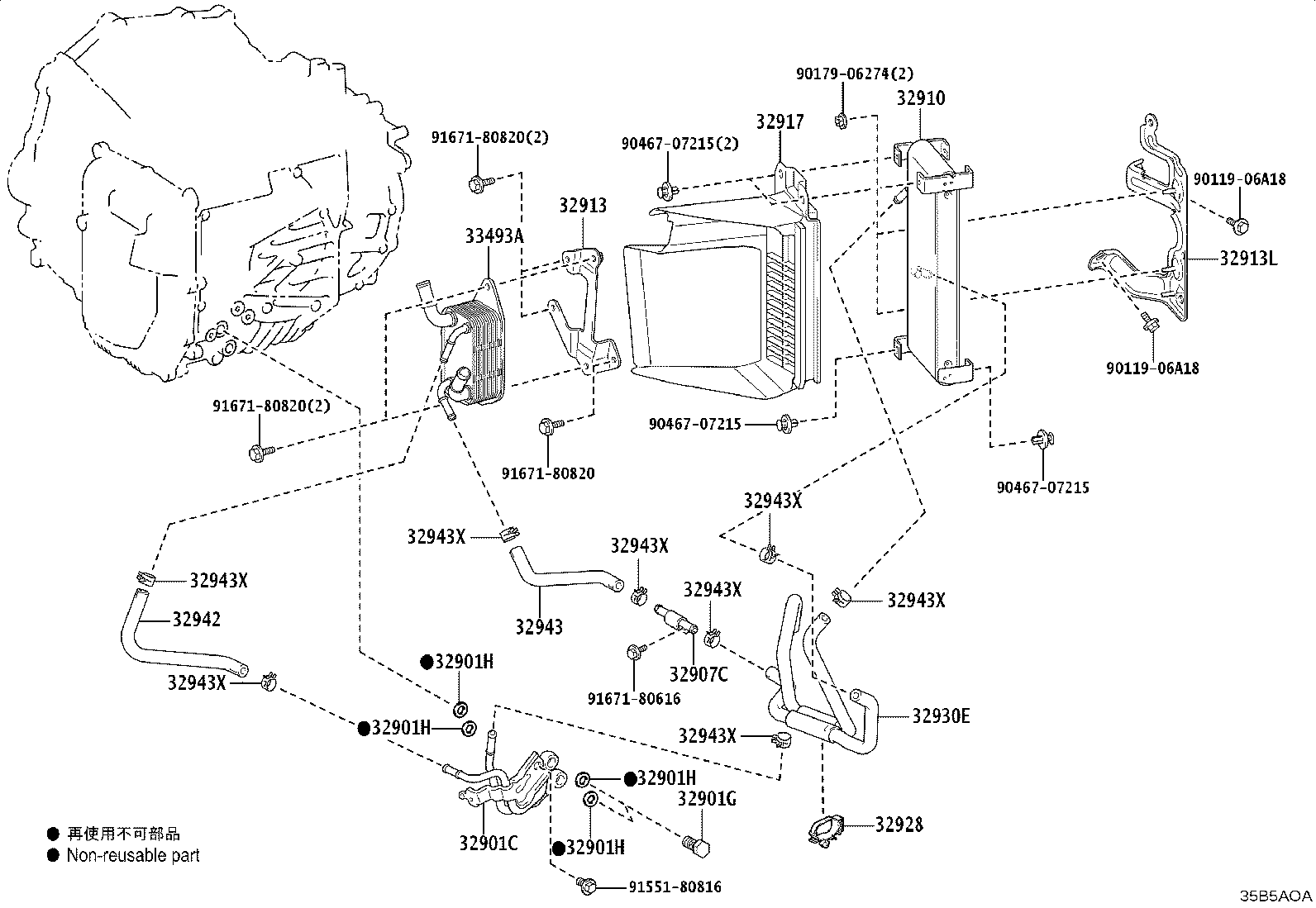

Oil Cooler & Tube (ATM)
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32901C | Union Sub-assy, Oil Cooler |
| 32901G | Bolt, Union(FOR OIL COOLER) |
| 32901H | Gasket(FOR OIL COOLER UNION) |
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32910 | Cooler Assy, Oil |
| 32913 | Bracket, Oil Cooler |
| 32913L | Bracket, Transmission Oil Cooler, NO.2 |
| 32917 | Duct, Transmission Oil Cooler Air |
| 32928 | Clamp, Flexible Hose, NO.1 |
| 32930E | Hose Assy, Transmission Oil Cooler, NO.1 |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943X | Clip, NO.7(FOR OIL COOLER TUBE) |
| 33493A | Cooler, Transmission Oil(ATF WARMER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
