Toyota Lexus Lbx
2024-08 → present · chassis GAYA16 · catalogue 544210 · General
Supported model
Data version 2024-08

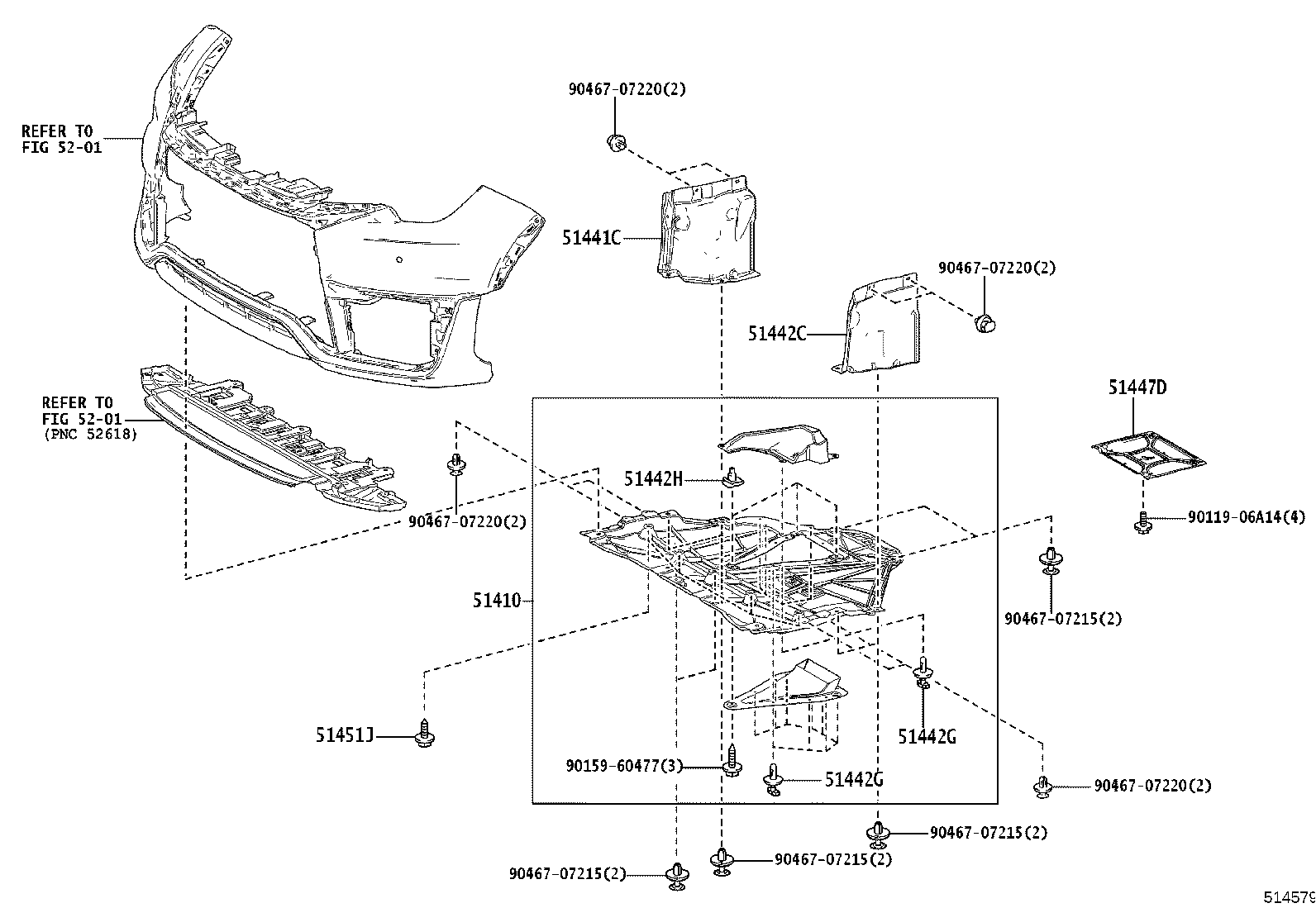

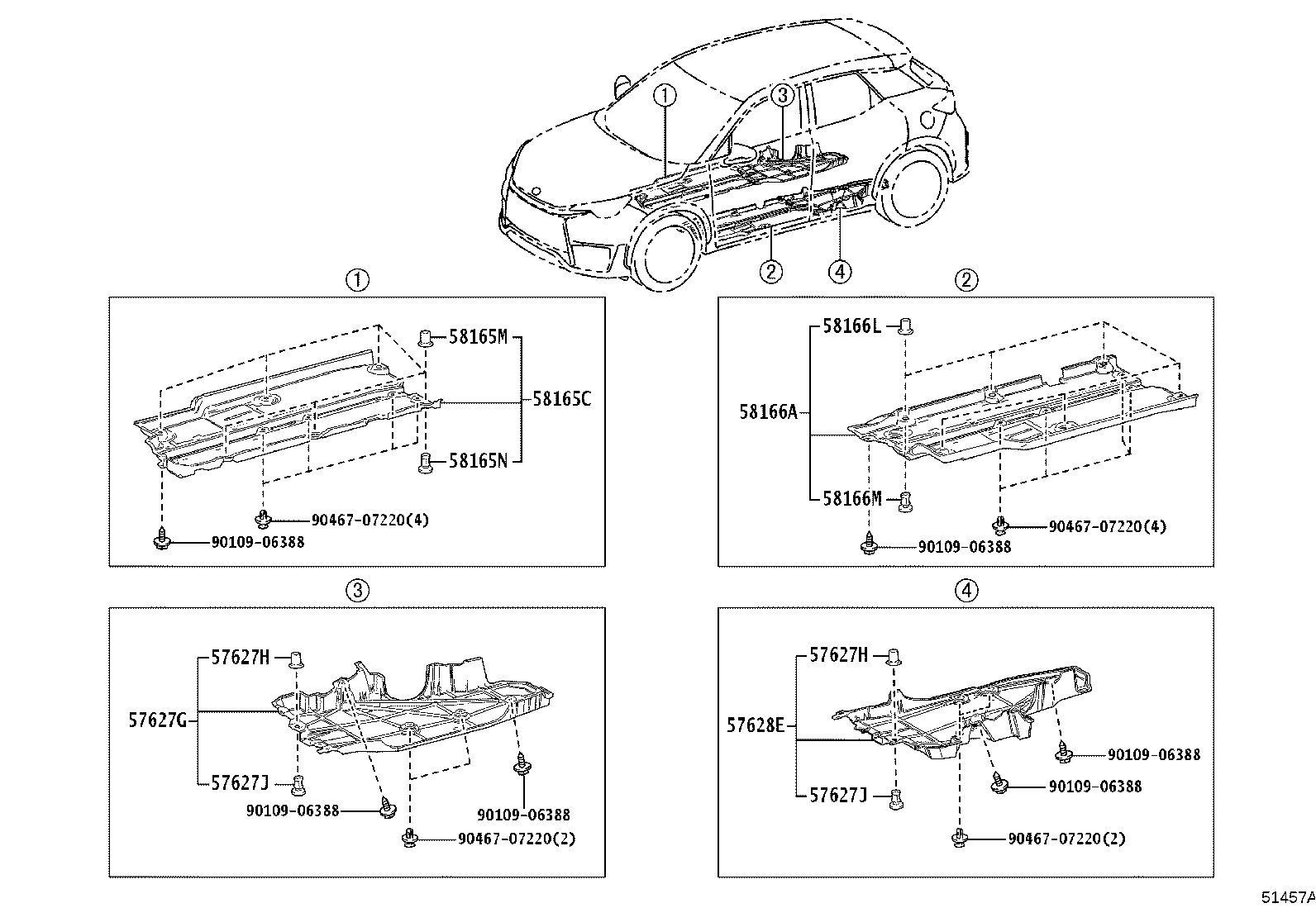

Suspension Crossmember & Under Cover
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51206A | Member Sub-assy, Rear Suspension |
| 51217A | Reinforcement, Front Suspension Member, RH |
| 51218A | Reinforcement, Front Suspension Member, LH |
| 51284 | Cover, Rear Suspension Member Hole |
| 51410 | Cover Assy, Engine Under, NO.1 |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51442H | Clip, Engine Under Cover, NO.2 |
| 51447D | Cover, Engine Under, NO.4 Center |
| 51451J | Bolt, NO.1 |
| 57627G | Cover, Rear Floor Side Member, RH |
| 57627H | Clip, Rear Floor Side Member Cover, NO.1 |
| 57627J | Clip, Rear Floor Side Member Cover, NO.2 |
| 57628E | Cover, Rear Floor Side Member, LH |
| 58165C | Cover, Front Floor, RH |
| 58165M | Clip, Front Floor Cover, NO.1 |
| 58165N | Clip, Front Floor Cover, NO.2 |
| 58166A | Cover, Front Floor, LH |
| 58166L | Clip, Front Floor Cover, NO.1 |
| 58166M | Clip, Front Floor Cover, NO.2 |
| 581A0 | Brace Assy, Front Floor Under, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
