Toyota Lexus Lbx

2024-08 → present · chassis GAYA16 · catalogue 544210 · General

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

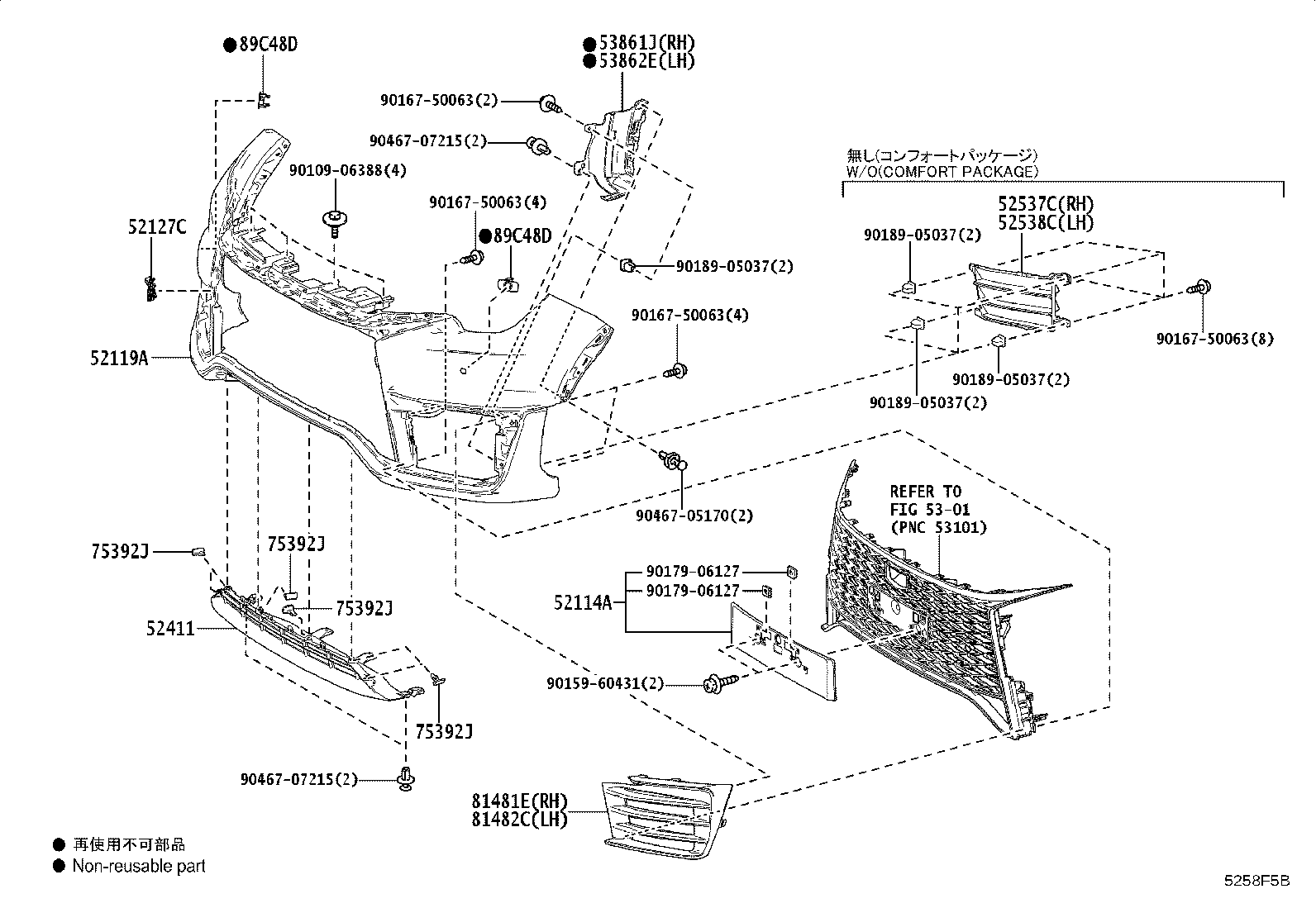

Figure 5258F3 5258F3 2024-08 → — Figure 5258F5B 5258F5B 2024-08 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119G Clip, NO.1
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52411 Guard, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535F Clip, Front Bumper Side Retainer
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53861J Duct, Front Fender Air, Upper RH
53862E Duct, Front Fender Air, Upper LH
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
