Toyota Lexus Lbx
2024-08 → present · chassis GAYA16 · catalogue 544210 · General
Supported model
Data version 2024-08
Hood & Front Fender
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53155C | Seal, Radiator Grille, NO.1 |
| 53156H | Seal, Radiator Grille, NO.2 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53807E | Seal Sub-assy, Fender Apron Mudguard, RH |
| 53808E | Seal Sub-assy, Fender Apron Mudguard, LH |
| 53811A | Panel, Front Fender, RH |
| 53812C | Panel, Front Fender, LH |
| 53821N | Bracket, Front Fender, Rear Upper RH |
| 53822K | Bracket, Front Fender, Rear Upper LH |
| 53823E | Protector, Front Side Panel, NO.2 RH |
| 53824B | Protector, Front Side Panel, NO.2 LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |

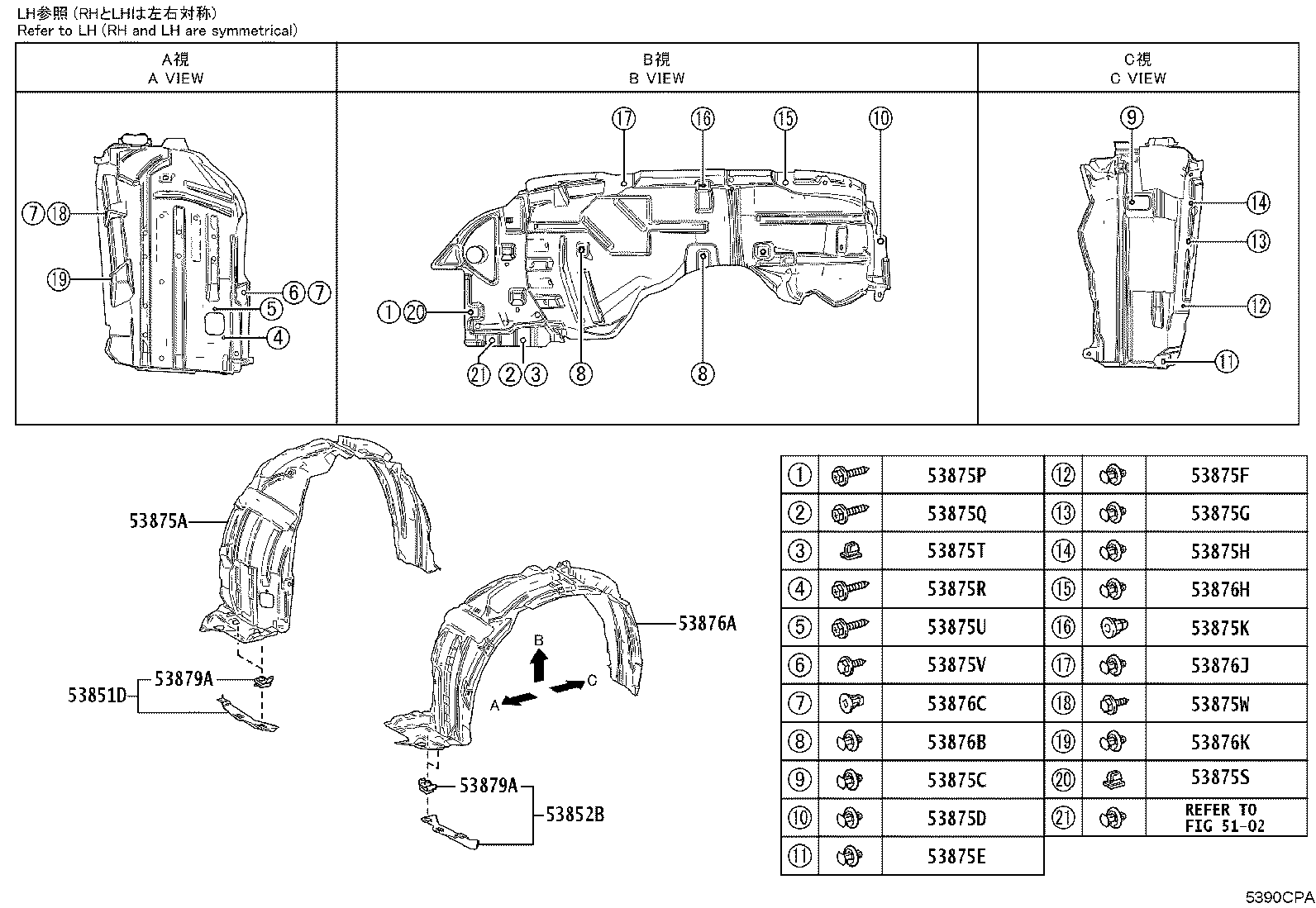

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875D | Clip, Front Fender Liner, NO.2 |
| 53875E | Clip, Front Fender Liner, NO.3 |
| 53875F | Clip, Front Fender Liner, NO.4 |
| 53875G | Clip, Front Fender Liner, NO.5 |
| 53875H | Clip, Front Fender Liner, NO.6 |
| 53875K | Grommet, Screw |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53875R | Screw, NO.3 |
| 53875S | Grommet, NO.1 |
| 53875T | Grommet, NO.2 |
| 53875U | Screw, NO.4 |
| 53875V | Screw, NO.5 |
| 53875W | Screw, NO.6 |
| 53876A | Liner, Front Fender, LH |
| 53876B | Clip, Front Fender Liner |
| 53876C | Grommet, Screw |
| 53876H | Clip, Front Fender Liner, NO.7 |
| 53876J | Clip, Front Fender Liner, NO.8 |
| 53876K | Clip, Front Fender Liner, NO.9 |
| 53879A | Retainer, Front Fender Liner |
| 65487A | Clip, Corner Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
