Toyota Lexus Lbx

2024-08 → present · chassis GAYA16 · catalogue 544210 · General

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

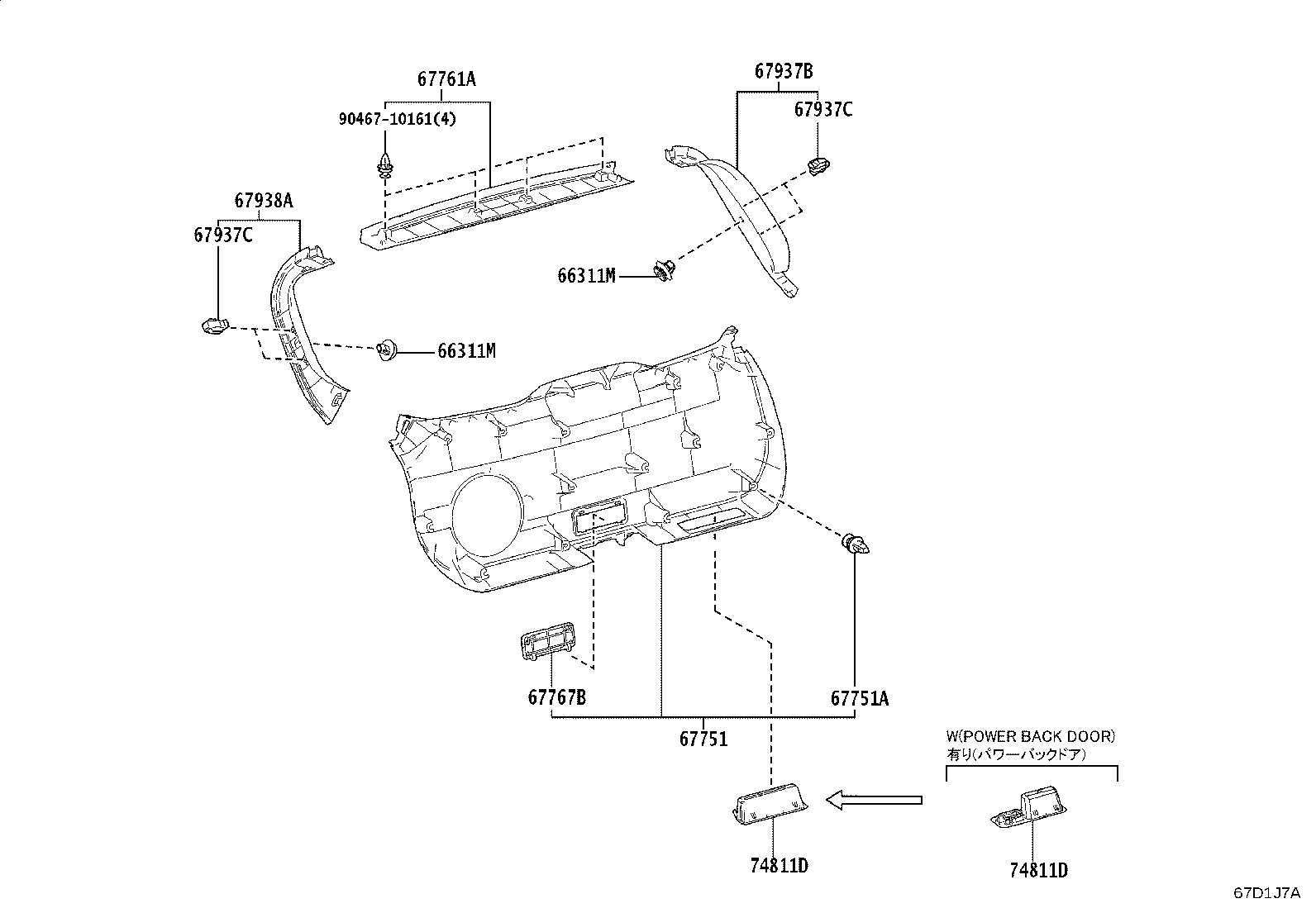

Figure 67D1J6B 67D1J6B 2024-08 → — Figure 67D1J7A 67D1J7A 2024-08 → —

Part groups

PNCDescription
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
66311M Hook, Rope
67005 Panel Sub-assy, Back Door
67005A Plug, Hole(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67761A Cover, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67767B Cover, Back Door Service Hole, NO.3
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
68294A Dam, Back Door Glass Adhesive
68294C Dam, Back Door Glass Adhesive, NO.1
74811D Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
