Toyota Lexus Lbx
2024-08 → present · chassis GAYA16 · catalogue 544210 · General
Supported model
Data version 2024-08

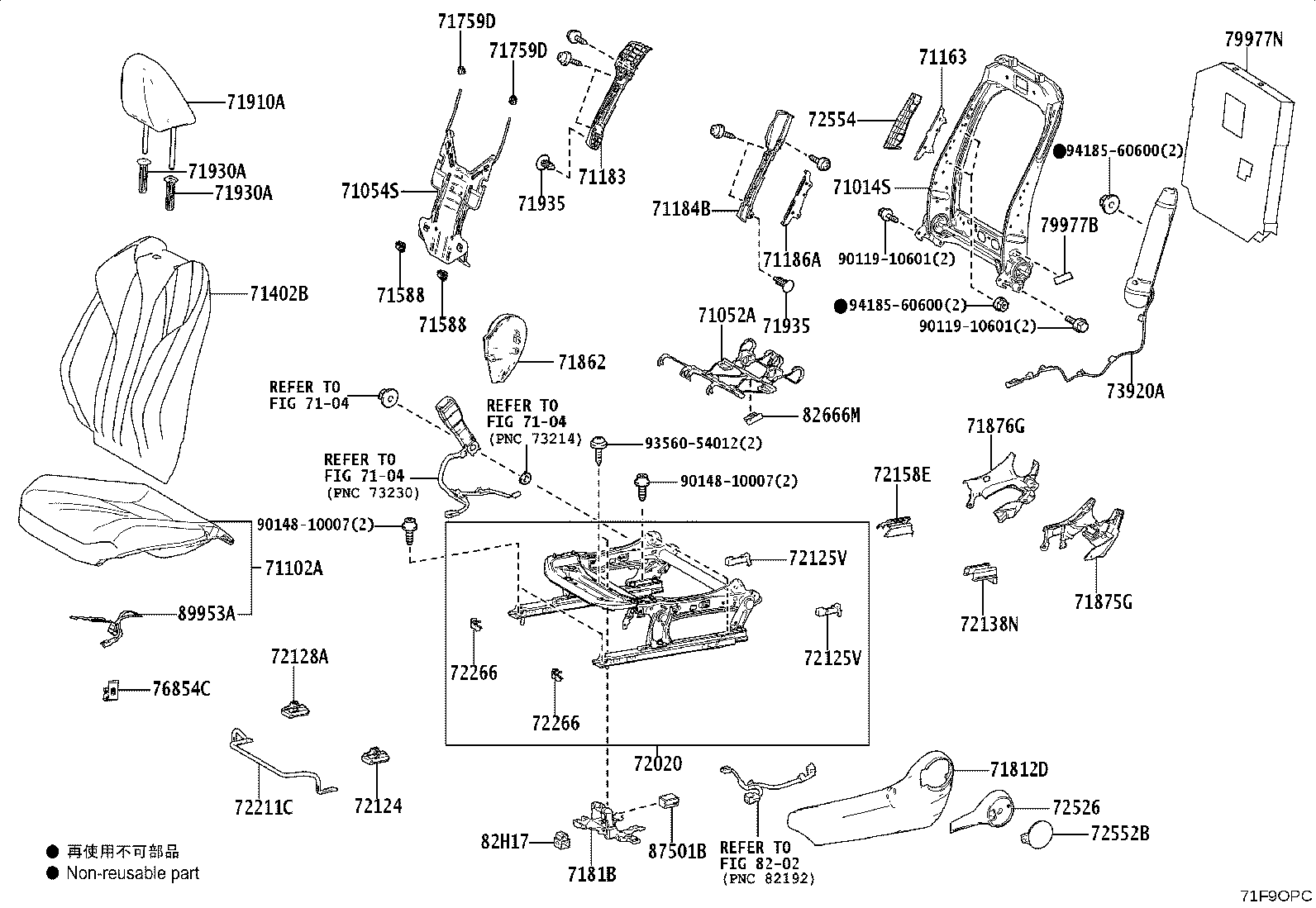

Front Seat & Seat Track
73 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71101C | Seat Sub-assy, Front RH |
| 71102A | Seat Sub-assy, Front LH |
| 71163 | Bracket, Front Seatback Support, RH |
| 71164A | Bracket, Front Seatback Support, LH |
| 71183 | Support, Front Seatback, RH |
| 71184B | Support, Front Seatback, LH |
| 71186 | Bracket, Front Seat Side Support, RH |
| 71186A | Bracket, Front Seat Side Support, LH |
| 71401A | Back Sub-assy, Front Seat, RH |
| 71402B | Back Sub-assy, Front Seat, LH |
| 71587 | Protector, Front Seatback Edge |
| 71588 | Protector, Front Seatback Edge, NO.2 |
| 71759C | Hook, Front Seatback, NO.1 |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181A | Holder, Front Seat Cushion Wire Harness, RH |
| 7181B | Holder, Front Seat Cushion Wire Harness, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867V | Shield, Front Seat Cushion, Front RH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71930A | Support Assy, Front Seat Headrest |
| 71935 | Clip |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72106B | Rail Sub-assy, Seat Track, Upper RH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72125U | Cover, Seat Track, Upper Rear RH |
| 72125V | Cover, Seat Track, Upper Rear LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72138N | Cover, Seat Track Bracket, Outer Rear LH |
| 72157F | Cover, Seat Track Bracket, Inner Rear RH |
| 72158E | Cover, Seat Track Bracket, Inner Rear LH |
| 72211C | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72552B | Cover, Reclining Hinge, LH |
| 72553B | Protector, Reclining Cover, RH |
| 72553M | Protector, Reclining Cover, RH, NO.2 |
| 72554 | Protector, Reclining Cover, LH |
| 72713 | Bracket, Seat Adjuster Shield Clamp, RH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 76854C | Retainer, Front Seat Cushion Cover |
| 79977B | Felt, Seatback Frame |
| 79977G | Felt, Front Seatback, RH |
| 79977N | Felt, Seatback |
| 79977X | Felt, Seatback, RH |
| 82666M | Holder, Connector |
| 82H17 | Protector, Wiring Harness, RH |
| 85821K | Motor Assy, Power Seat Tilt, RH |
| 85821L | Motor Assy, Power Seat Lifter, RH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
| 89953A | Sensor, Belt Warning Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
