Toyota Lexus Lbx
2024-08 → present · chassis GAYA16 · catalogue 544210 · General
Supported model
Data version 2024-08
Interior Lamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |

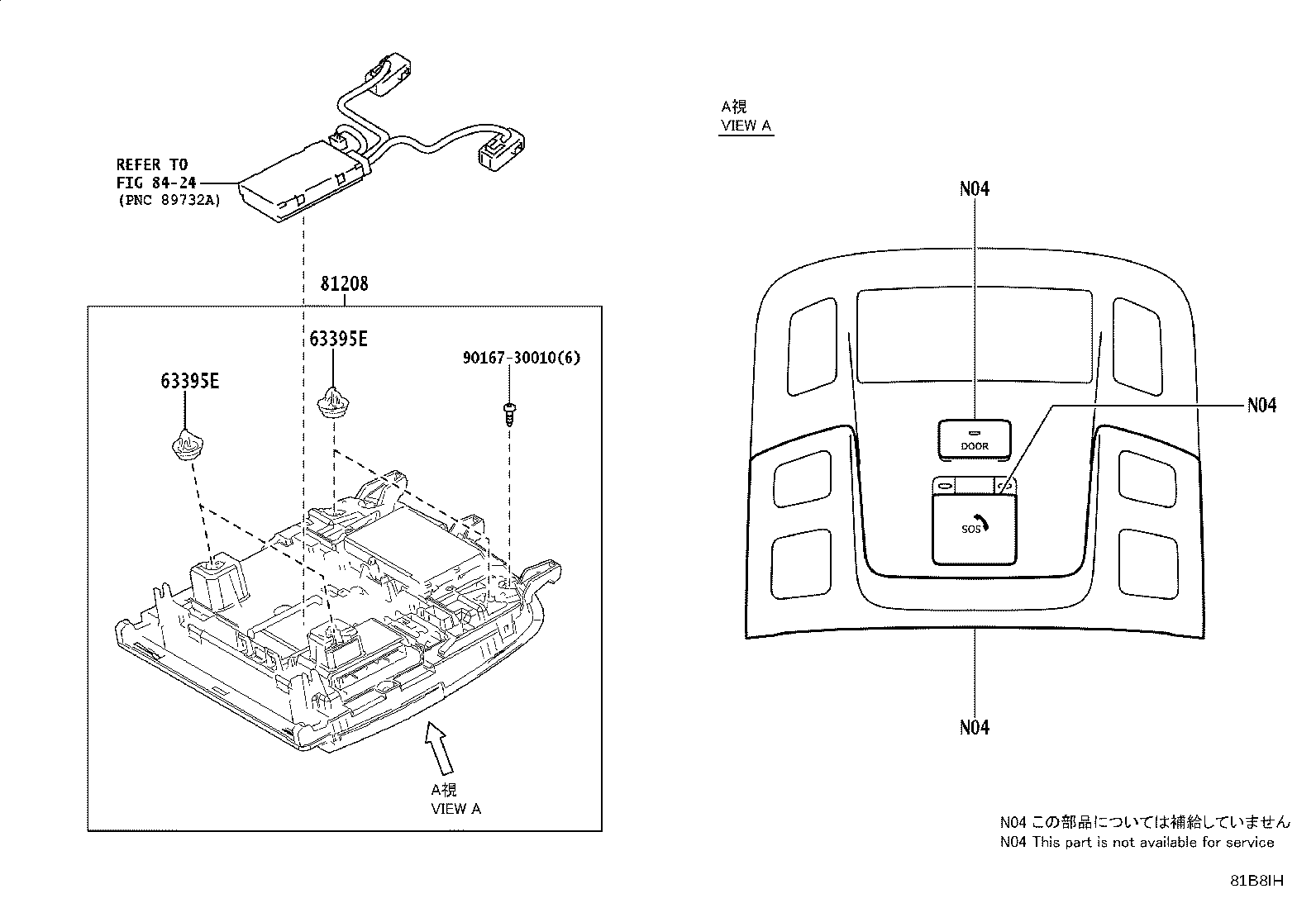

| 81208 | Lamp Sub-assy, Map |
| 81240 | Lamp Assy, Room, NO.1 |
| 81260 | Lamp Assy, Glove Box |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
