Toyota Lexus Lbx
2024-08 → present · chassis GAYA16 · catalogue 544210 · General
Supported model
Data version 2024-08
Wiring & Clamp
81 part groups · 12 illustrations

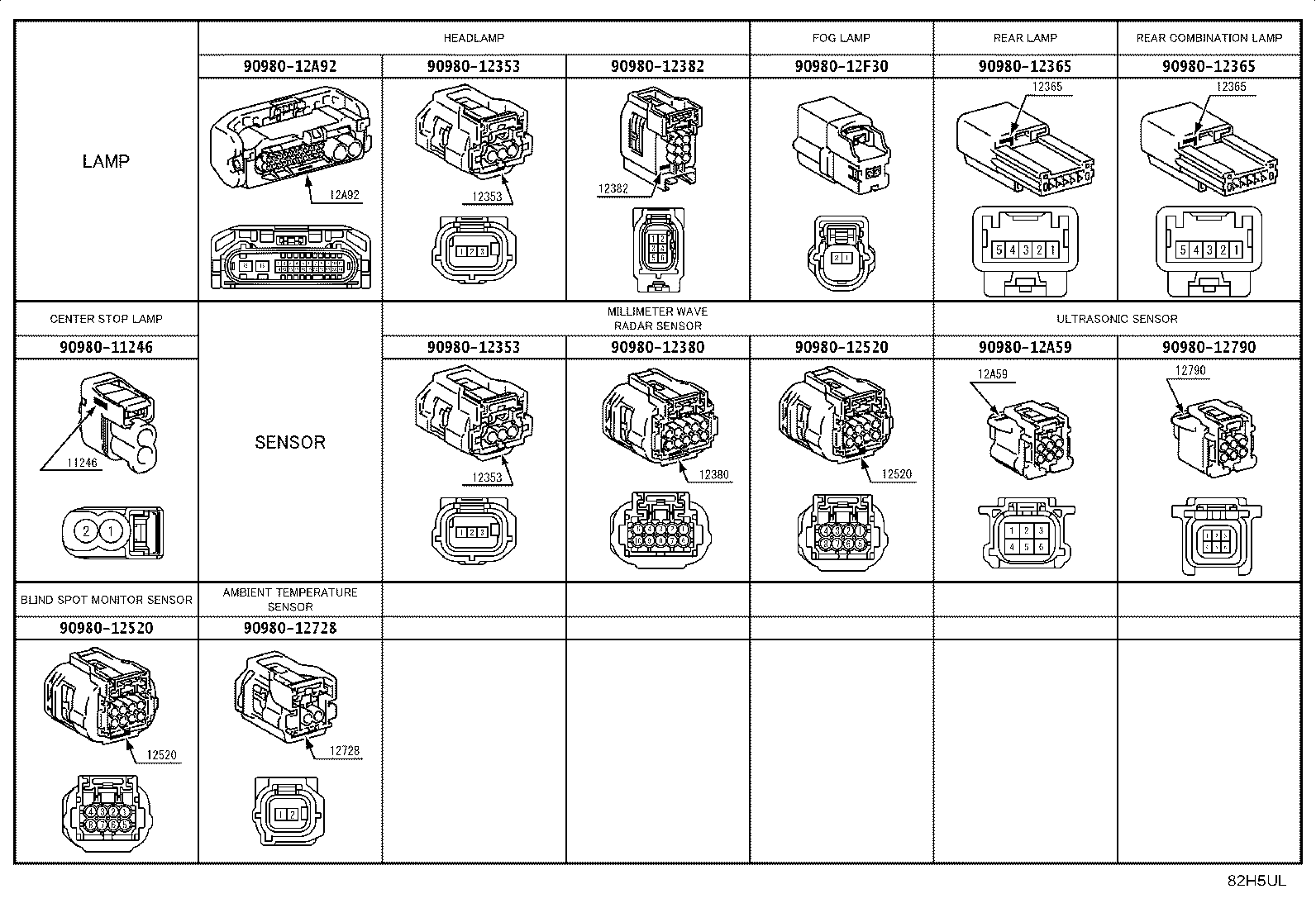

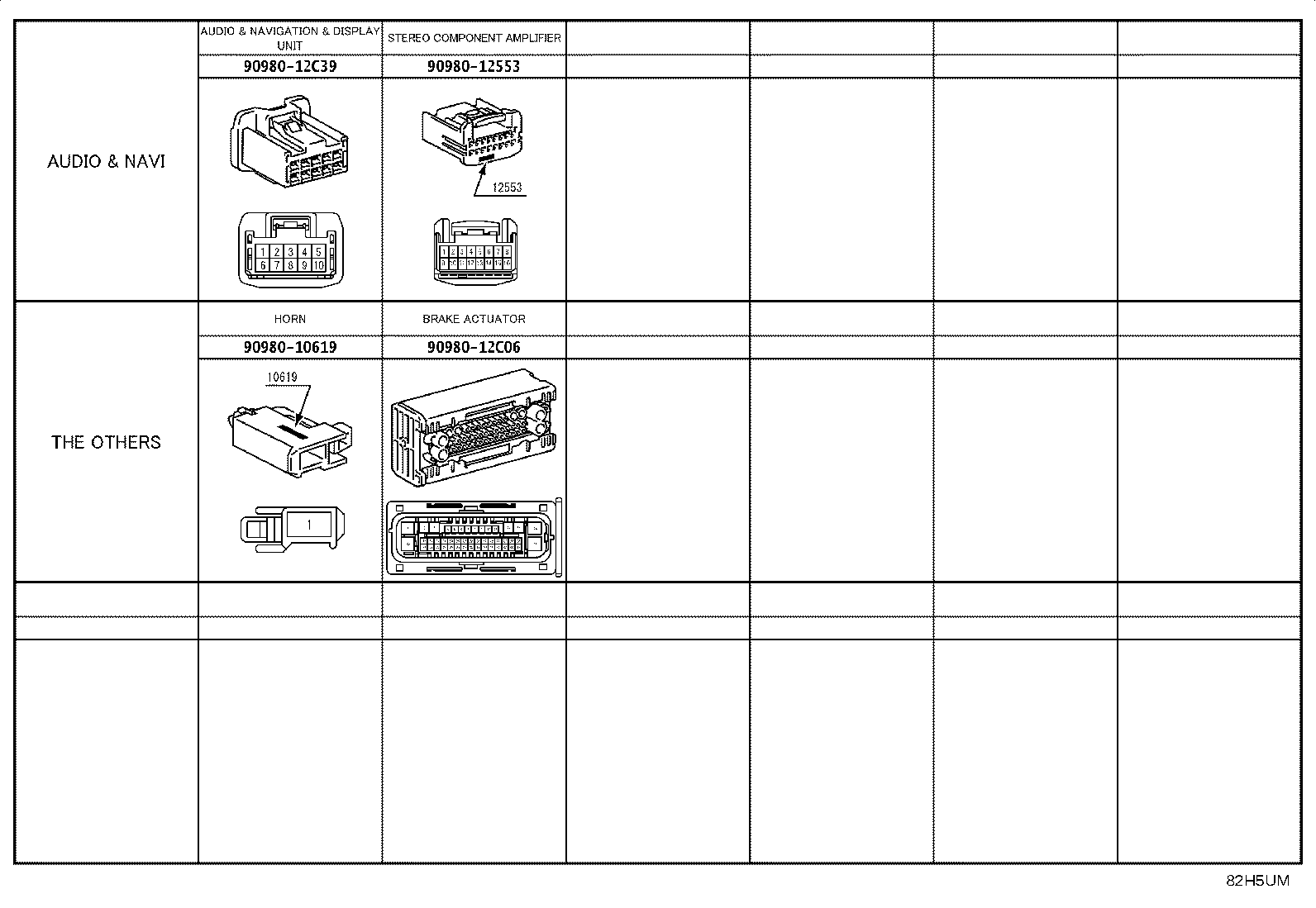

Illustrations
Part groups

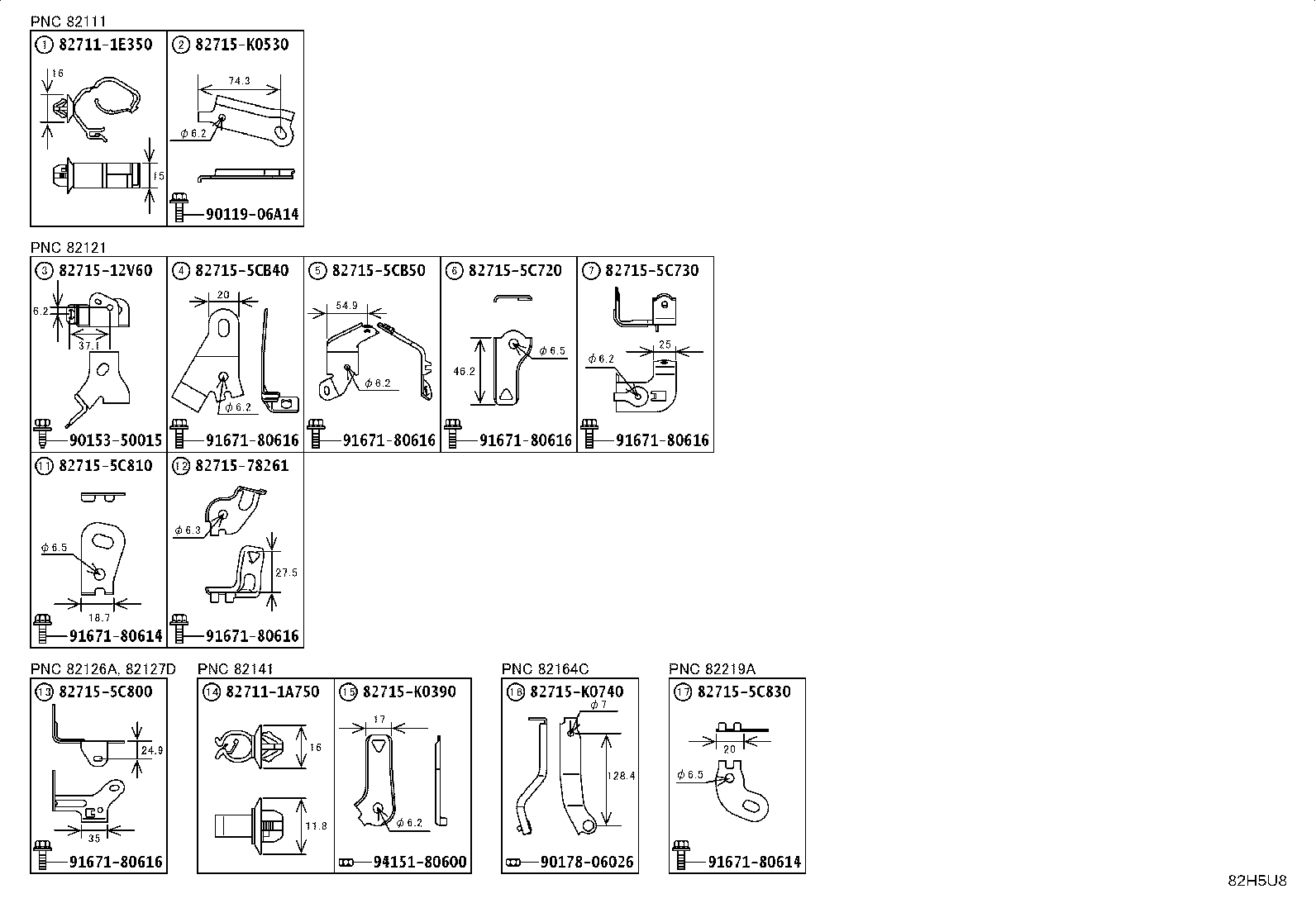

| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |

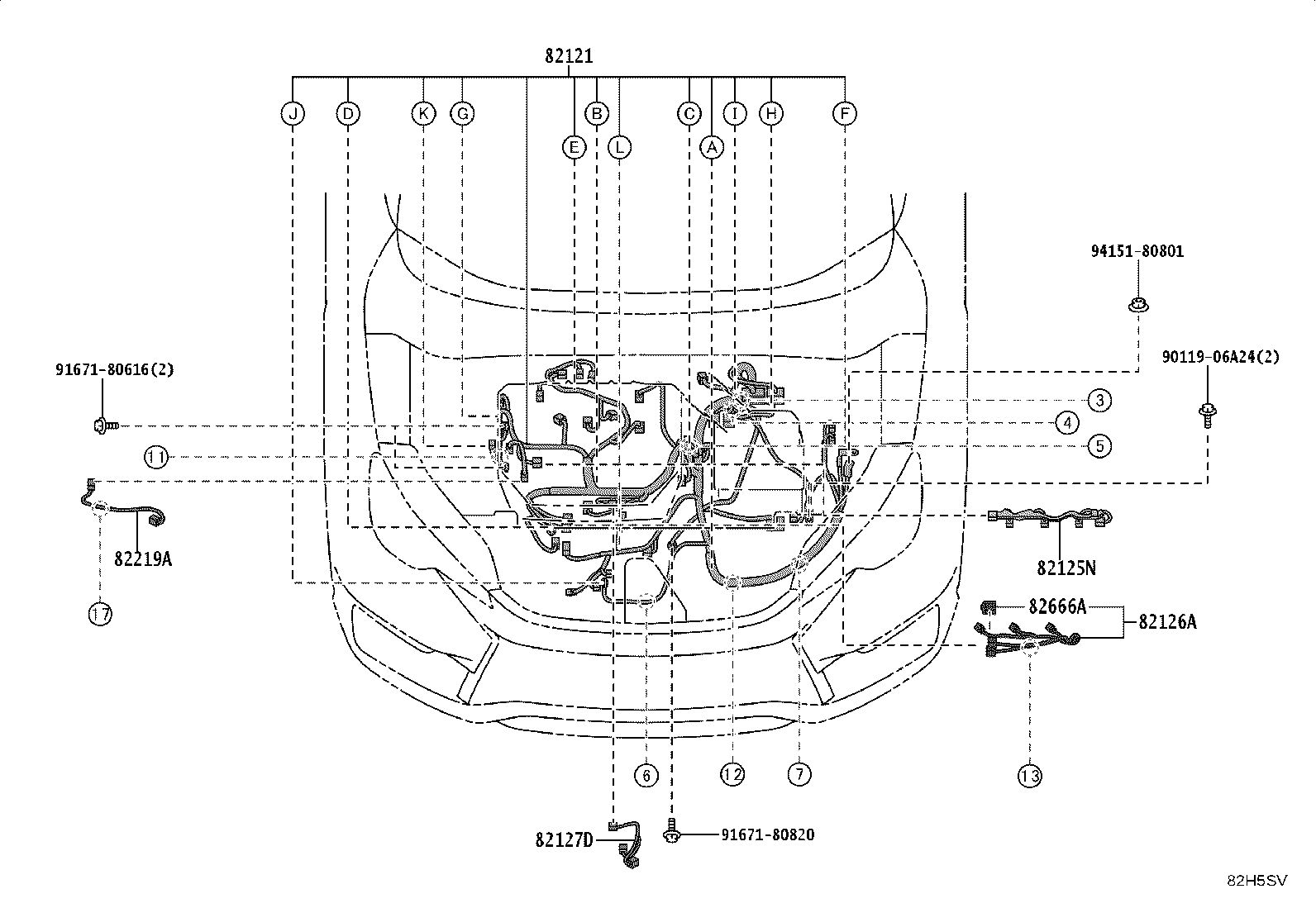

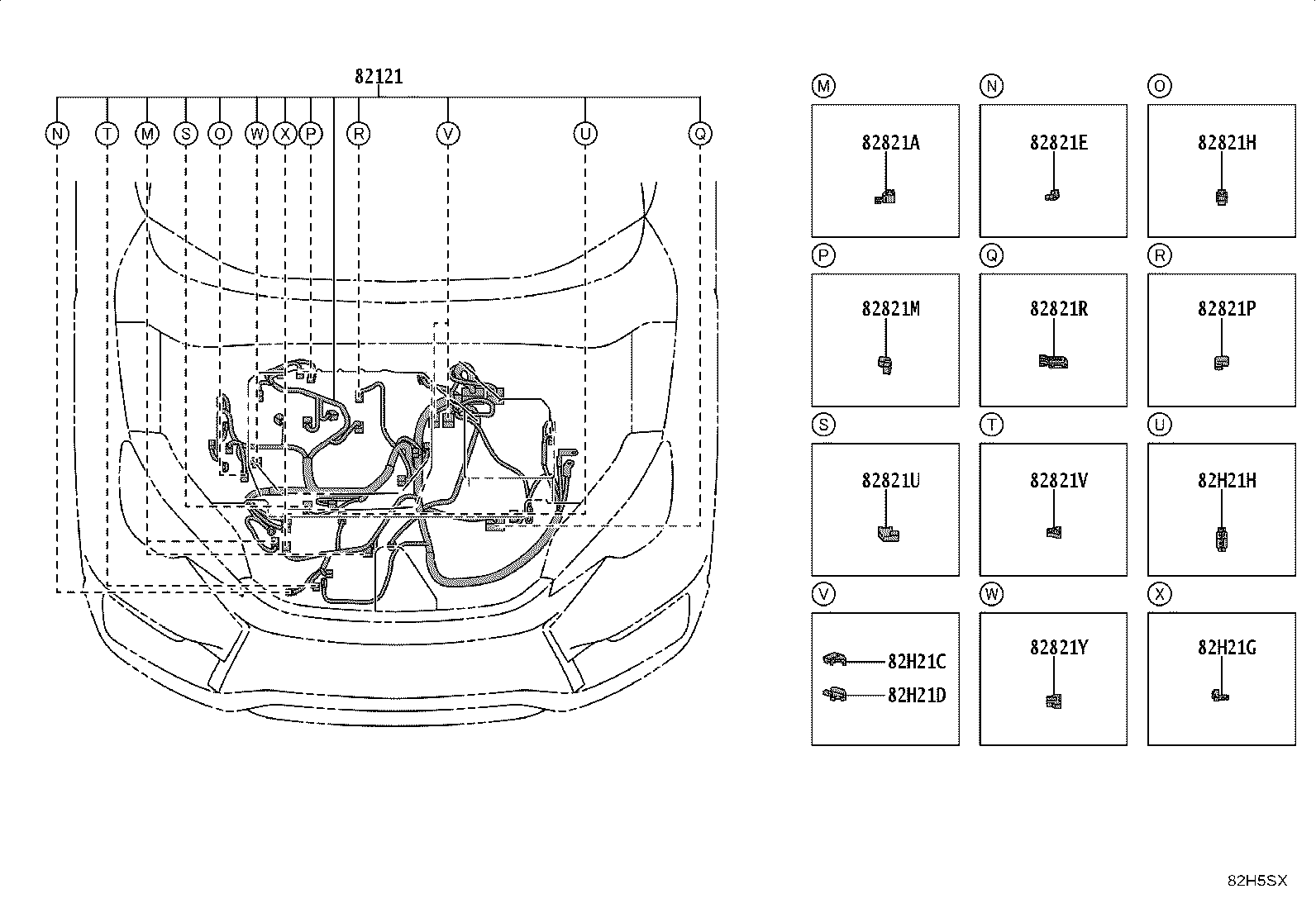

| 82121 | Wire, Engine |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |

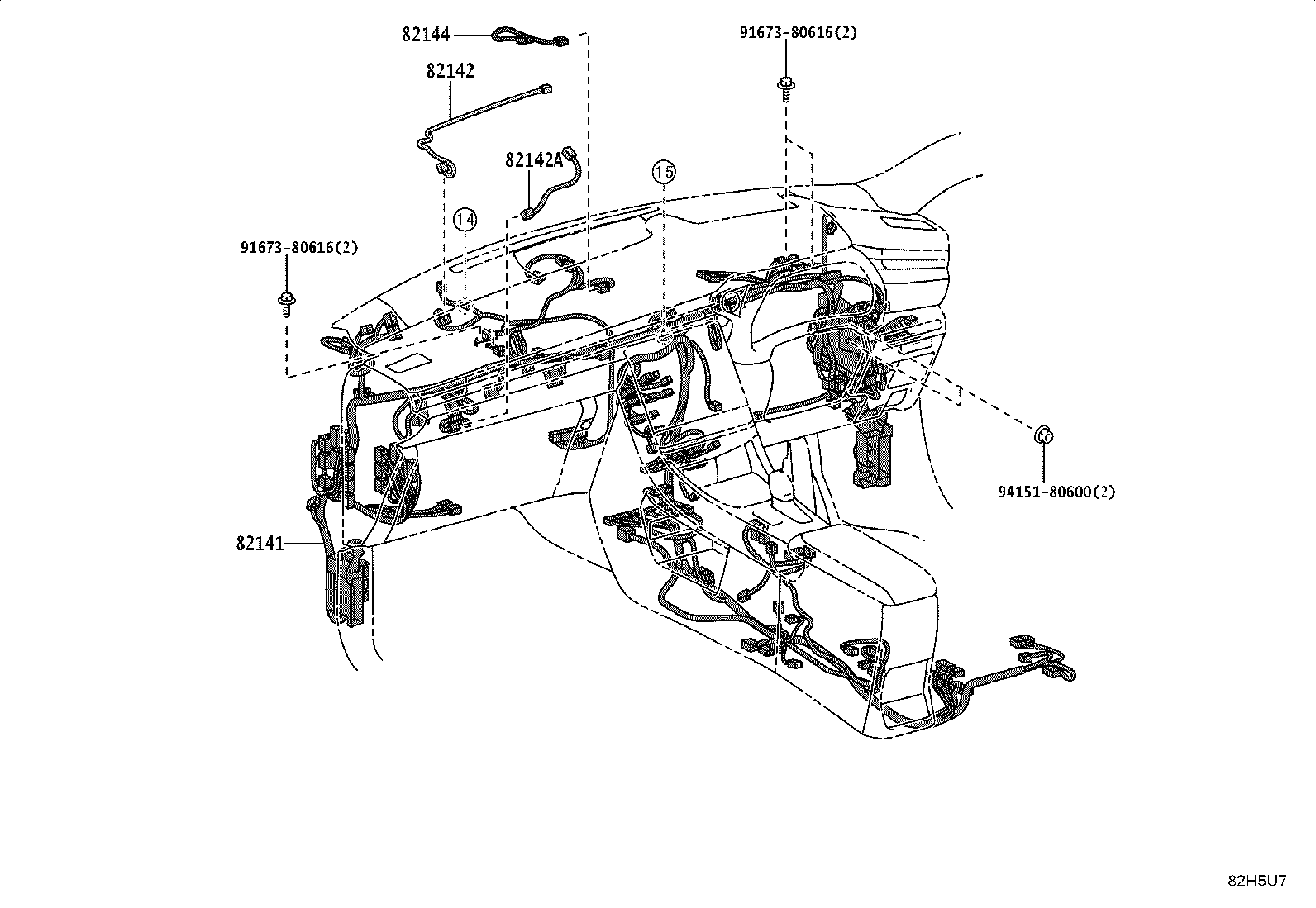

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82144 | Wire, Instrument Panel, NO.4 |

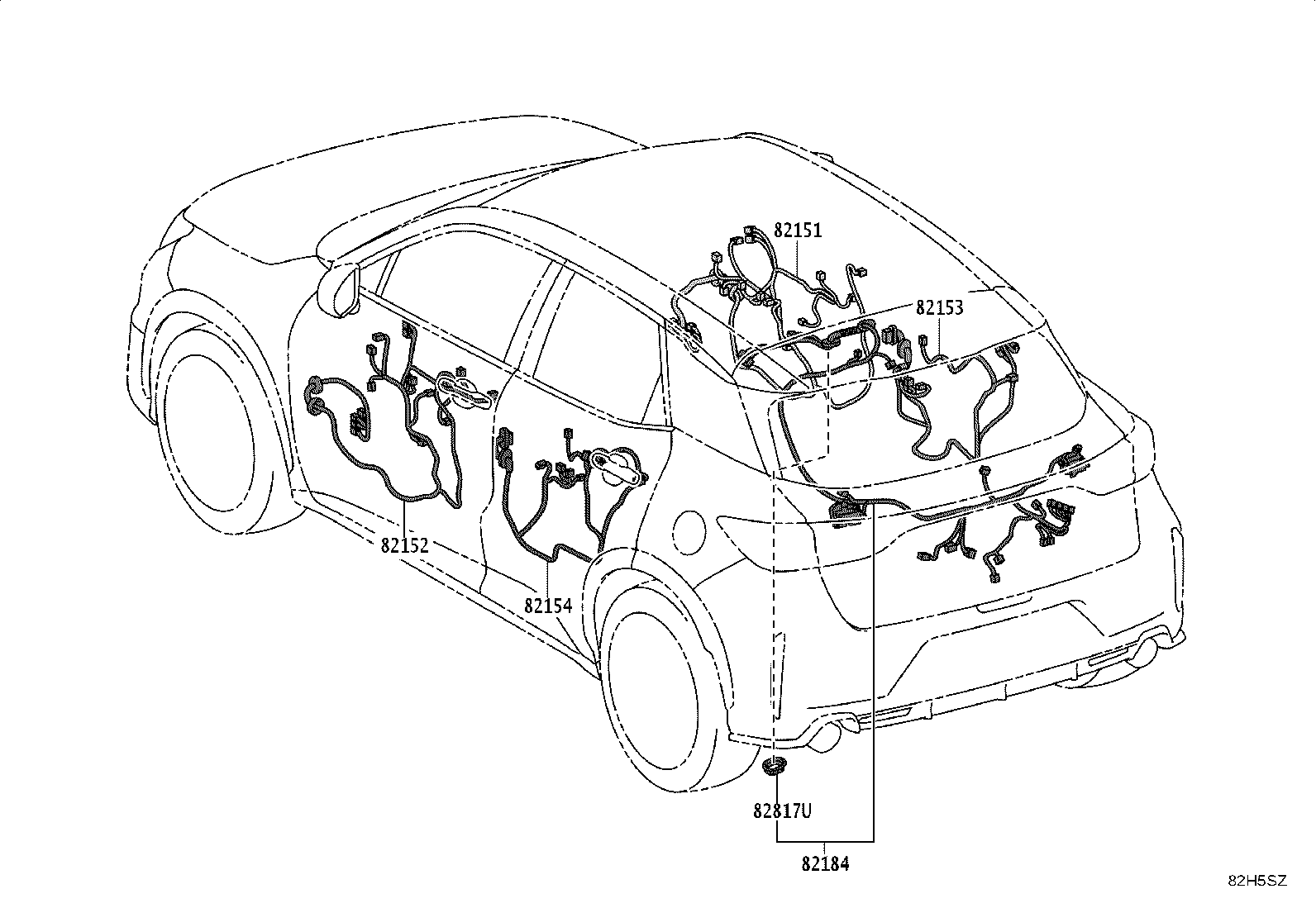

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

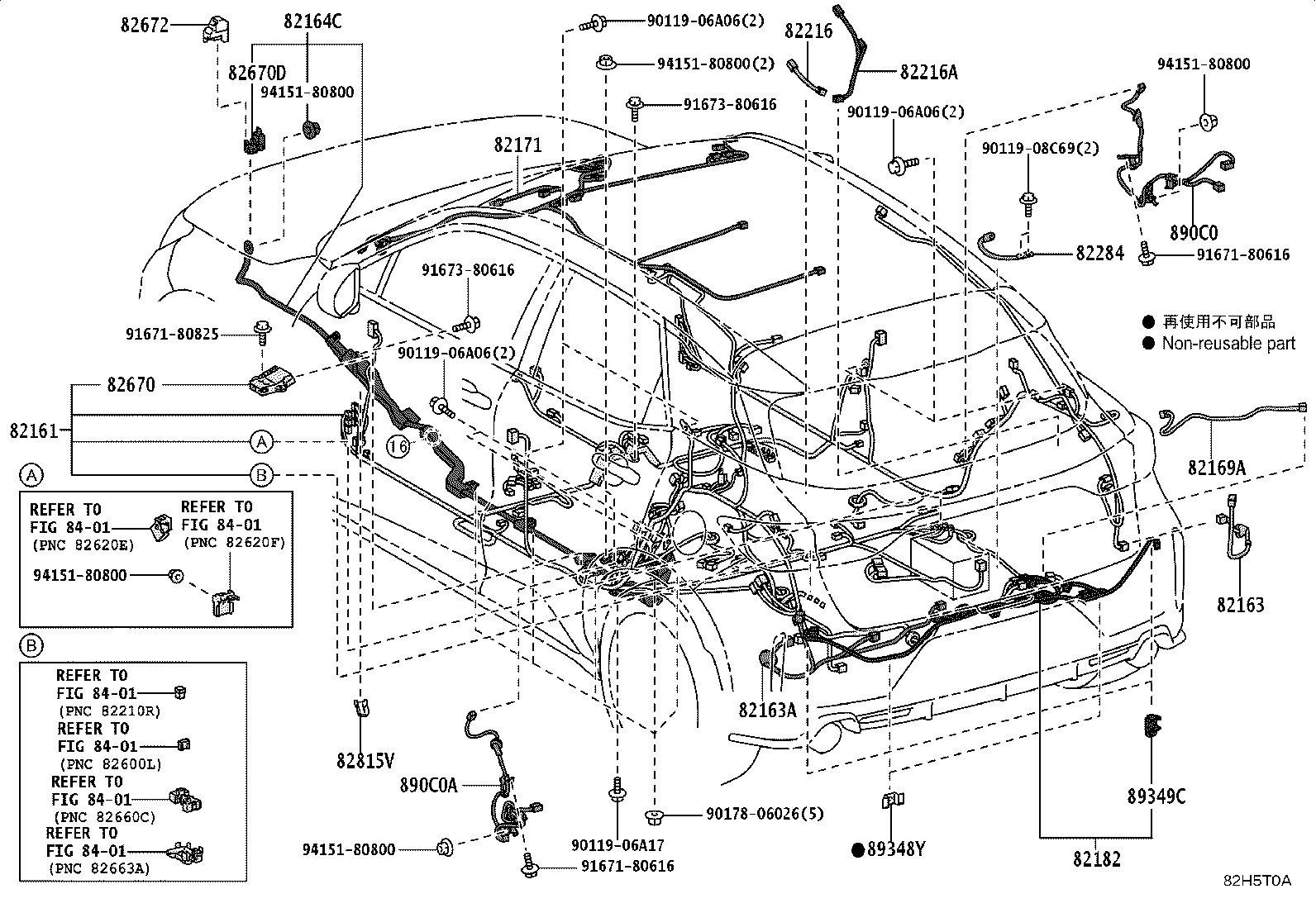

| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82163A | Wire, Floor, NO.4 |
| 82164C | Wire, Floor, NO.4 |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82184 | Wire, Back Door, NO.1 |

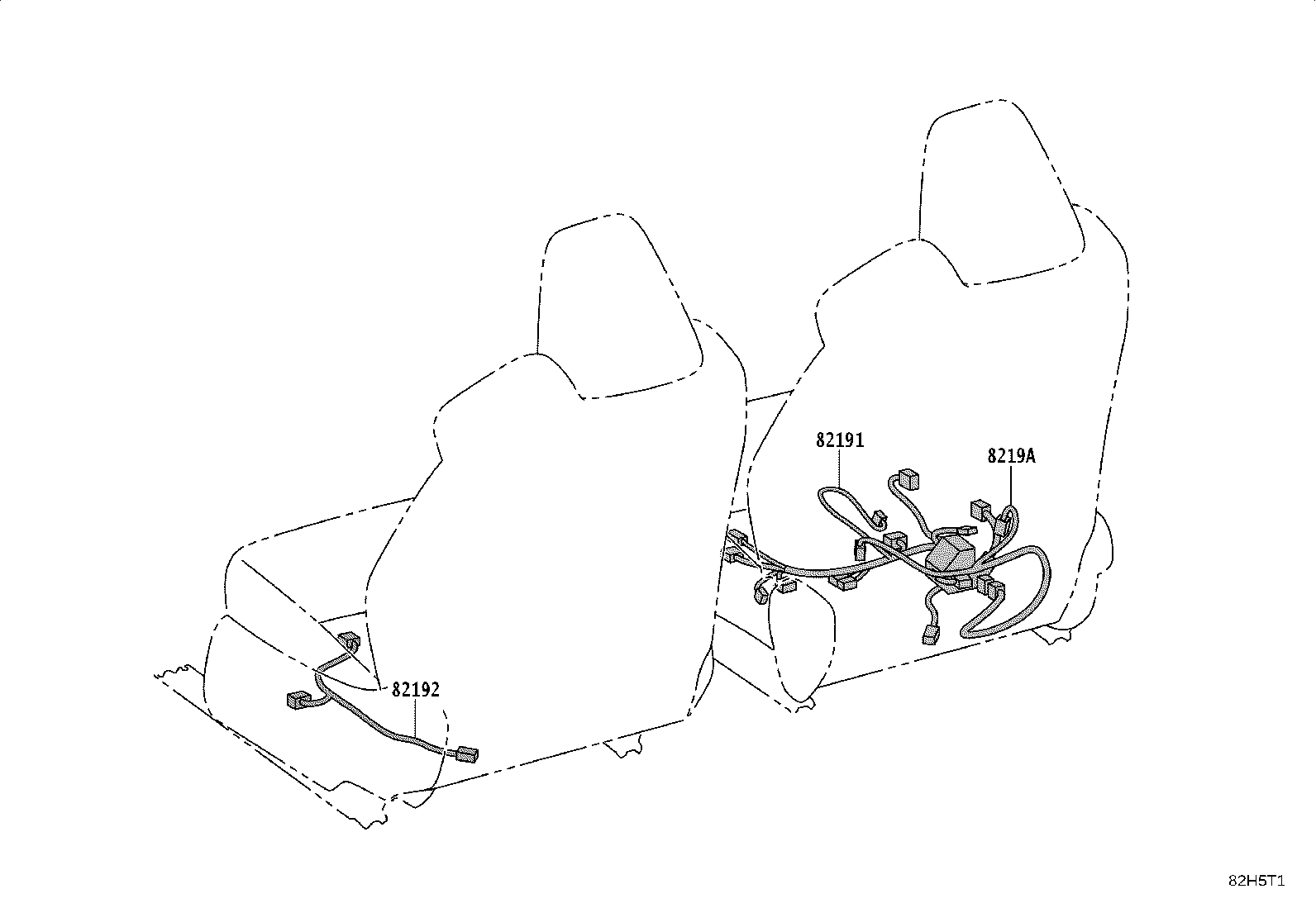

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 82216 | Wire, Rear Window Defogger |
| 82216A | Wire, Rear Window Defogger |
| 82219A | Wire, Sensor |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82670 | Block Assy, Junction, NO.1 |
| 82670D | Block Assy, Junction,NO.2 |
| 82672 | Cover, Junktion Block |

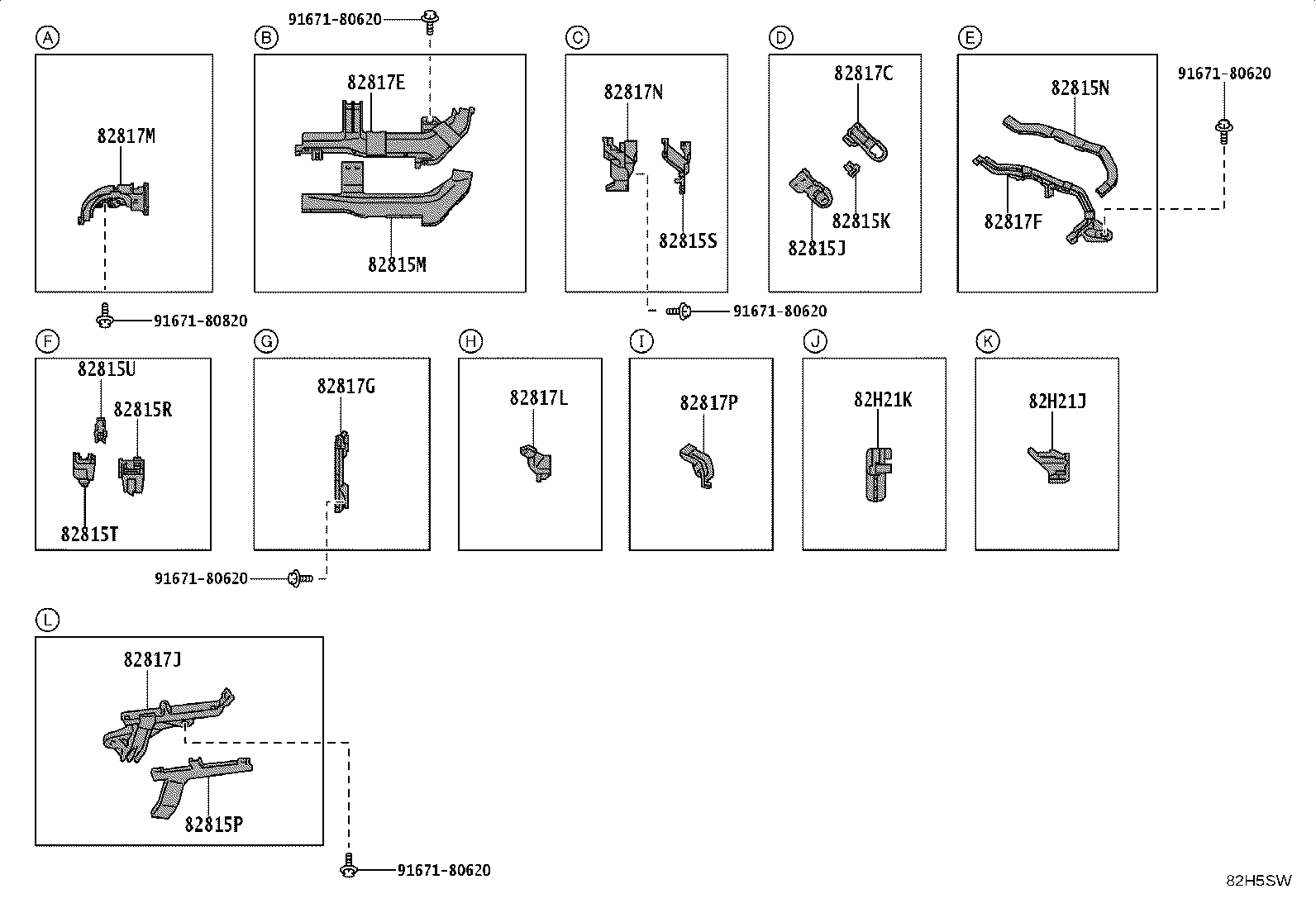

| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |

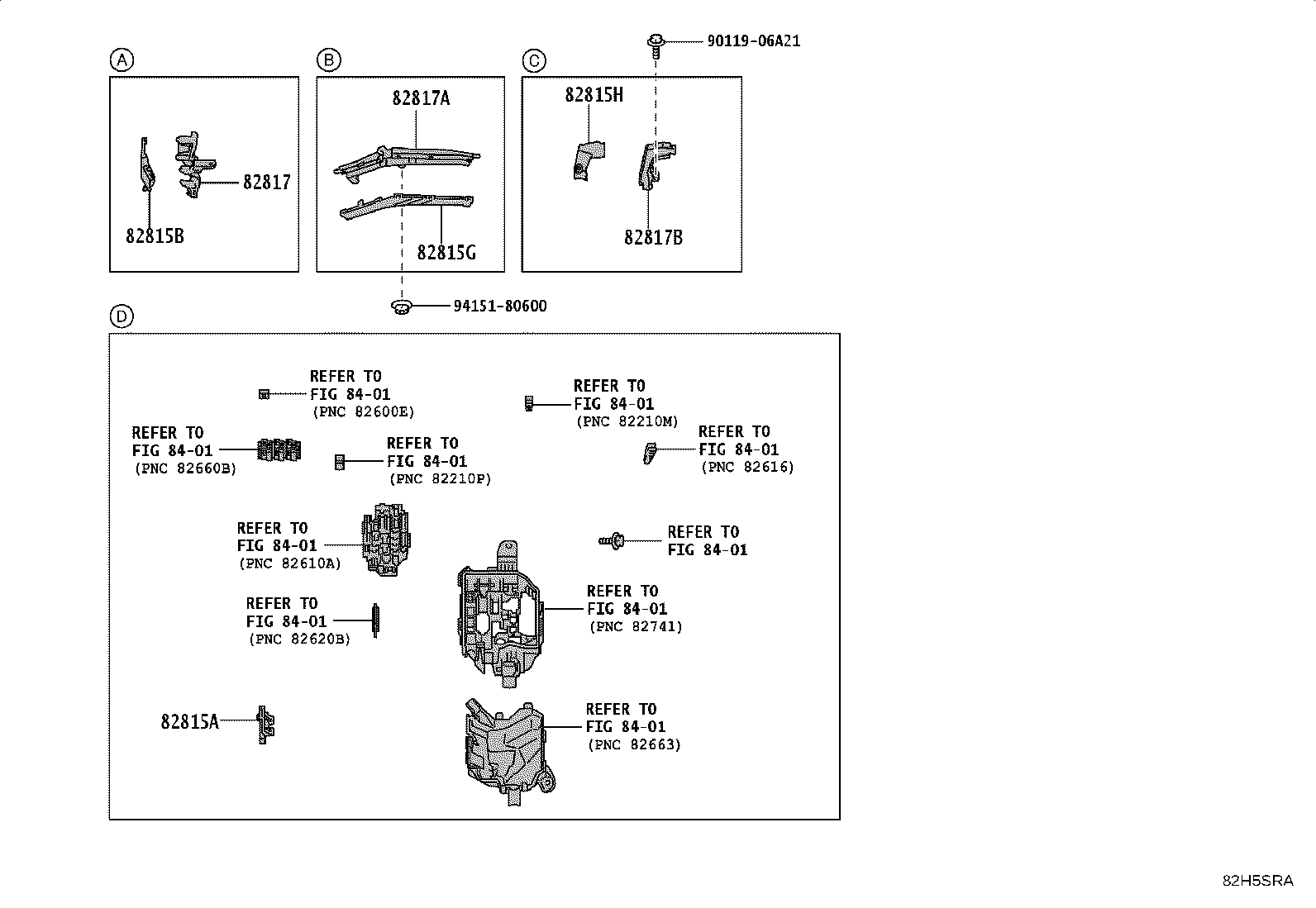

| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821Y | Cover, Connector |
| 82H21C | Cover, Connector |
| 82H21D | Cover, Connector |
| 82H21G | Cover, Connector |
| 82H21H | Cover, Connector |
| 82H21J | Cover, Connector |
| 82H21K | Cover, Connector |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| 89348X | Clip, Ultrasonic Sensor, Front |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
| 89349C | Clip, Ultrasonic Sensor, Rear NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
