Toyota Lexus Lbx

2024-08 → present · chassis GAYA16 · catalogue 544210 · General

Supported model Data version 2024-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

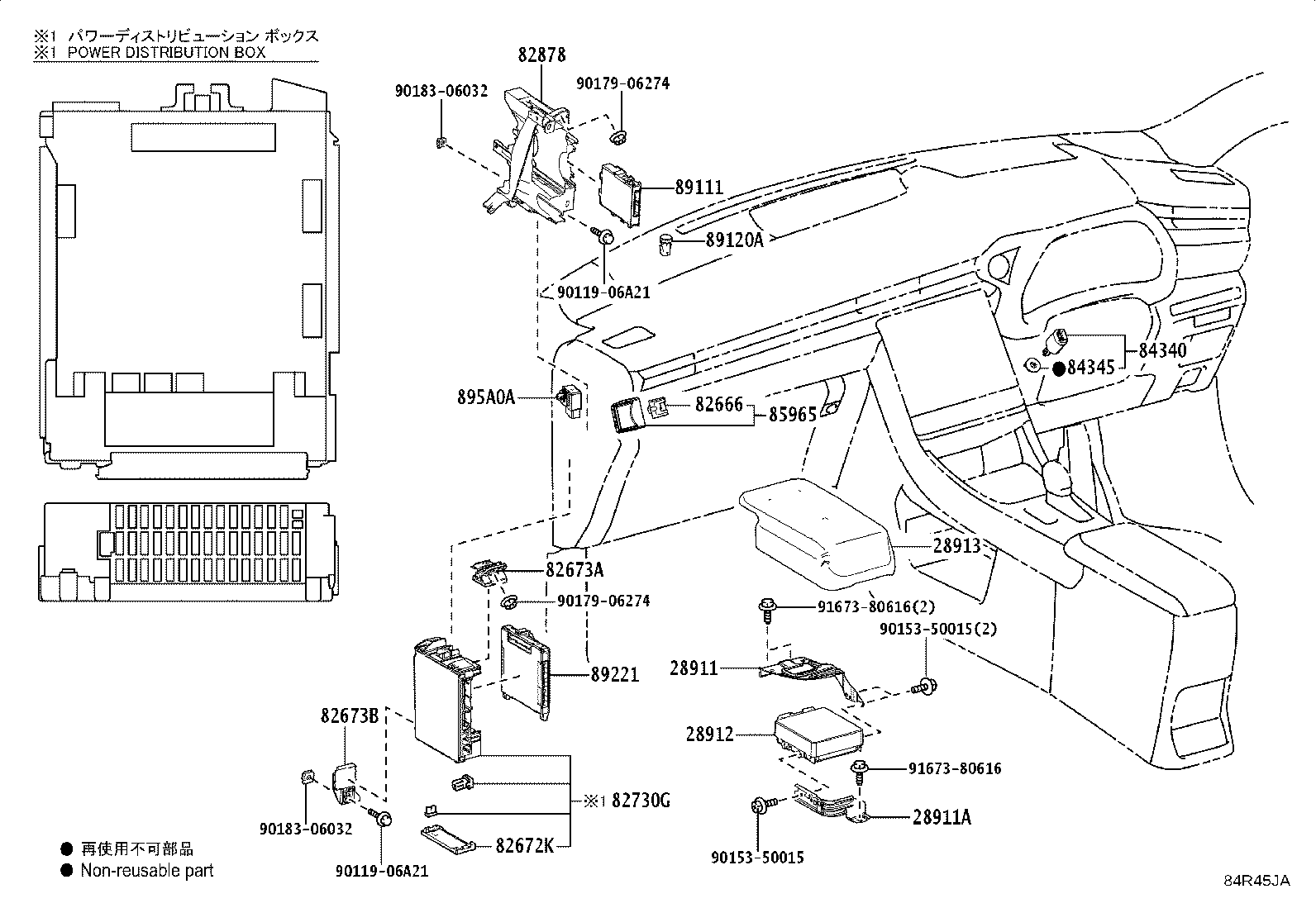

99 part groups · 10 illustrations

Illustrations

Part groups

PNC	Description
28300	Relay Assy, Starter
28371L	Relay, Igp
28850C	Sensor Assy, Battery State
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
28913	Cover, Integration Control
82210M	Fusible Link
82210P	Engine Room Fusible Link
82210R	Luggage Room Fusible Link
82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82610A	Block Assy, Fuse
82616	Puller, Fuse

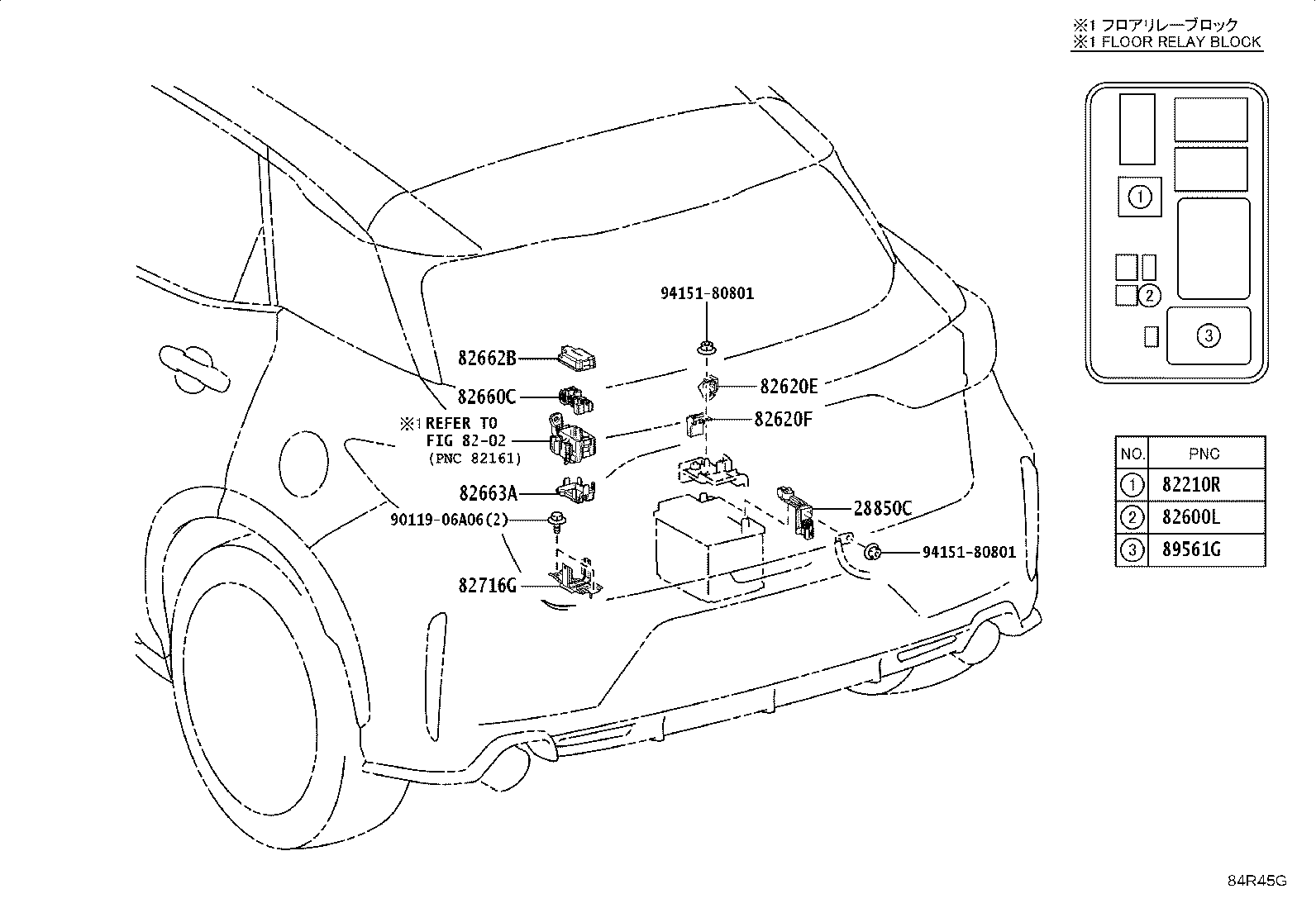

82620B	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link
82644	Computer, Semiconductor Power Integration
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82666	Holder, Connector
82672K	Cover, Power Distribution Box
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82716G	Bracket, Wiring Harness Clamp
82730G	Box Assy, Power Distribution

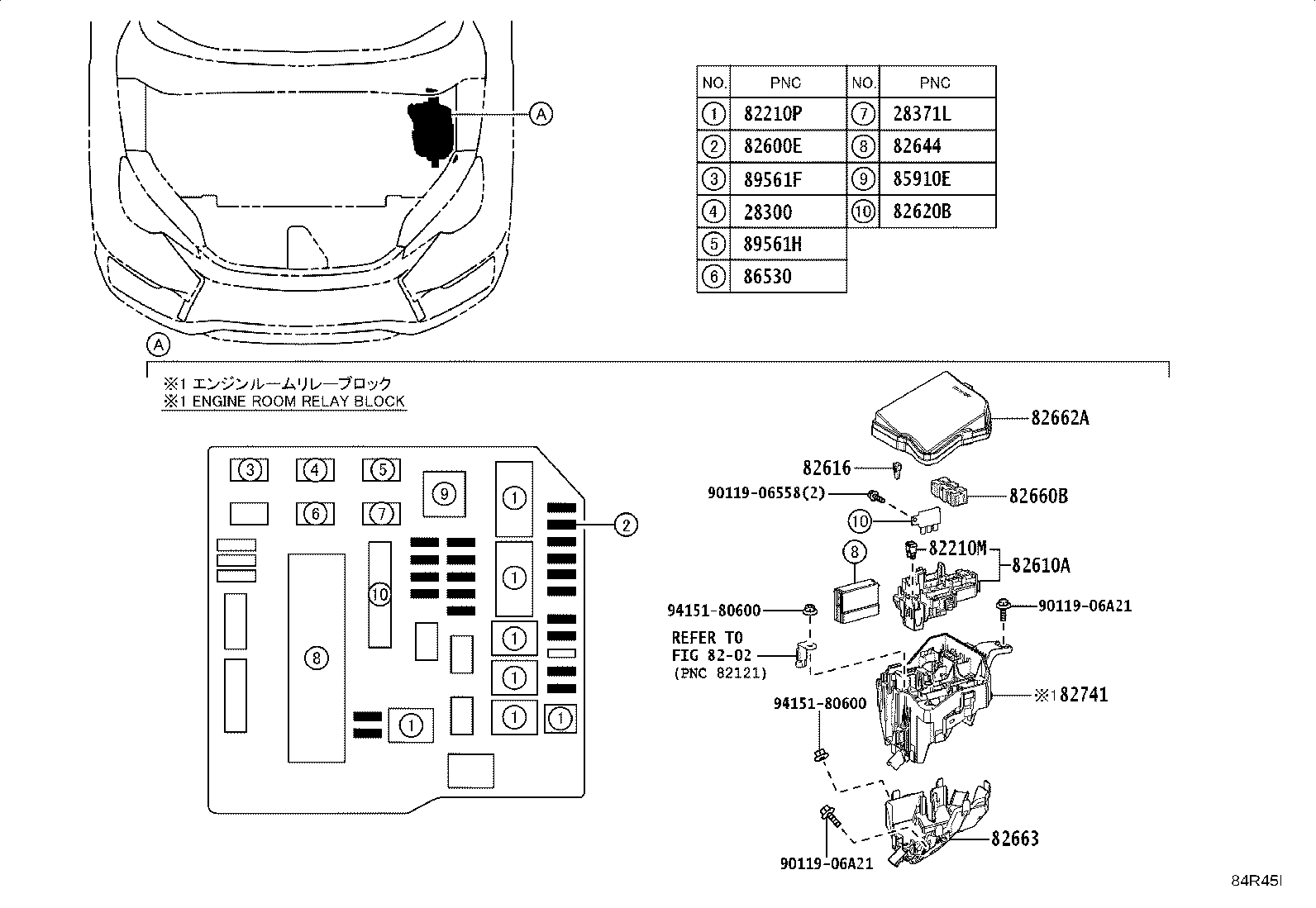

82741	Block, Engine Room Relay
82878	Box, Computer Integration, LH

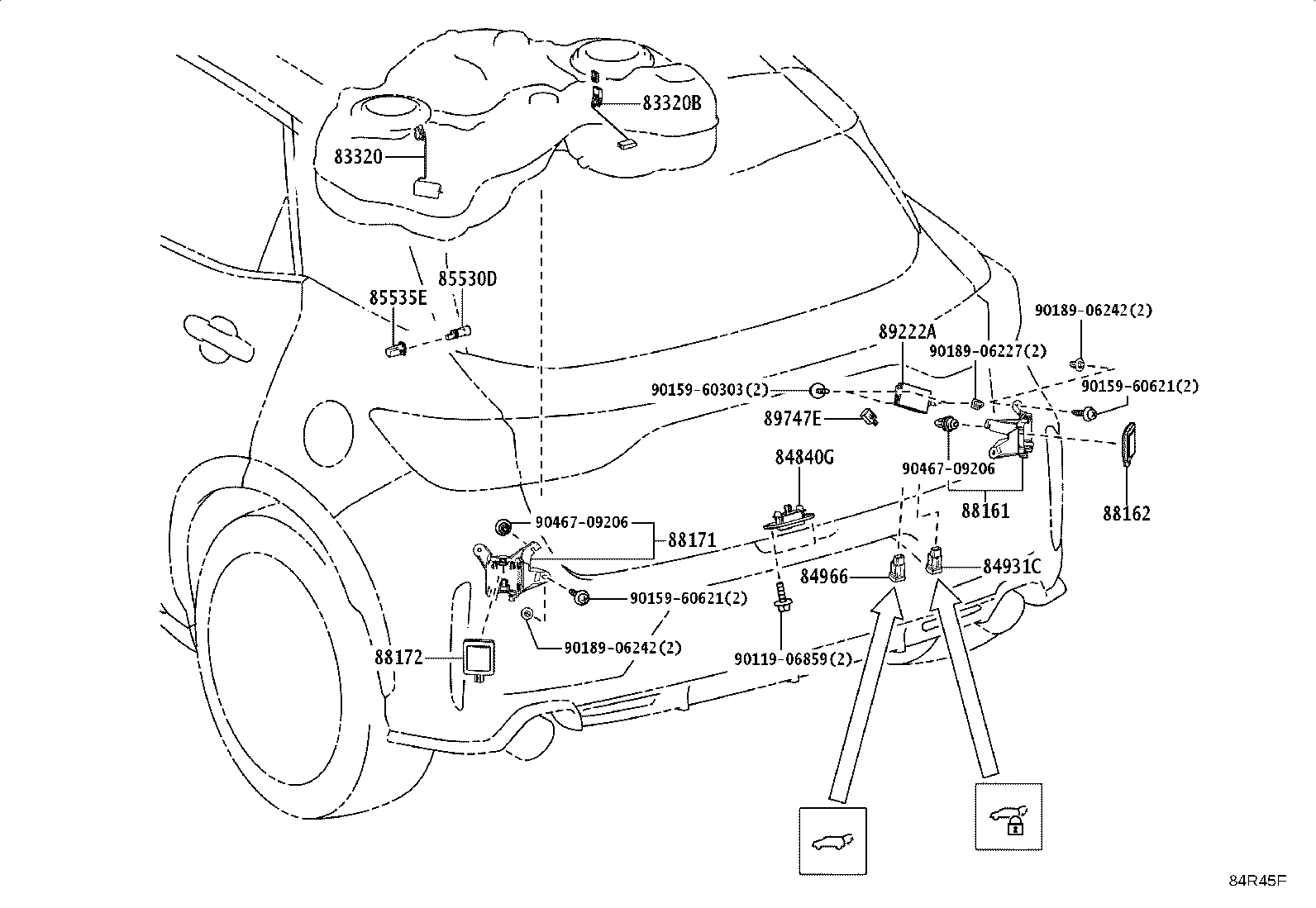

83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
84010H	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network
84152	Switch, Headlamp Leveling

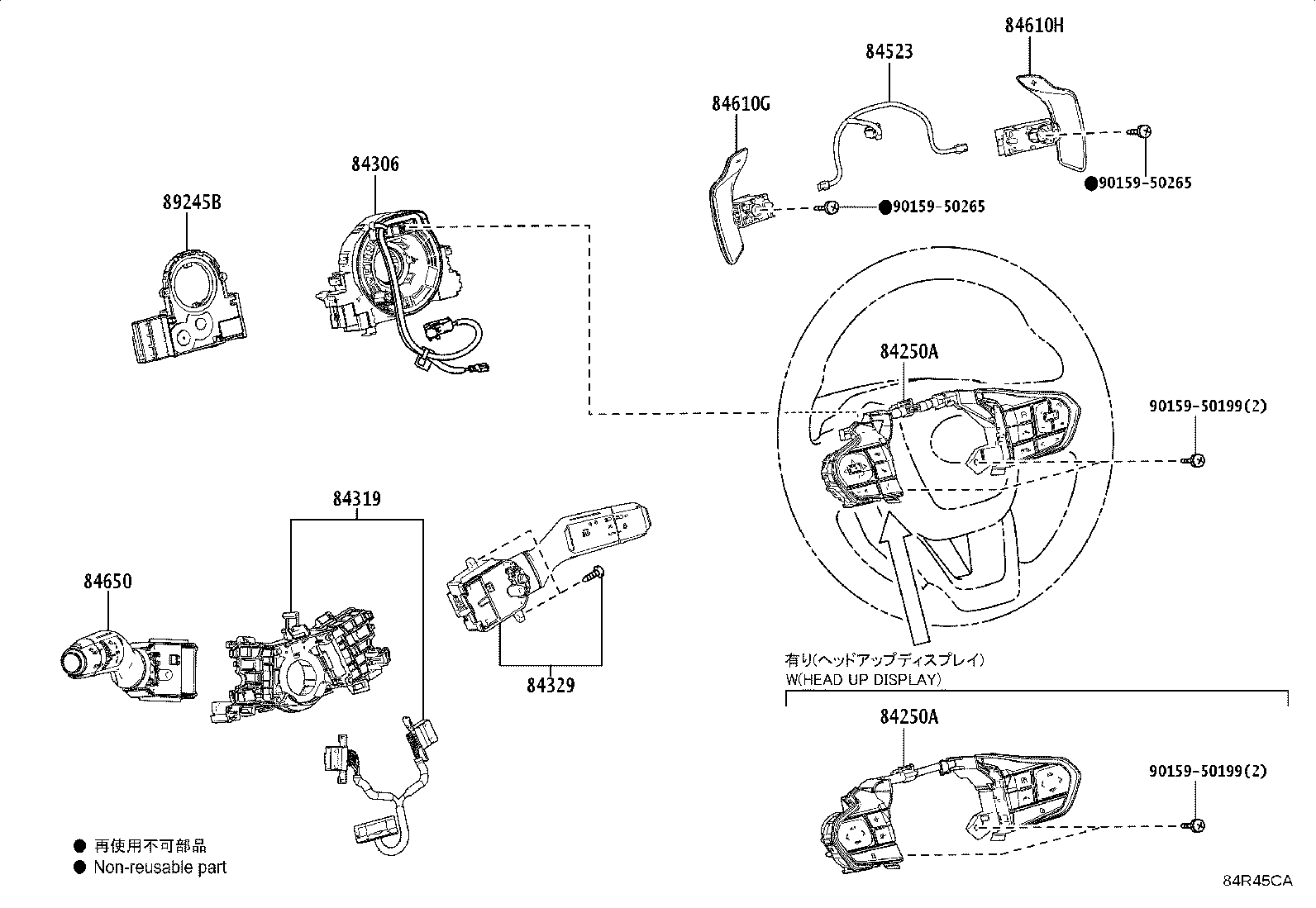

84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84390B	Switch Assy, Electric Parking Brake
84523	Wire, Switch NO.1
84610G	Switch Assy, Transmission Shift, NO.1
84610H	Switch Assy, Transmission Shift, NO.2
84650	Switch Assy, Windshield Wiper

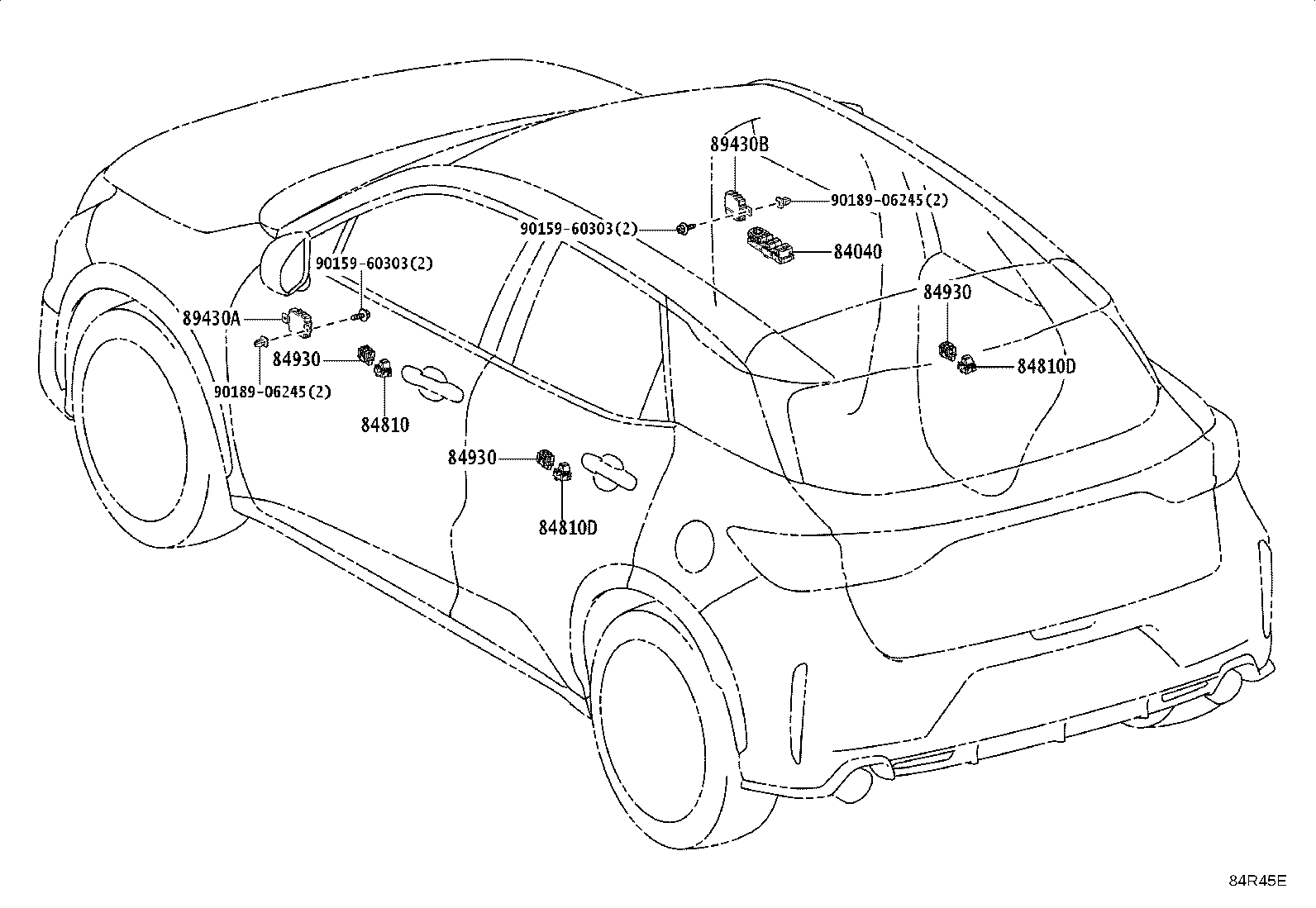

84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84841A	Switch, Fuel Lid Opener

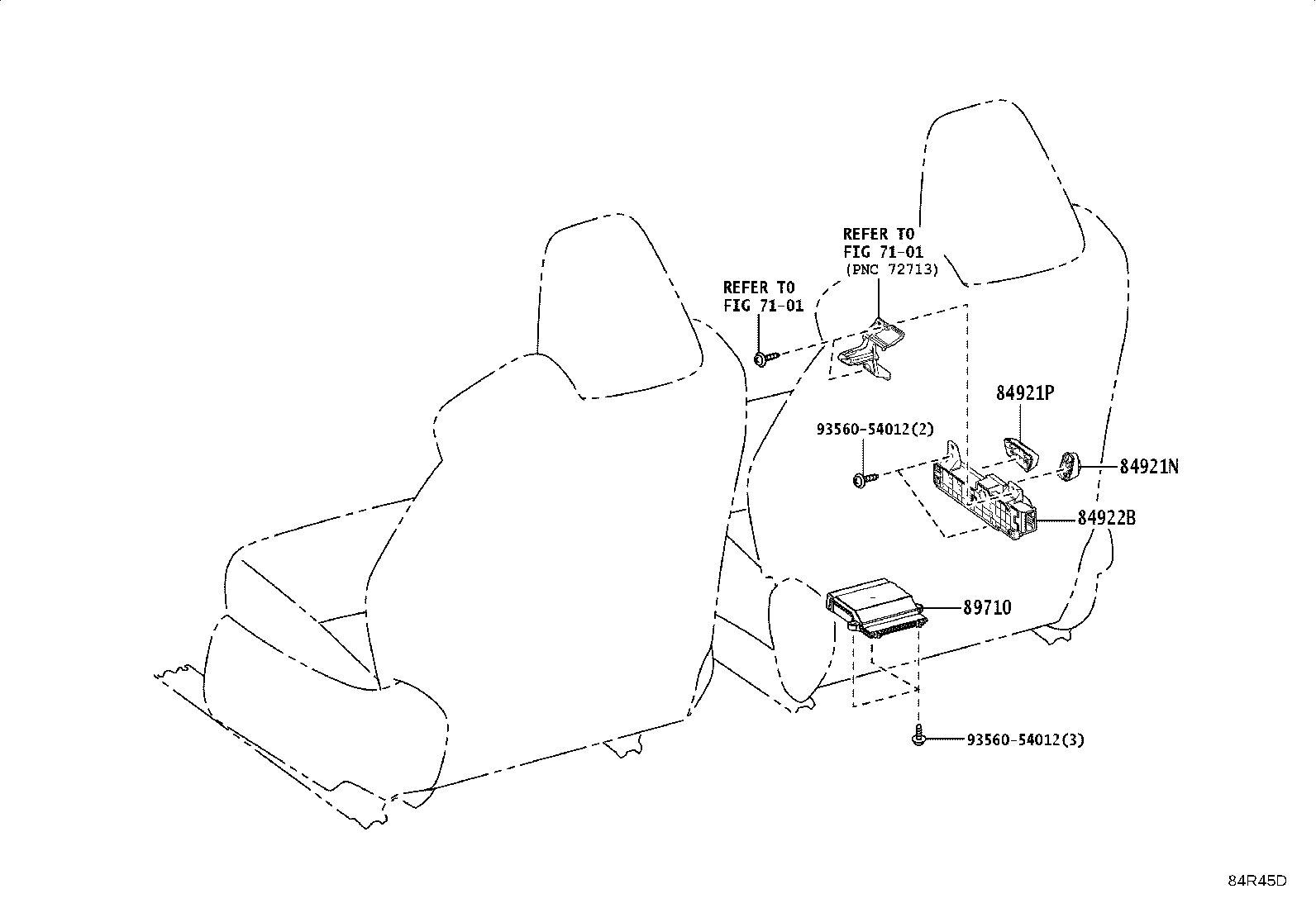

84921N	Knob, Power Seat Switch, RH (FOR RECLINING)
84921P	Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
84922B	Switch, Front Power Seat, RH
84927	Switch, Seat Memory
84930	Switch Assy, Door Control
84931C	Switch, Back Door Control
84966	Switch, Power Back Door Control
84966A	Switch, Power Back Door Control, NO.1
84970	Switch Assy, Combination
84975	Switch, Trip

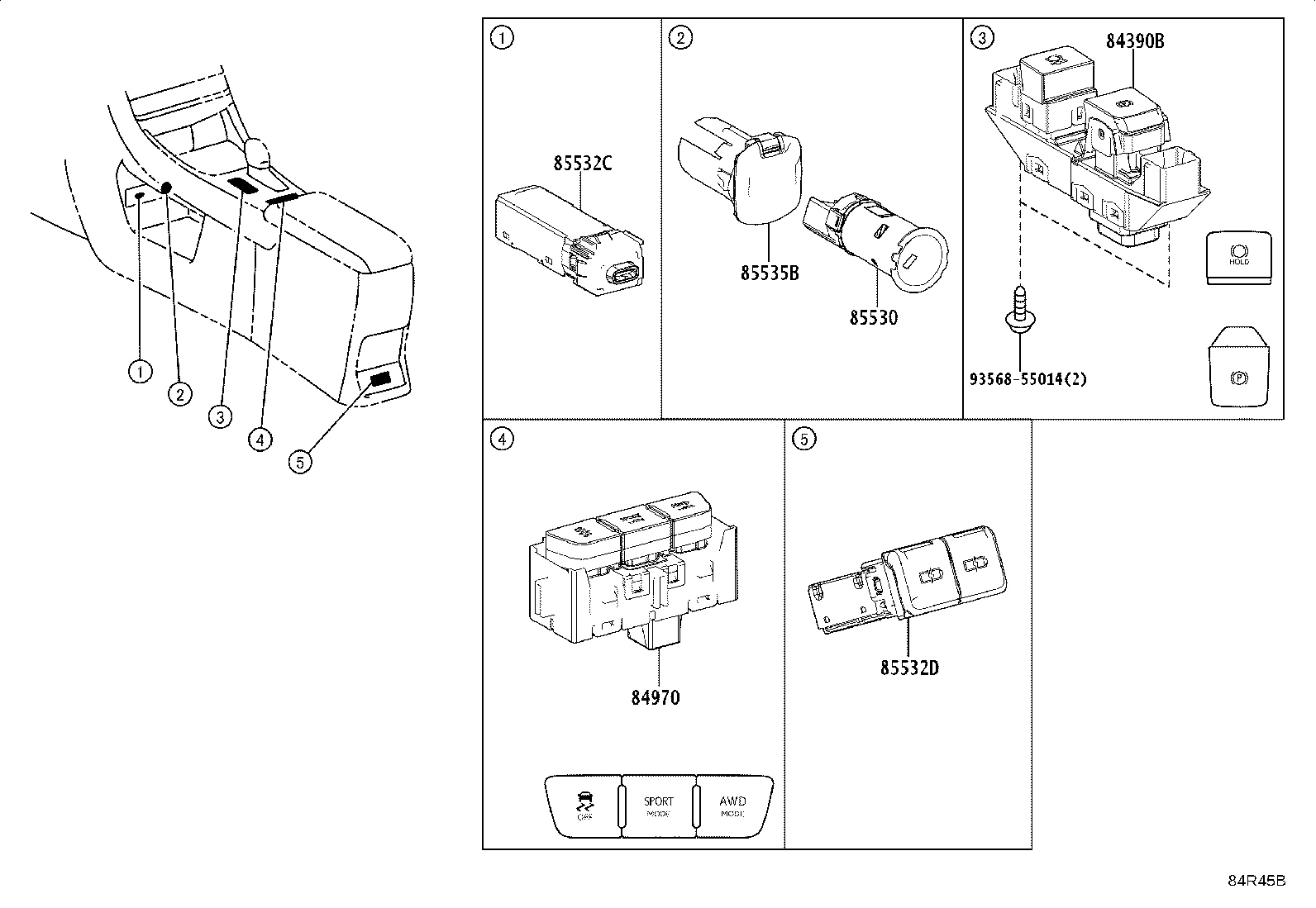

85530	Socket Assy, Power Outlet, NO.1
85530D	Socket Assy, Power Outlet, NO.2
85532	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85532D	Socket, Usb Charger, NO.3
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85910E	Relay, Injector
85965	Relay, Room Lamp Control
86530	Relay Assy, Horn
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89245B	Sensor, Steering
89422A	Sensor, Water Temperature
89430A	Computer Assy, Outer Mirror Control, LH
89430B	Computer Assy, Outer Mirror Control, RH
89437	Cover, Sensor
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
8946A	Bracket, Exhaust Sensor Clamp
8946AA	Bracket, Exhaust Sensor Clamp, NO.2
89481B	Sensor, Differential Pressure
89561F	Relay, Electronic Fuel Injection Main, NO.1
89561G	Relay, Electronic Fuel Injection Main, NO.2
89561H	Relay, Electronic Fuel Injection Main, NO.3
895A0A	Computer Assy, Stop Lamp Control

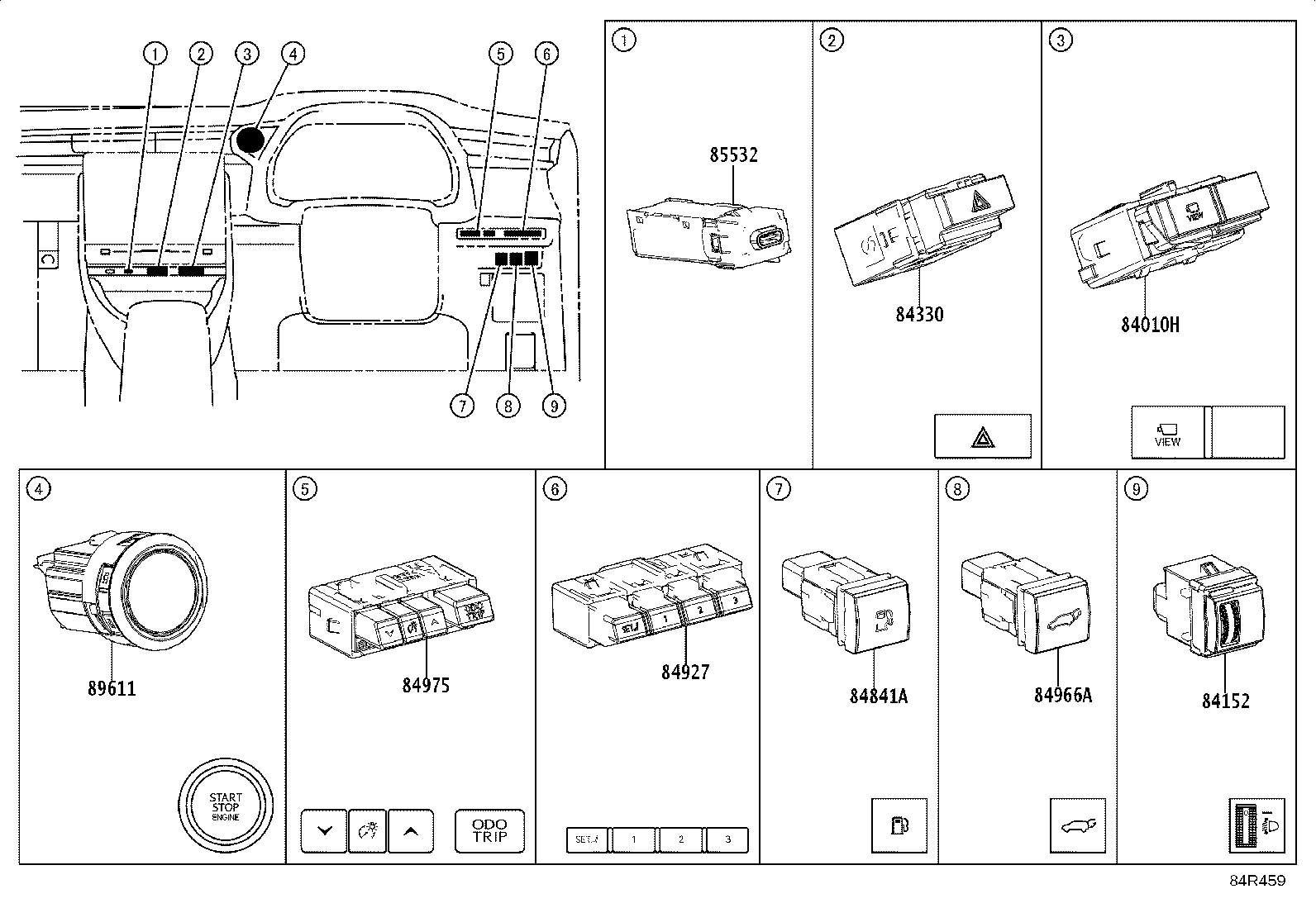

89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89747E	Buzzer, Power Back Door Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
