Toyota Corolla Cross
2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General
Supported model
Data version 2023-10

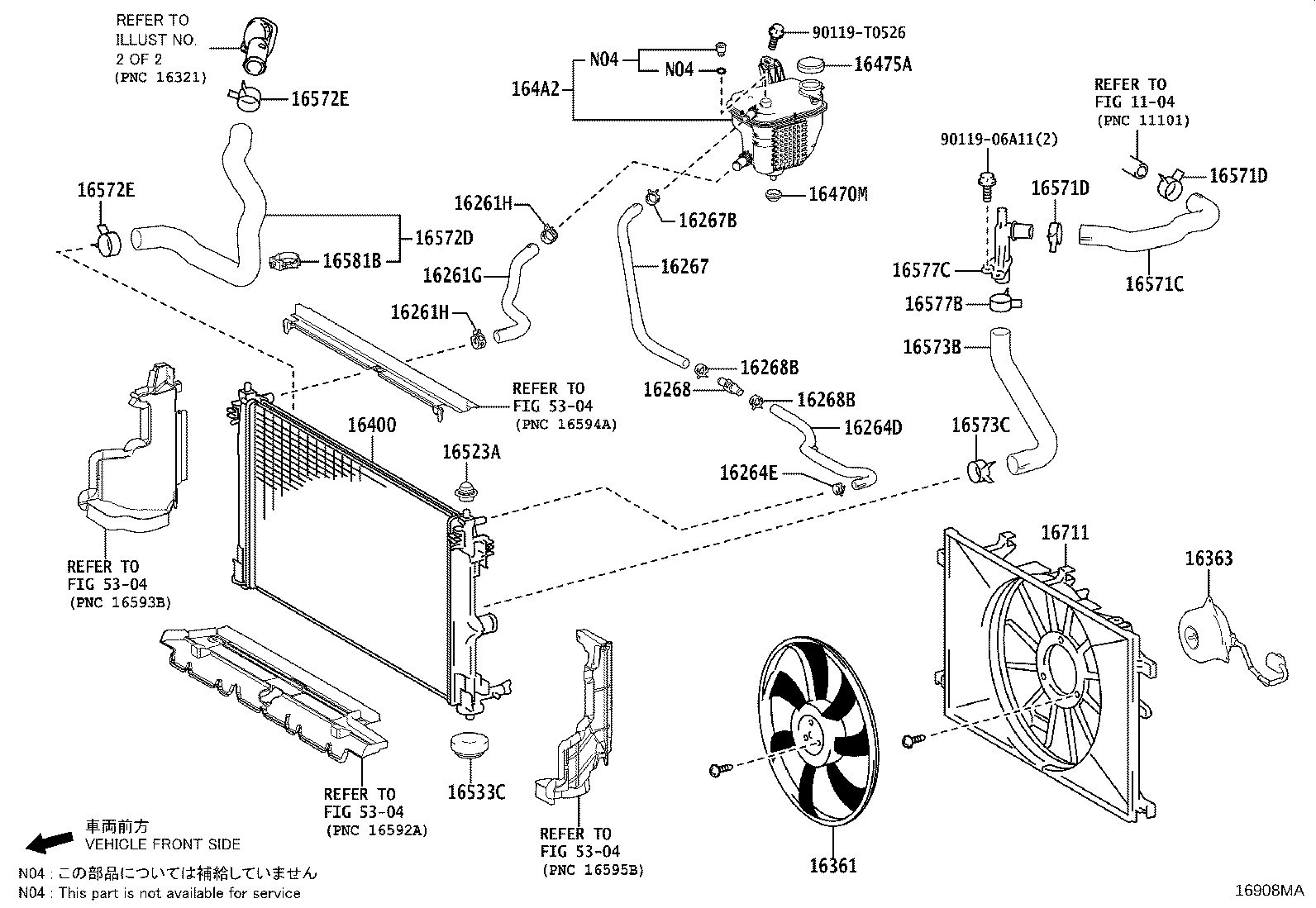

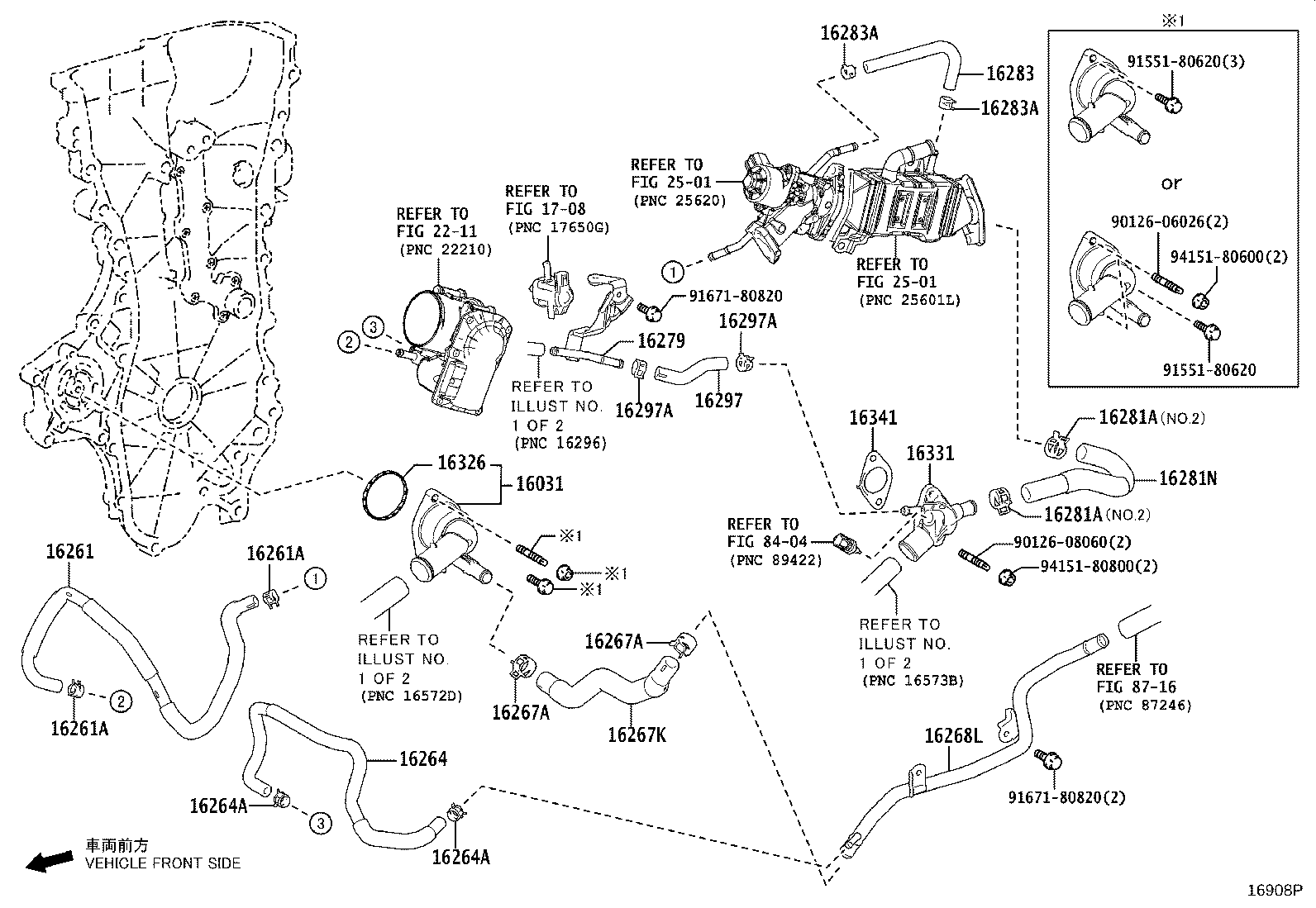

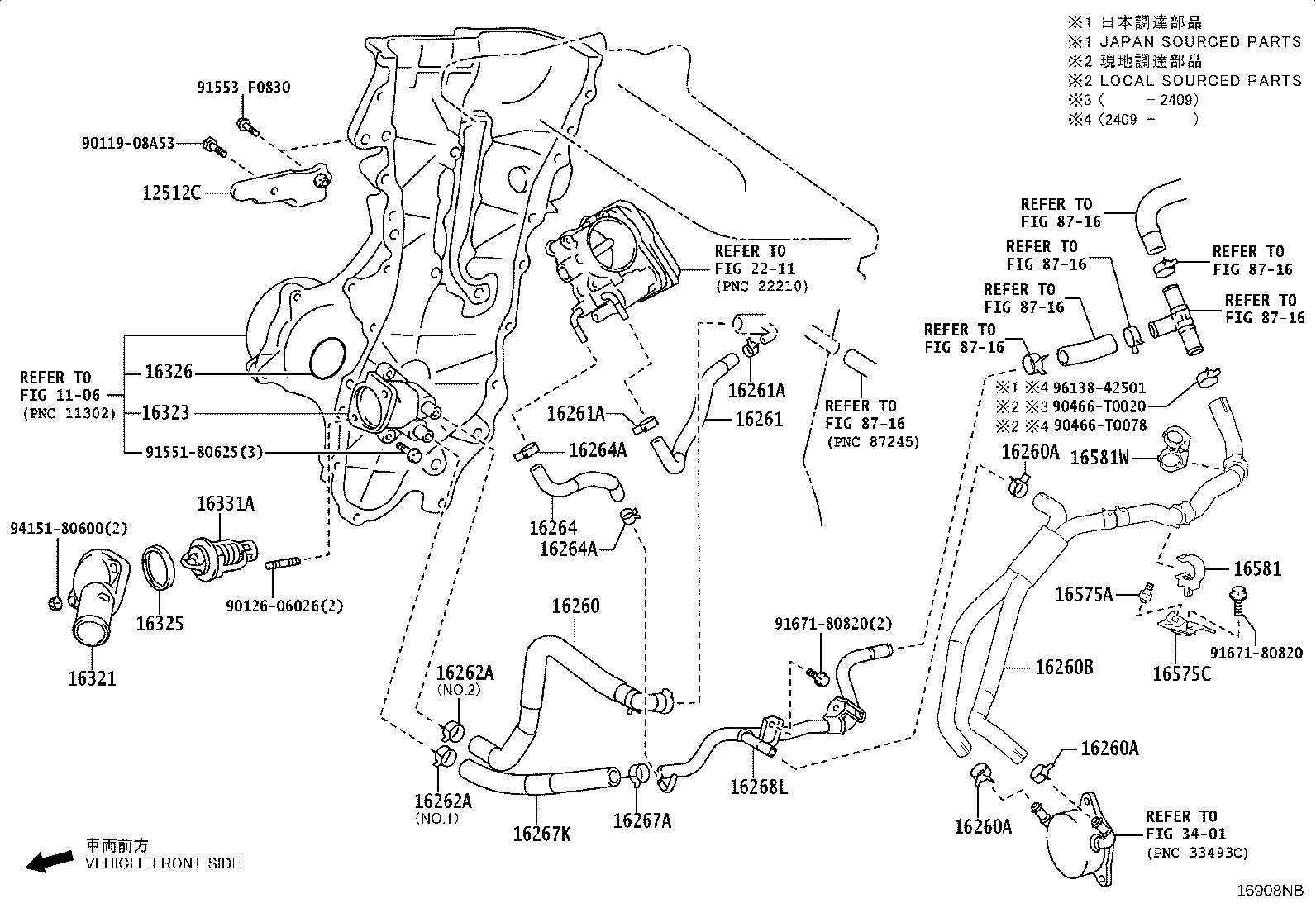

Radiator & Water Outlet
68 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12512C | Bracket, Alternator, NO.2 |
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16260 | Hose Assy, Water By-pass |
| 16260A | Clip(FOR WATER BY-PASS HOSE ASSY) |
| 16260B | Pipe Assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268B | Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) |
| 16268L | Pipe, Water By-pass |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281N | Hose, Water By-pass, NO.4 |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16361 | Fan |
| 16361J | Fan, RH |
| 16361K | Fan, LH |
| 16363 | Motor, Cooling Fan |
| 16363F | Motor, Cooling Fan, RH |
| 16363G | Motor, Cooling Fan, LH |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16470M | Grommet |
| 16475A | Cap, Reserve Tank |
| 164A2 | Tank, Reserve Sealed W/O Cap |
| 16523A | Cushion, Radiator Support |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575A | Clip, Radiator Hose, NO.5 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577B | Clamp OR Clip, Hose(FOR RADIATOR PIPE) |
| 16577C | Pipe, Radiator |
| 16578 | Pipe, Radiator, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16581W | Clamp, Hose(FOR WATER HOSE) |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
