Toyota Corolla Cross

2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 3 illustrations

Illustrations

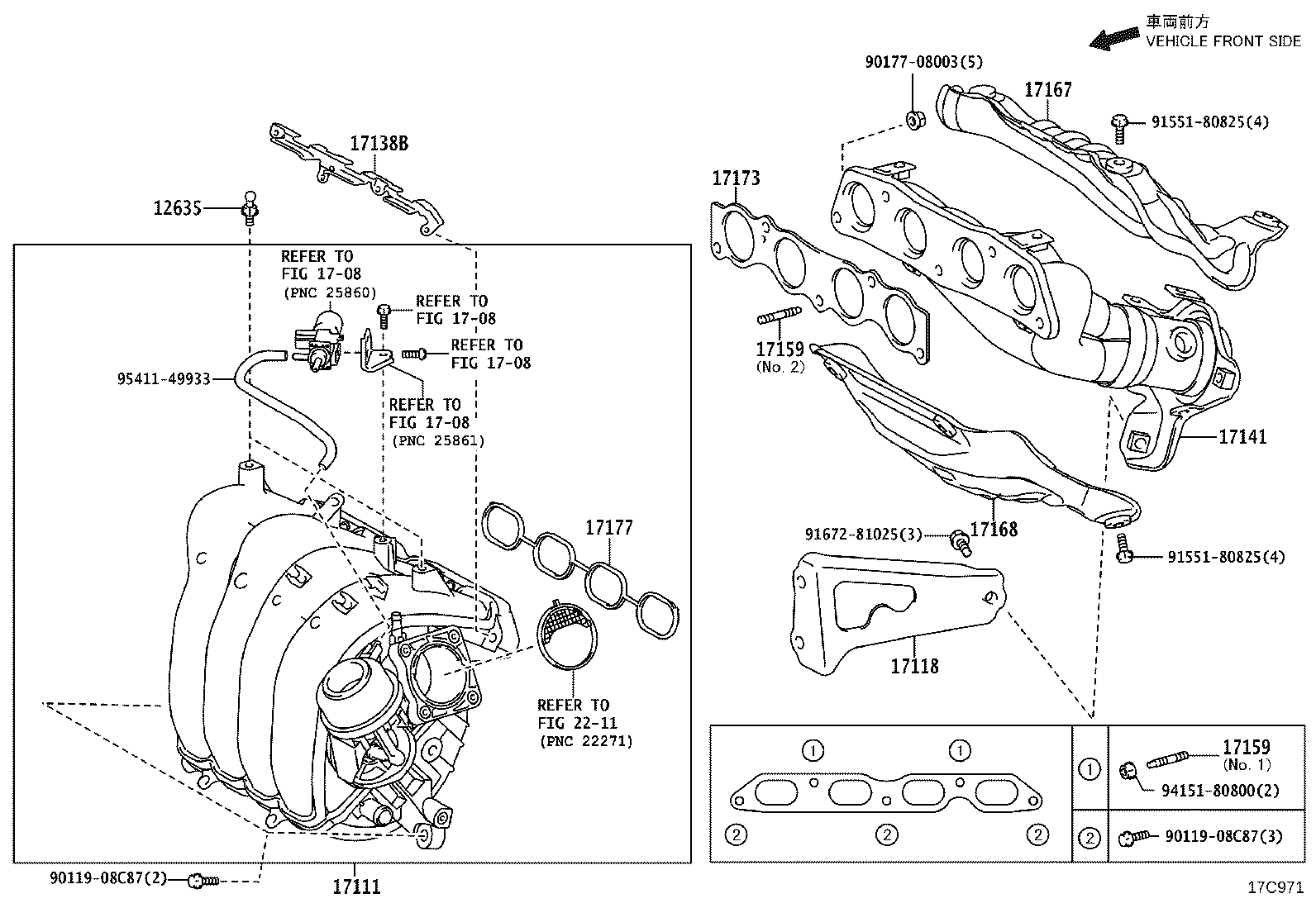

Figure 17C972 17C972 2023-12 → — Figure 17C973 17C973 2023-12 → — Figure 17C971 17C971 2024-02 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
