Toyota Corolla Cross

2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 2 illustrations

Illustrations

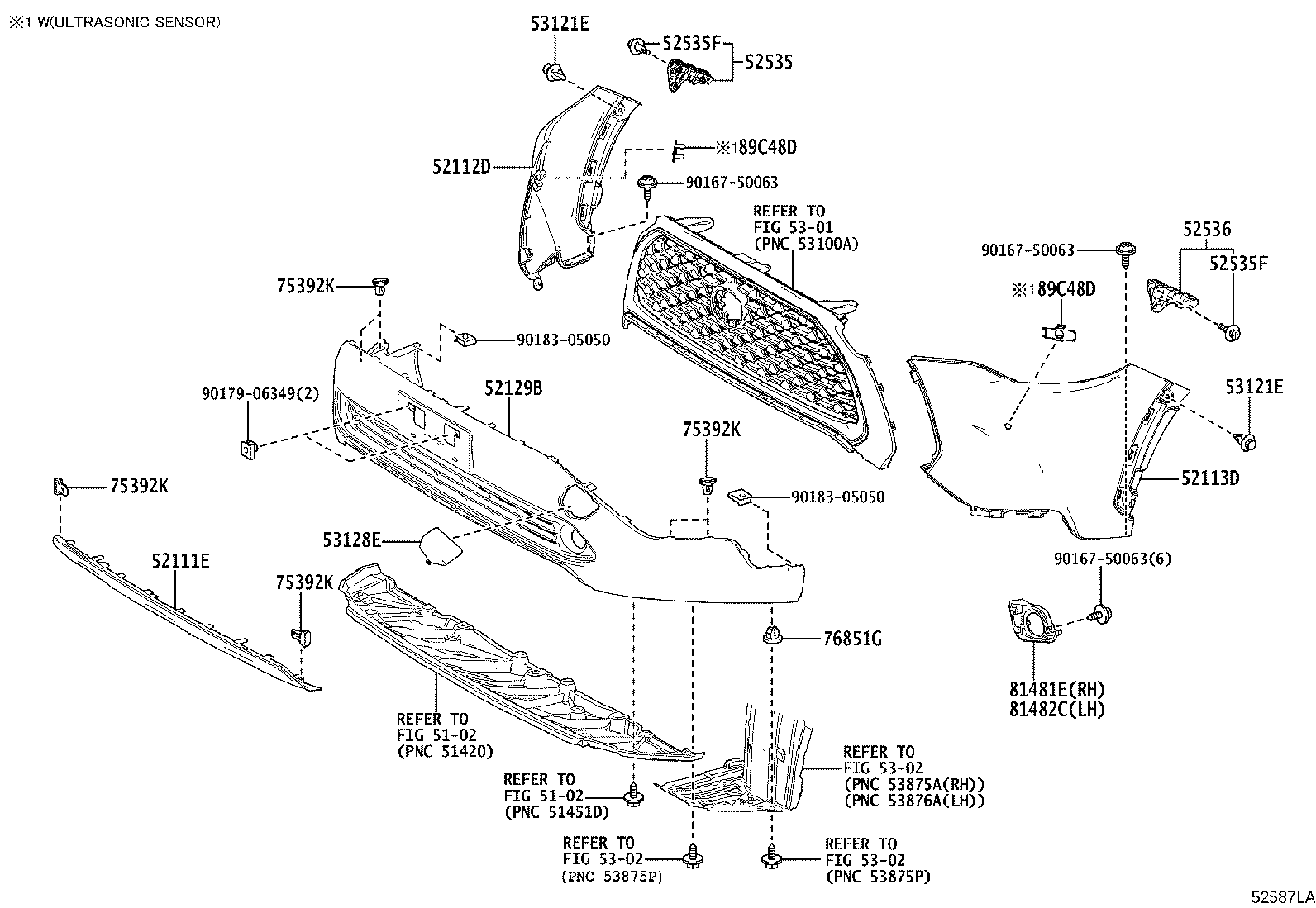

Figure 52587K 52587K 2023-12 → — Figure 52587LA 52587LA 2023-12 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52129B Cover, Front Bumper, Lower
52535 Retainer, Front Bumper Side, RH
52535F Clip, Front Bumper Side Retainer
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53121E Clip(FOR FRONT BUMPER), NO.1
53128E Grille, Radiator, Lower Side LH
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392K Retainer, Outside Moulding, NO.2
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
