Roof Headlining & Silencer Pad

5 part groups · 2 illustrations

Illustrations

Figure 64588C

64588C 2023-12 → —

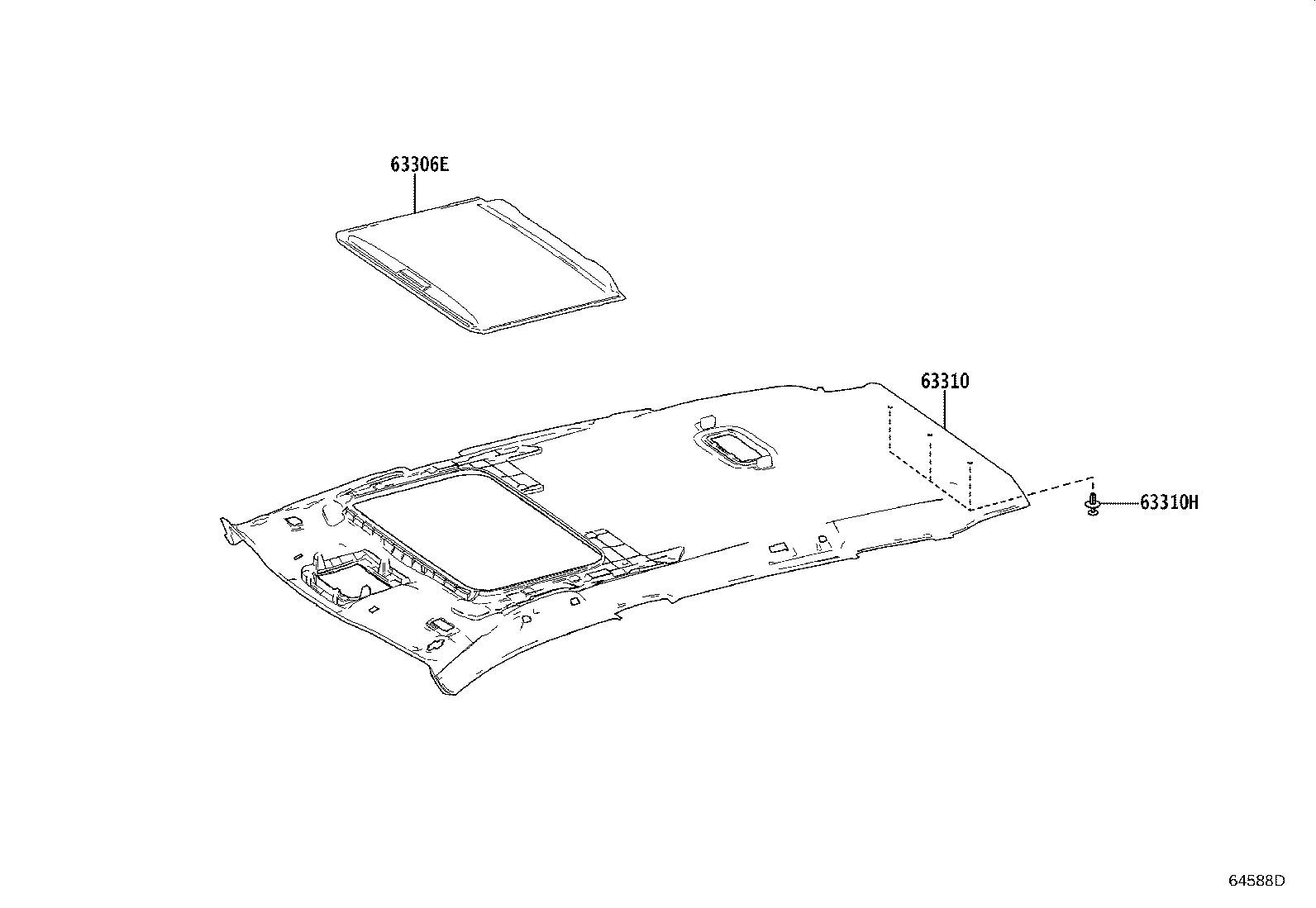

Figure 64588D

64588D 2023-12 → —

Part groups

PNC	Description
63306E	Trim Sub-assy, Sunshade, NO.2
63310	Headlining Assy, Roof
63310H	Clip(FOR ROOF HEADLINING)
63342	Pad, Roof Silencer, NO.2
63353E	Pad, Roof Headlining, Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
