Toyota Corolla Cross

2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General

Supported model Data version 2023-10

Fuel Tank & Tube

45 part groups · 5 illustrations

PNC	Description
23221	Pump, Fuel
23225A	Spacer, Fuel Pump
23280J	Regulator Assy, Fuel Pressure
23280K	Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N	Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B	Holder, Fuel Pressure Regulator
64648A	Grommet, Luggage Door Lock Opener
77020A	Tube Assy, Fuel Suction W/Pump & Gage
77024A	Plate Sub-assy, Fuel Suction
77026A	Tube Sub-assy, Fuel Evaporation, NO.1
77035	Cable Sub-assy, Fuel Lid Lock Control

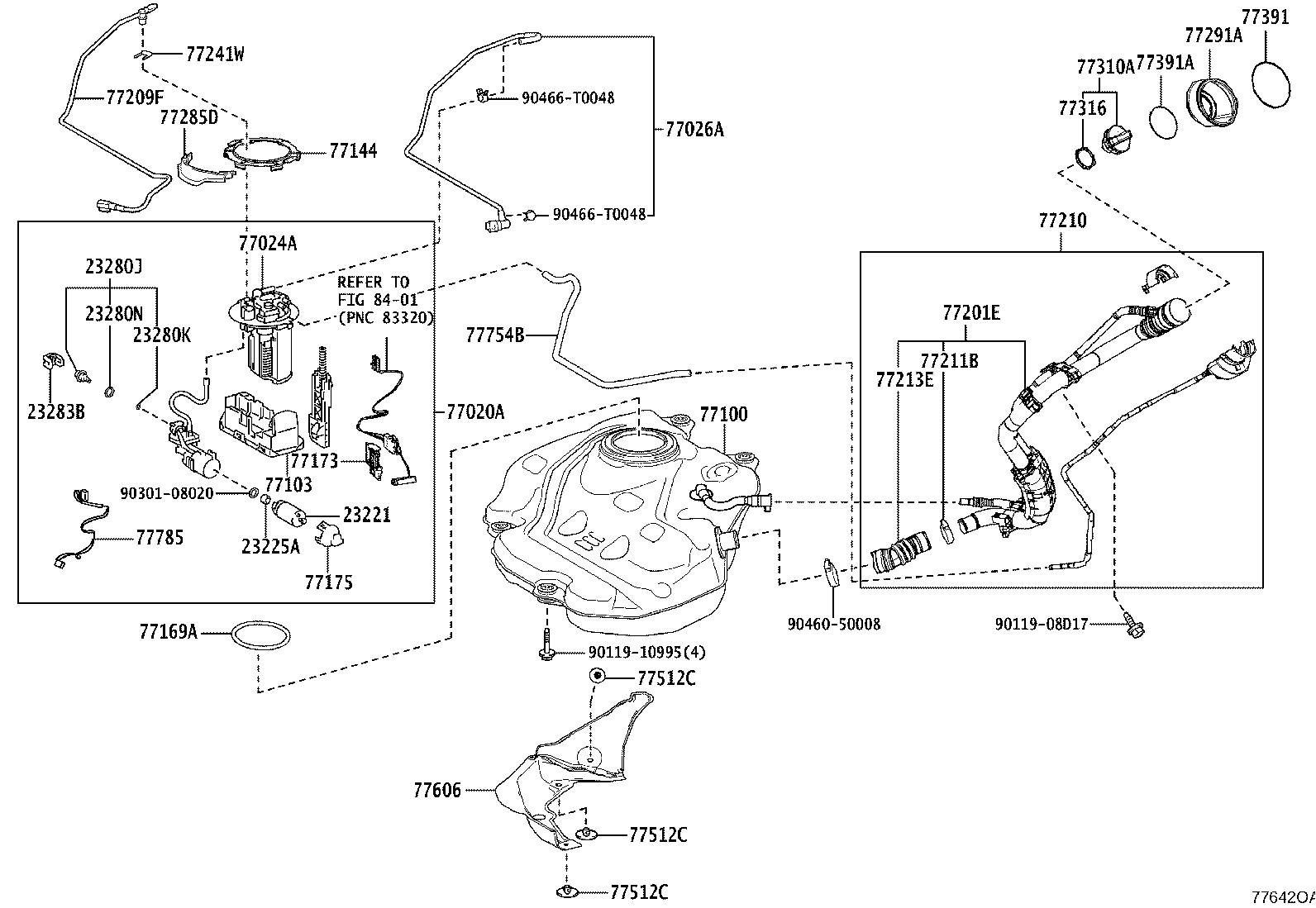

77100	Tank Assy, Fuel
77103	Sub-tank Sub-assy, Fuel
77144	Retainer, Fuel Pump Gauge
77169A	Gasket, Fuel Suction Tube Set
77173	Bracket, Fuel Gage
77175	Support, Fuel Suction, NO.2
77201E	Pipe Sub-assy, Fuel Tank Filler
77209F	Tube Sub-assy, Fuel Tank Main
77210	Pipe Assy, Fuel Tank Filler
77211B	Clamp (FOR FUEL FILLER PIPE)
77213E	Hose, Fuel Tank TO Filler Pipe
77241W	Clip, Tube Joint

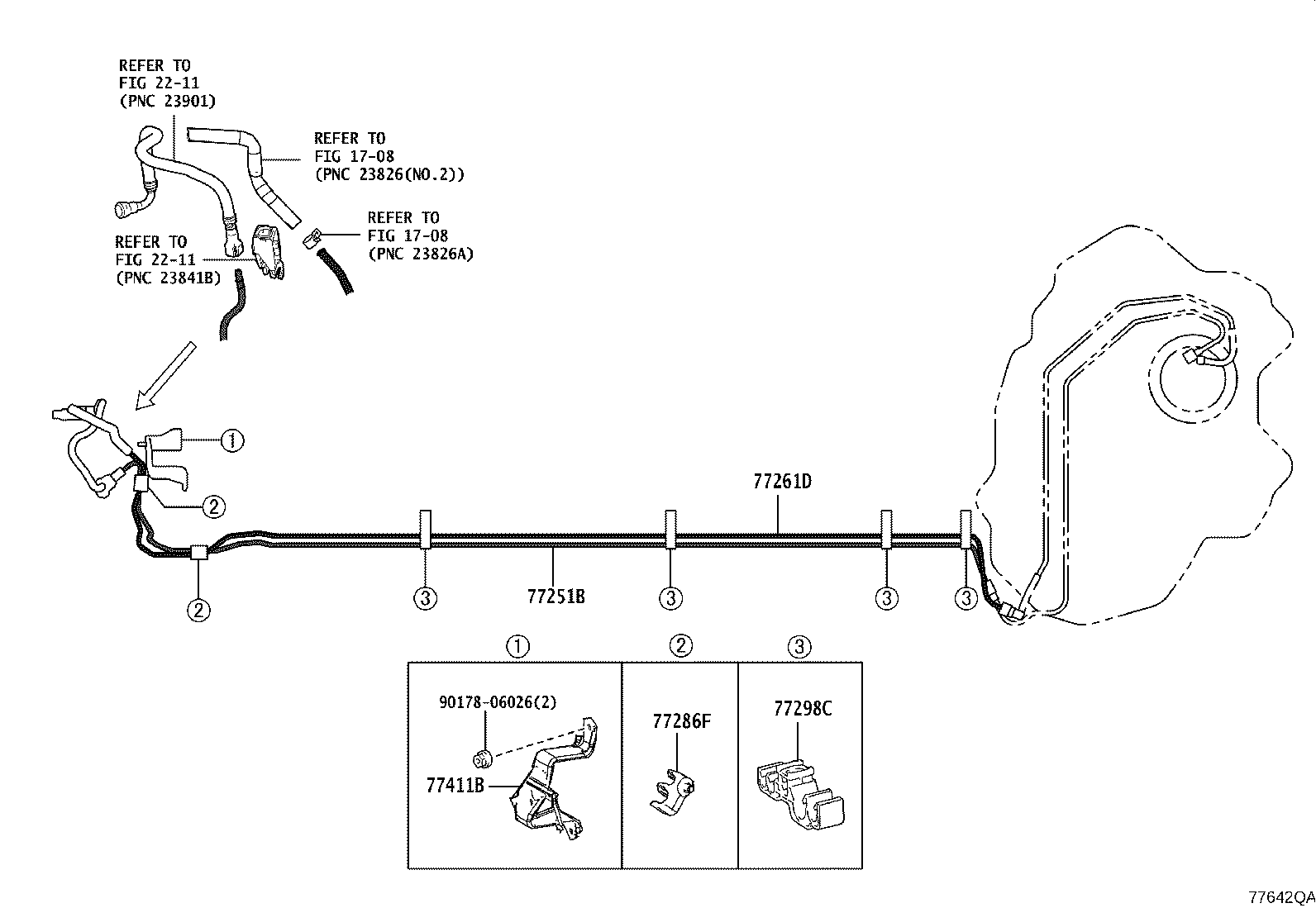

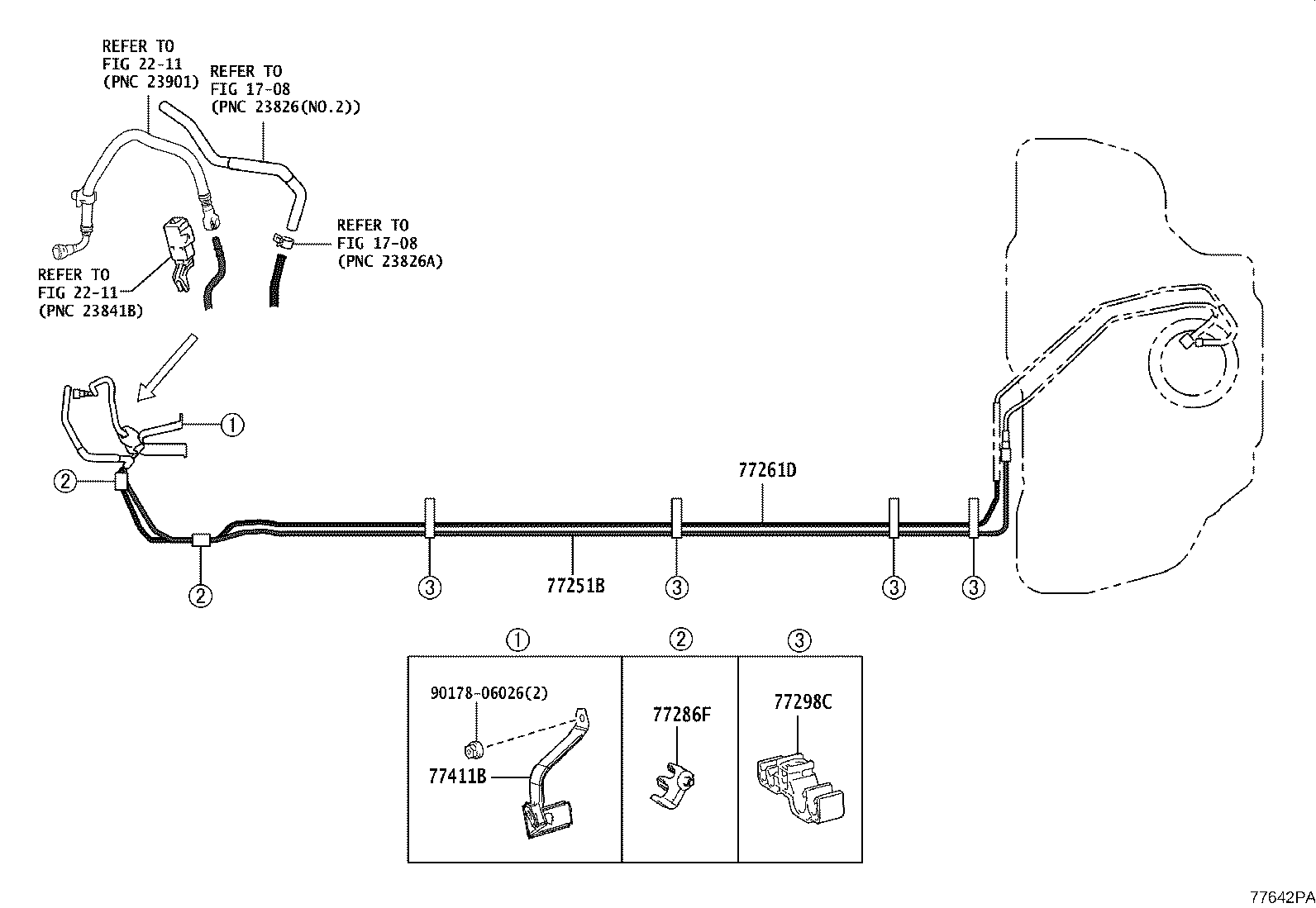

77251B	Tube, Fuel Main
77261D	Tube, Fuel Tank TO Canister
77285D	Clamp, Fuel Tube, NO.1
77286F	Clamp, Fuel Tube, NO.2
77291A	Shield, Fuel Tank Filler Pipe
77298C	Clamp, Fuel Tube, NO.4

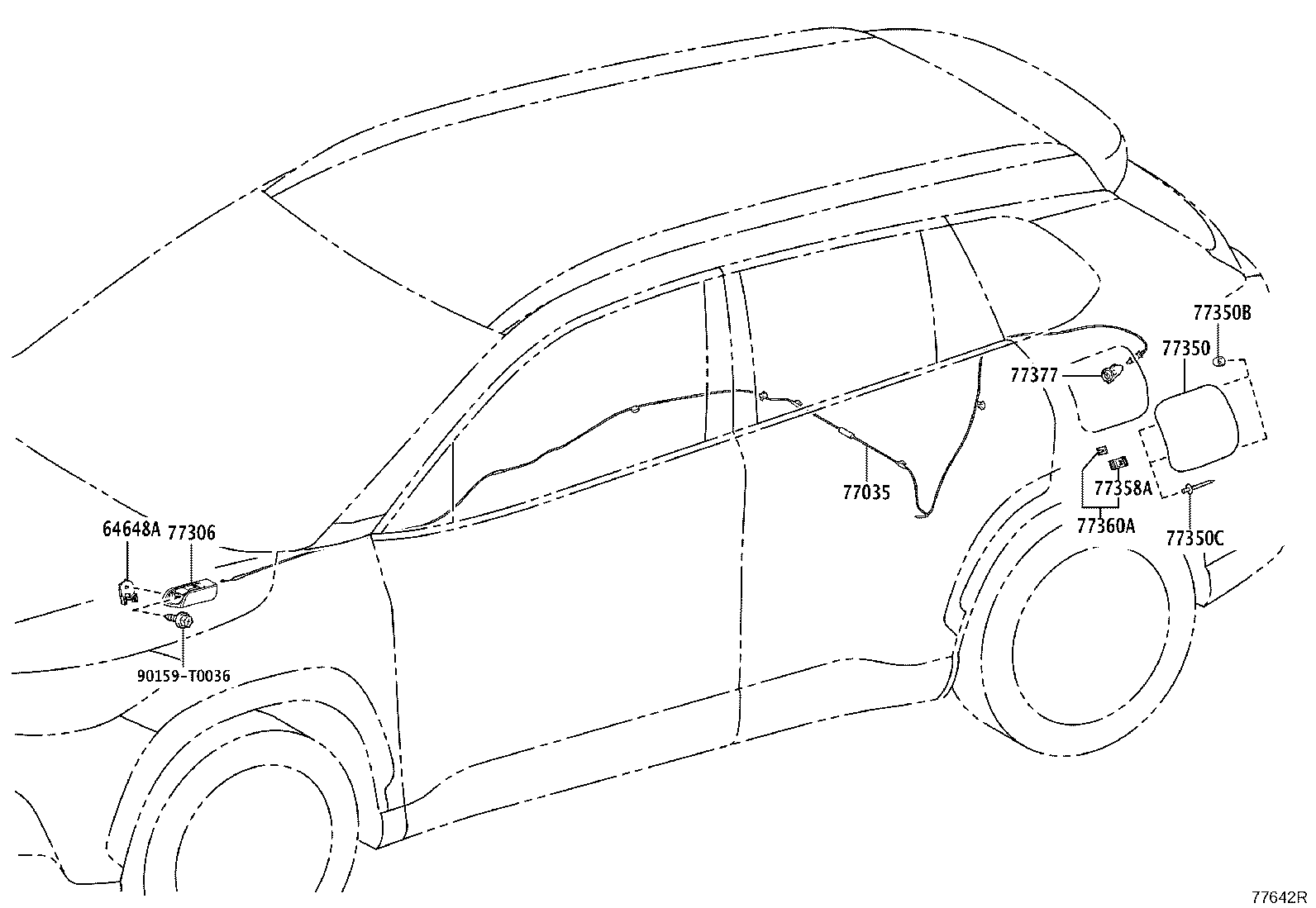

77306	Lever Sub-assy, Fuel Lid Lock Open
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77350B	Cushion(FOR FUEL FILLER OPENING LID)
77350C	Rivet
77358A	Stopper, Fuel Filler Opening Lid
77360A	Spring Assy, Fuel Filler Opening Lid
77377	Retainer, Fuel Filler Opening Lid Lock
77391	Ring, Fuel Inlet Box
77391A	Ring, Fuel Inlet Box
77411B	Support, Fuel Tube Grommet, NO.1
77512C	Bracket, Fuel Tank
77606	Protector Sub-assy, Fuel Tank, NO.1
77754B	Hose, Charcoal Canister Outlet
77785	Harness, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
