Toyota Corolla Cross
2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General
Supported model
Data version 2023-10

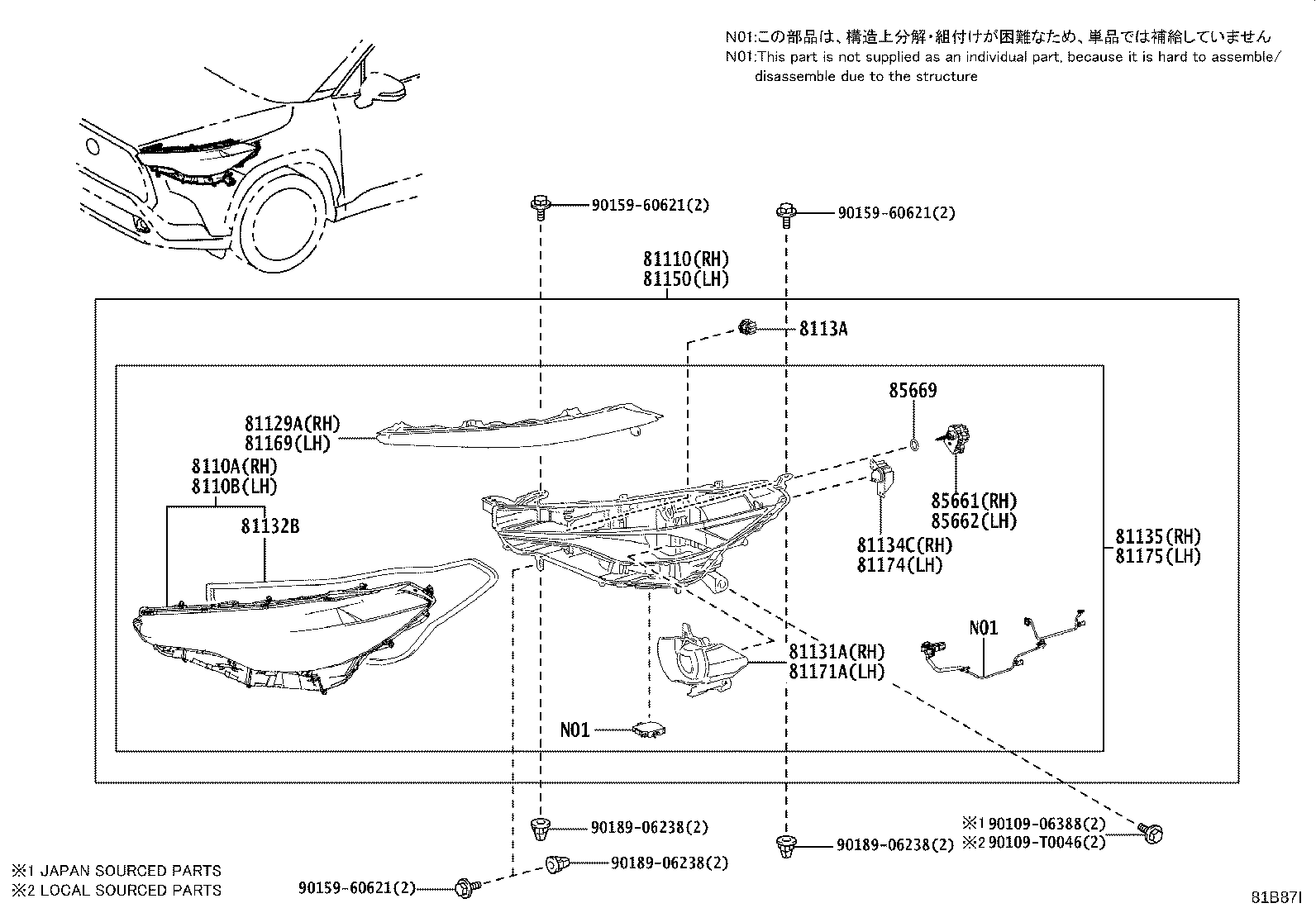

Headlamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81129A | Reflector, Headlamp, RH |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134C | Gasket, Headlamp Body, RH |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81169 | Reflector, Headlamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81174 | Gasket, Headlamp Body, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
