Toyota Corolla Cross
2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General
Supported model
Data version 2023-10
Switch & Relay & Computer
94 part groups · 12 illustrations
Illustrations
Part groups

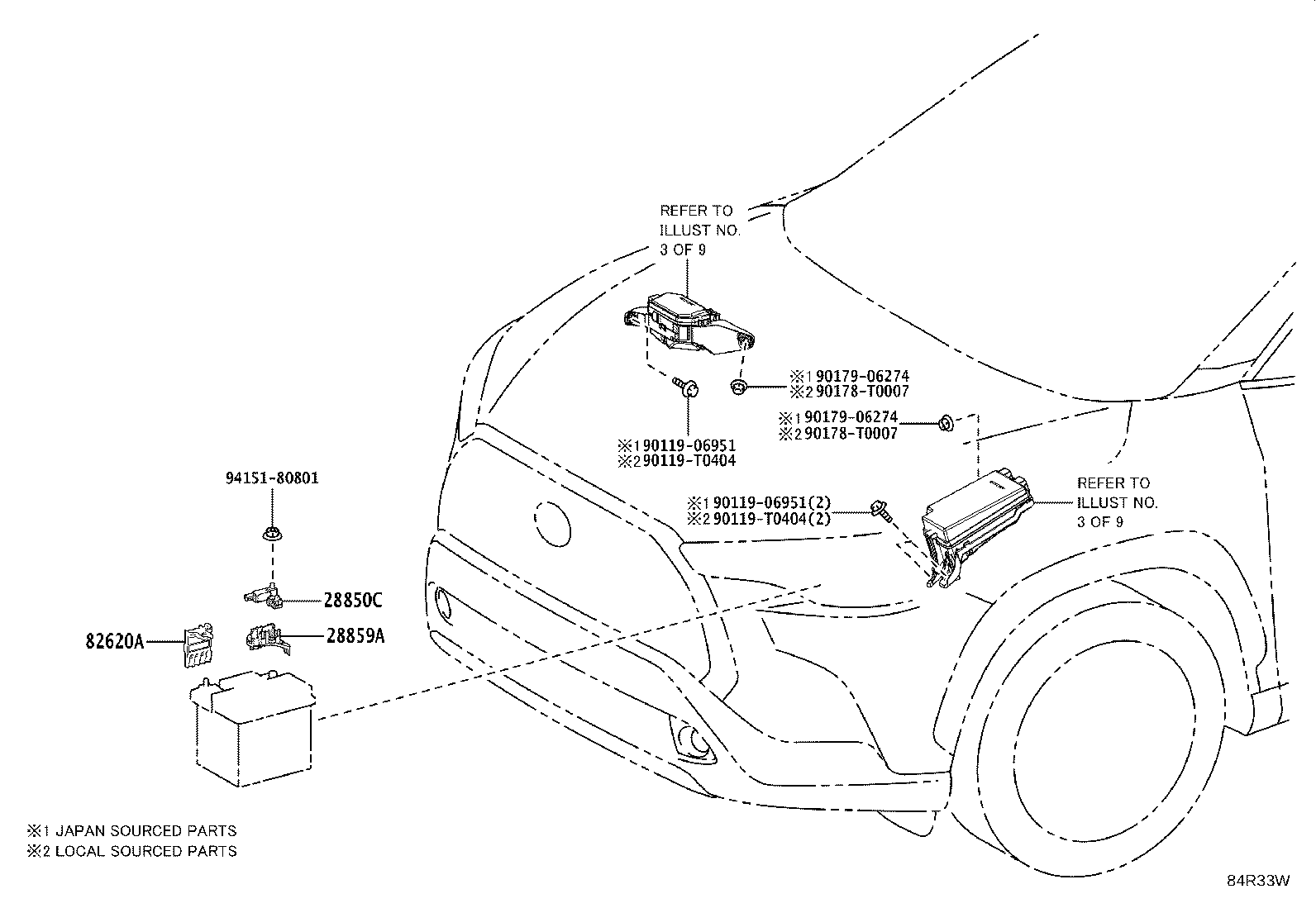

| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28300 | Relay Assy, Starter |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |

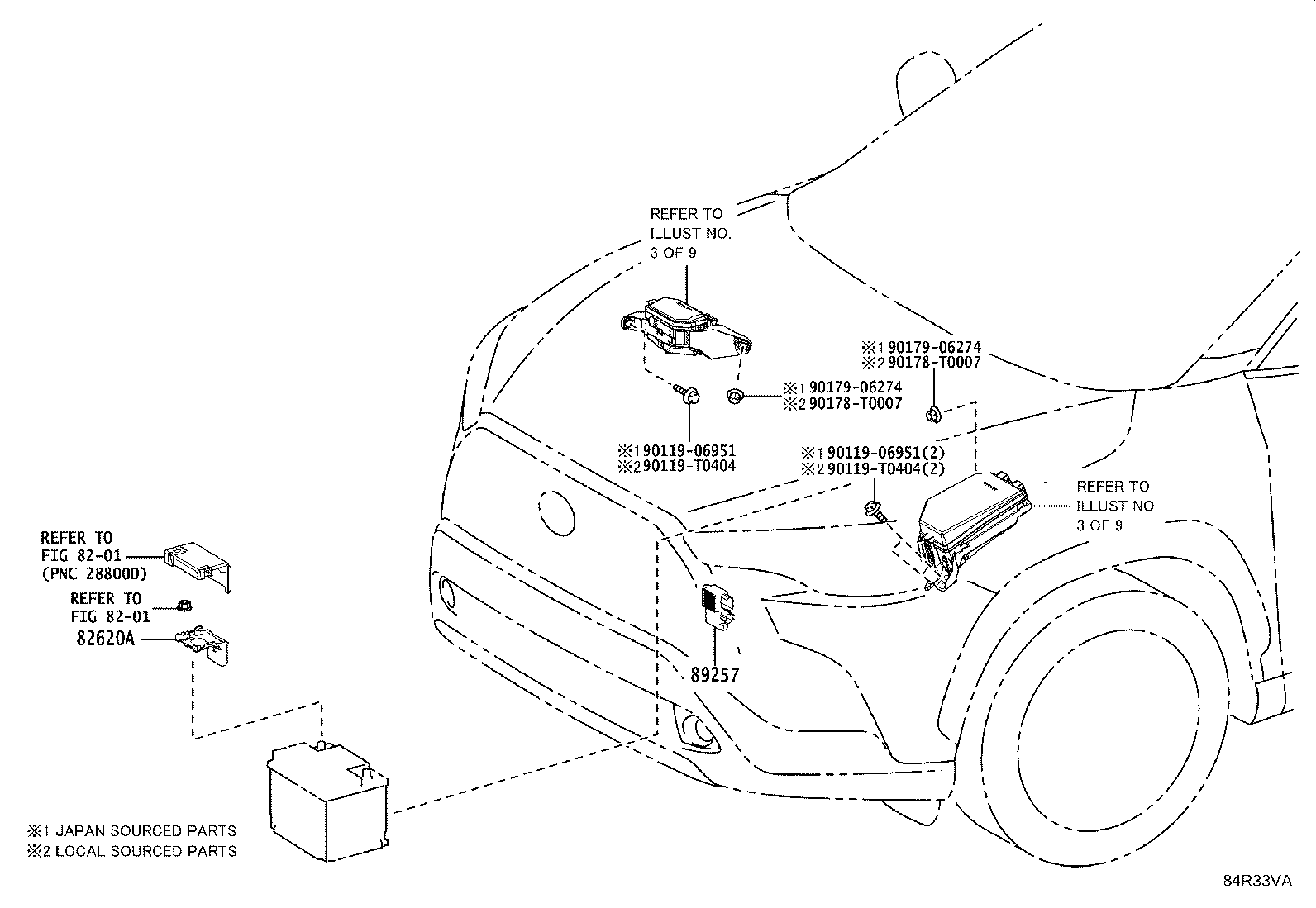

| 82620A | Block Assy, Fusible Link |

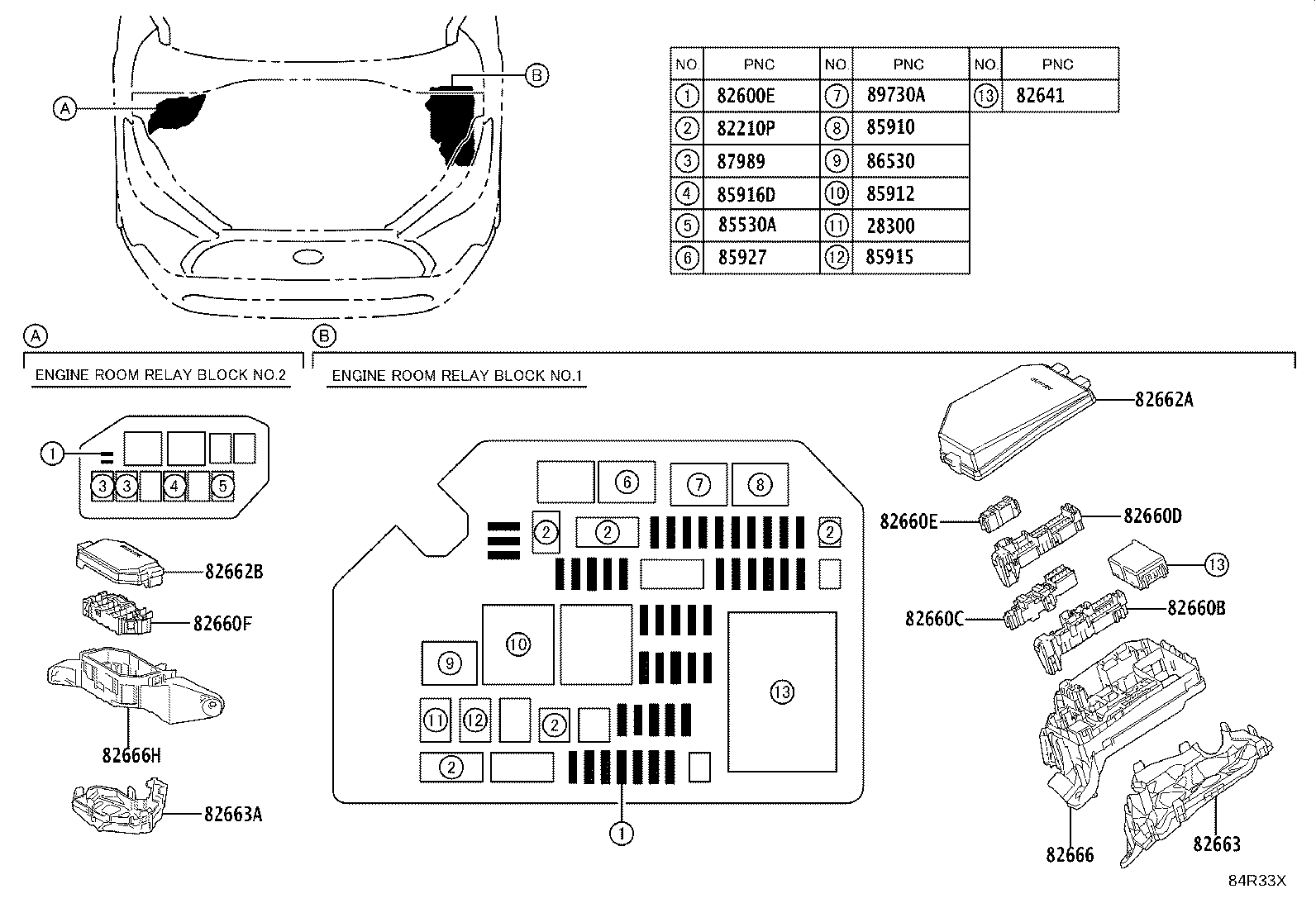

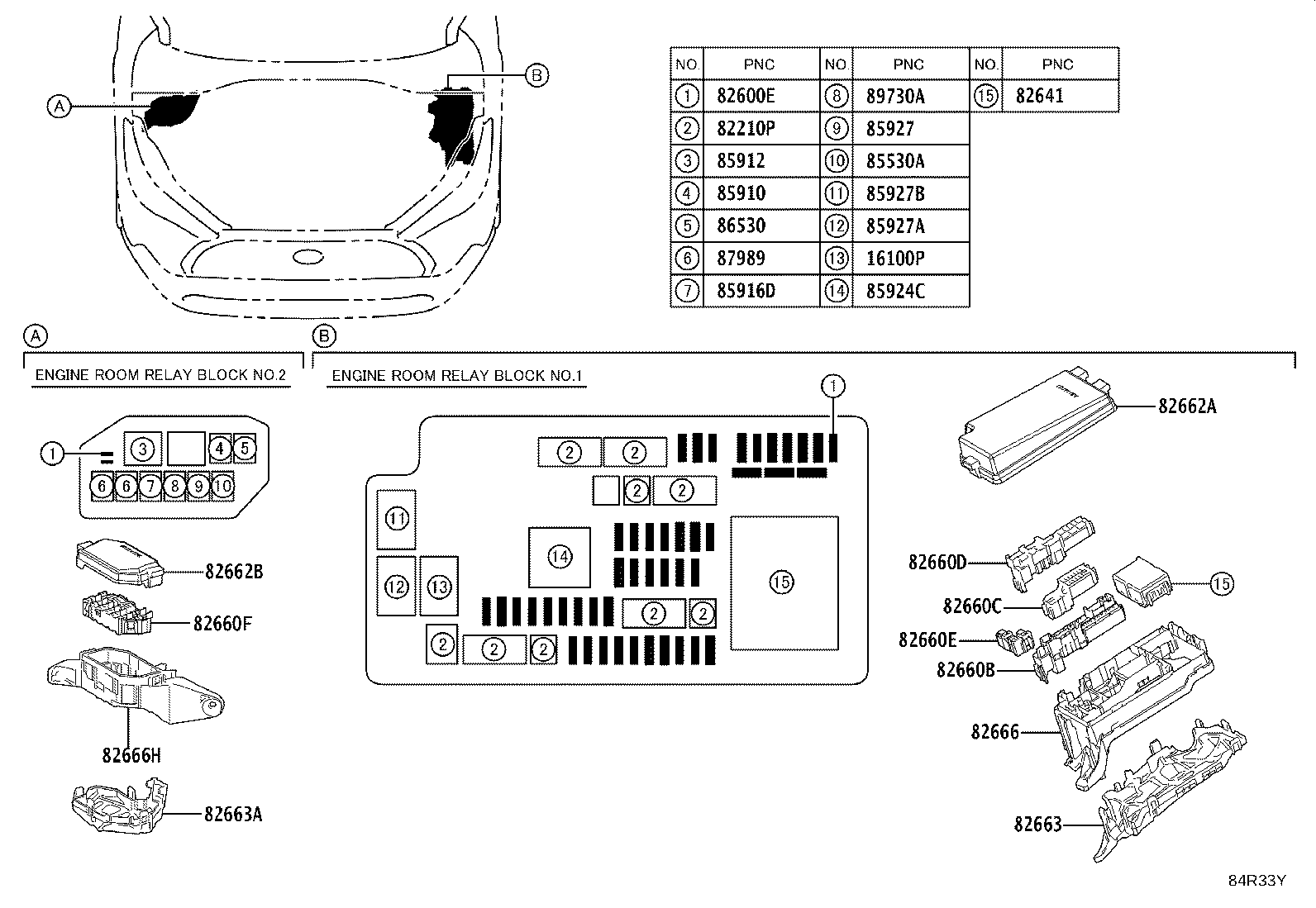

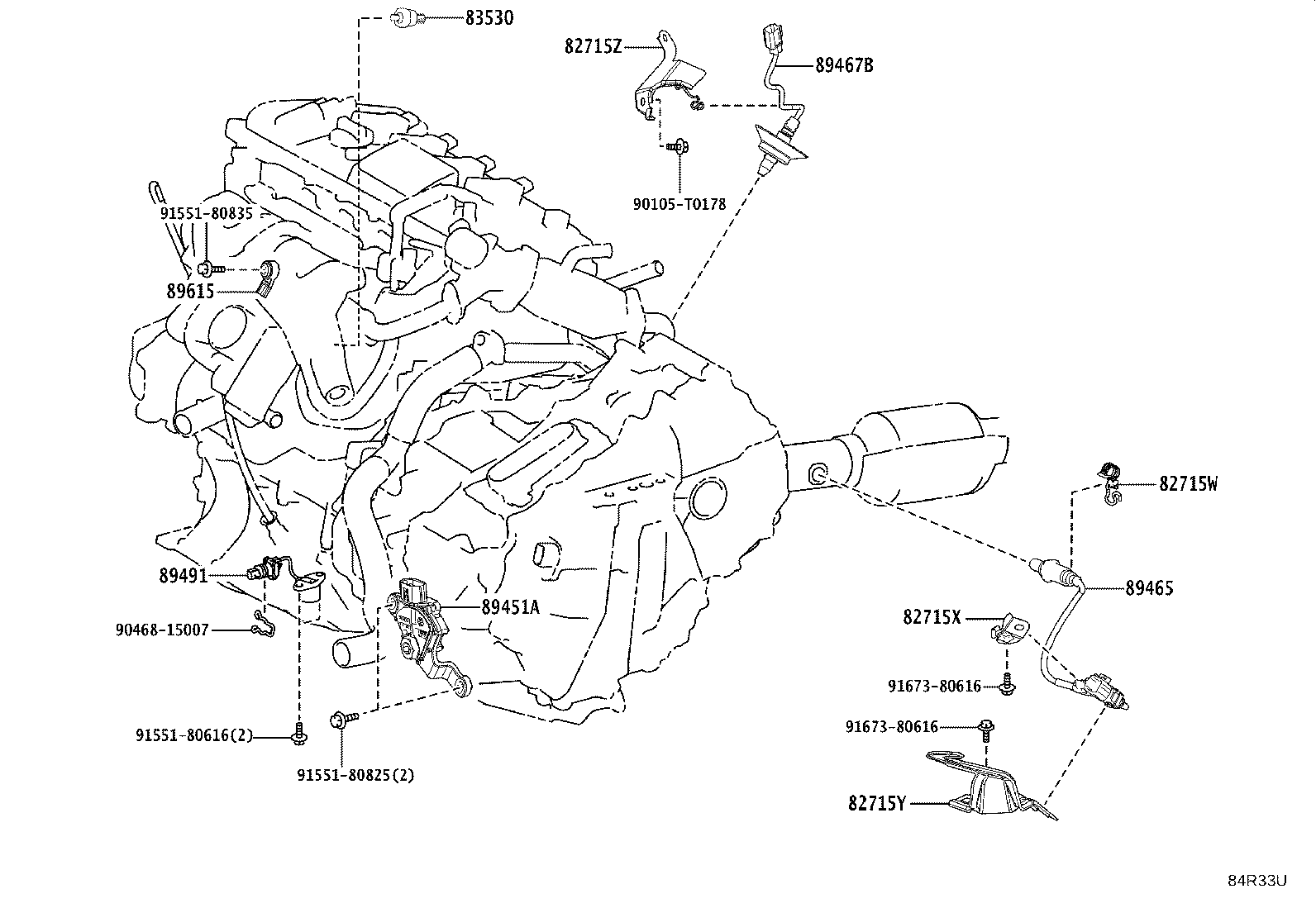

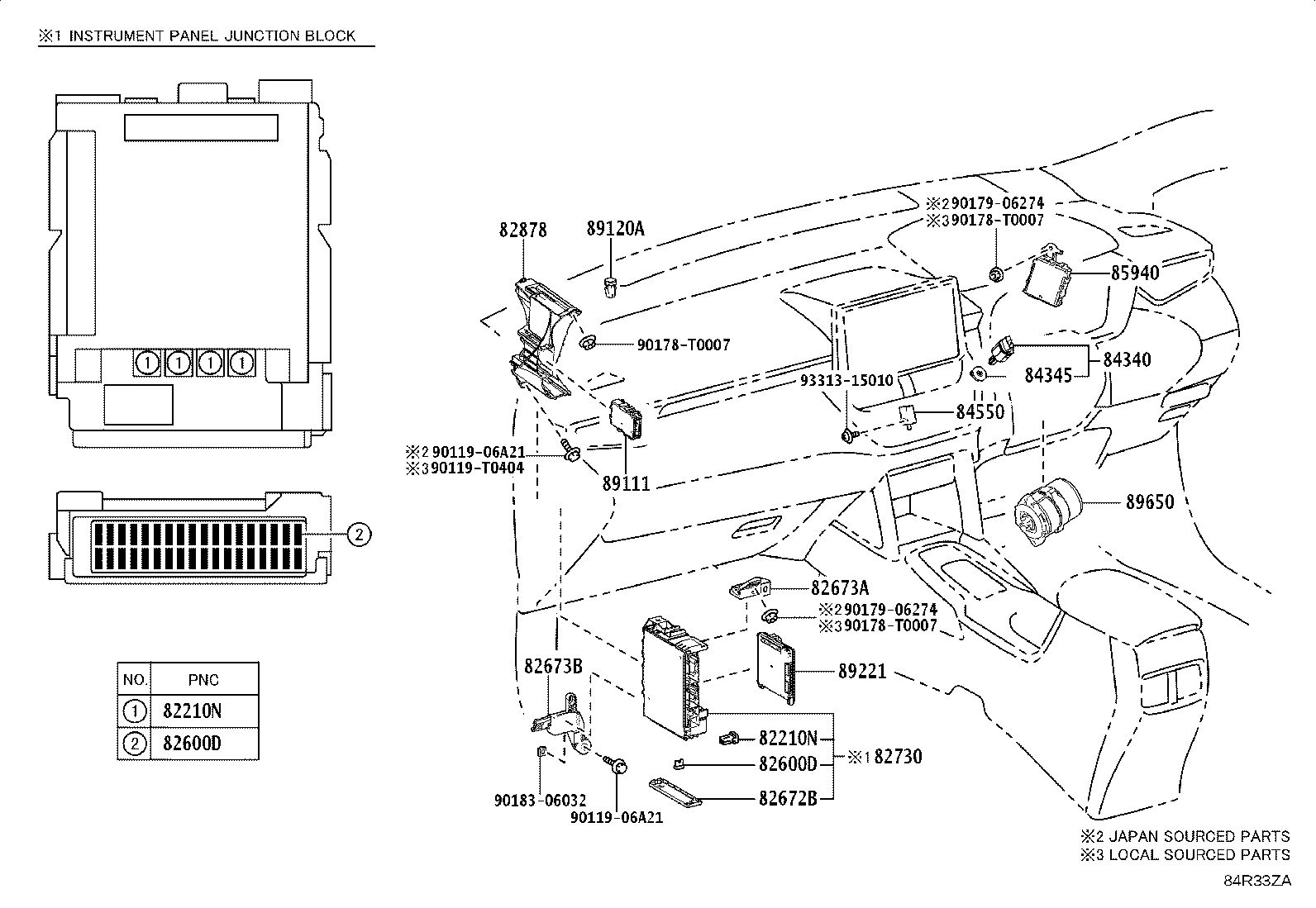

| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82666 | Holder, Connector |
| 82666H | Holder, Connector, NO.2 |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715W | Bracket, Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |
| 82715Y | Bracket, Wiring Harness Clamp, NO.3 |
| 82715Z | Bracket, Wiring Harness Clamp |
| 82730 | Block Assy, Instrument Panel Junction |
| 82878 | Box, Computer Integration, LH |

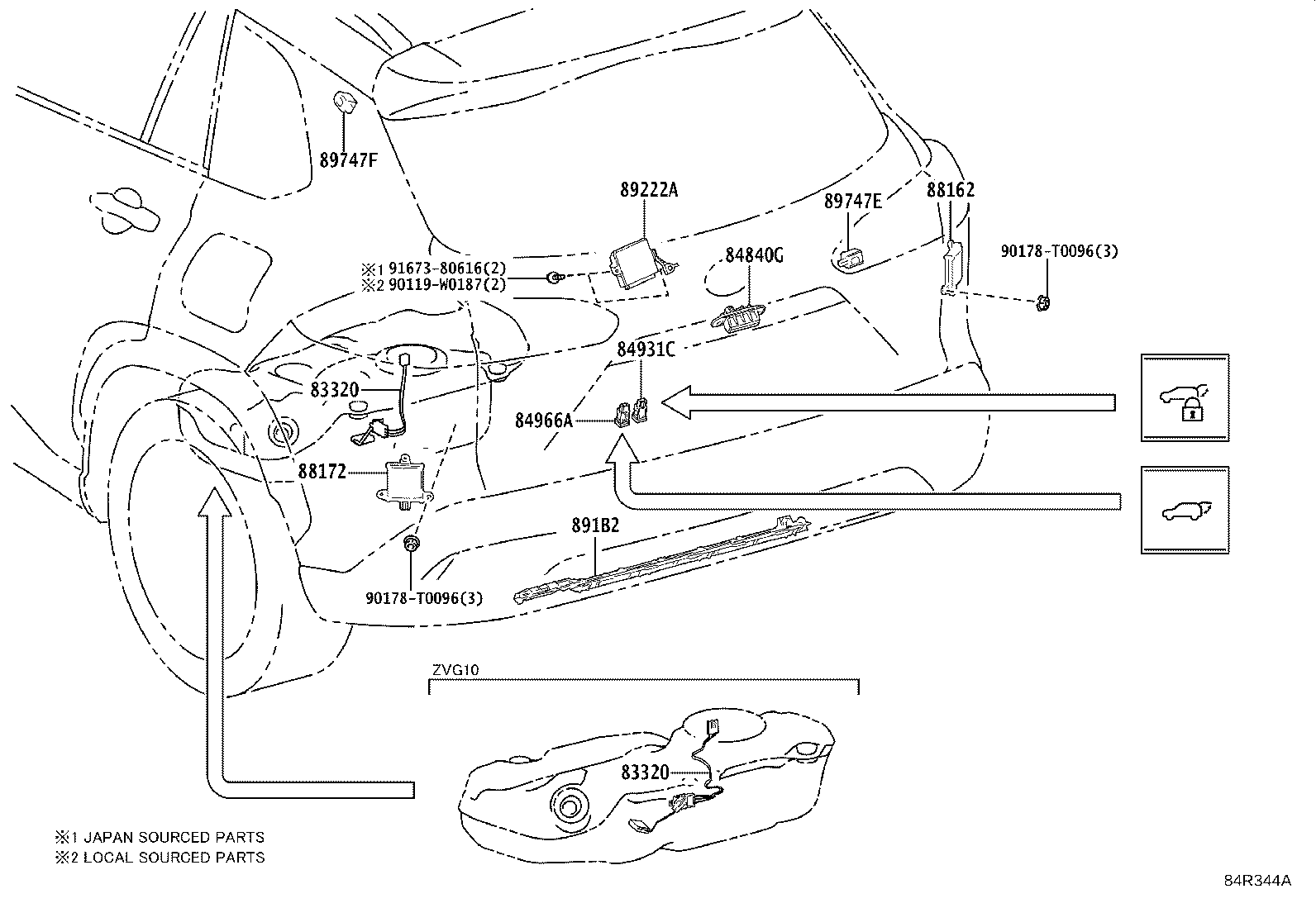

| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84040 | Master Switch Assy,Multiplex Network |
| 84152 | Switch, Headlamp Leveling |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |

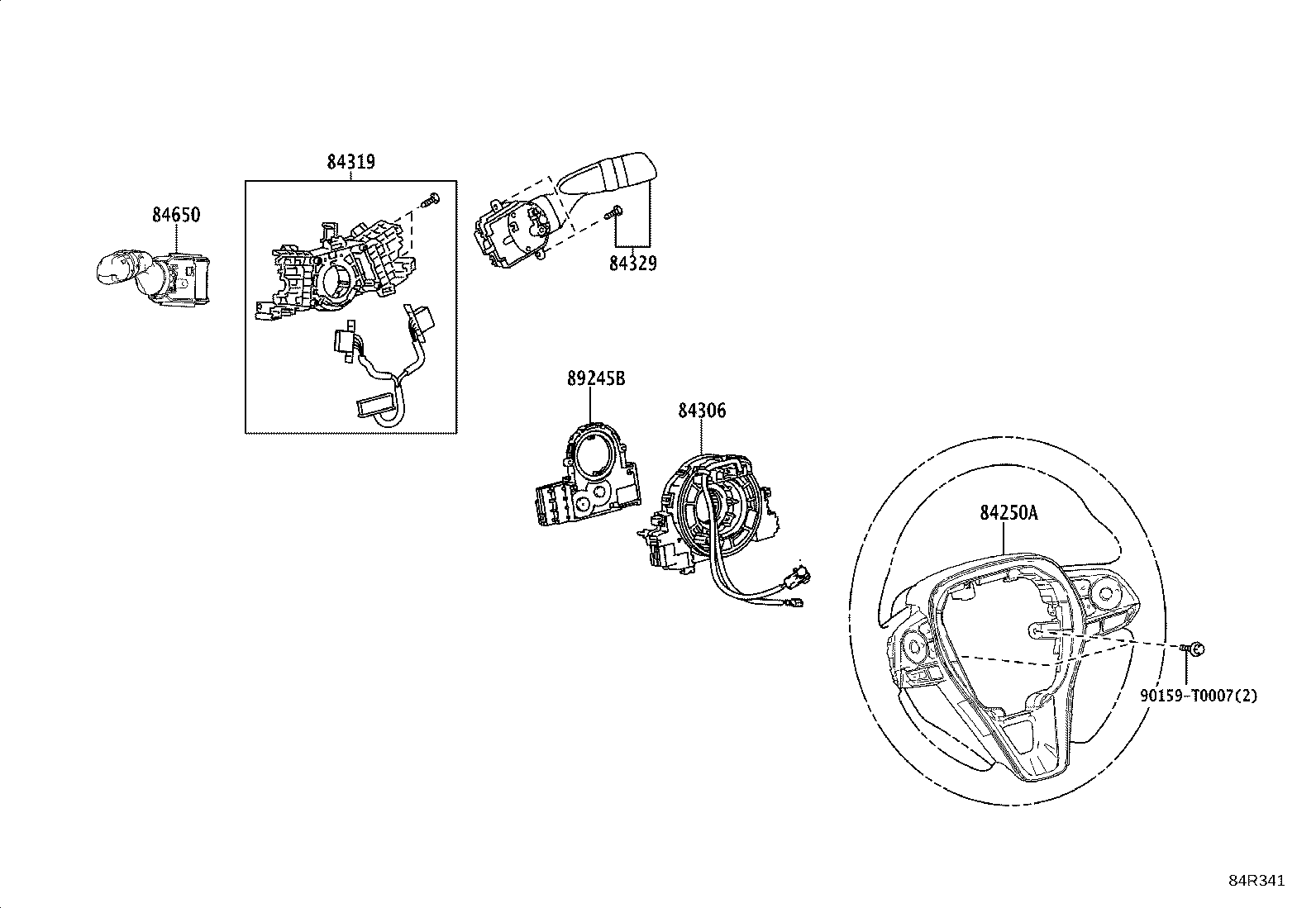

| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |

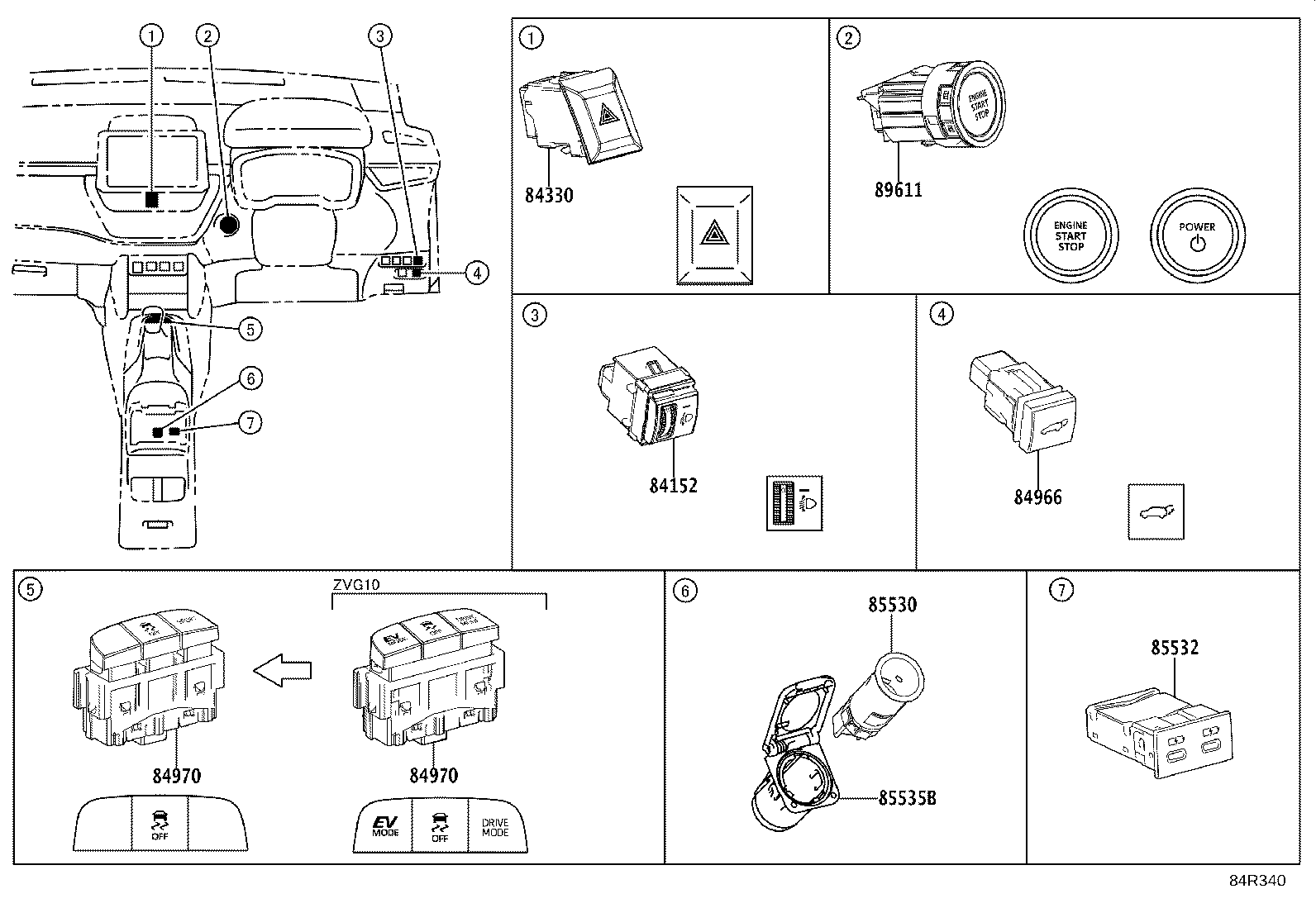

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |

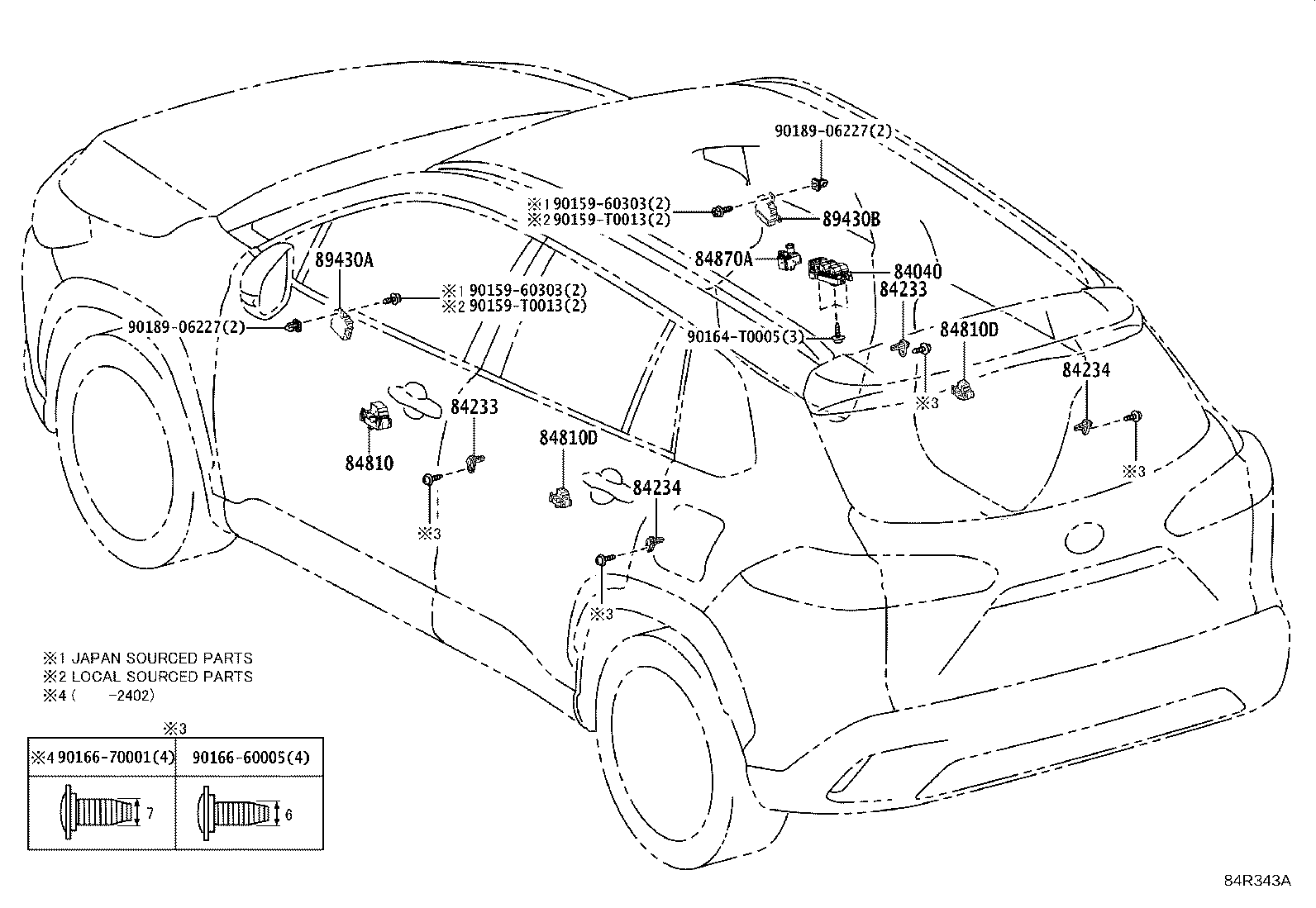

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |

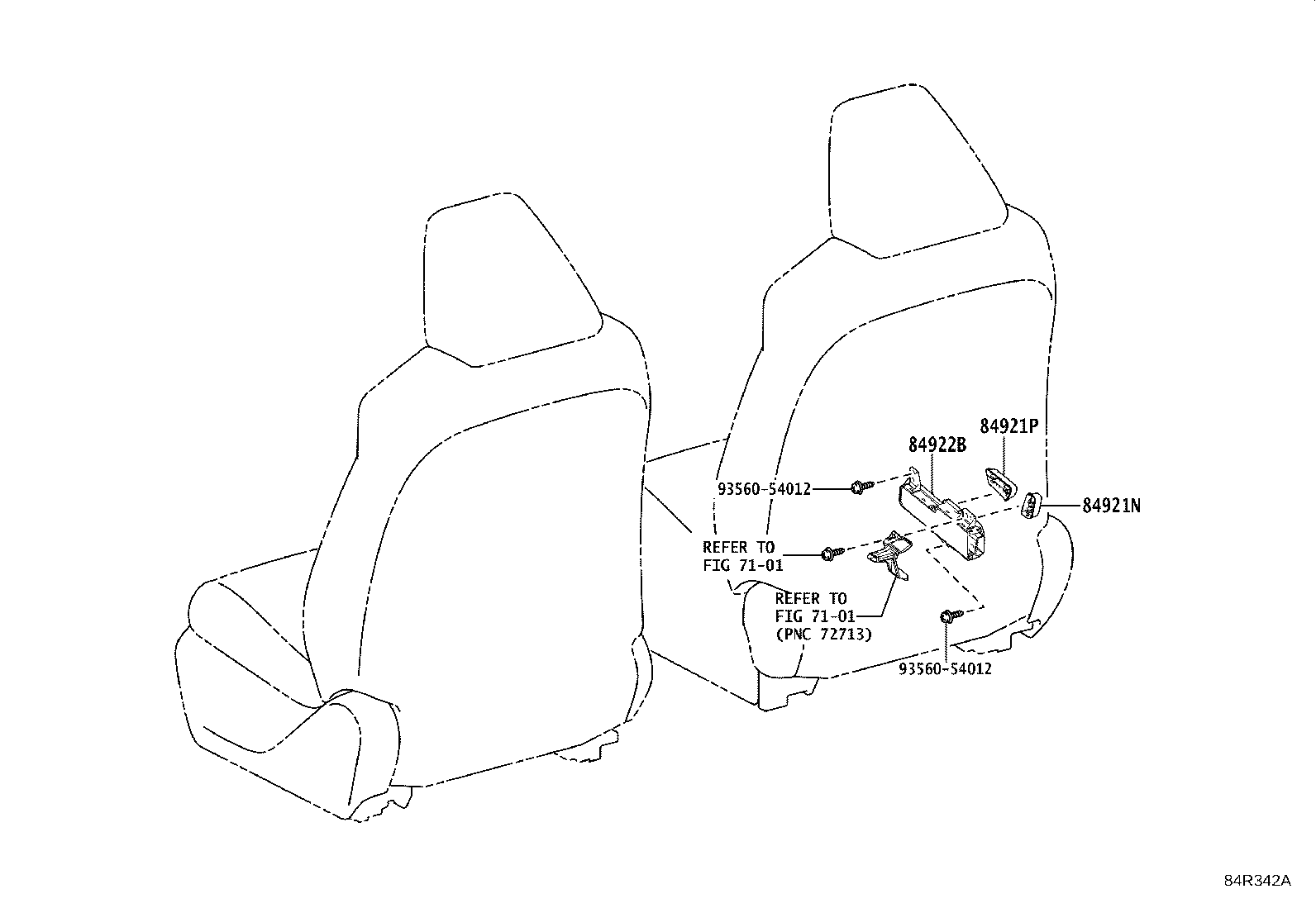

| 84922B | Switch, Front Power Seat, RH |
| 84931C | Switch, Back Door Control |
| 84966 | Switch, Power Back Door Control |
| 84966A | Switch, Power Back Door Control, NO.1 |
| 84970 | Switch Assy, Combination |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910 | Relay Assy, Circuit Opening |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85924C | Relay, Igct |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85940 | Relay Assy, Windshield Wiper |
| 86530 | Relay Assy, Horn |
| 87989 | Relay, Mirror Control |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B2 | Sensor, Kick Door Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89429F | Sensor, Temperature |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 89451A | Sensor, Shift Lever Position |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89491 | Sensor, Engine Oil Level |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| 89747F | Buzzer, Blind Spot Monitor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
