Toyota Corolla Cross

2023-11 → present · chassis ZSG10,ZVG10 · catalogue 551210 · General

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 3 illustrations

Illustrations

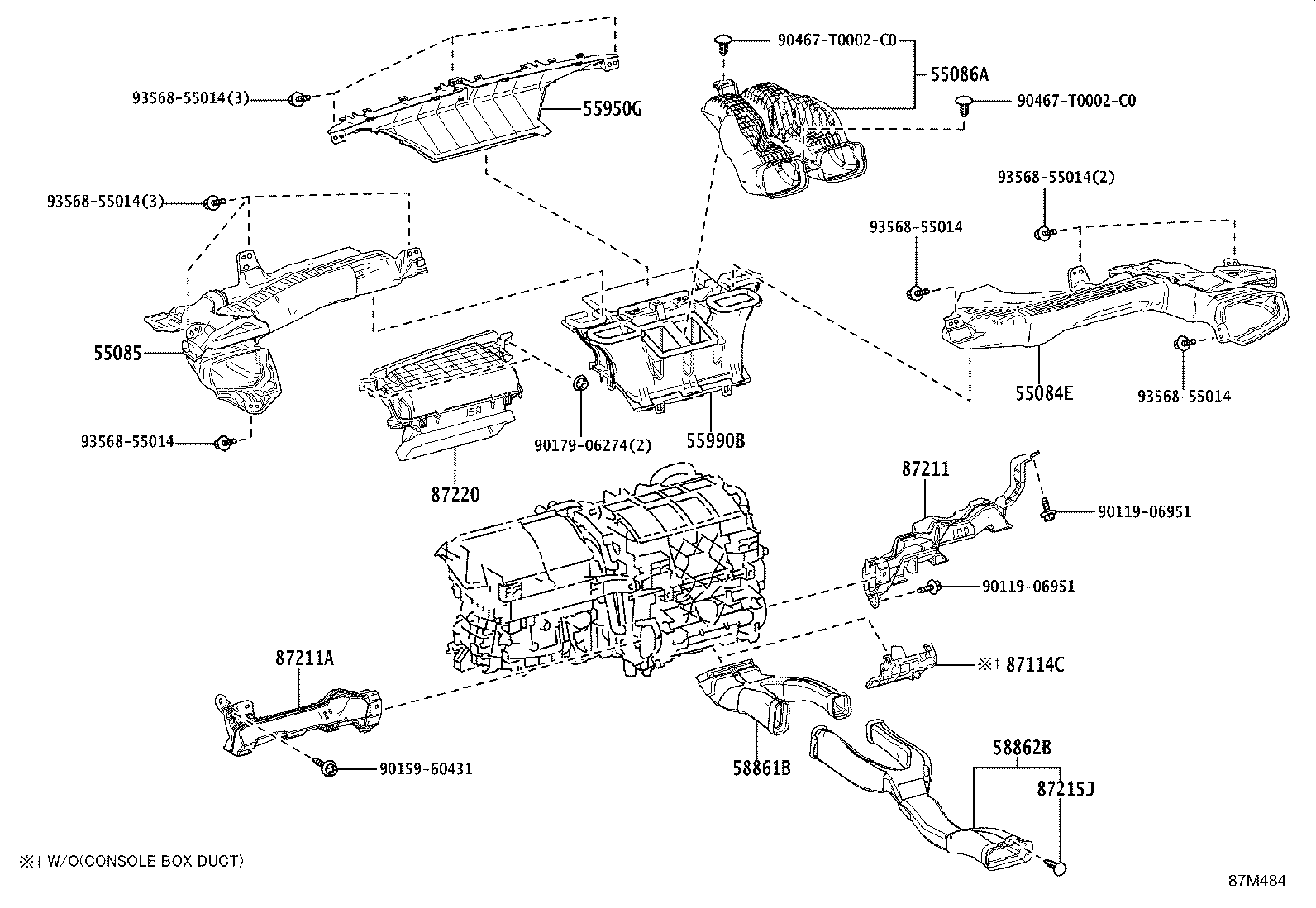

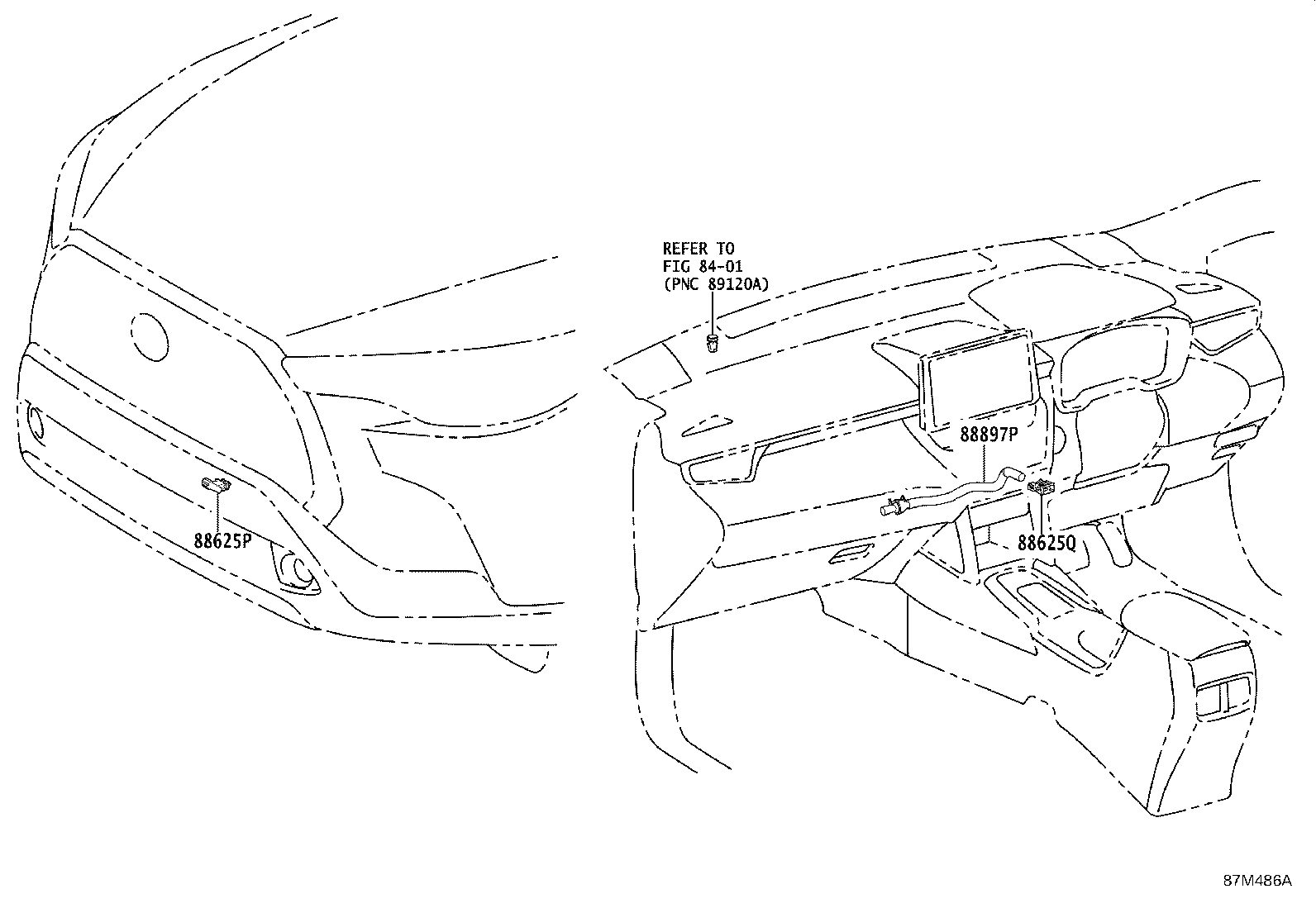

Figure 87M485 87M485 2023-12 → — Figure 87M484 87M484 2023-12 → — Figure 87M486A 87M486A 2023-12 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87114C Cover, Heater
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87215J Clip (FOR AIR REAR DUCT)
87220 Duct Assy, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
