Toyota Corolla Cross
2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General
Supported model
Data version 2024-12
Standard Tool
9 part groups · 3 illustrations

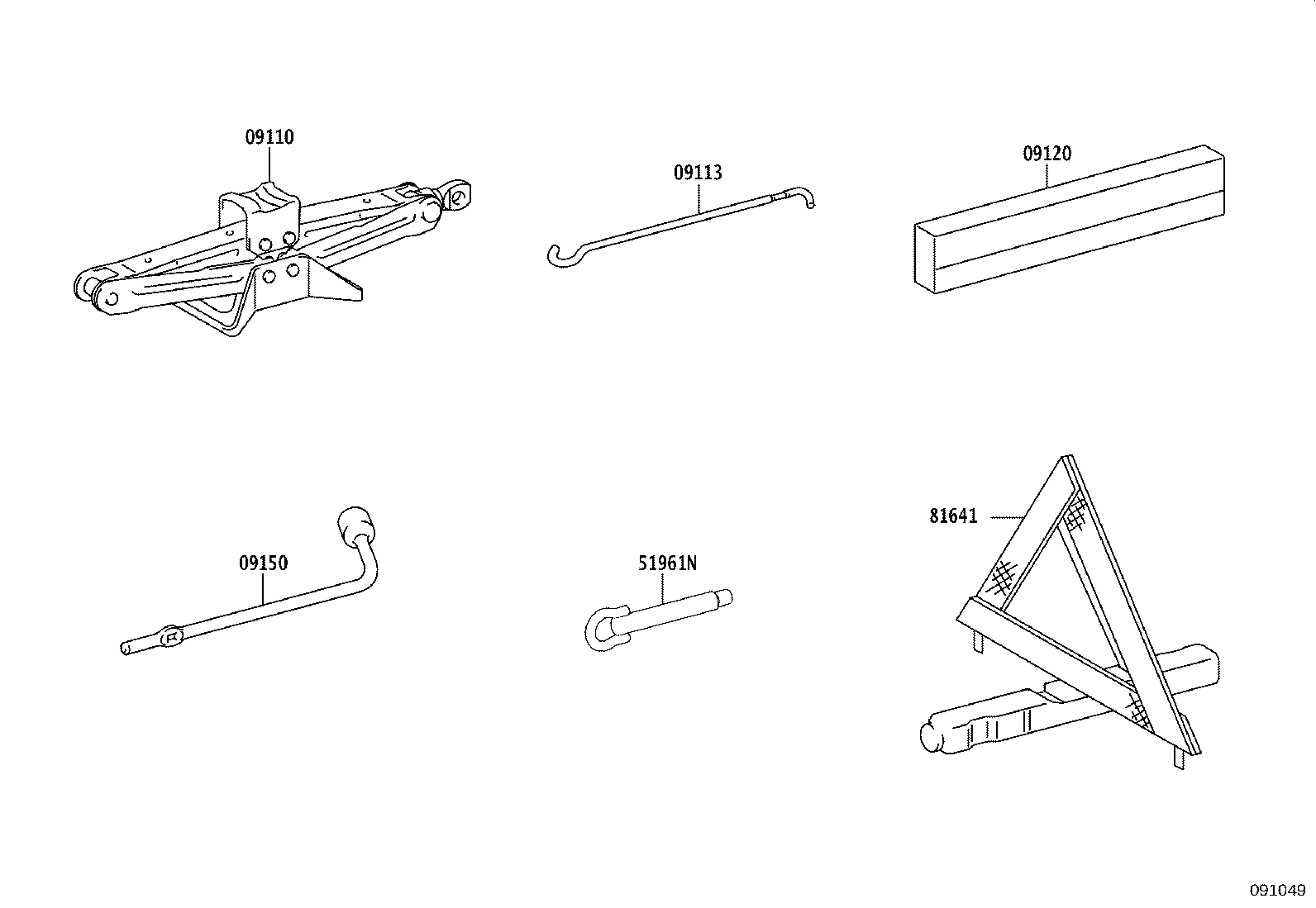

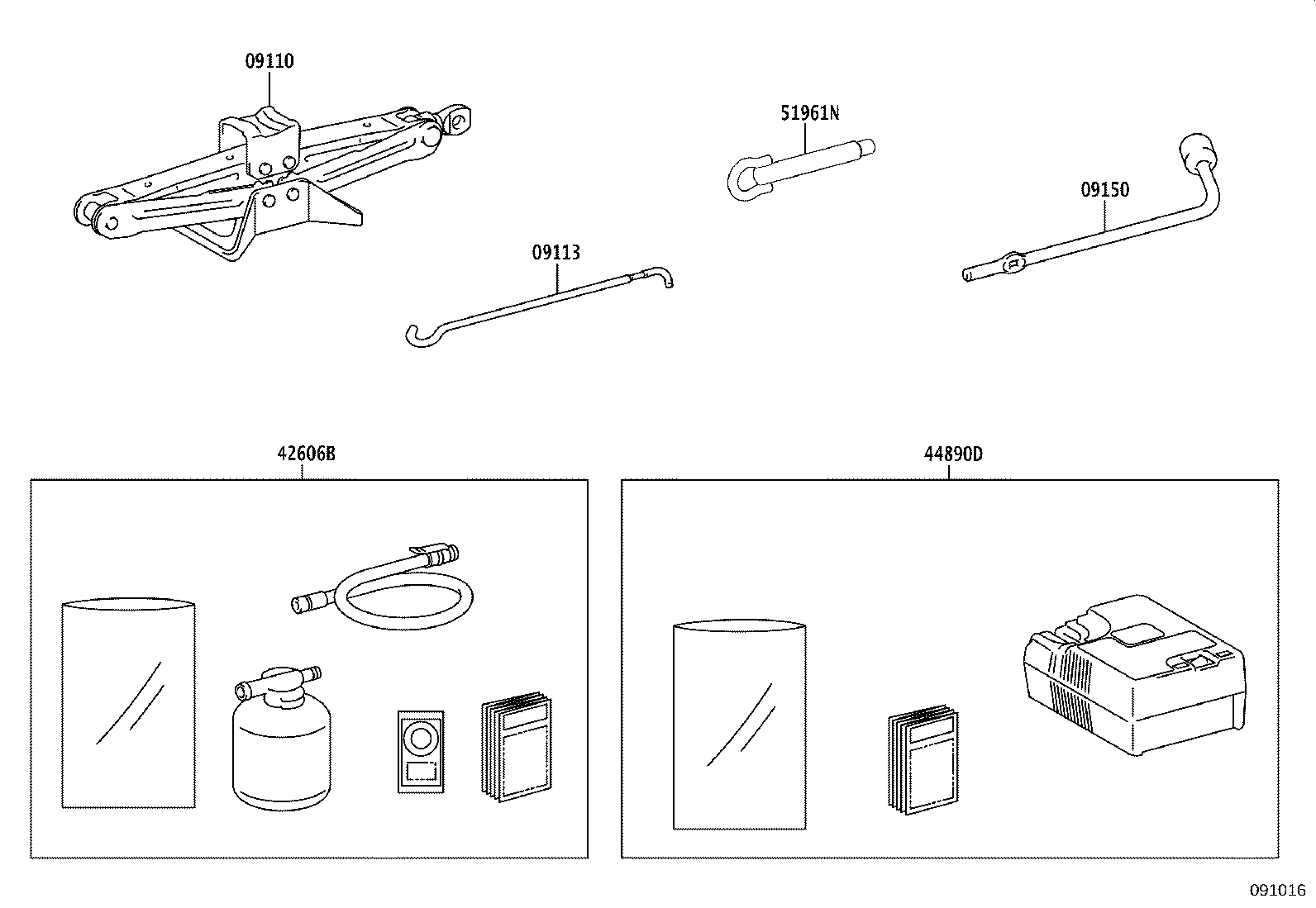

Part groups
| PNC | Description |
|---|---|
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09150 | Wrench, Hub Nut Box |
| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51961N | Hook, Transport |
| 81604 | Reflector Set, Triangle |
| 81641 | Reflector, Triangle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
