Water Pump

3 part groups · 4 illustrations

Illustrations

Figure 167741A

167741A 2020-07 → —

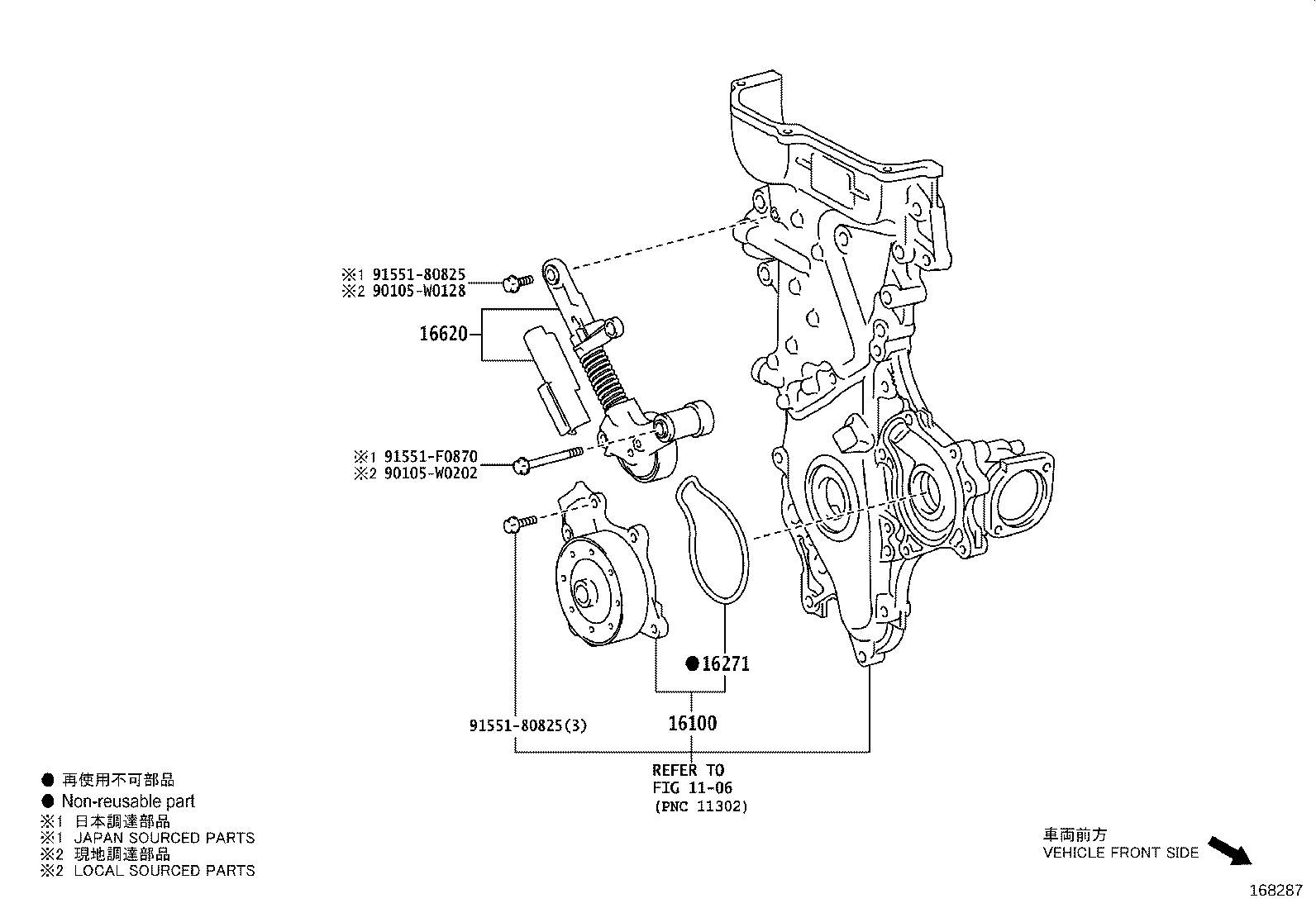

168287 2021-10 → —

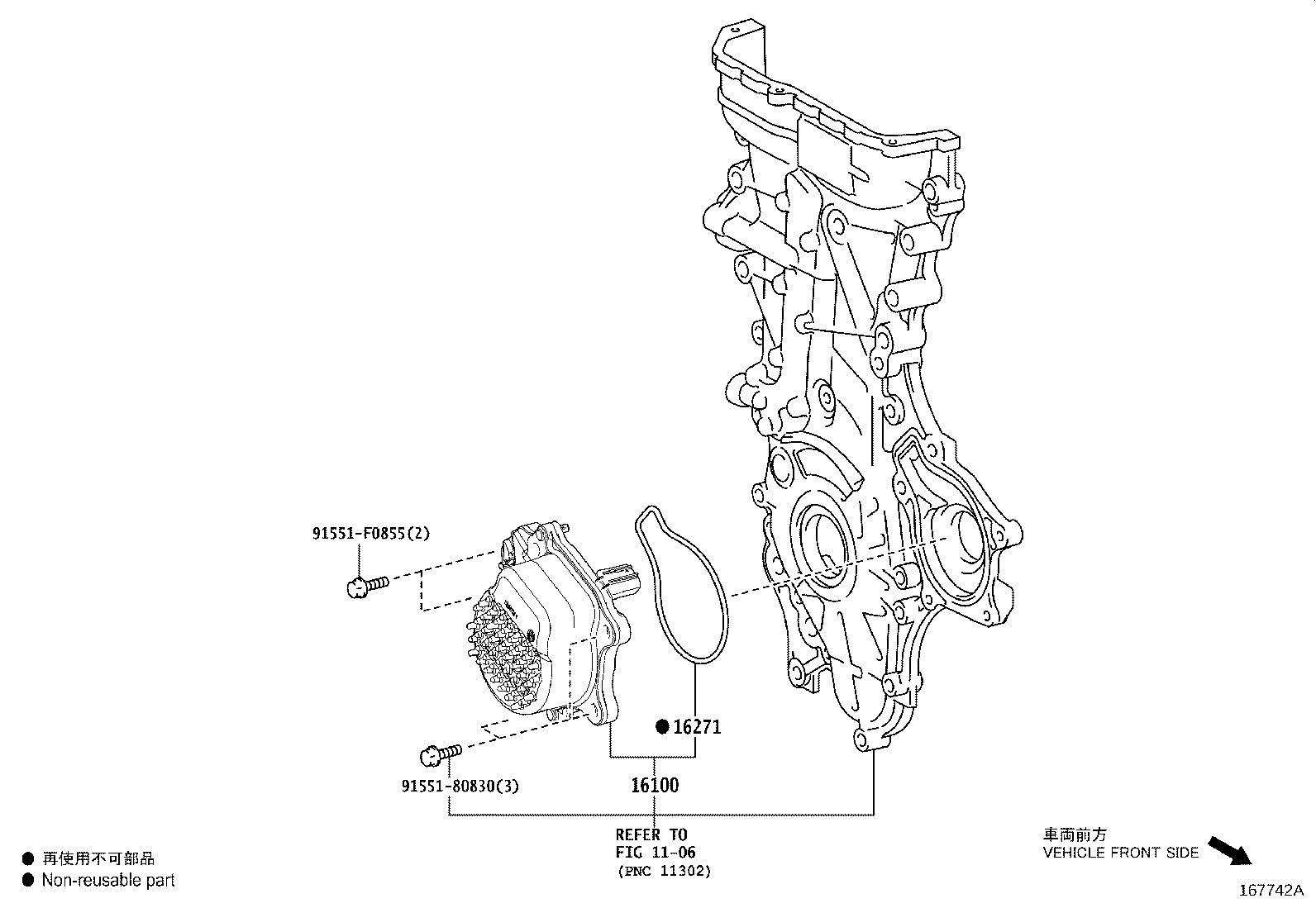

Figure 167742A

167742A 2020-07 → —

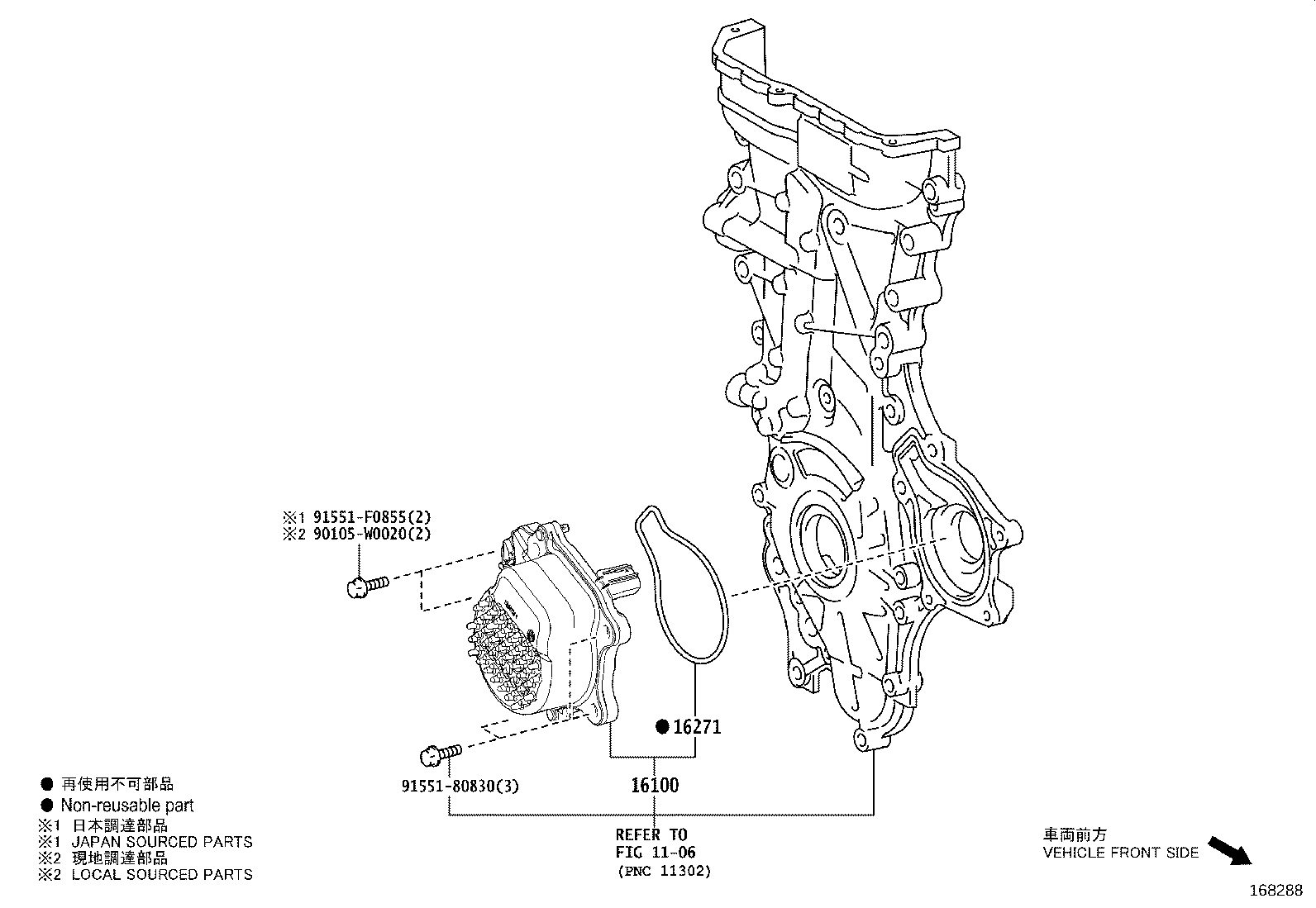

168288 2021-10 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
