Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

12 part groups · 8 illustrations

Illustrations

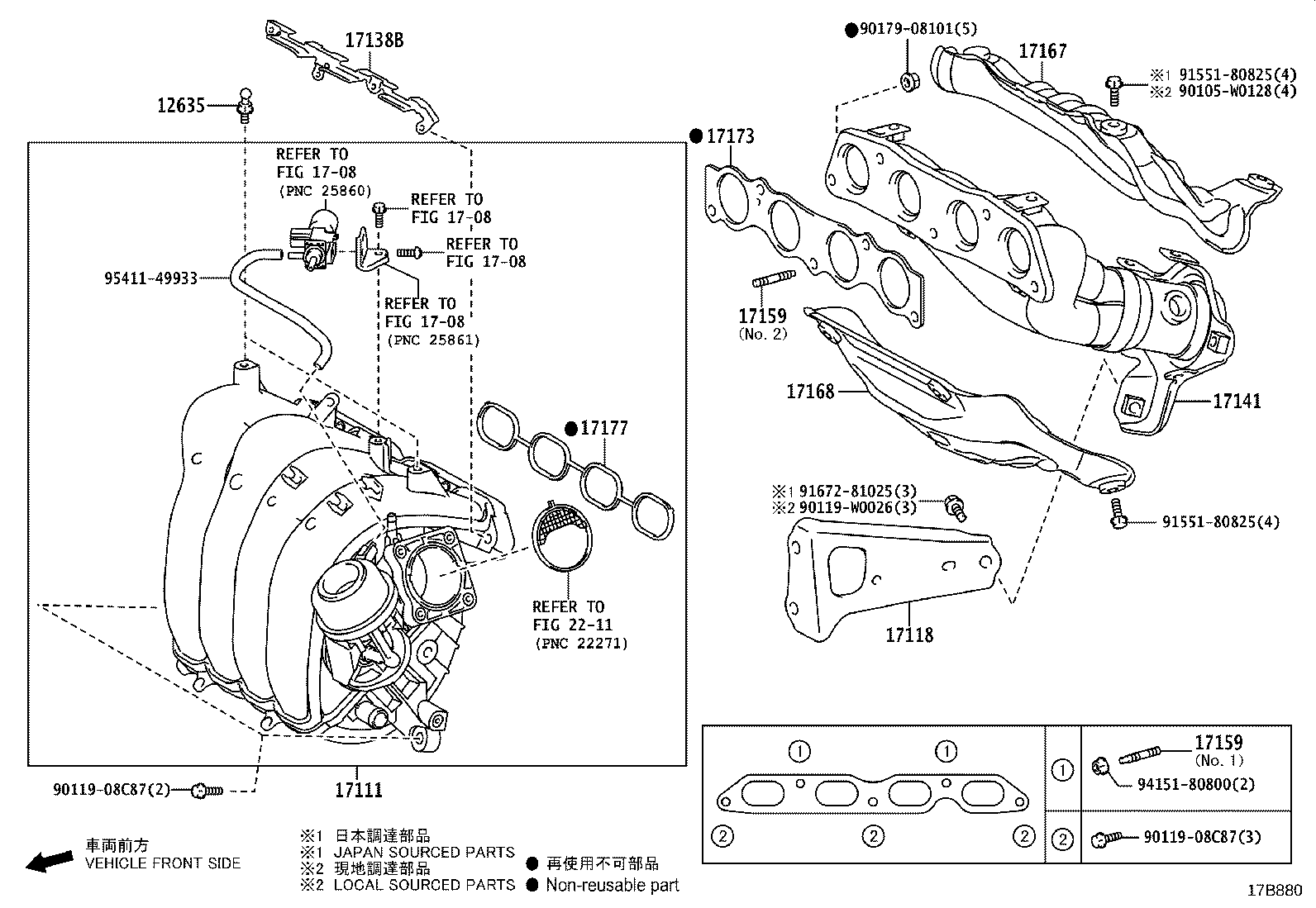

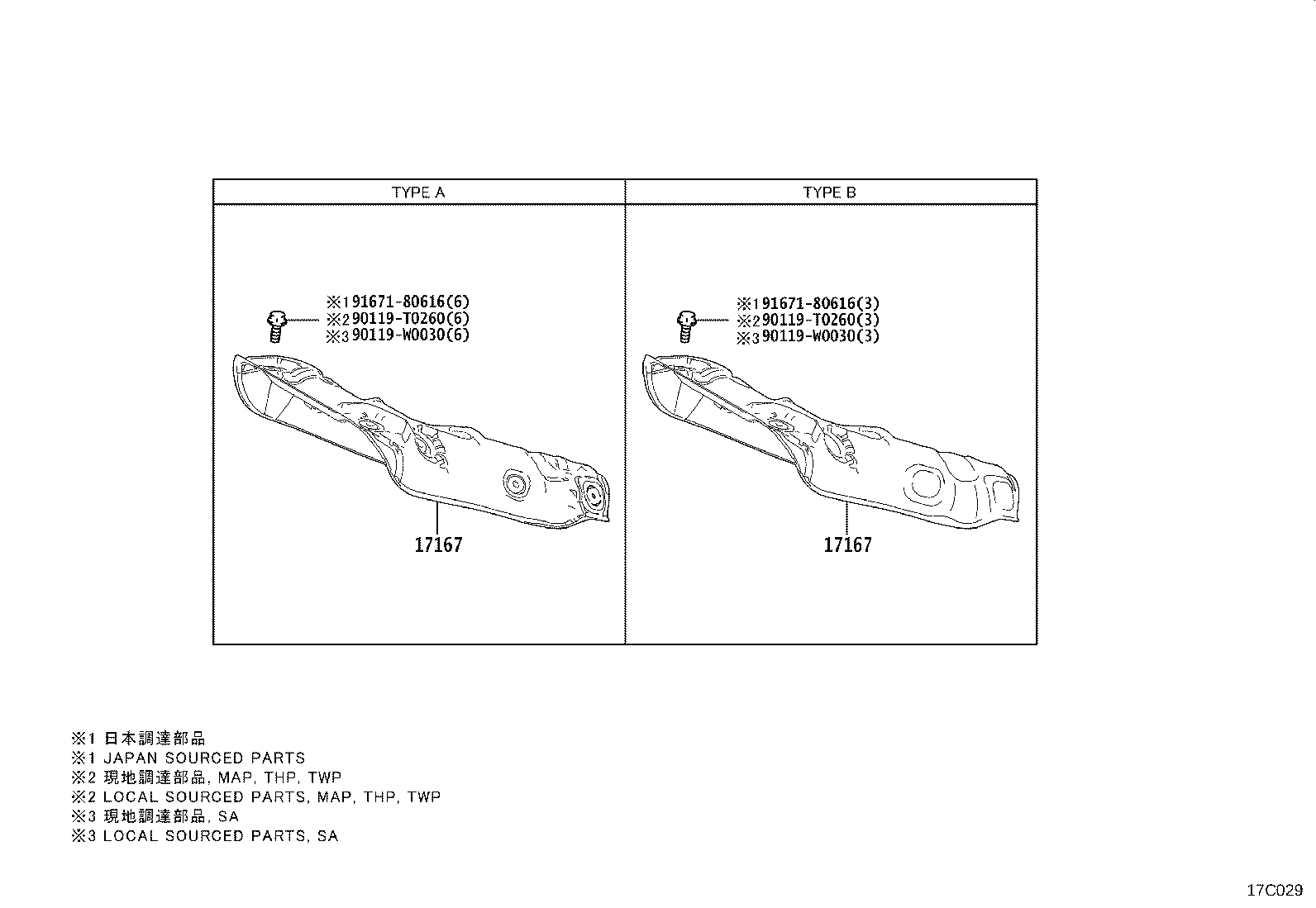

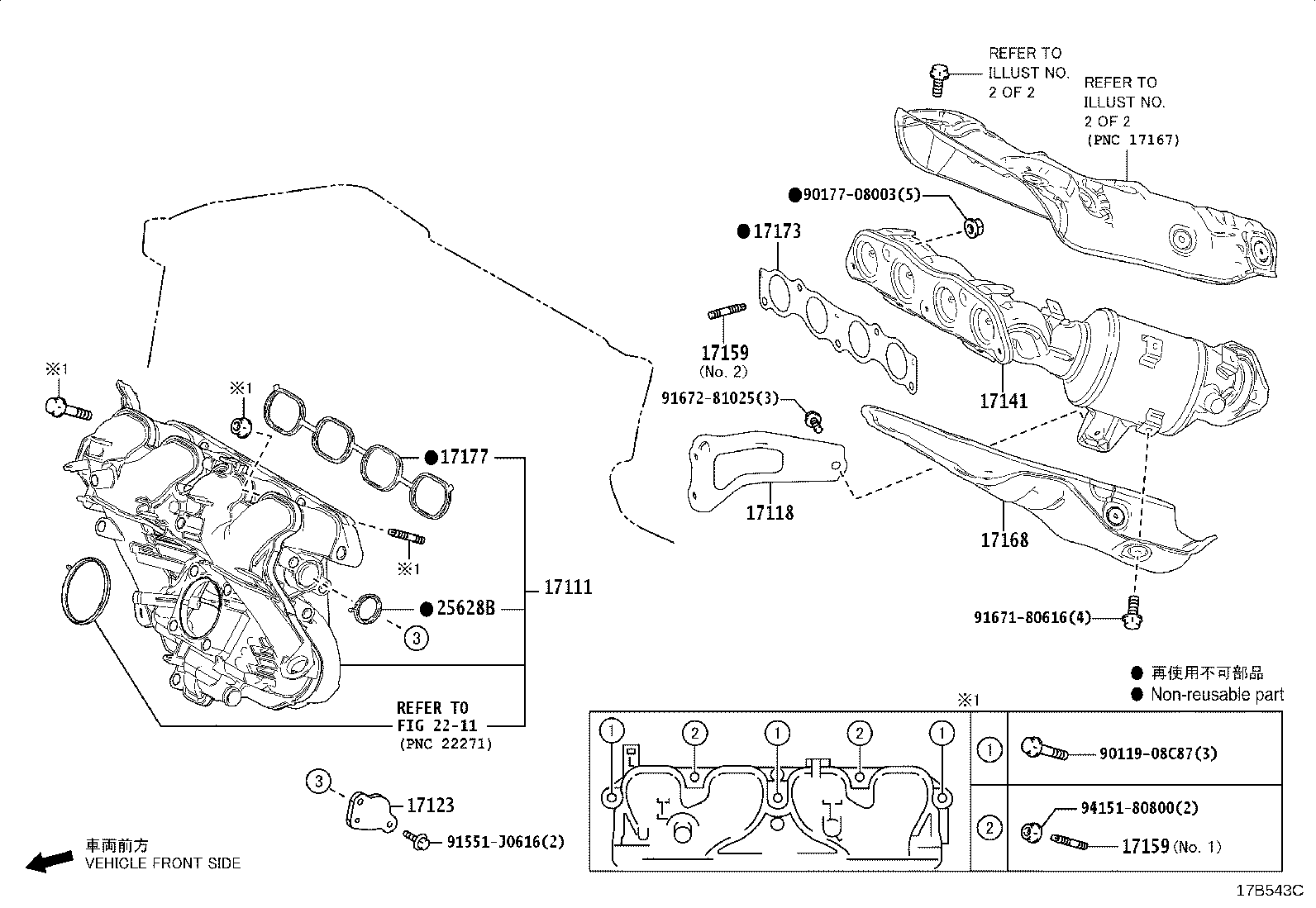

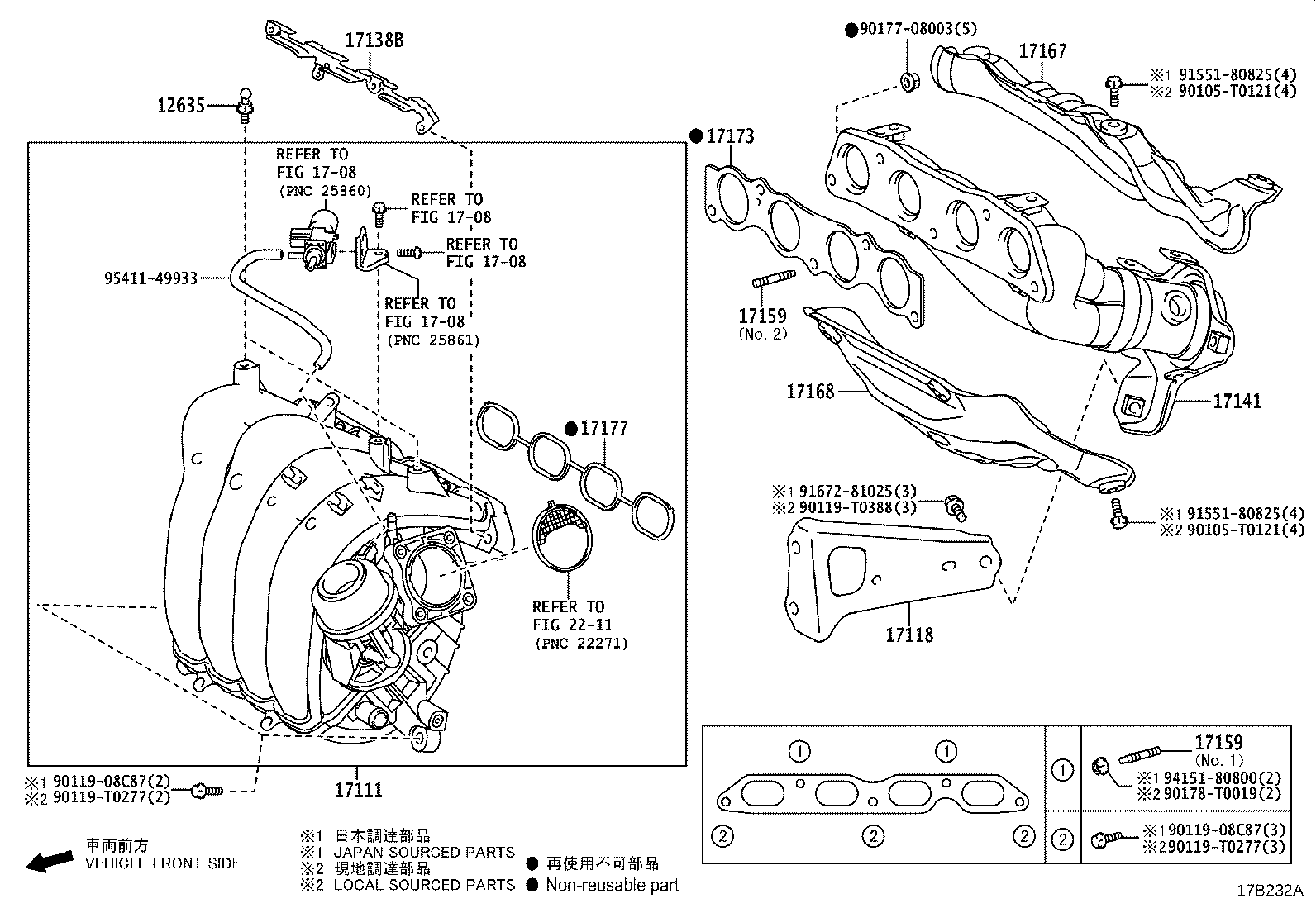

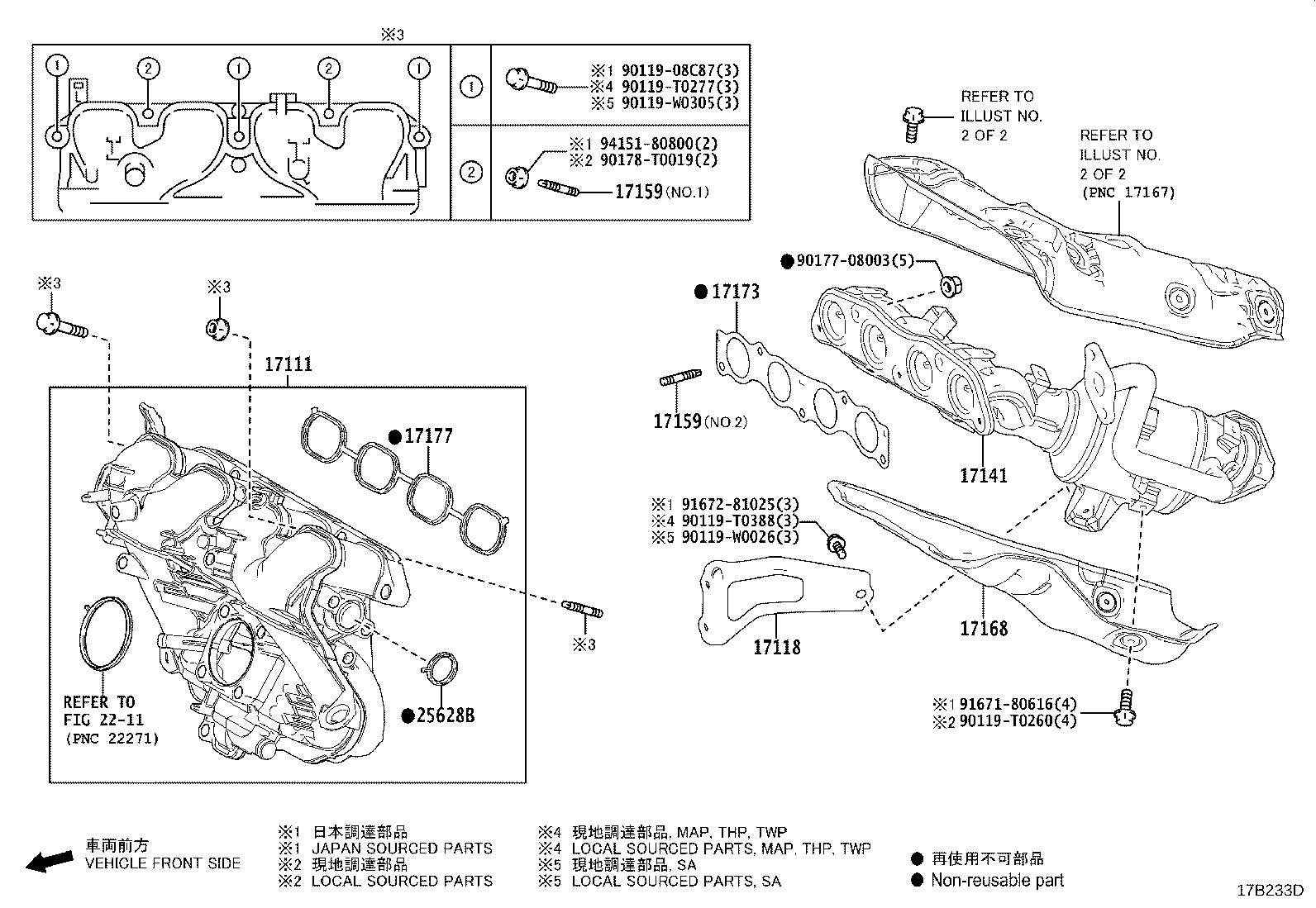

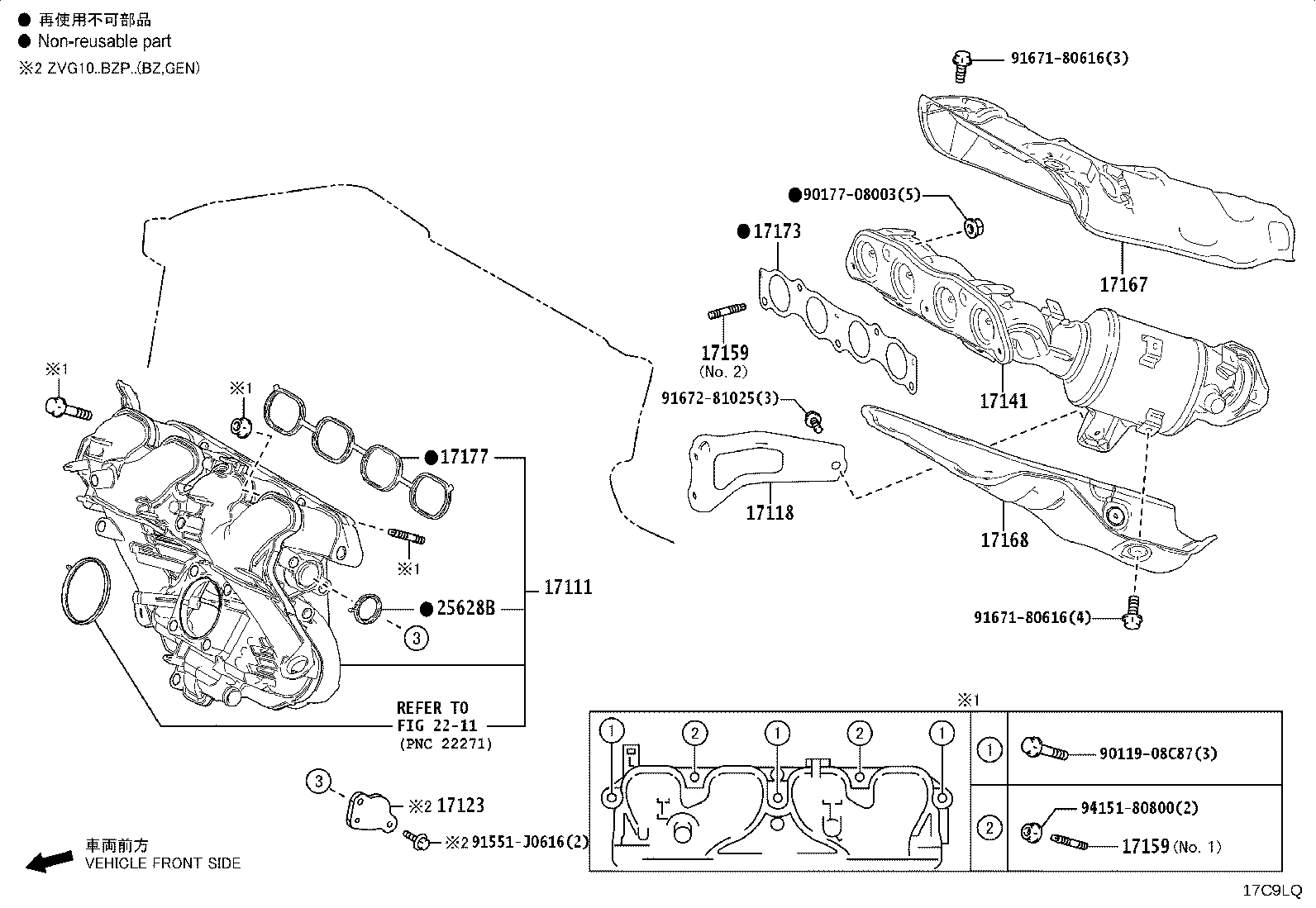

Figure 17B523A 17B523A 2021-03 → — Figure 17B232A 17B232A 2020-07 → — Figure 17B880 17B880 2021-10 → — Figure 17B233D 17B233D 2020-07 → — Figure 17C029 17C029 2020-07 → — Figure 17B543C 17B543C 2021-03 → — Figure 17C030 17C030 2021-03 → — Figure 17C9LQ 17C9LQ 2025-01 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17123 Cover, Surge Tank
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
