Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 3 illustrations

Illustrations

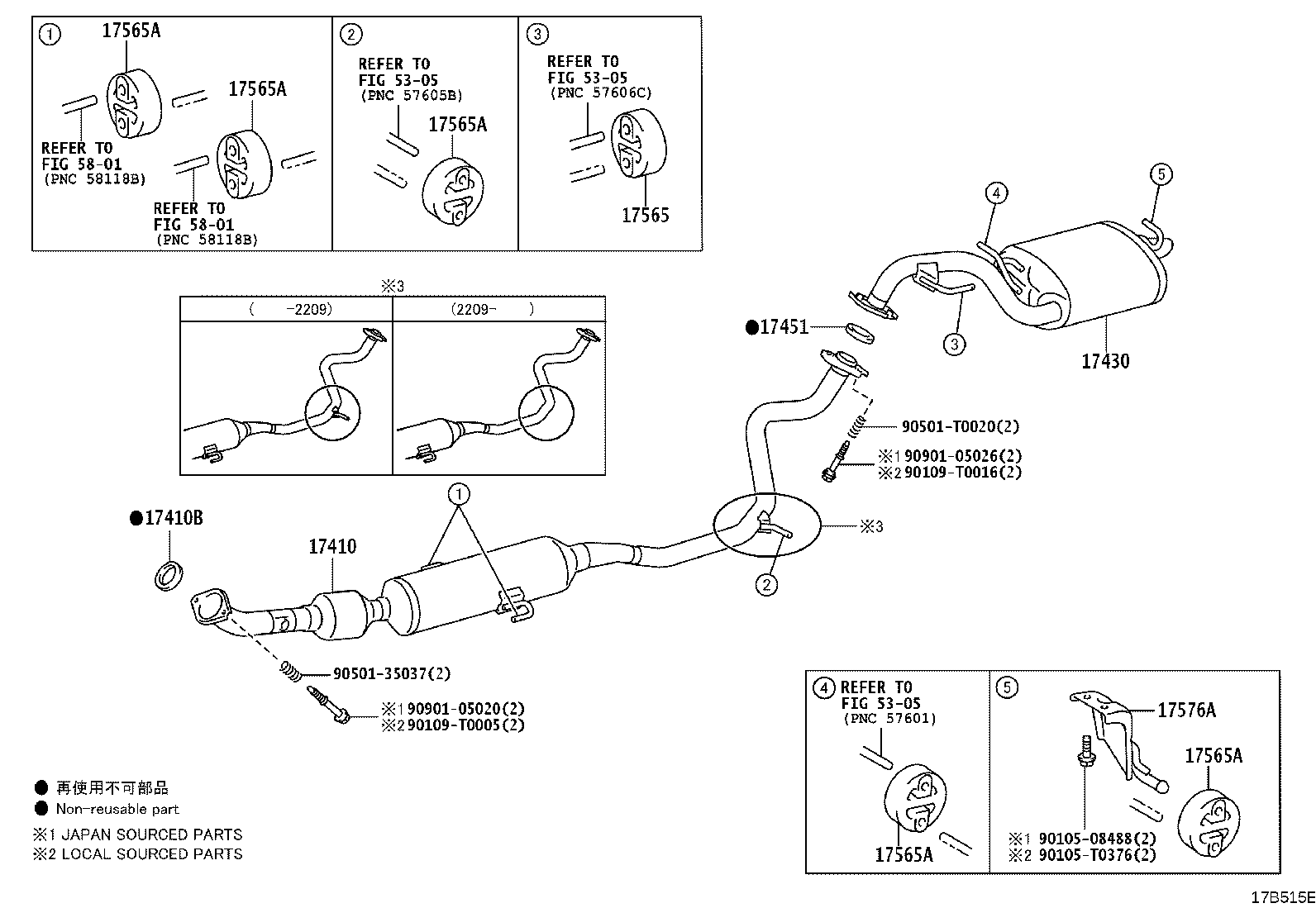

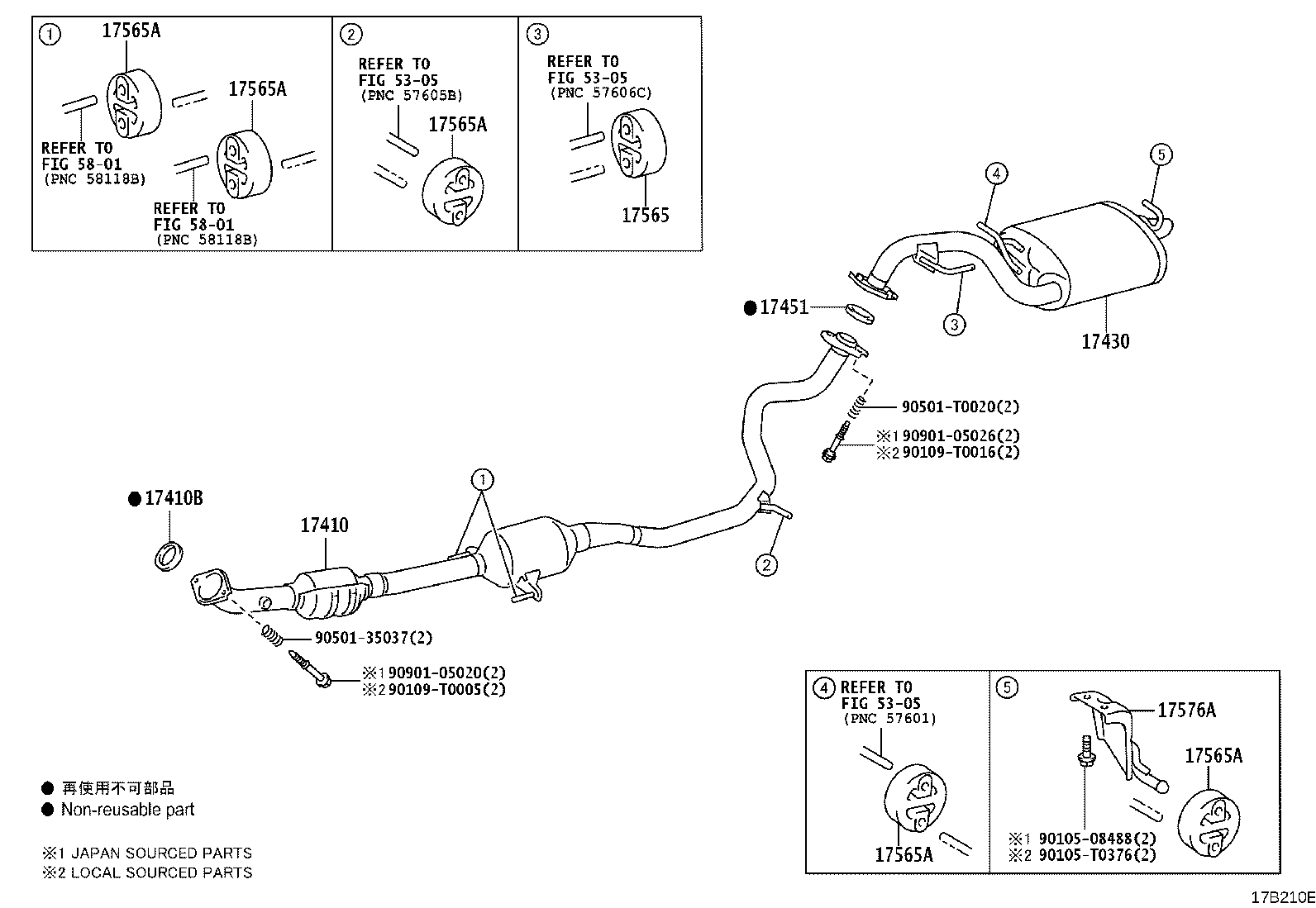

Figure 17B209G 17B209G 2020-07 → — Figure 17B210E 17B210E 2020-07 → — Figure 17B515E 17B515E 2021-03 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
