Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 7 illustrations

Illustrations

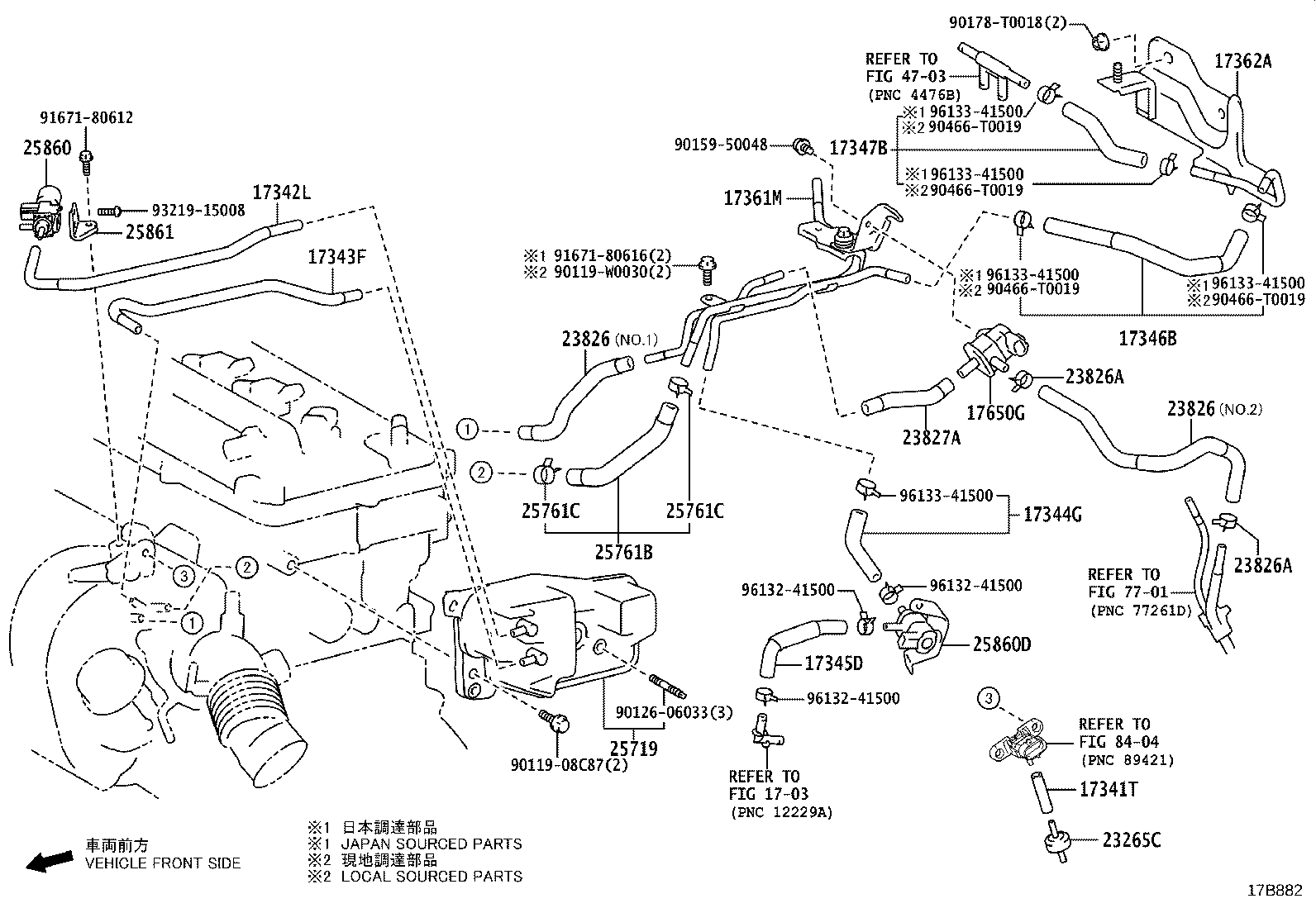

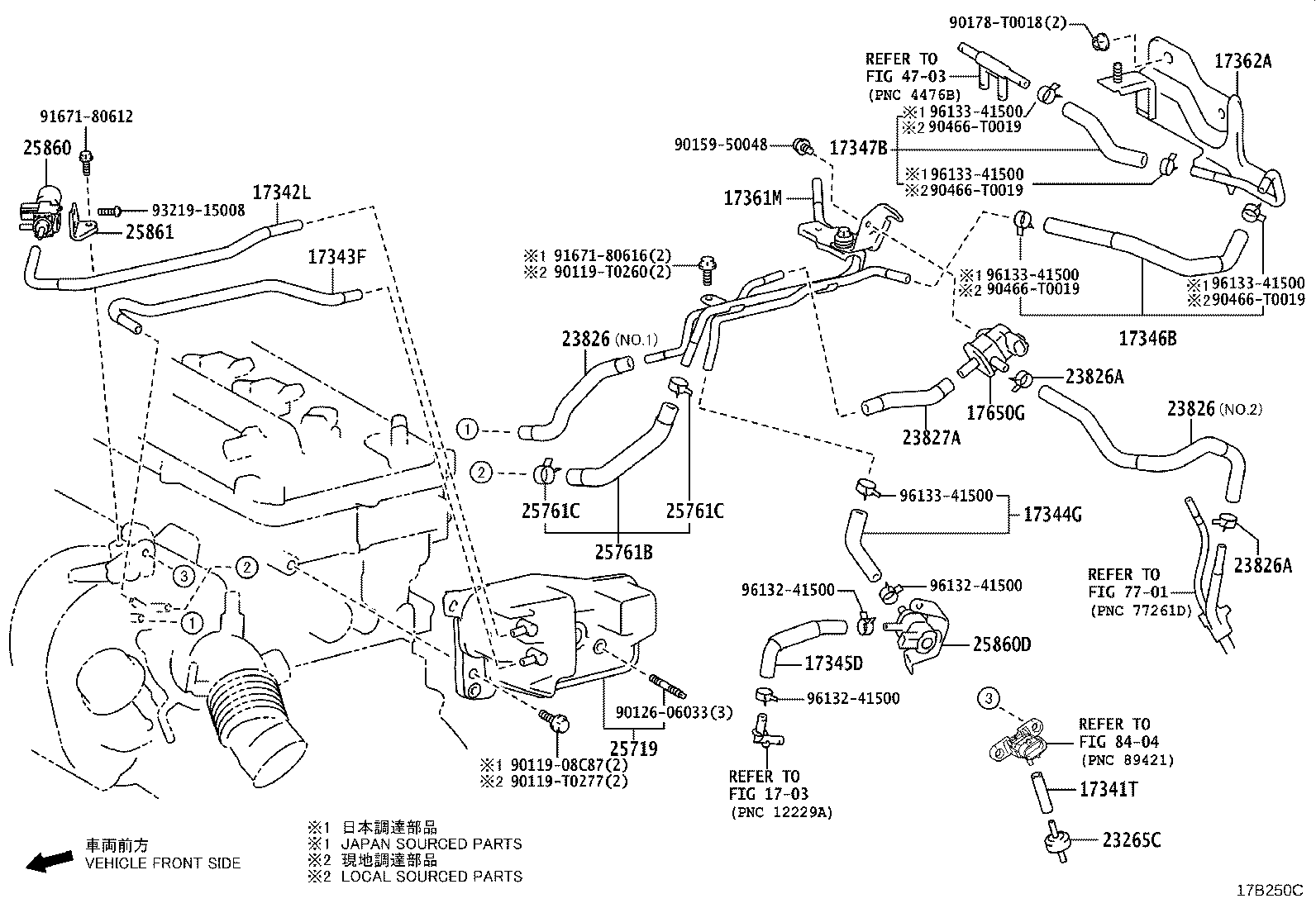

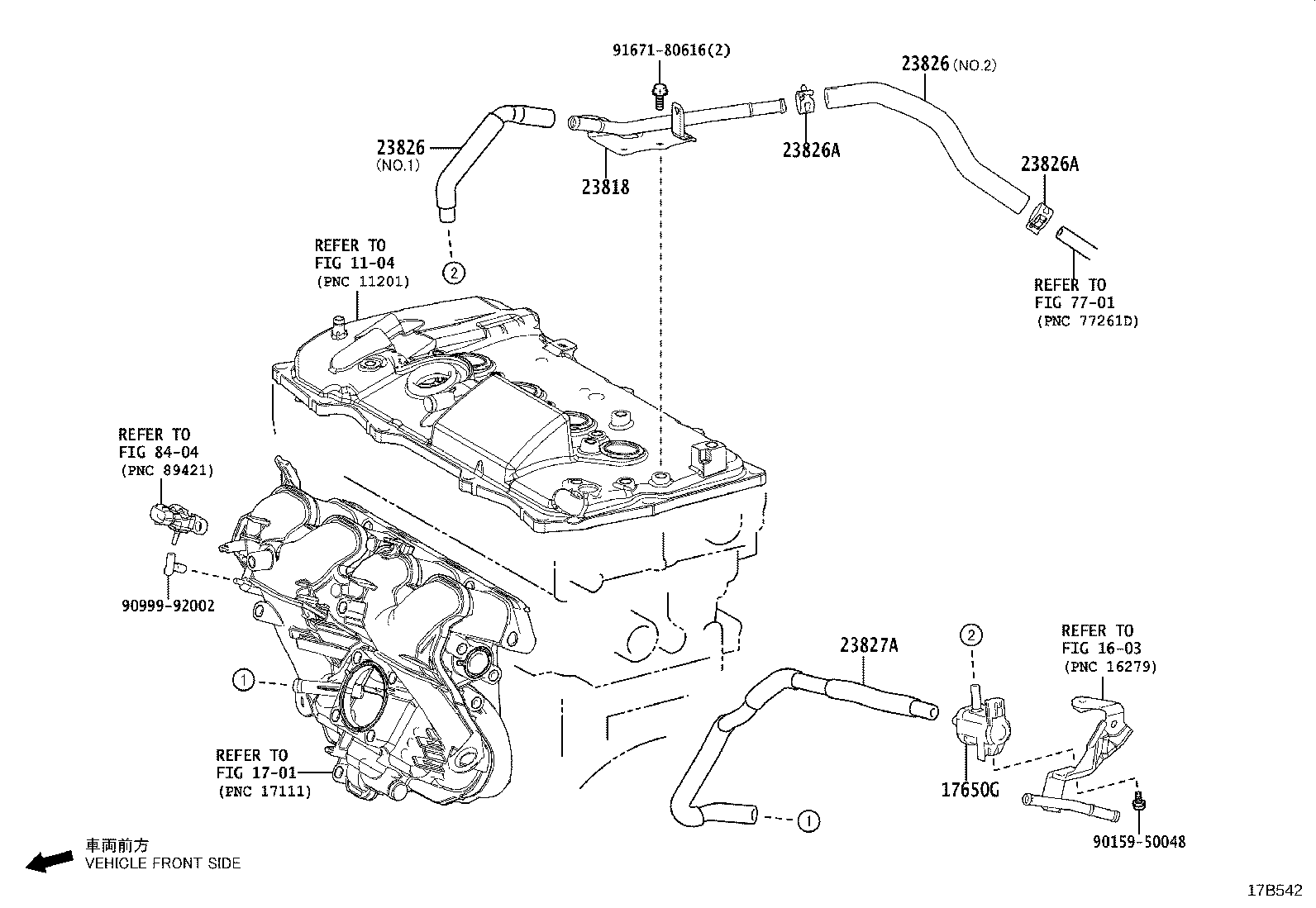

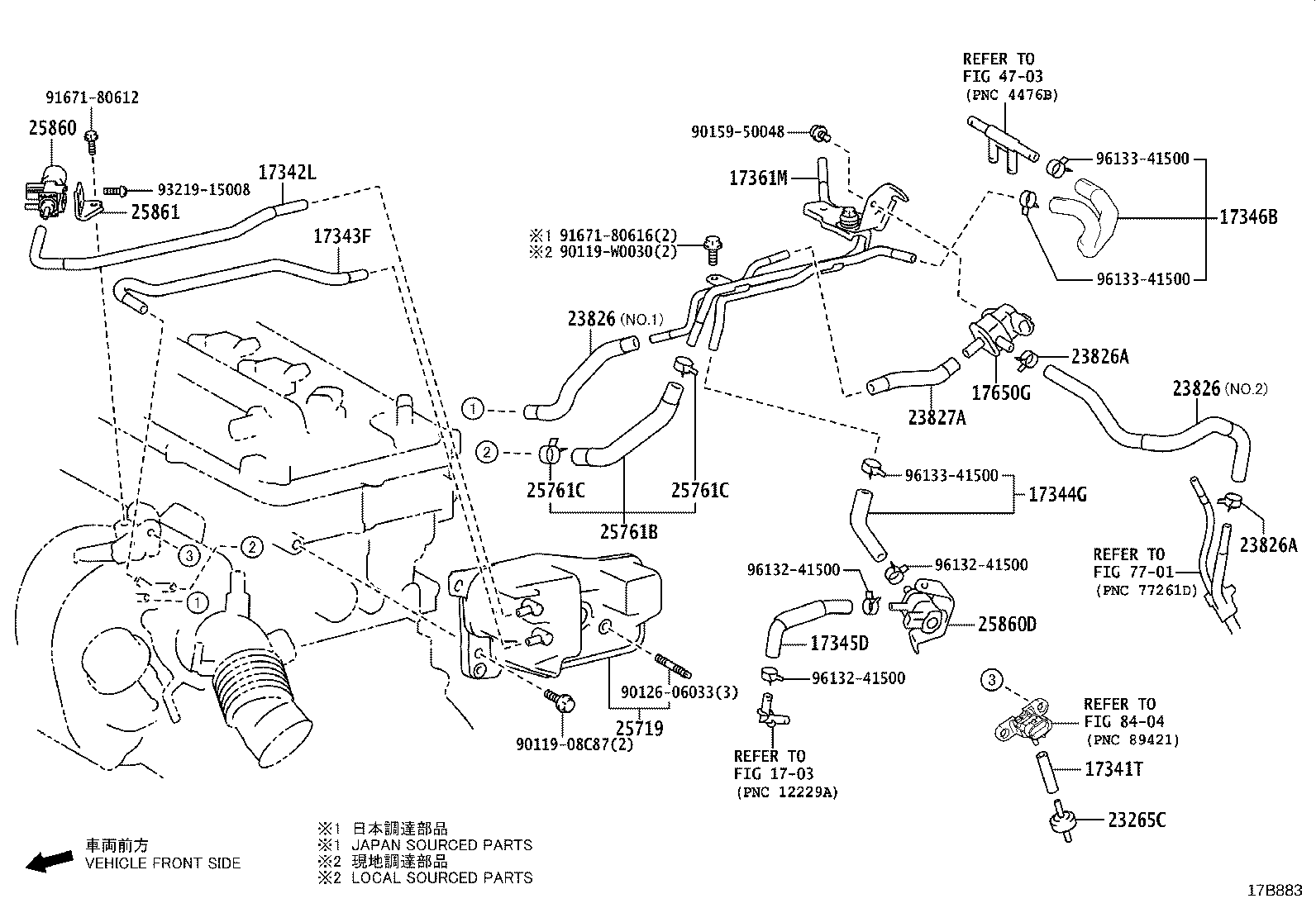

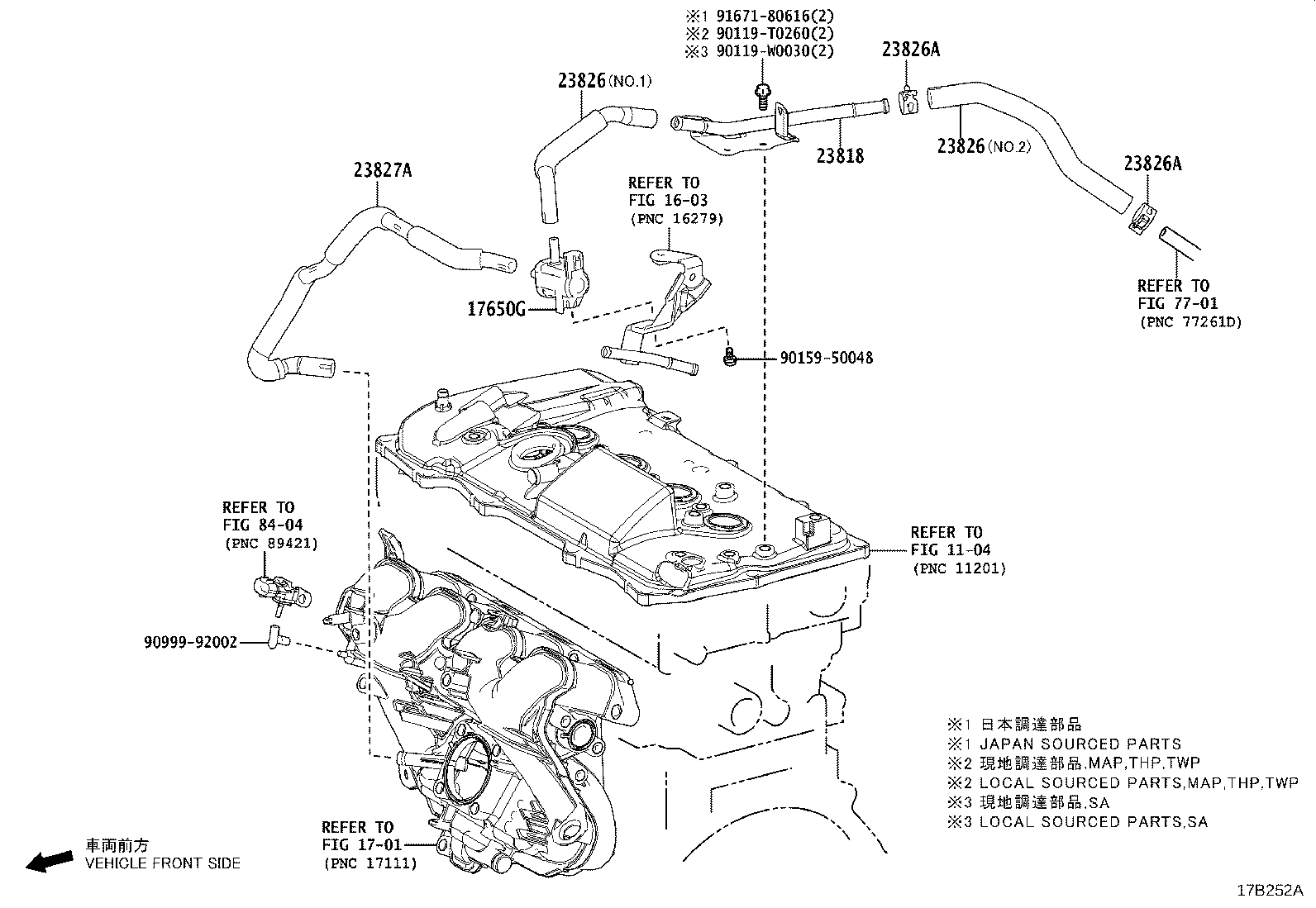

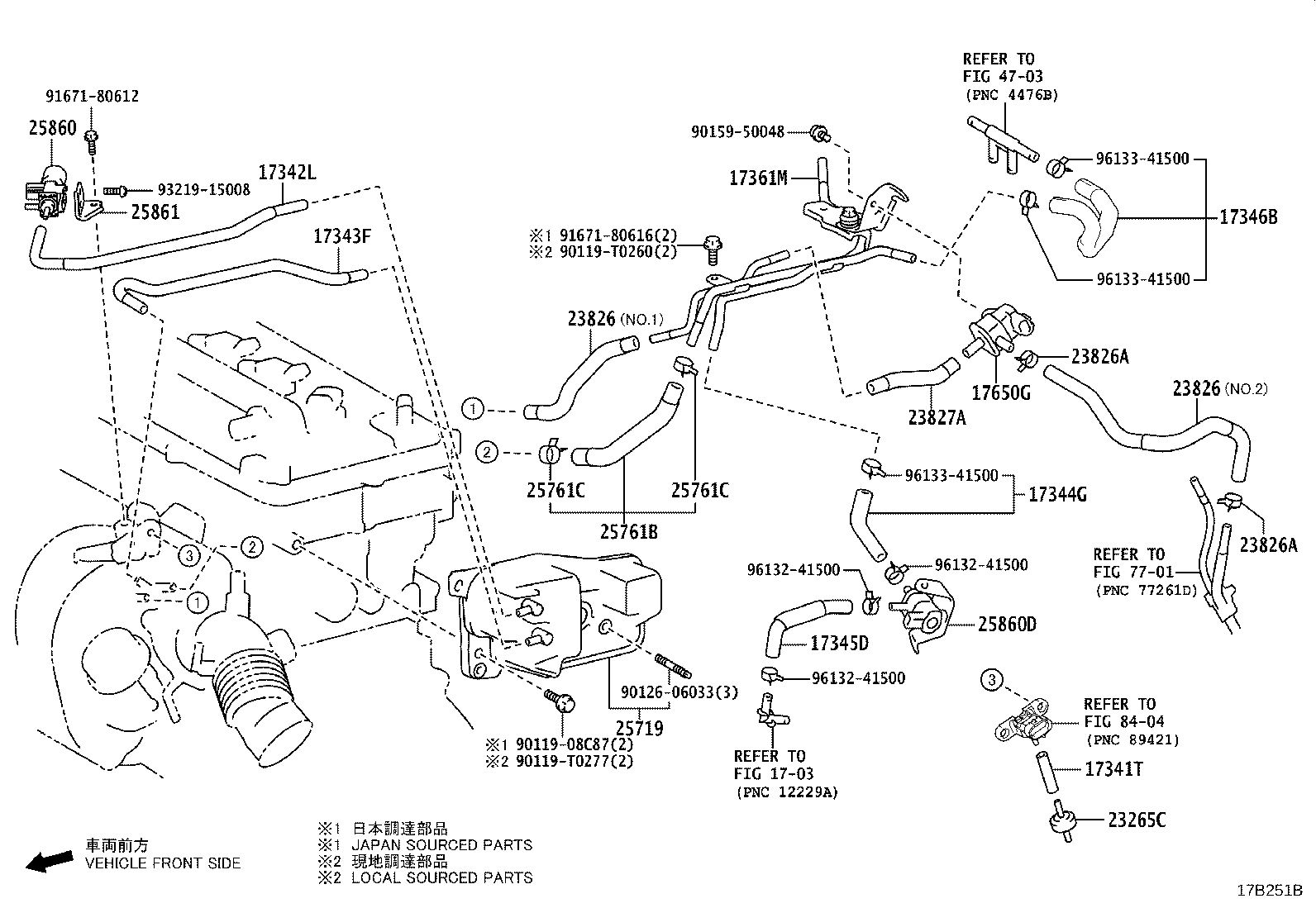

Figure 17B559 17B559 2021-03 → — Figure 17B250C 17B250C 2020-07 → — Figure 17B882 17B882 2021-10 → — Figure 17B251B 17B251B 2020-07 → — Figure 17B883 17B883 2021-10 → — Figure 17B252A 17B252A 2020-07 → — Figure 17B542 17B542 2021-03 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17344G Hose, Air, NO.4
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17361M Tube, Air
17362A Tube, Air, NO.2
17650G Valve, Duty Vacuum Switching
23265C Filter, Gas
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827F Hose, Fuel Vapor Feed, NO.3
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
25719 Tank, Vacuum Surge
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
