Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

5 part groups · 4 illustrations

Illustrations

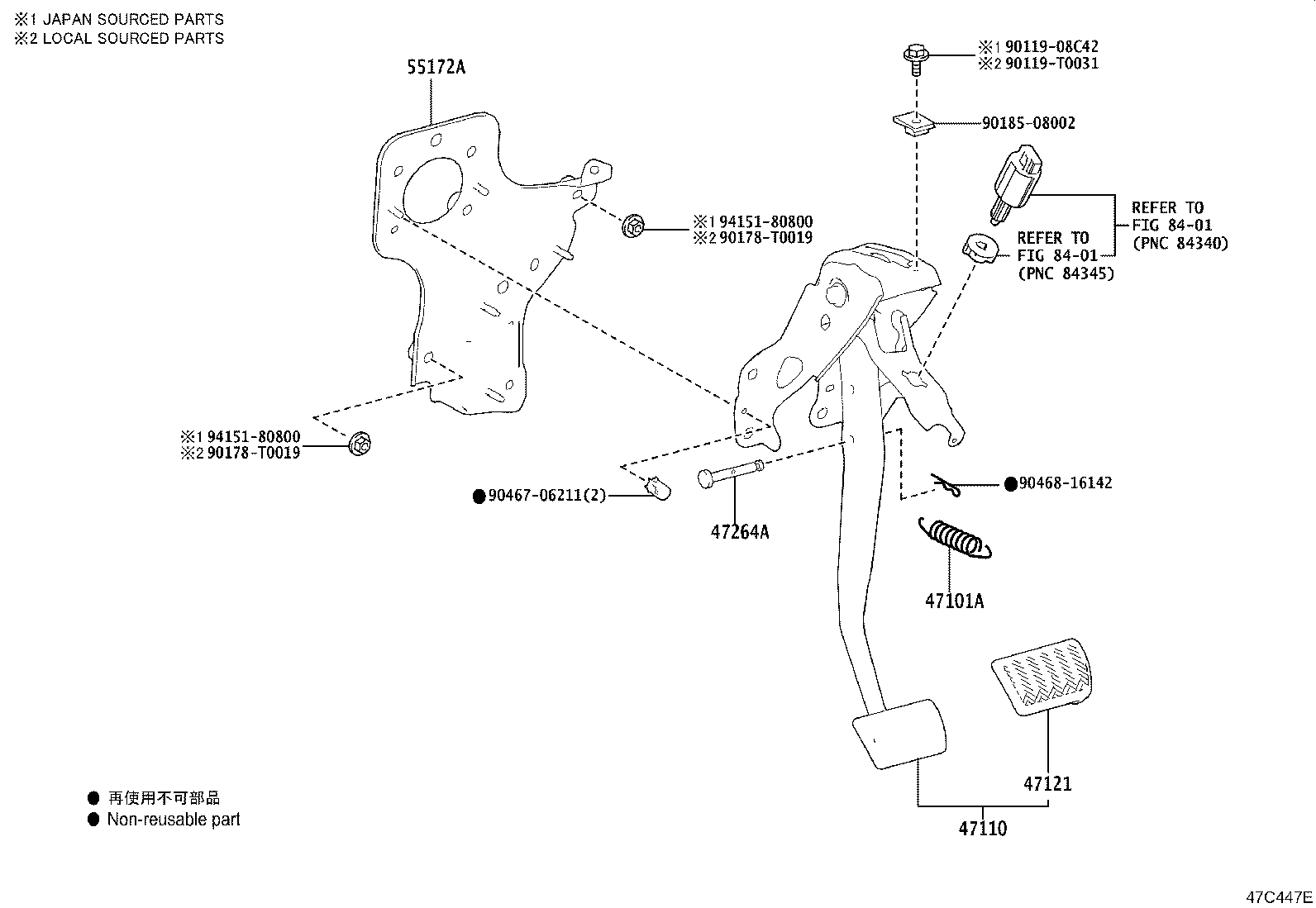

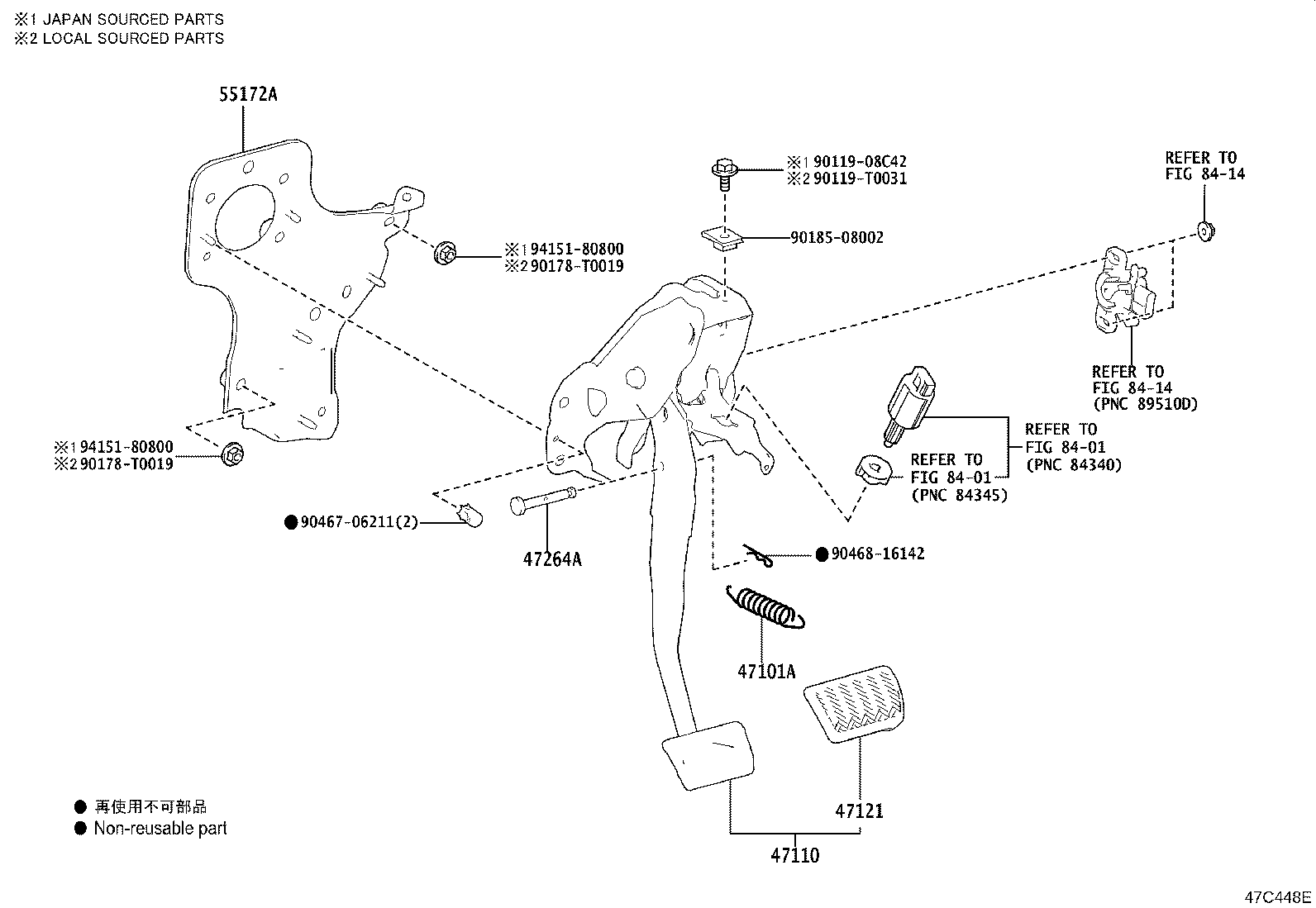

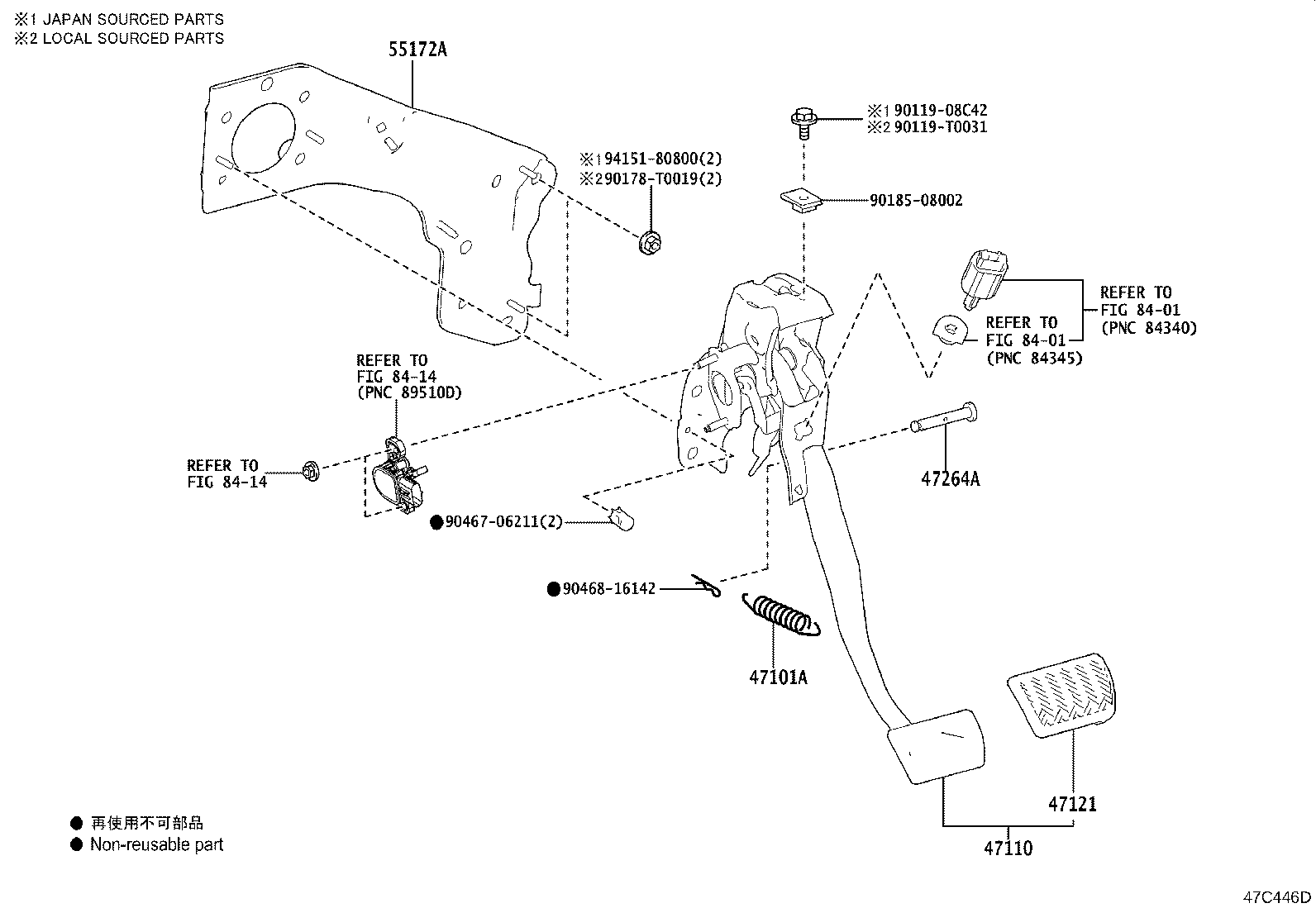

Figure 47C445D 47C445D 2020-07 → — Figure 47C446D 47C446D 2020-07 → — Figure 47C447E 47C447E 2020-07 → — Figure 47C448E 47C448E 2020-07 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
