Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 2 illustrations

Illustrations

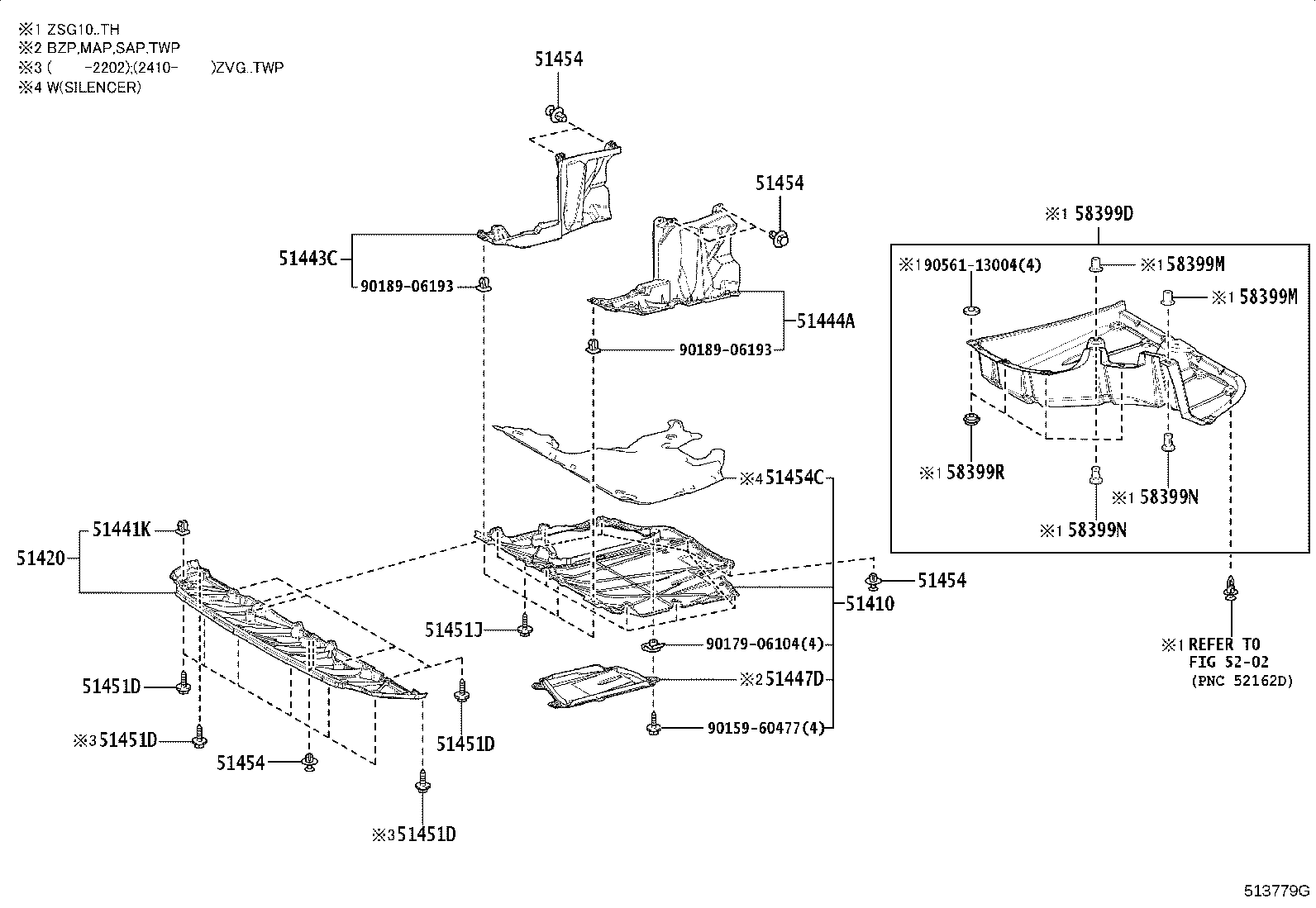

Figure 513778B 513778B 2020-07 → — Figure 513779G 513779G 2020-07 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51228F Plate, Front Suspension Member Dumper
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51441K Grommet(FOR ENGINE UNDER COVER)
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51451D Screw, NO.1
51451J Bolt, NO.1
51454 Clip
51454C Silencer, Engine Under Cover, Rear
58399D Cover, Floor Under, NO.2
58399M Clip, Floor Under Cover, NO.1
58399N Clip, Floor Under Cover, NO.2
58399R Clip, Floor Under Cover, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
