Toyota Corolla Cross
2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General
Supported model
Data version 2024-12

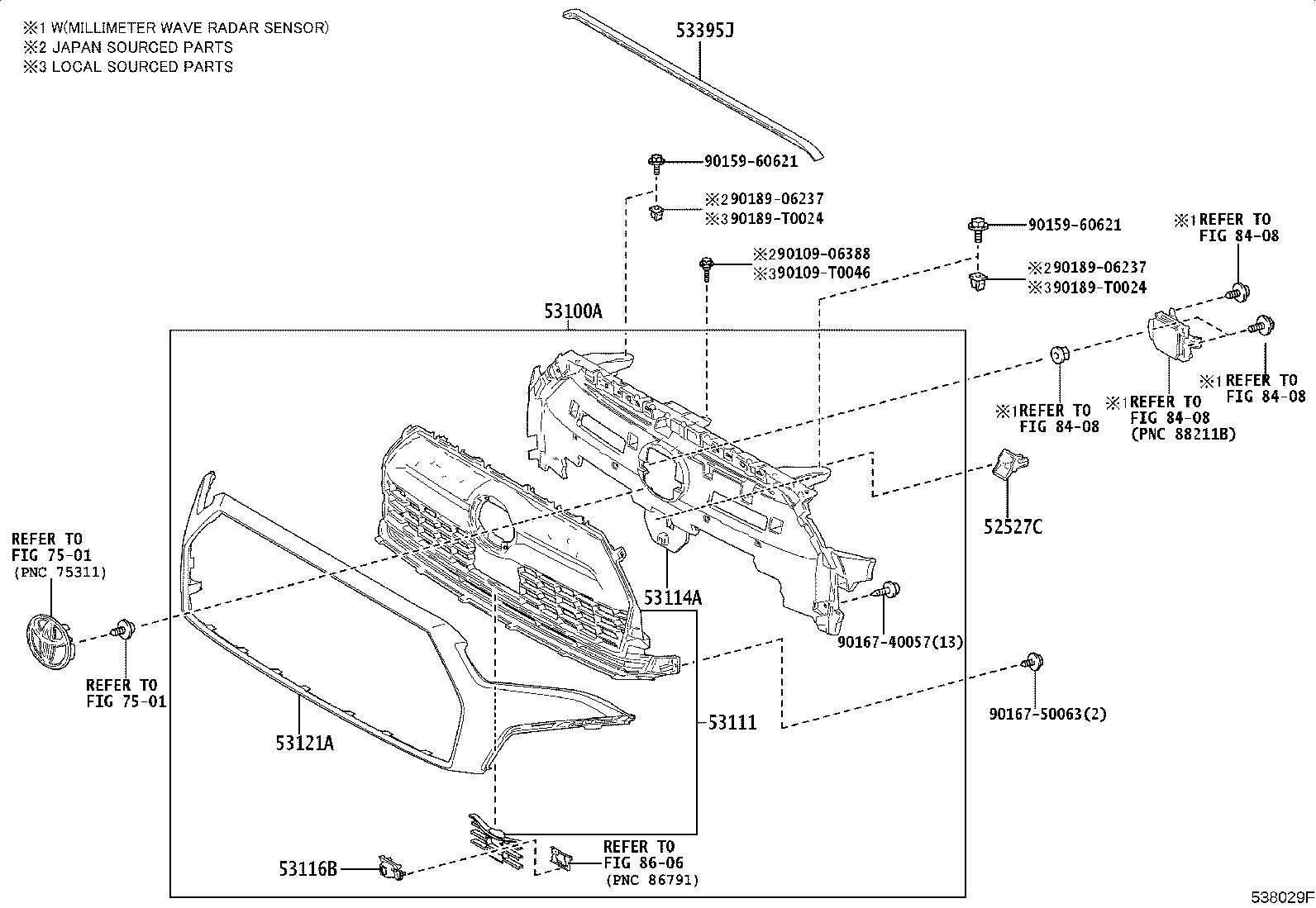

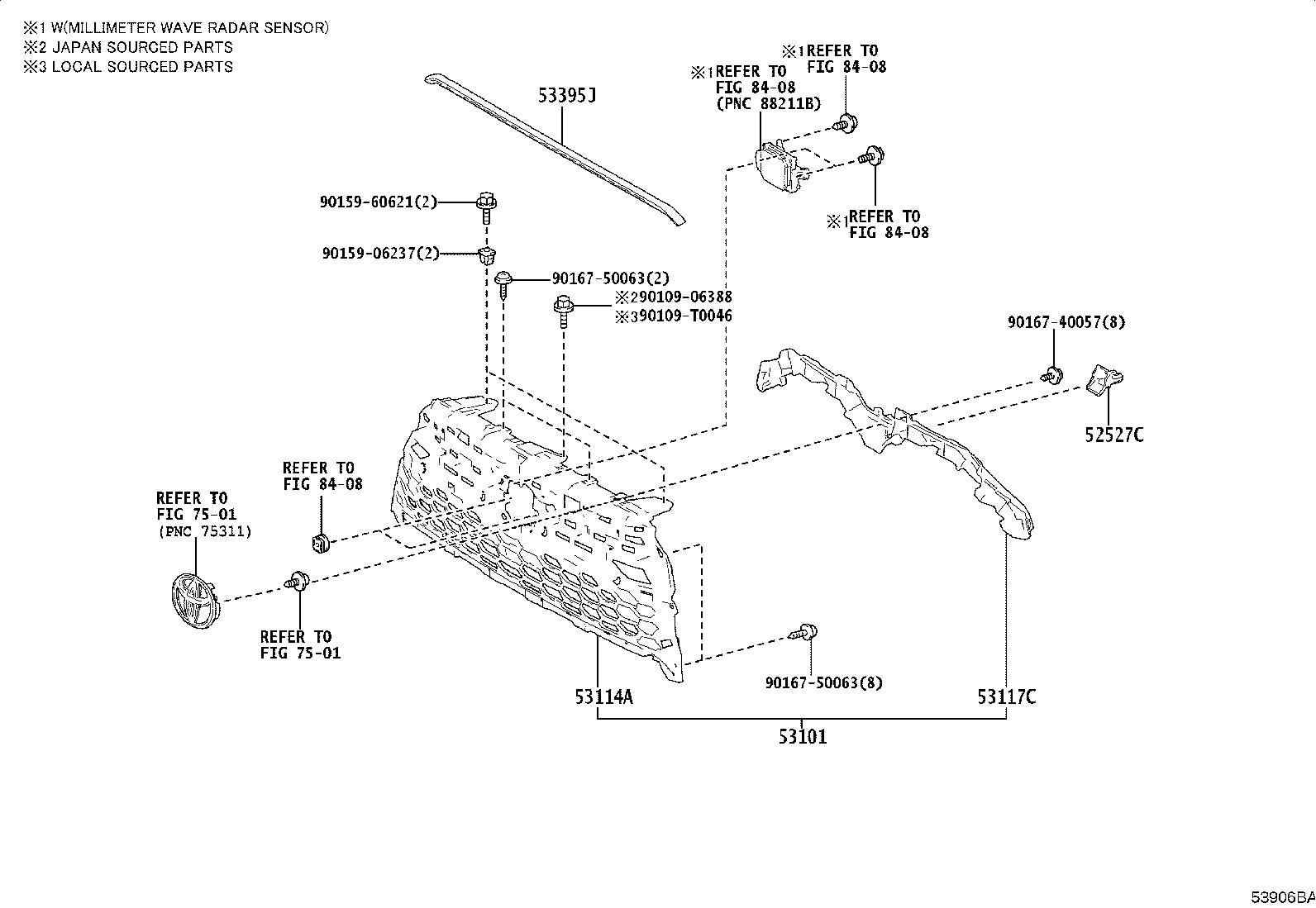

Radiator Grille
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52527C | Retainer, Front Bumper, Lower NO.2 |
| 53100A | Grille Assy, Radiator |
| 53101 | Grille Sub-assy, Radiator |
| 53111 | Grille, Radiator |
| 53114A | Grille, Radiator, Inner |
| 53116B | Bracket, Radiator Grille, NO.2 |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53395J | Seal, Hood TO Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
