Toyota Corolla Cross
2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General
Supported model
Data version 2024-12

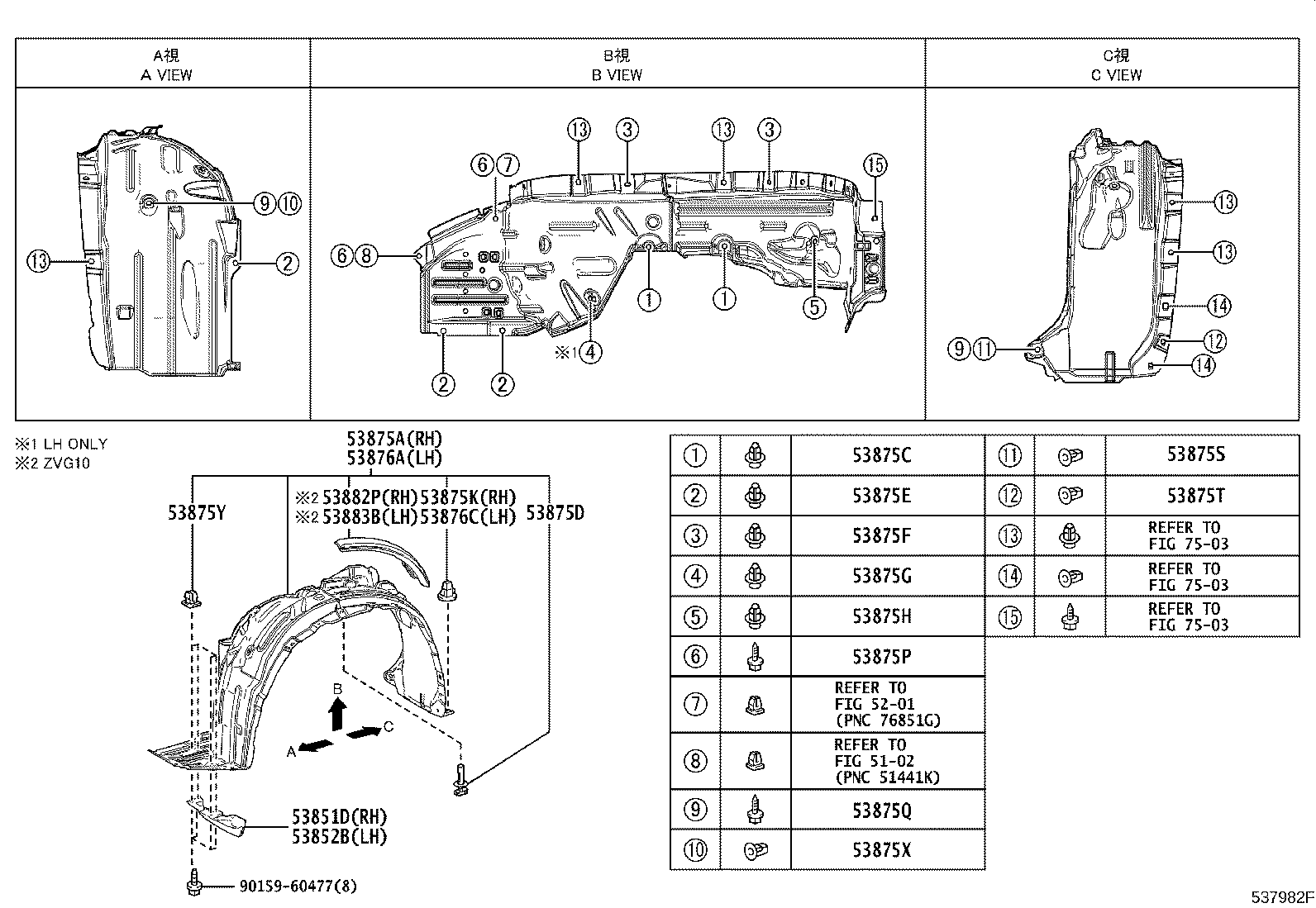

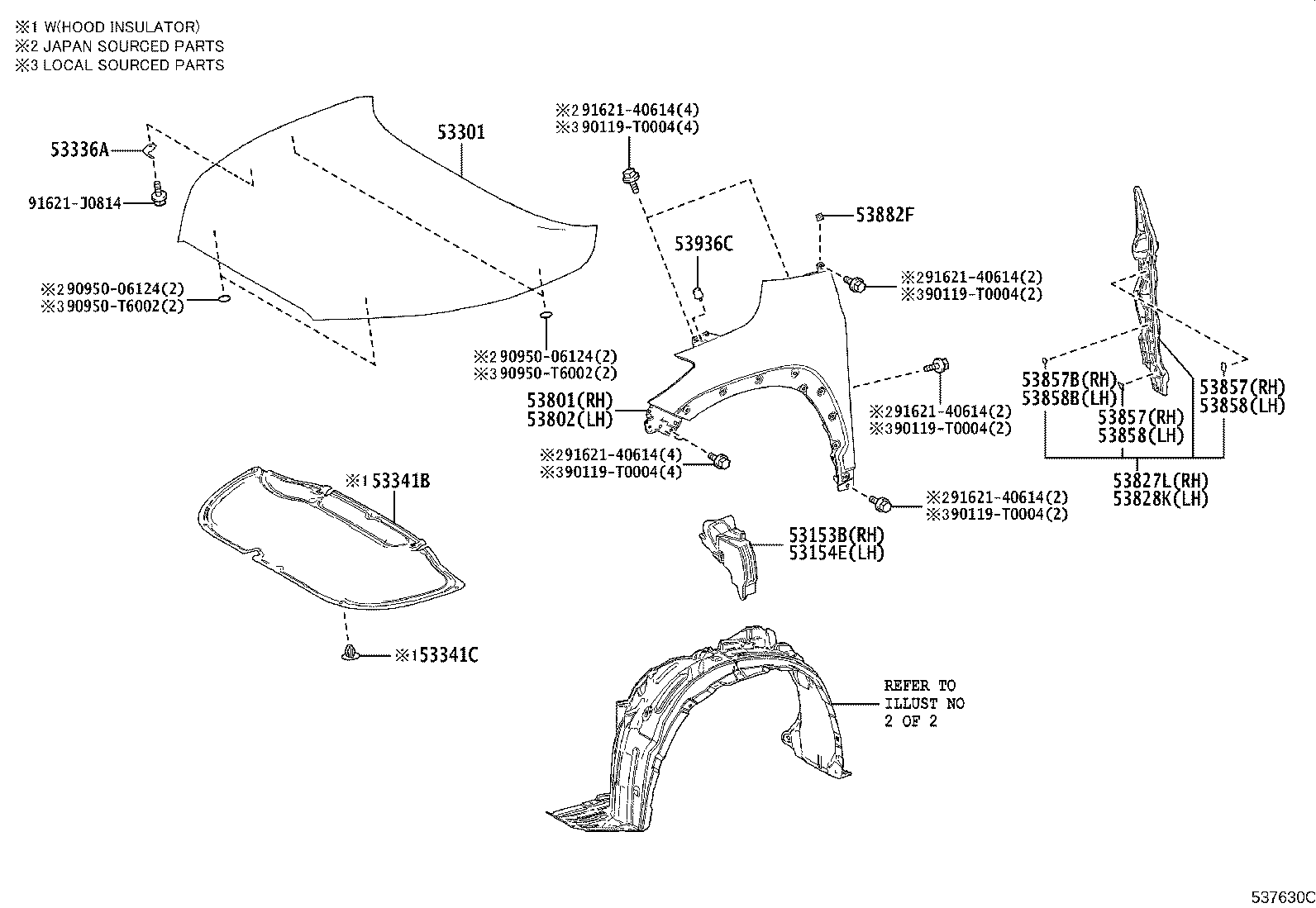

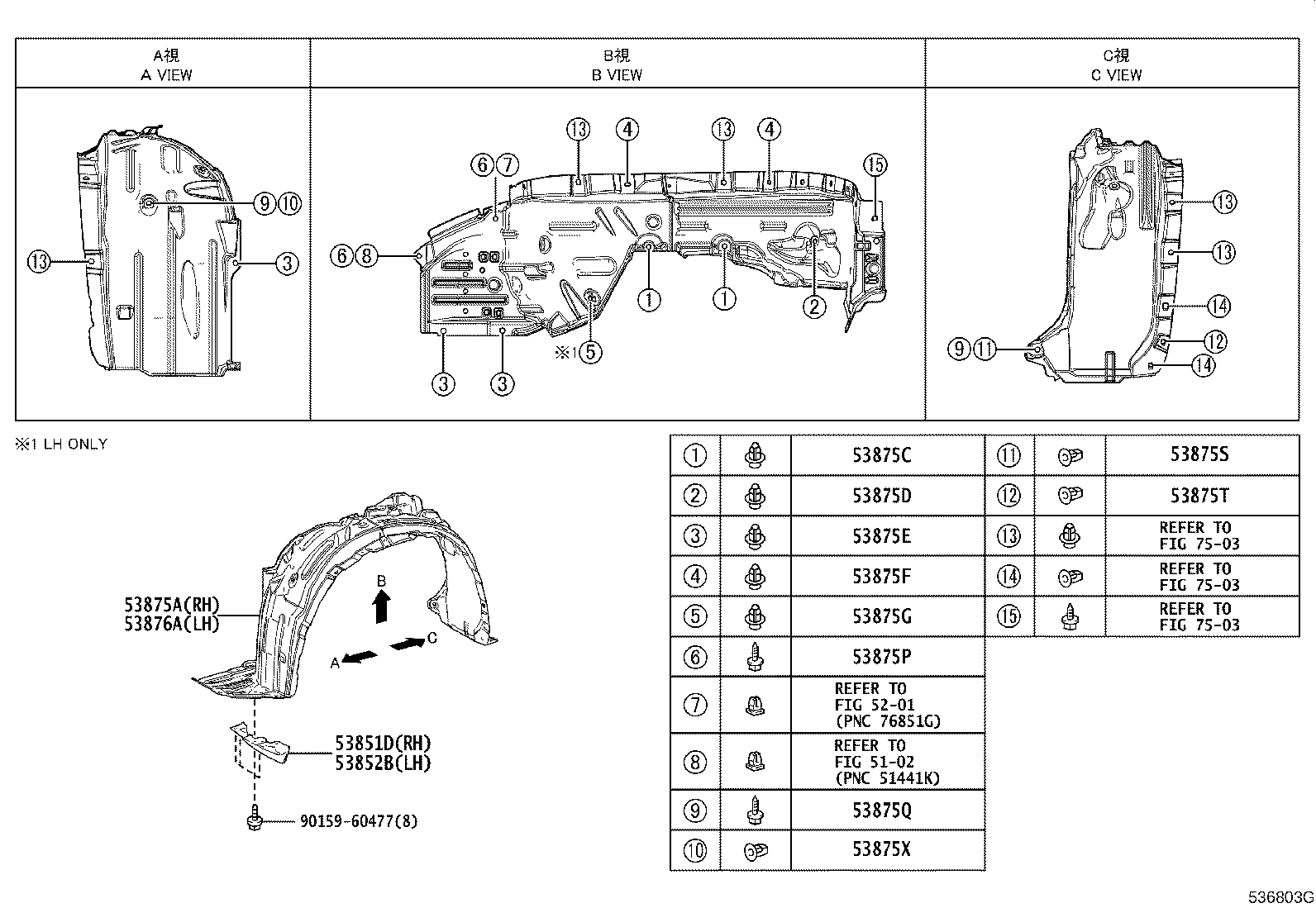

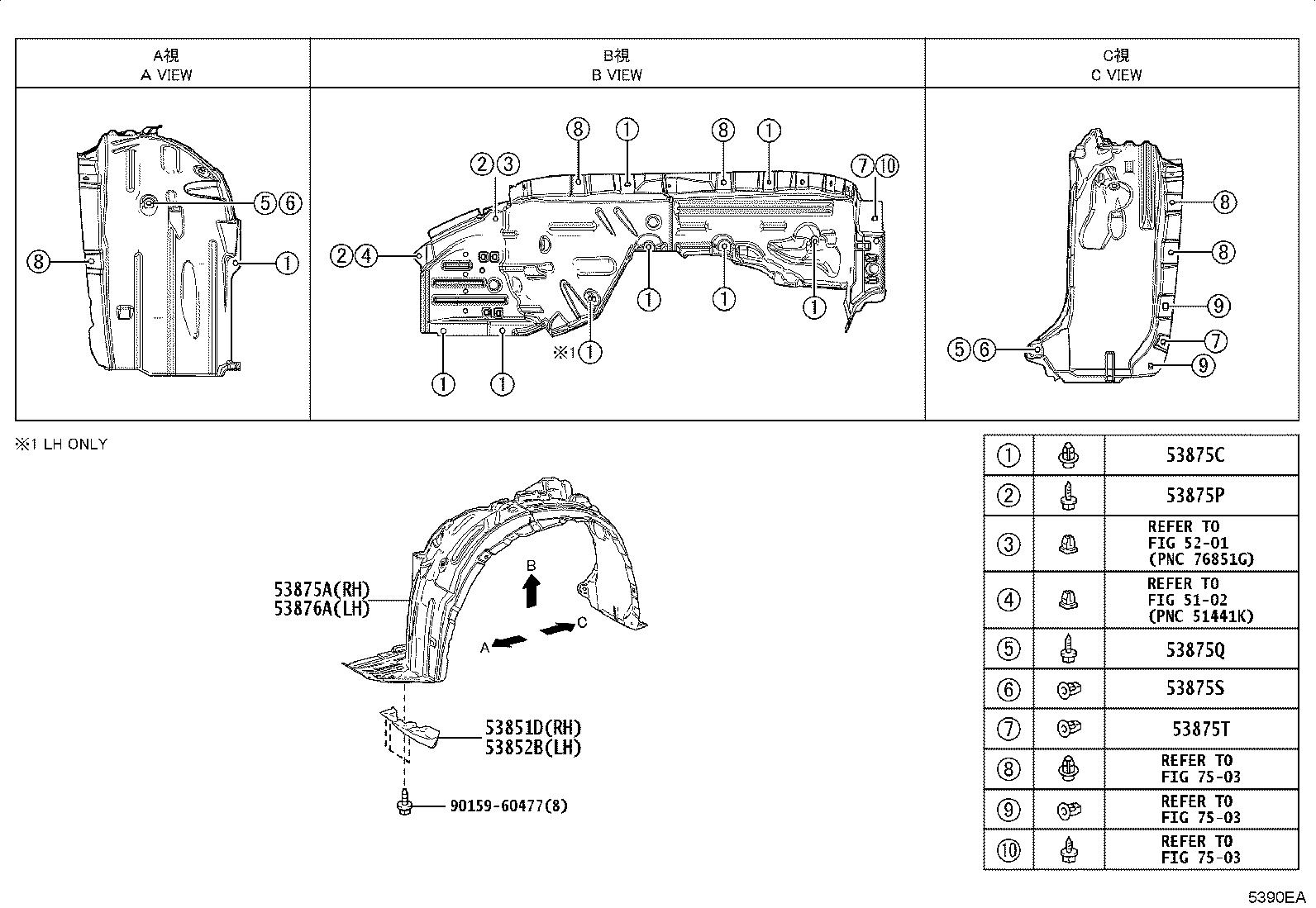

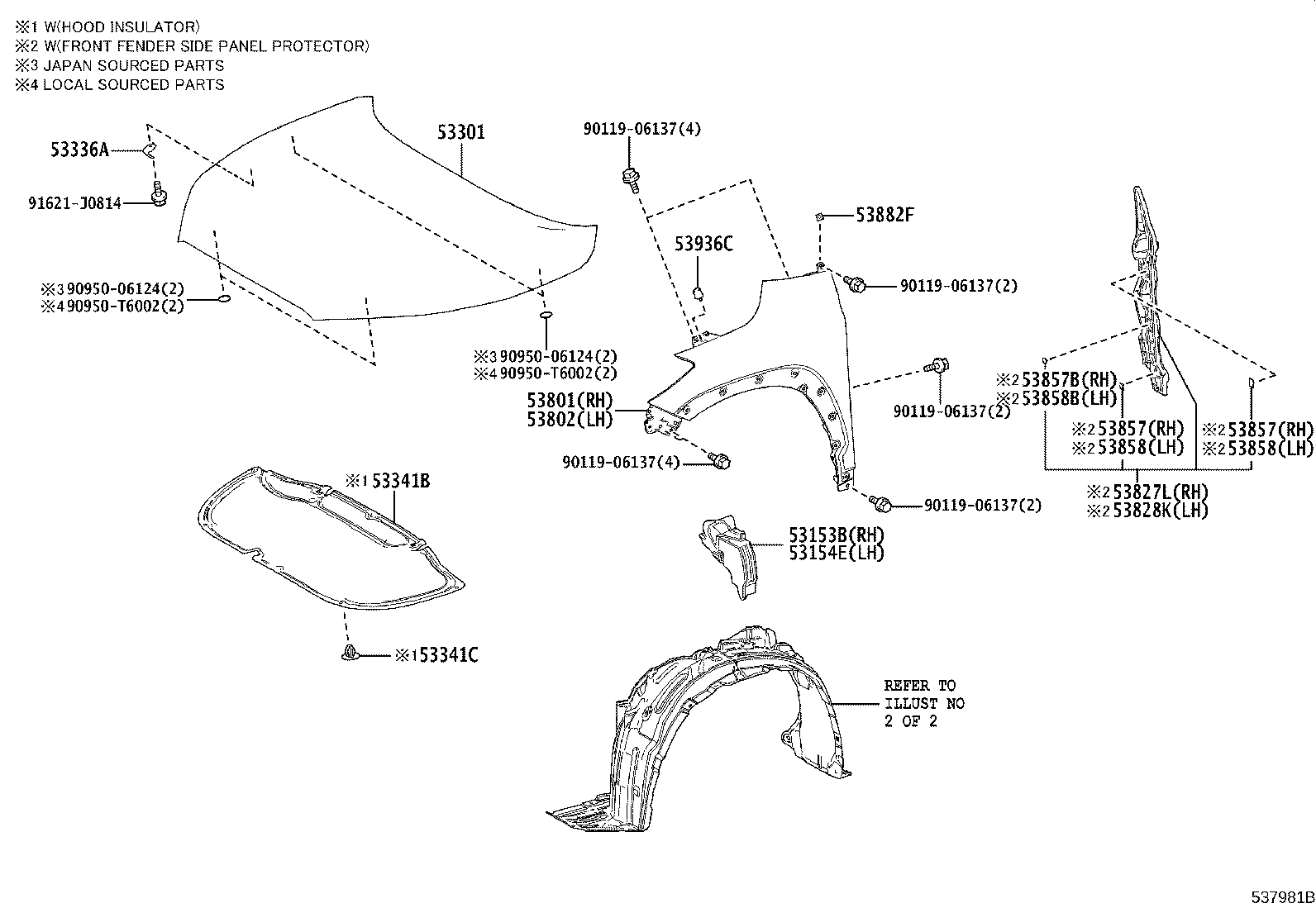

Hood & Front Fender
36 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153B | Guide, Front Side Air |
| 53154E | Guide, Front Side Air, NO.2 |
| 53301 | Hood Sub-assy |
| 53336A | Bracket, Hood Stay |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875D | Clip, Front Fender Liner, NO.2 |
| 53875E | Clip, Front Fender Liner, NO.3 |
| 53875F | Clip, Front Fender Liner, NO.4 |
| 53875G | Clip, Front Fender Liner, NO.5 |
| 53875H | Clip, Front Fender Liner, NO.6 |
| 53875K | Grommet, Screw |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53875S | Grommet, NO.1 |
| 53875T | Grommet, NO.2 |
| 53875X | Grommet, NO.3 |
| 53875Y | Grommet, NO.4 |
| 53876A | Liner, Front Fender, LH |
| 53876C | Grommet, Screw |
| 53882F | Seal, Front Fender |
| 53882P | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 53936C | Cushion |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
