Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 4 illustrations

Illustrations

Figure 644876F

644876F 2020-07 → 2024-01

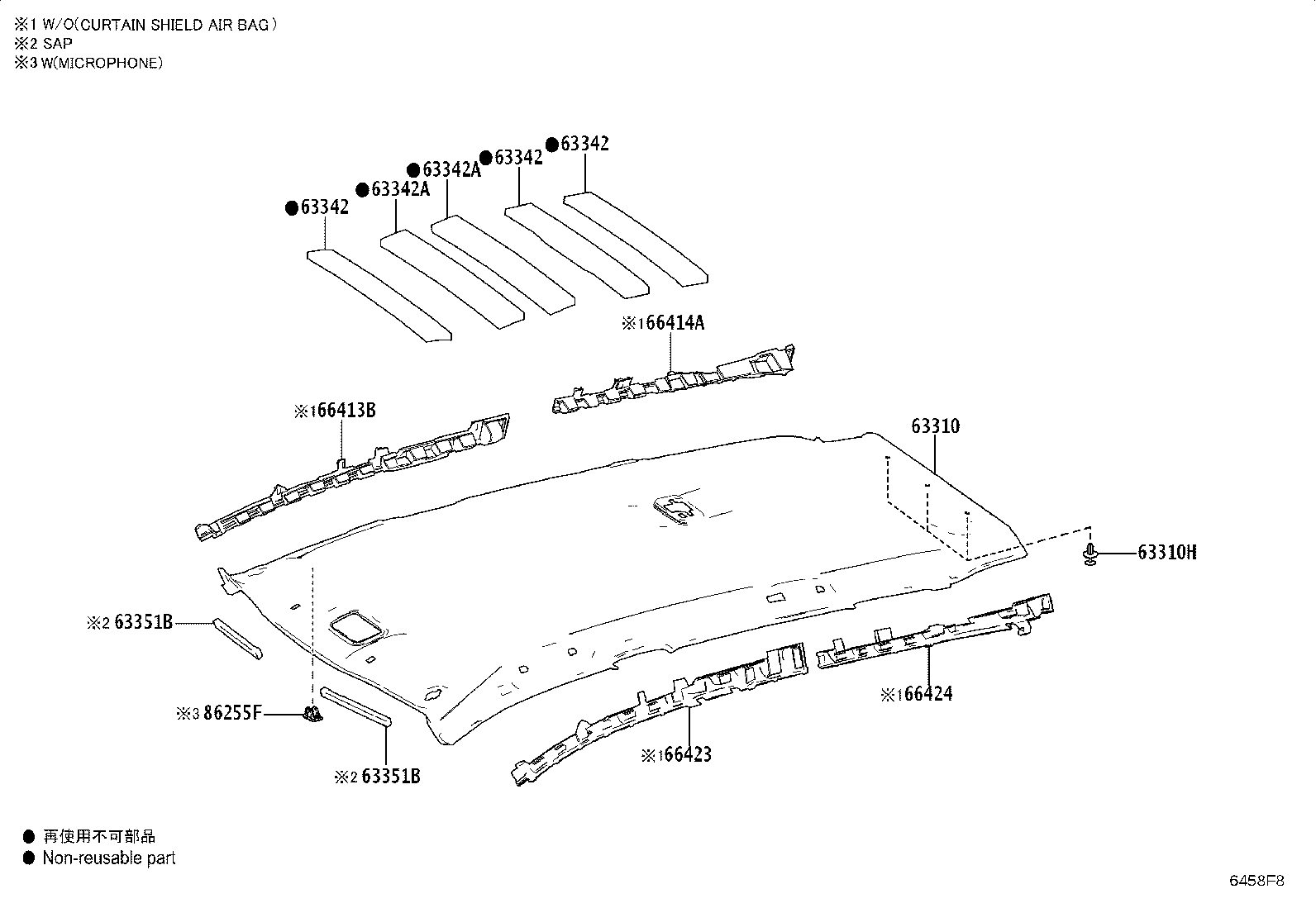

Figure 6458F8

6458F8 2024-01 → —

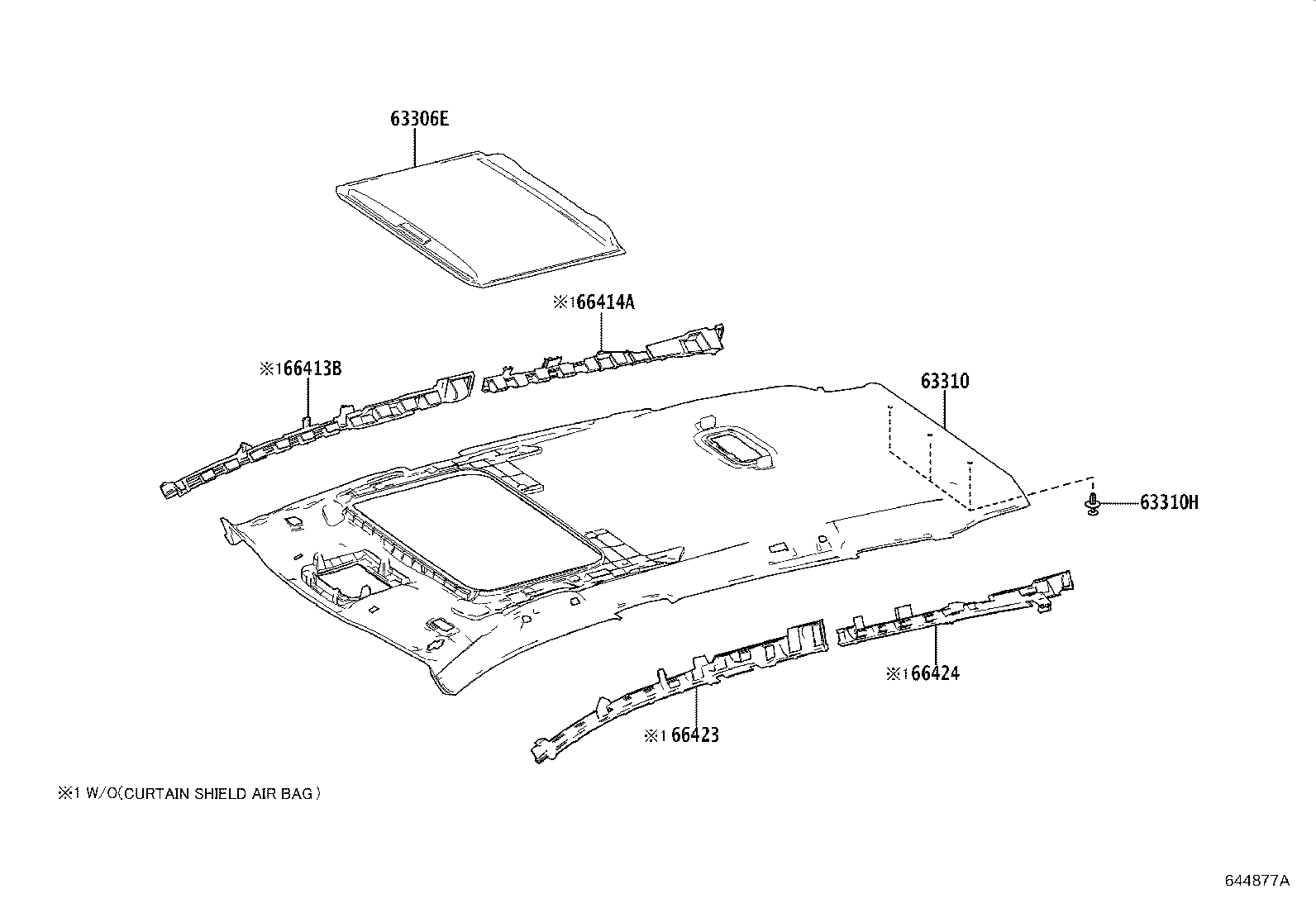

Figure 644877A

644877A 2020-07 → —

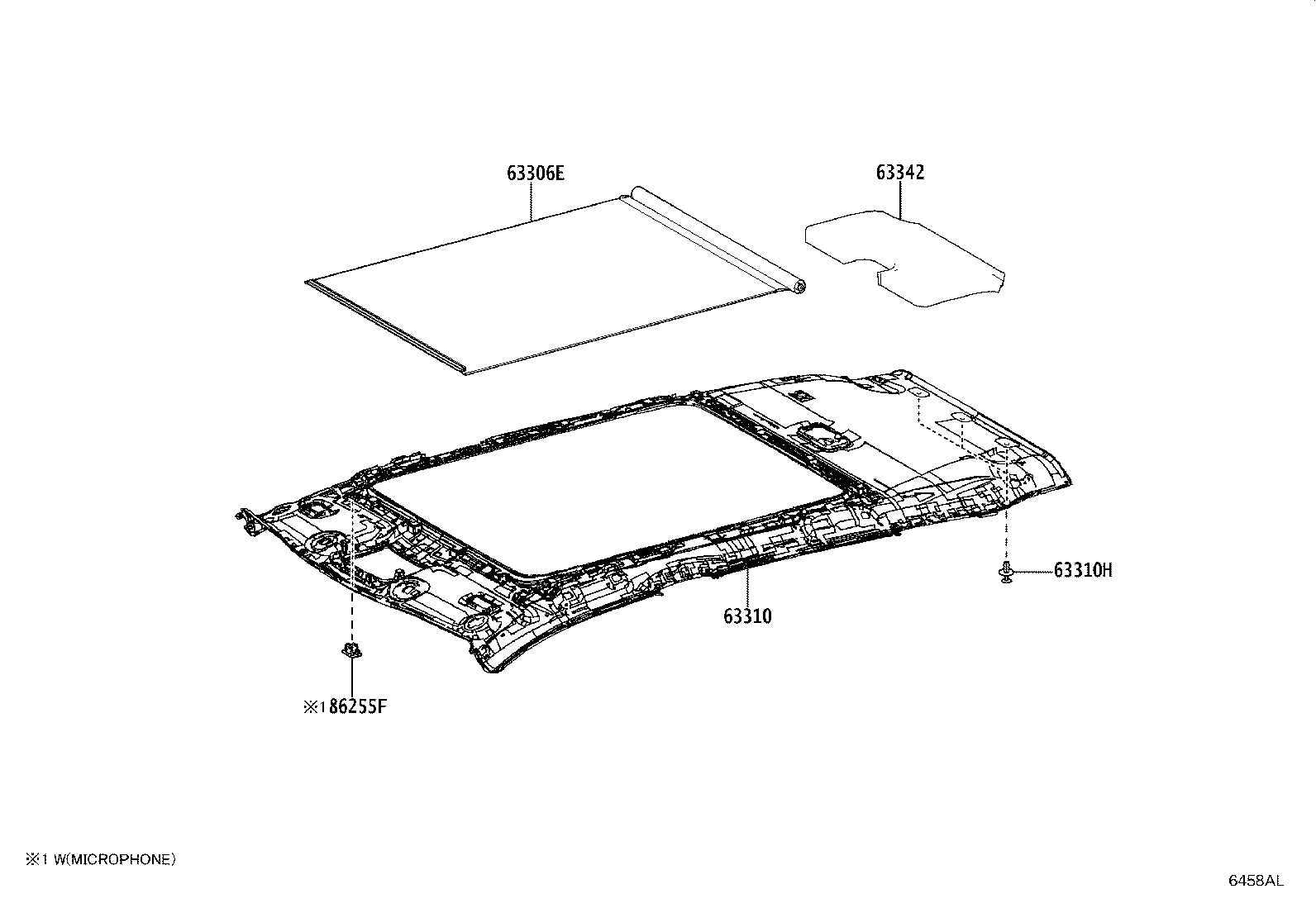

Figure 6458AL

6458AL 2024-01 → —

Part groups

PNC	Description
63306E	Trim Sub-assy, Sunshade, NO.2
63310	Headlining Assy, Roof
63310H	Clip(FOR ROOF HEADLINING)
63342	Pad, Roof Silencer, NO.2
63342A	Silencer, Roof, NO.2
63351B	Pad, Roof Headlining
63353E	Pad, Roof Headlining, Center
66413B	Spacer, Side Rail, Front RH
66414A	Spacer, Side Rail, Rear RH
66423	Spacer, Side Rail, Front LH
66424	Spacer, Side Rail, Rear LH
86255F	Case, Microphone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
