Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 3 illustrations

Illustrations

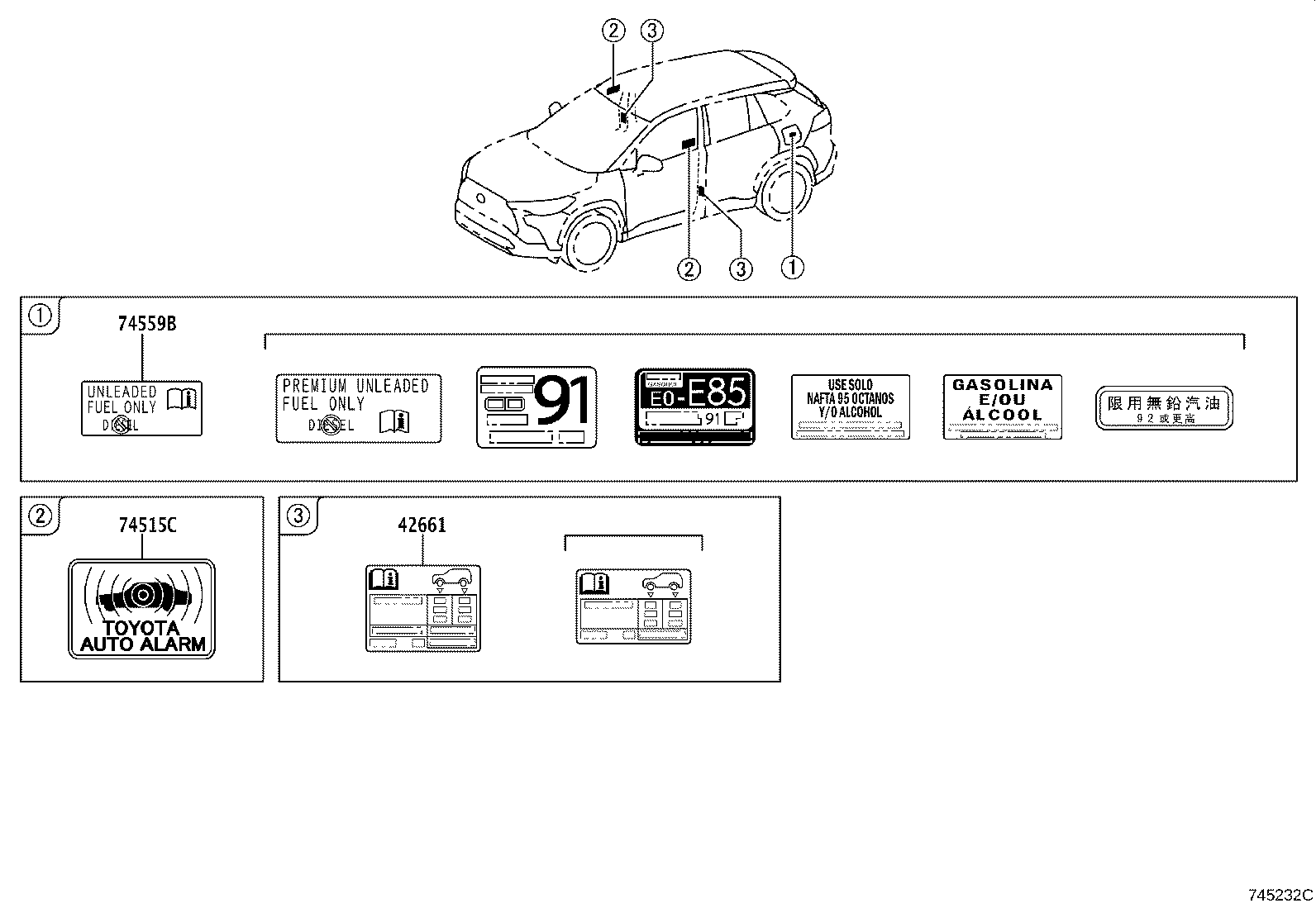

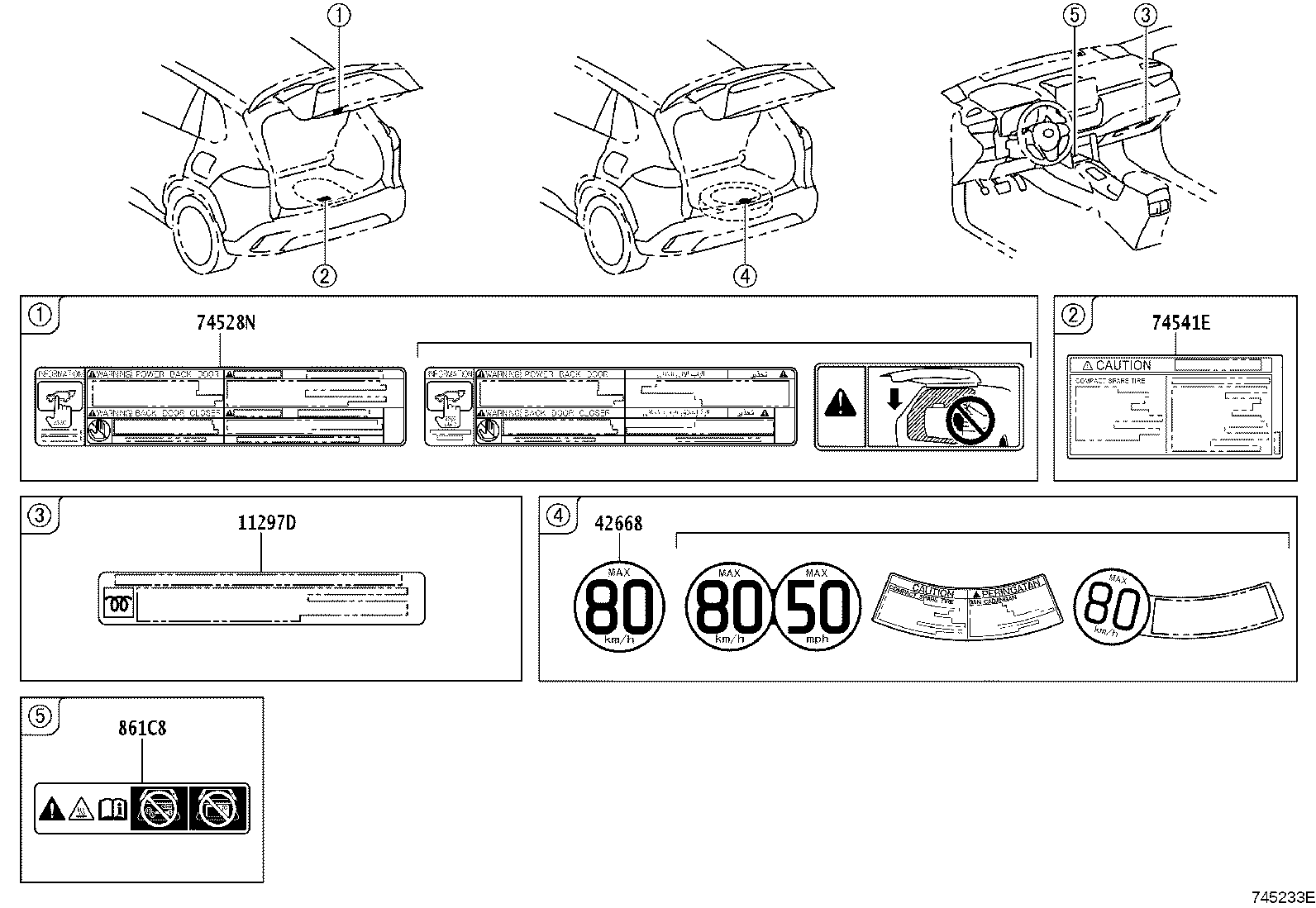

Figure 745534B 745534B 2020-07 → — Figure 745232C 745232C 2020-07 → — Figure 745233E 745233E 2020-07 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11297D Label, Engine Starting Information
11298B Label, Emission Control Information
288A2 Label, Battery Location
42661 Label, Tire Pressure Information
42668 Label, Compact Spare Tire Caution
47288 Label, Brake Fluid Notice
47997C Label, Accumulator Caution, NO.1
74515C Label, Theft Warning Information
74528N Label, Back Door Caution, NO.2
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
88723H Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
