Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

10 part groups · 2 illustrations

Illustrations

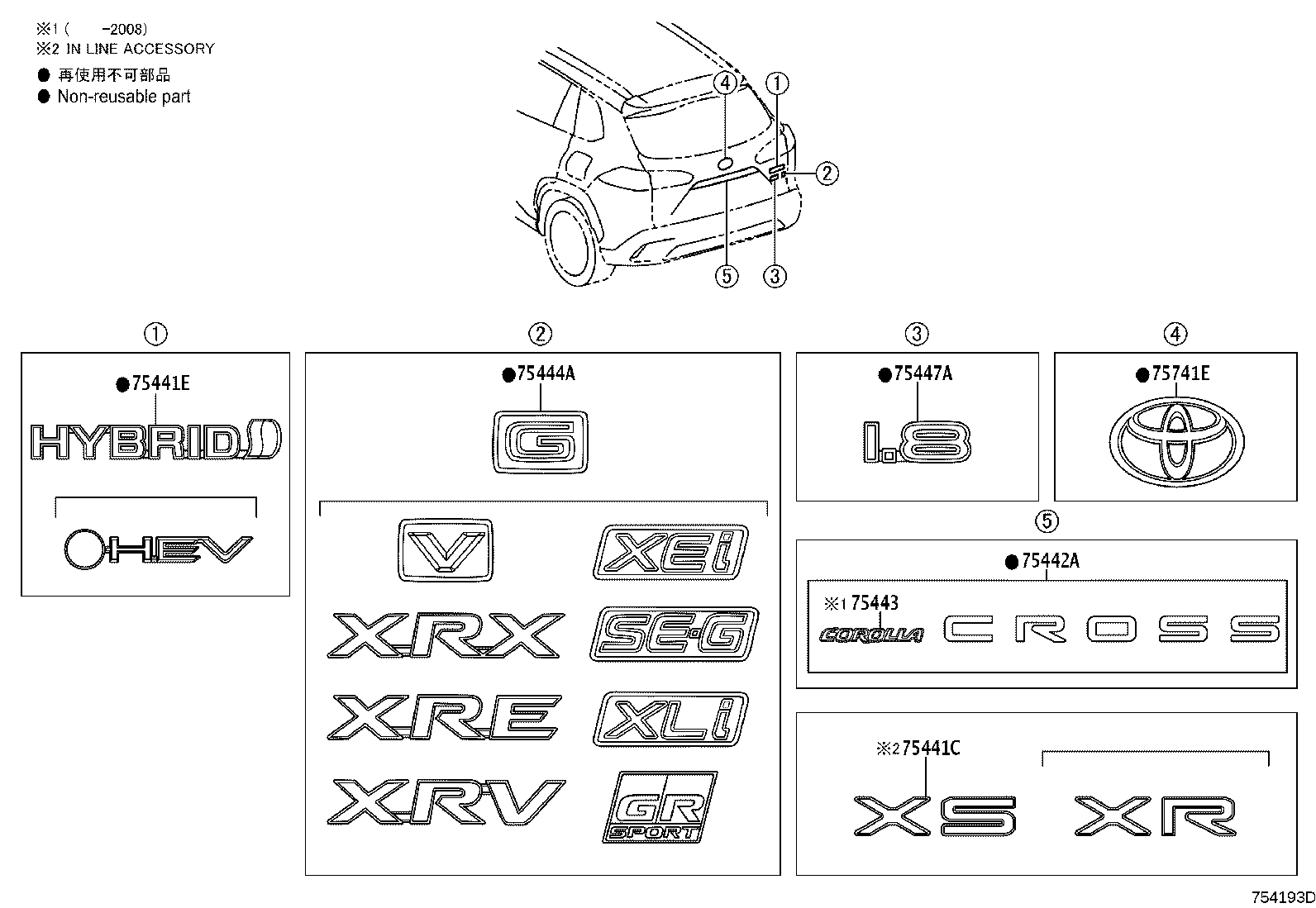

Figure 754030H 754030H 2020-07 → — Figure 754193D 754193D 2020-07 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75361A Plate, Front Fender Name, NO.1
75362 Plate, Front Fender Name, NO.2
75441C Plate, Back Door Name
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75447A Plate, Back Door Name, NO.7
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
