Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

3 part groups · 3 illustrations

Illustrations

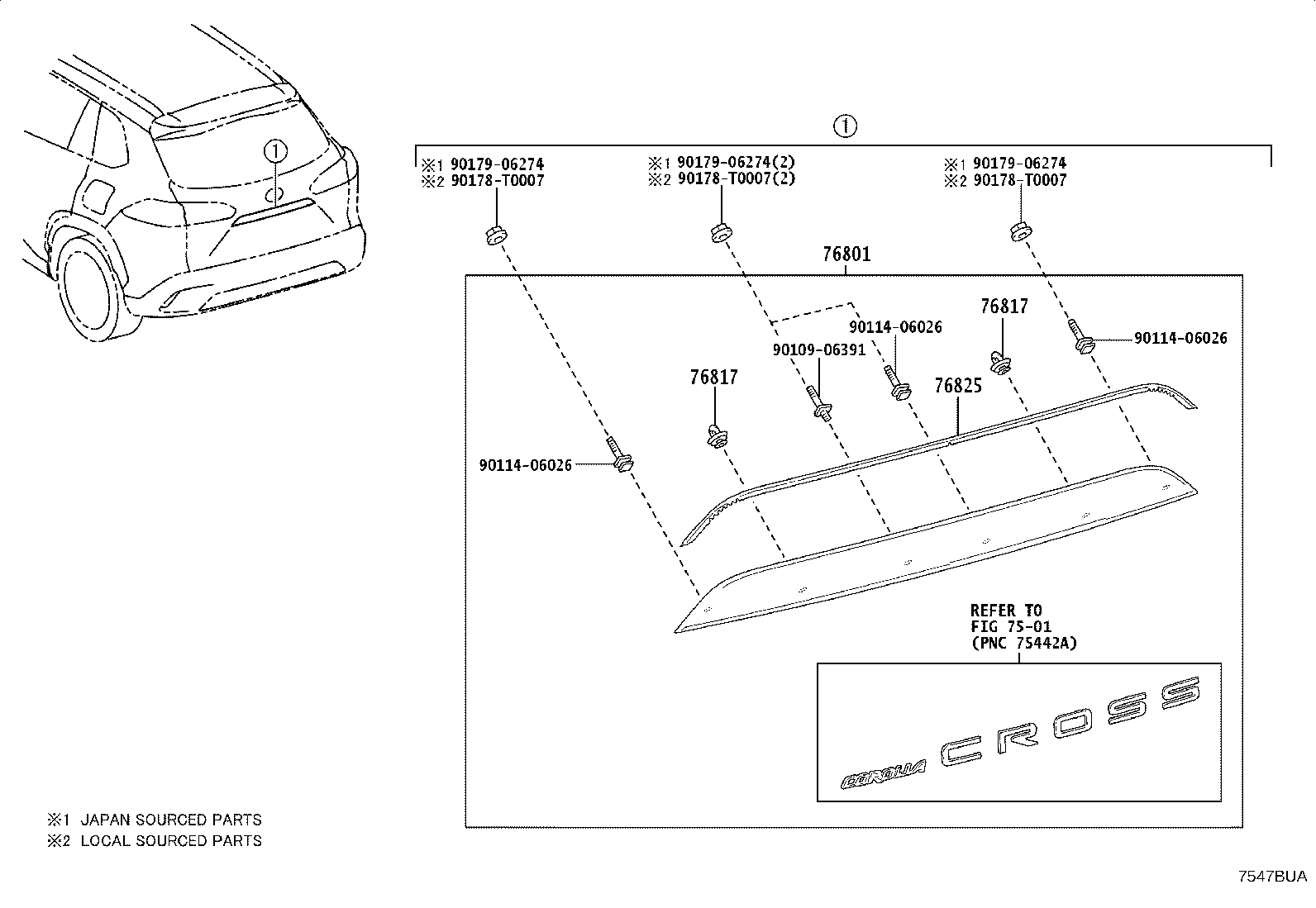

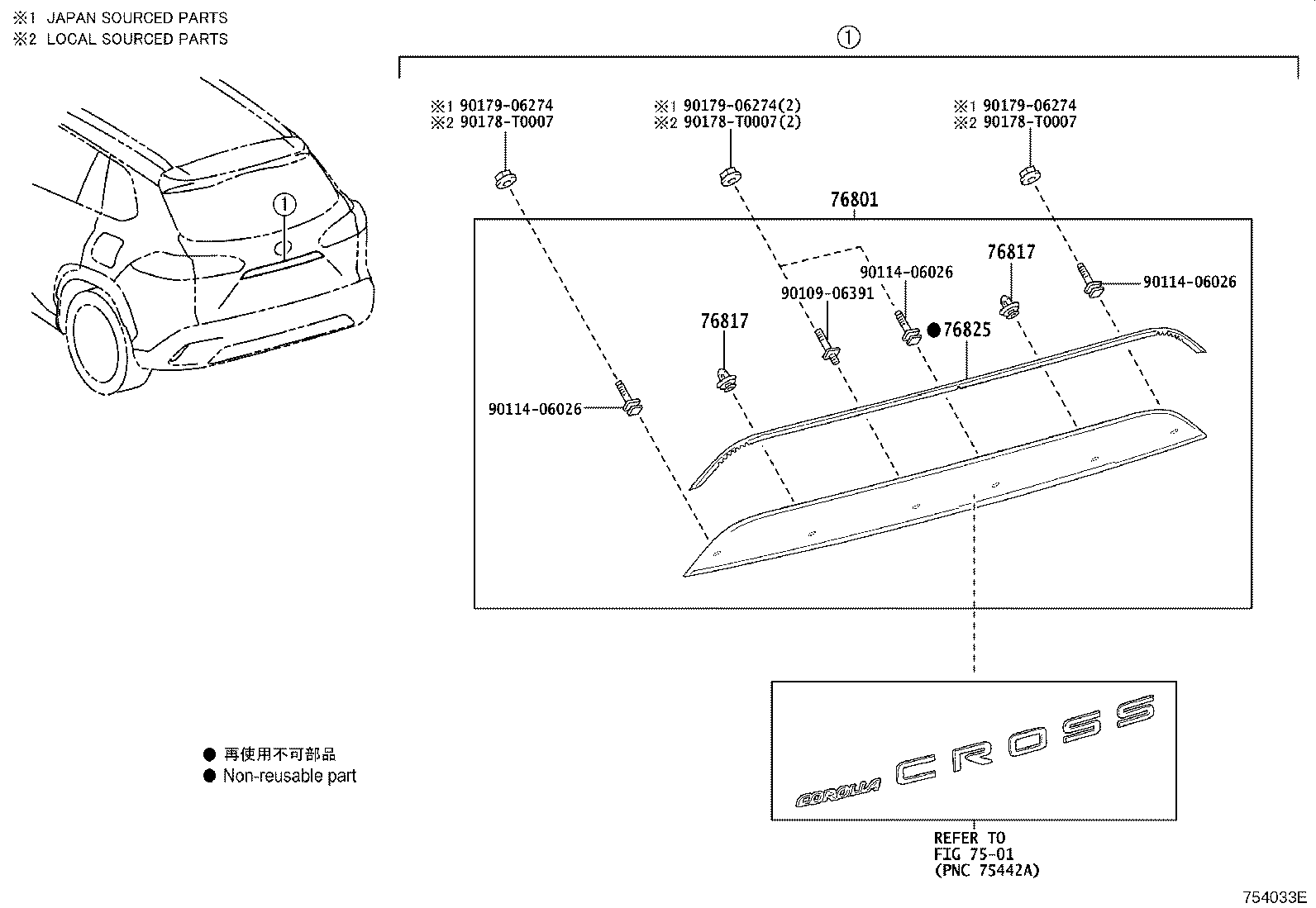

Figure 754032E 754032E 2020-07 → — Figure 754033E 754033E 2020-10 → — Figure 7547BUA 7547BUA 2024-03 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
