Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

77 part groups · 22 illustrations

Illustrations

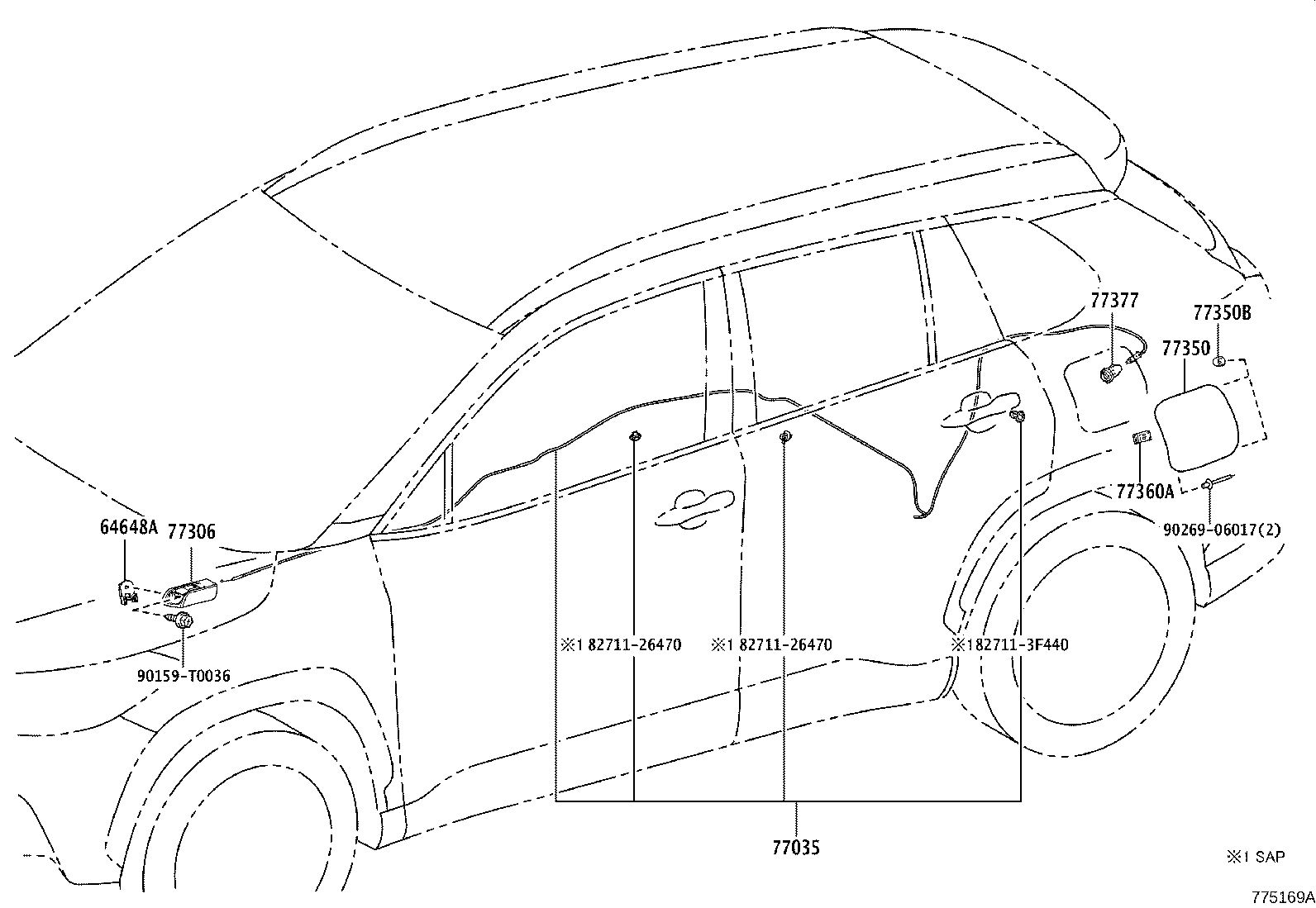

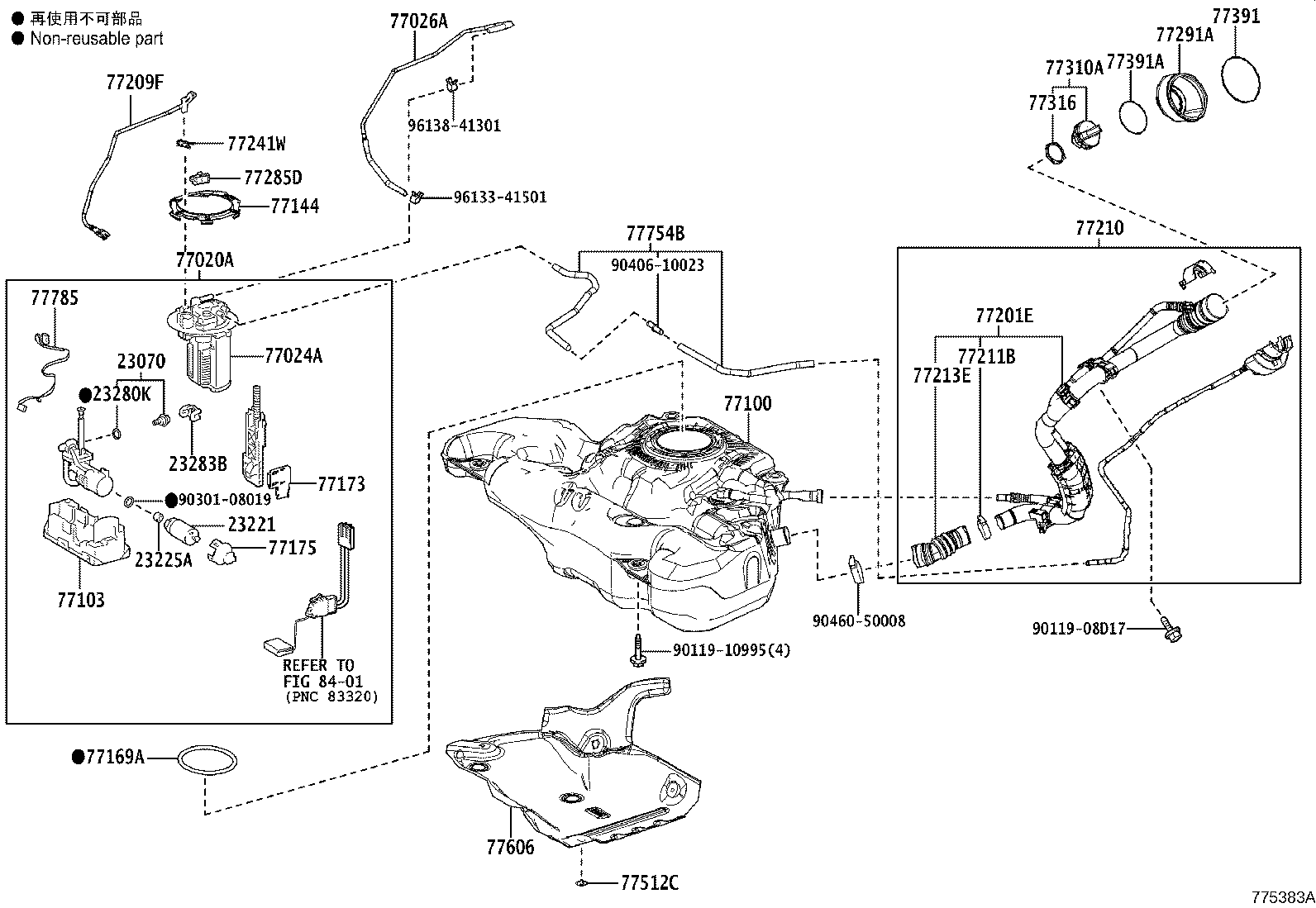

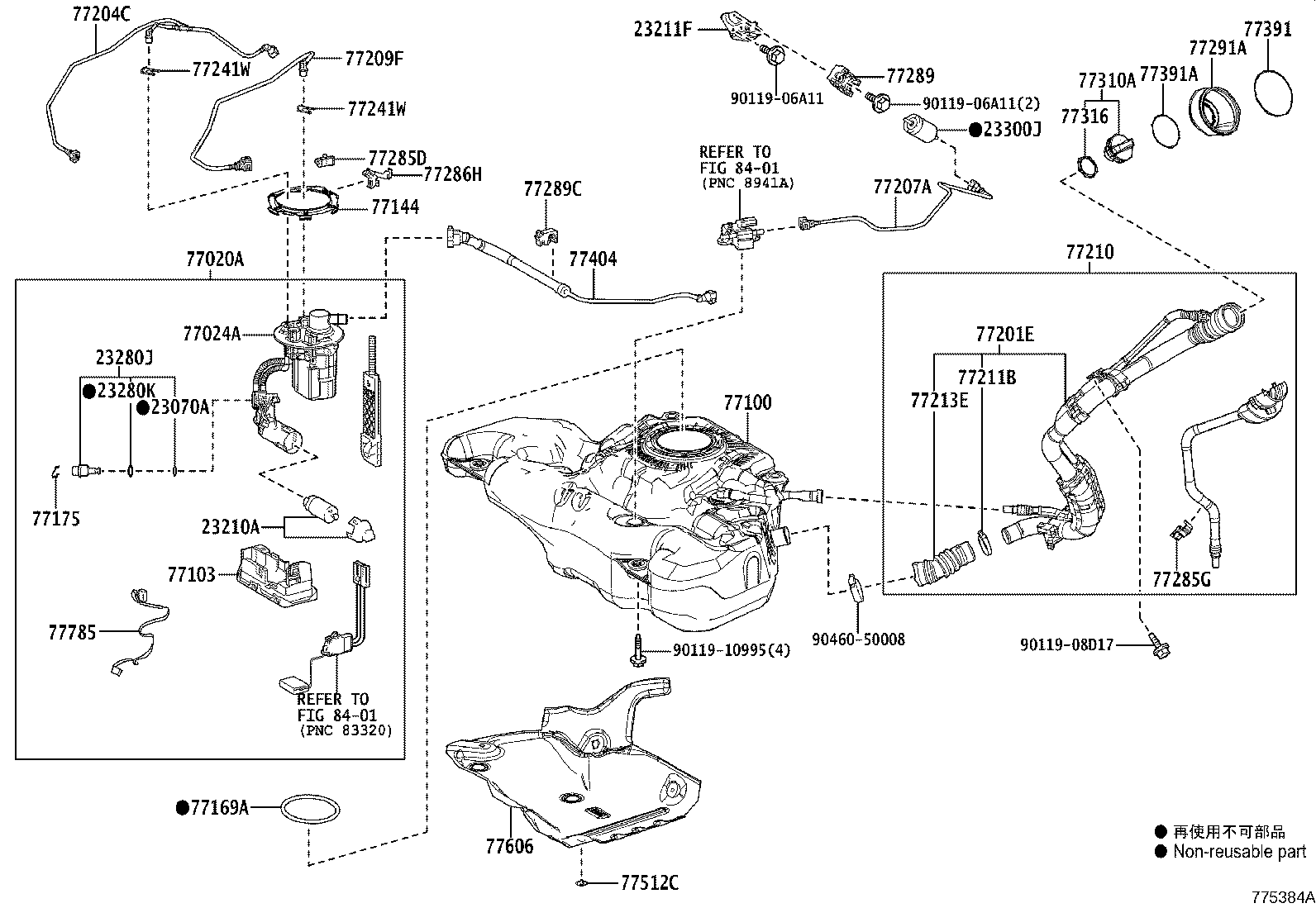

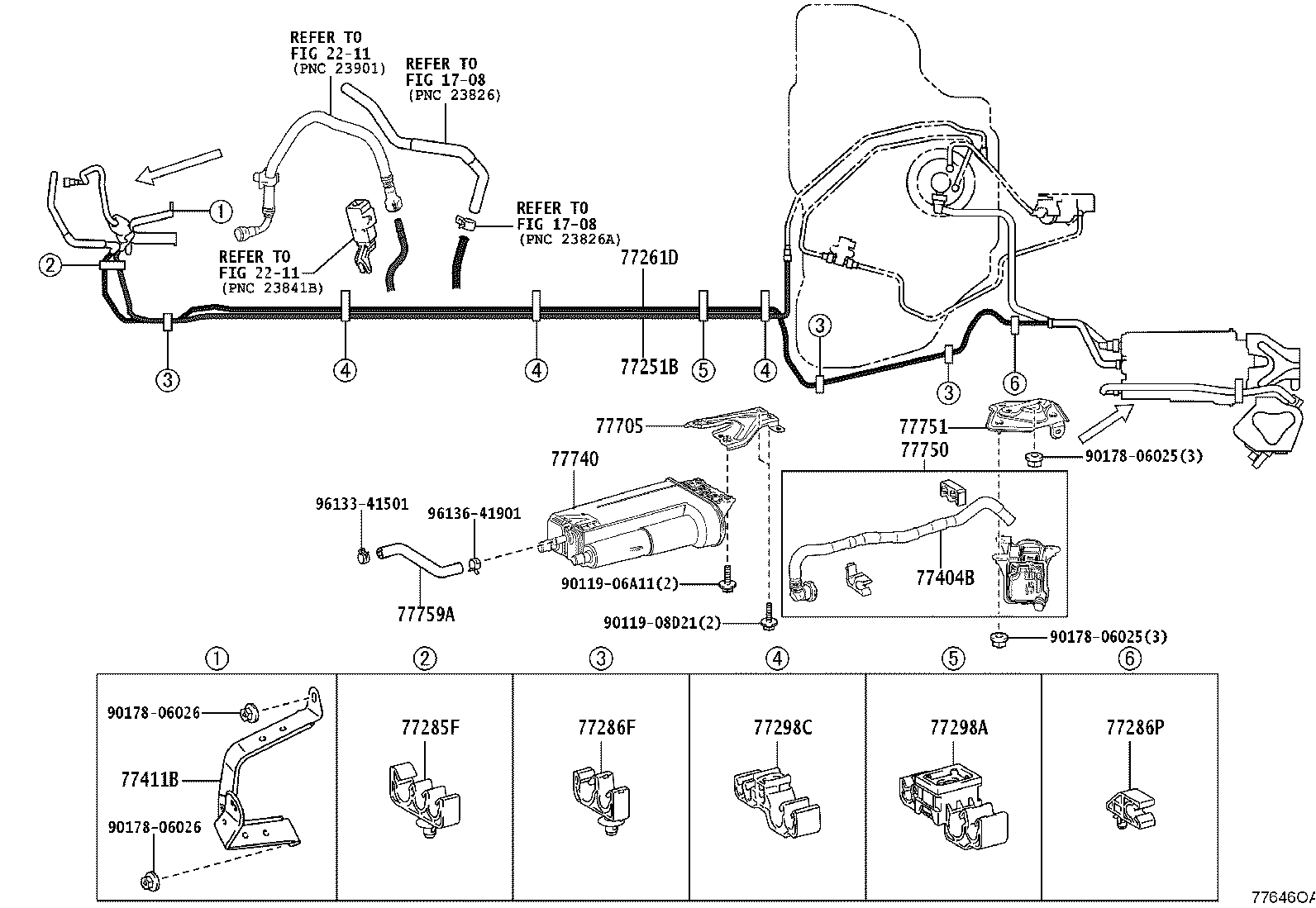

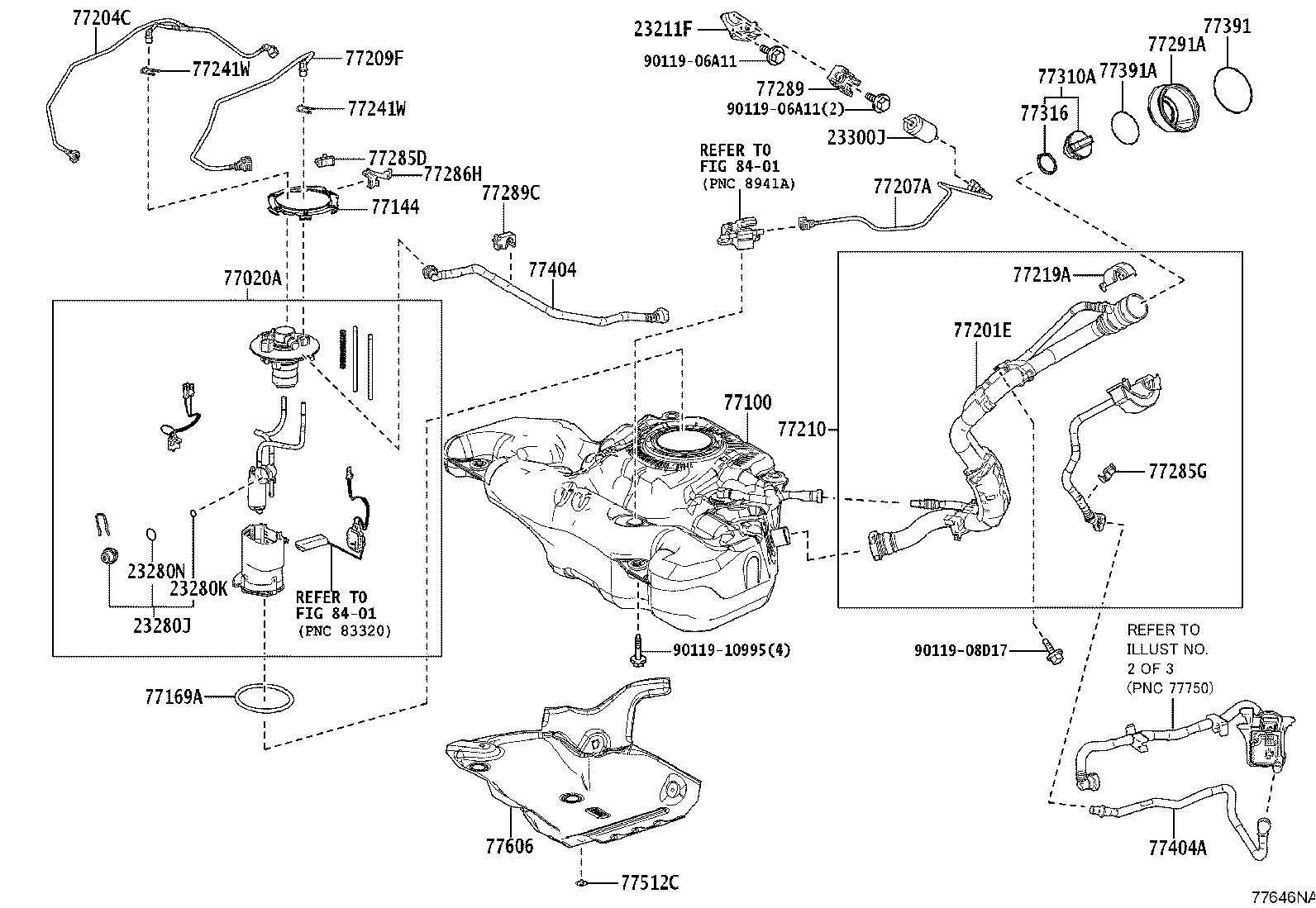

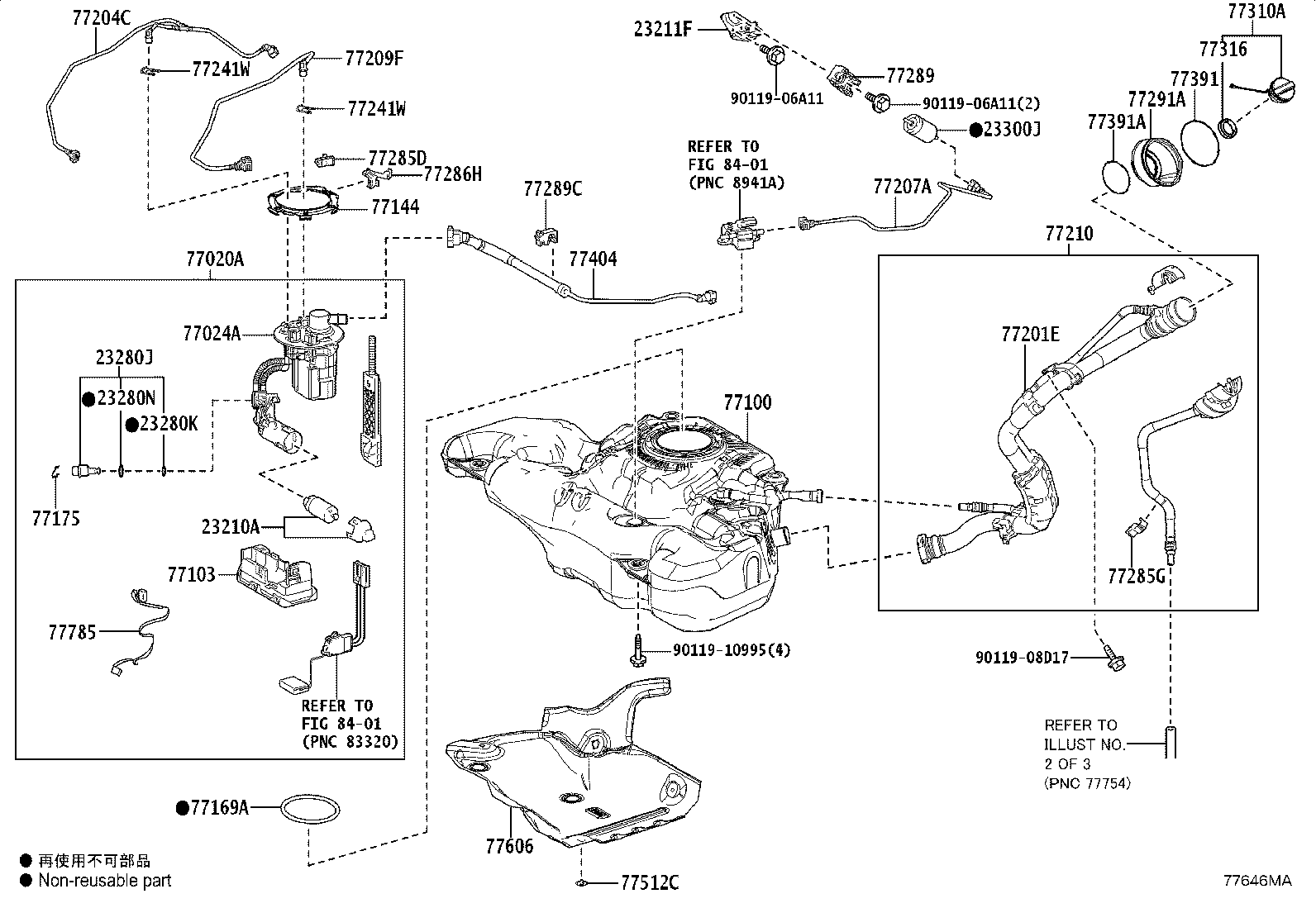

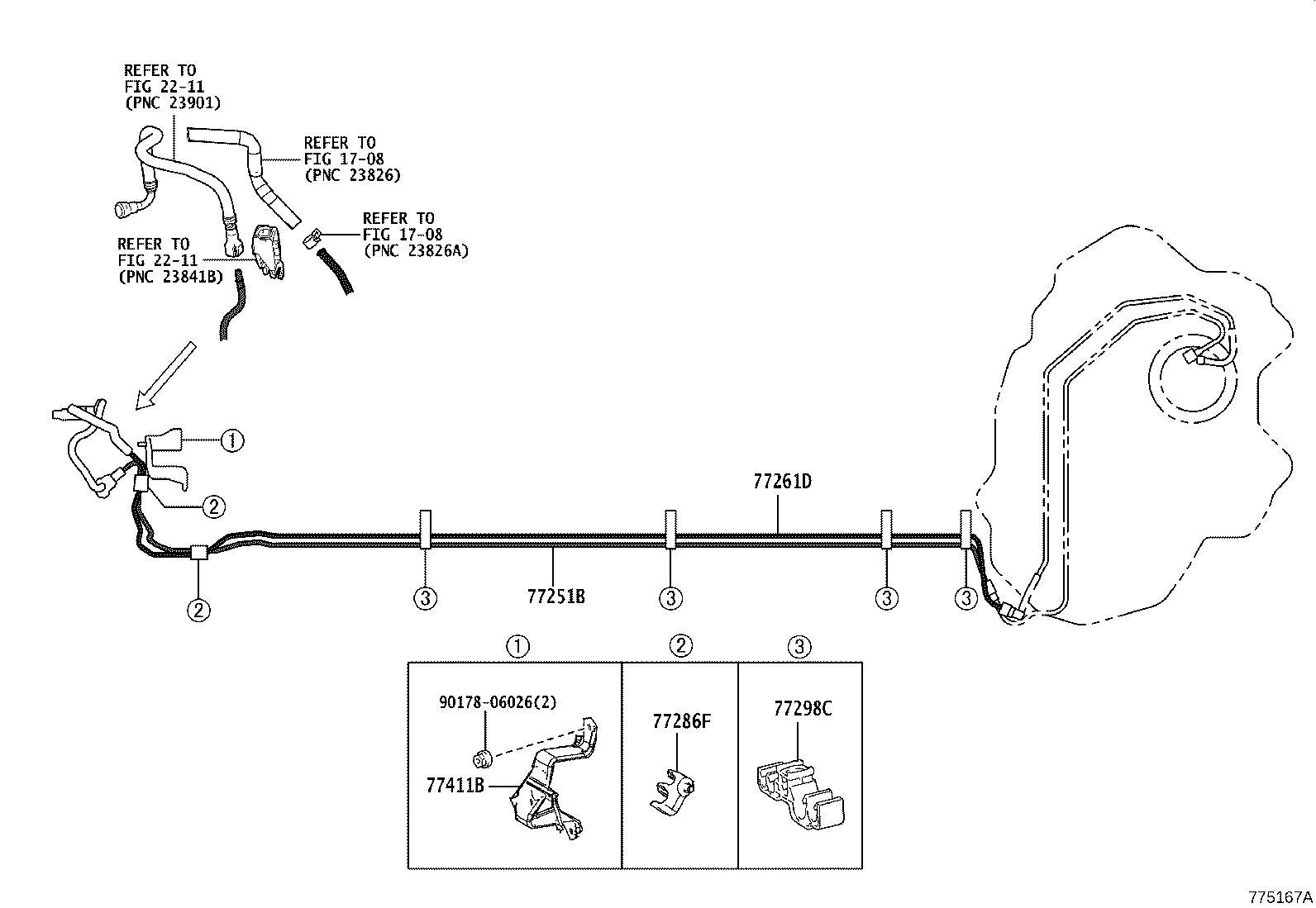

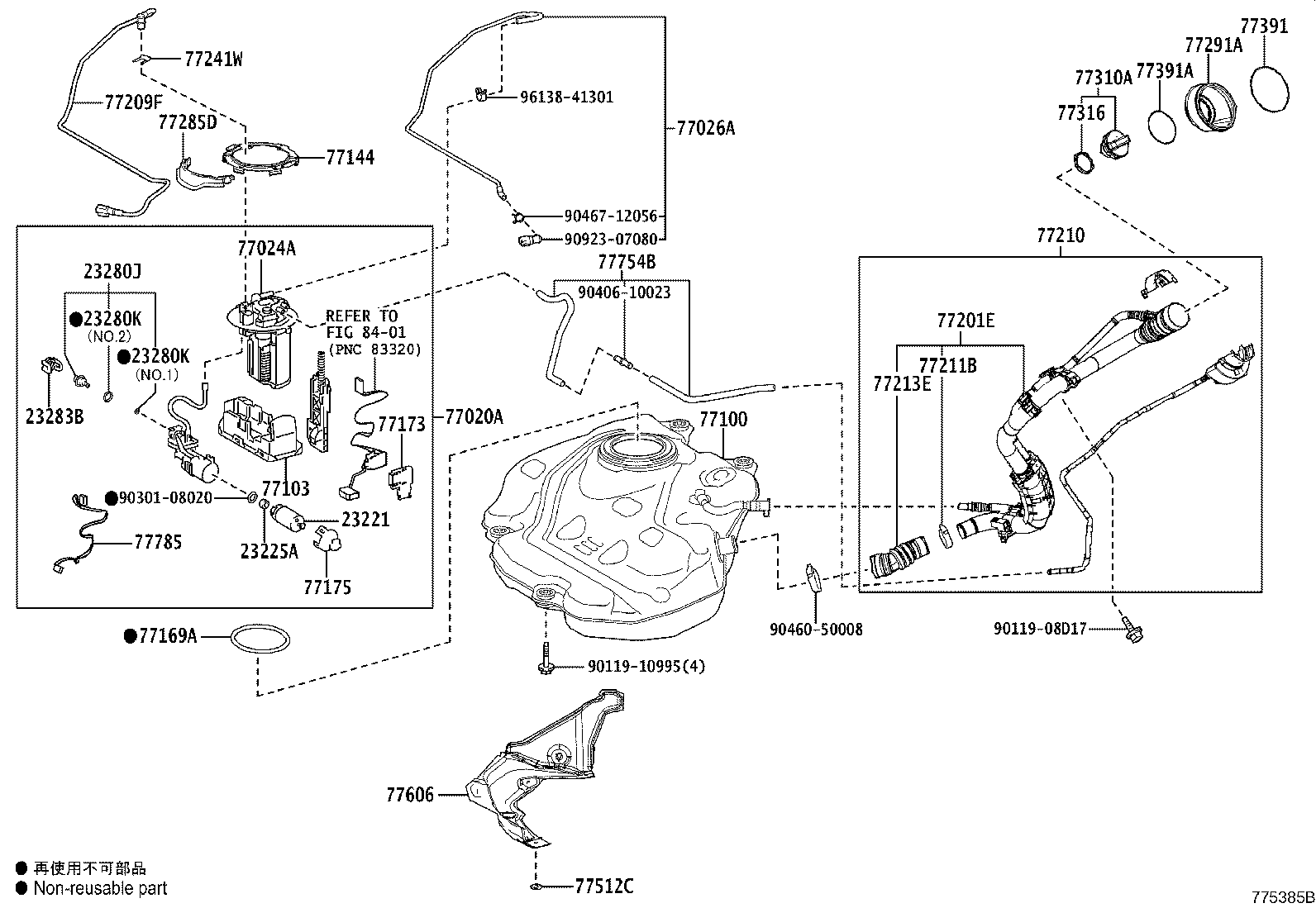

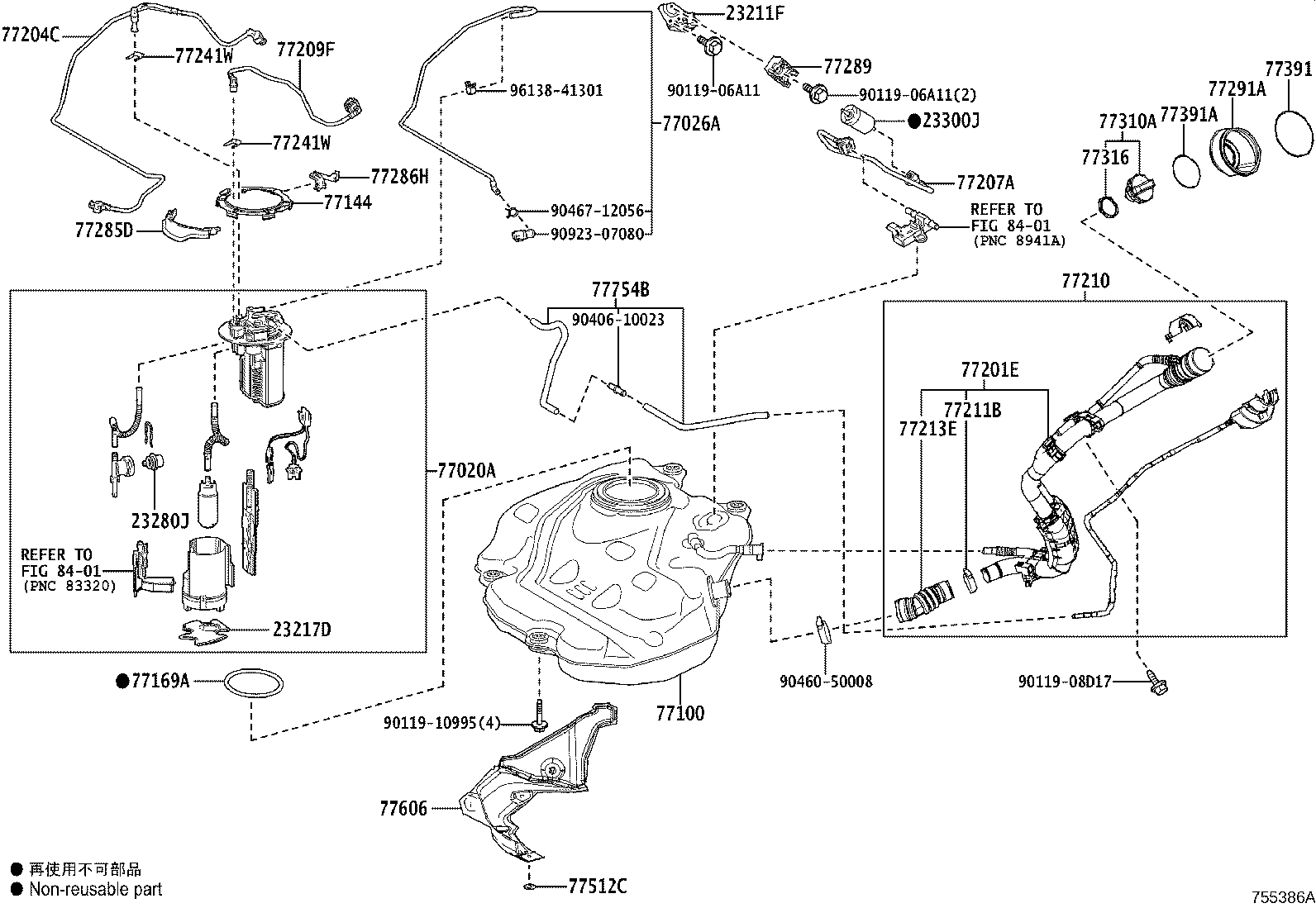

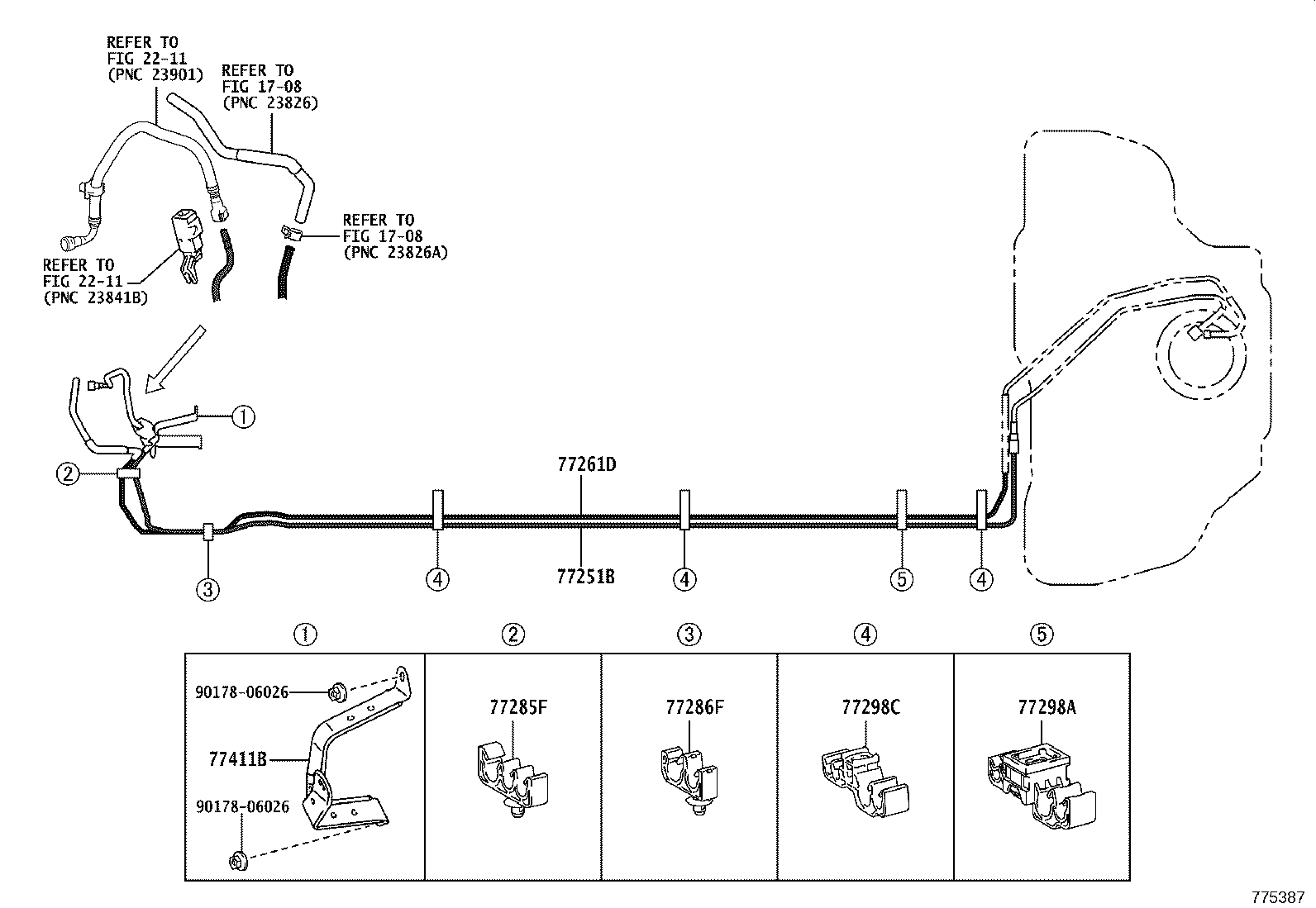

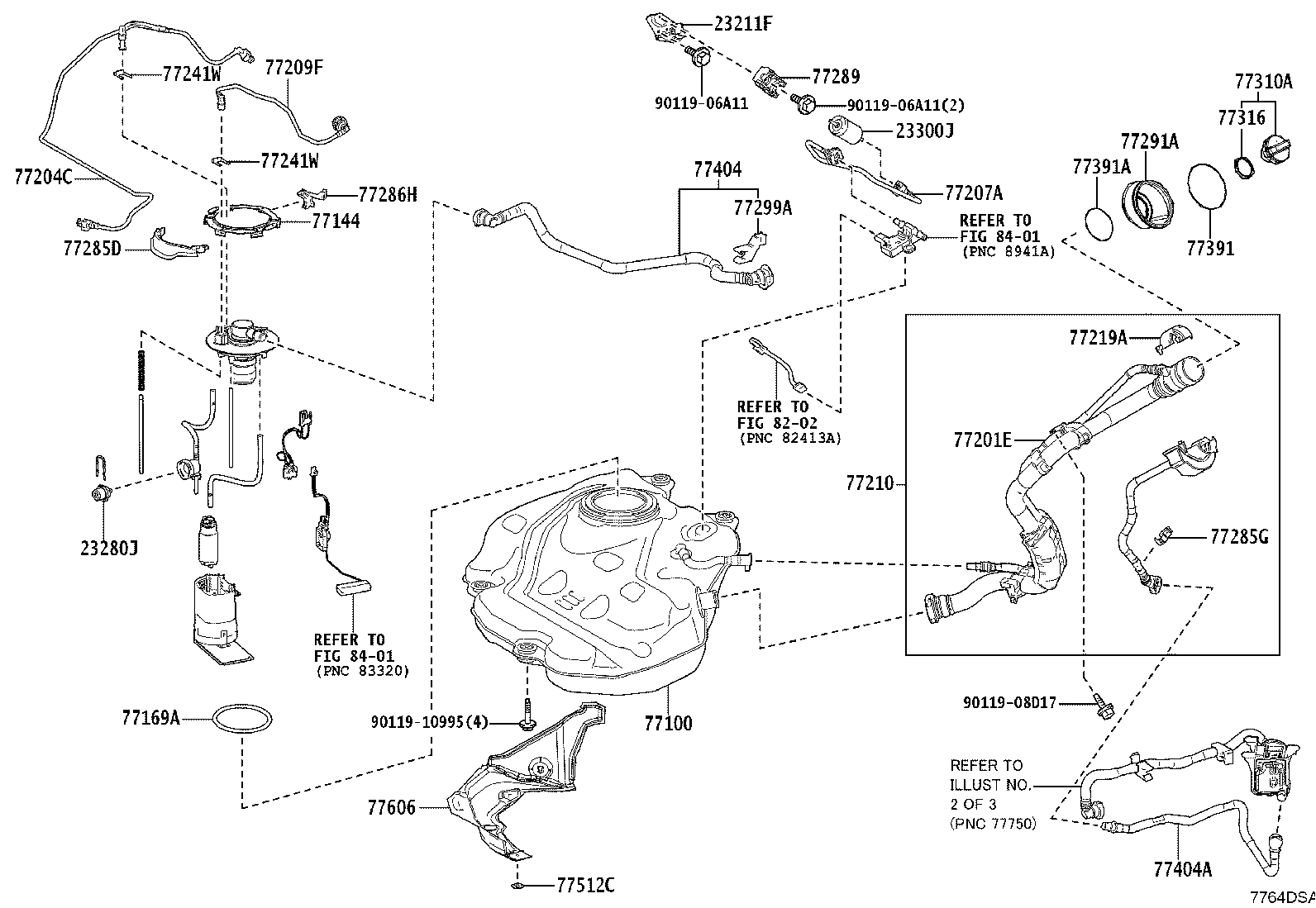

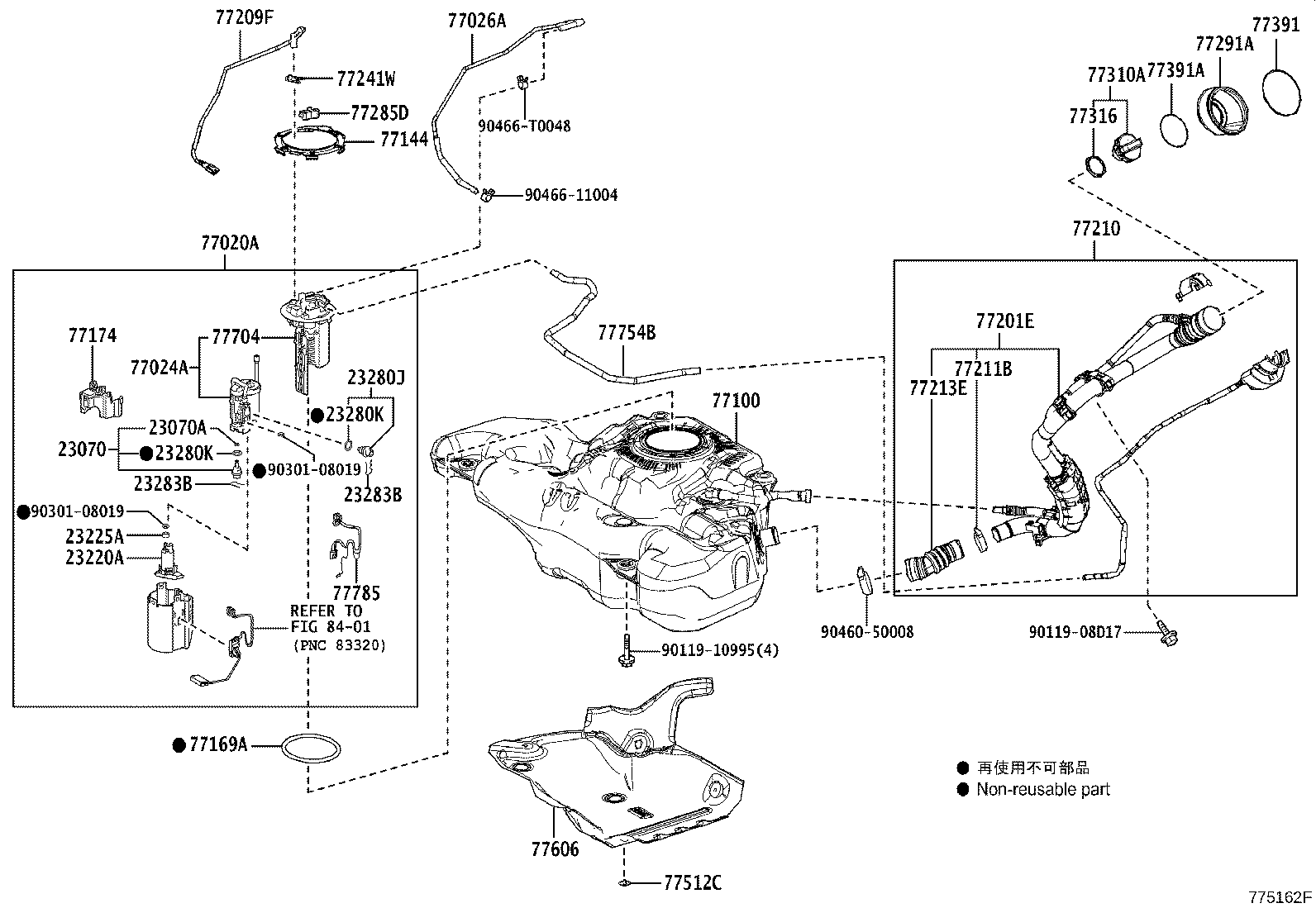

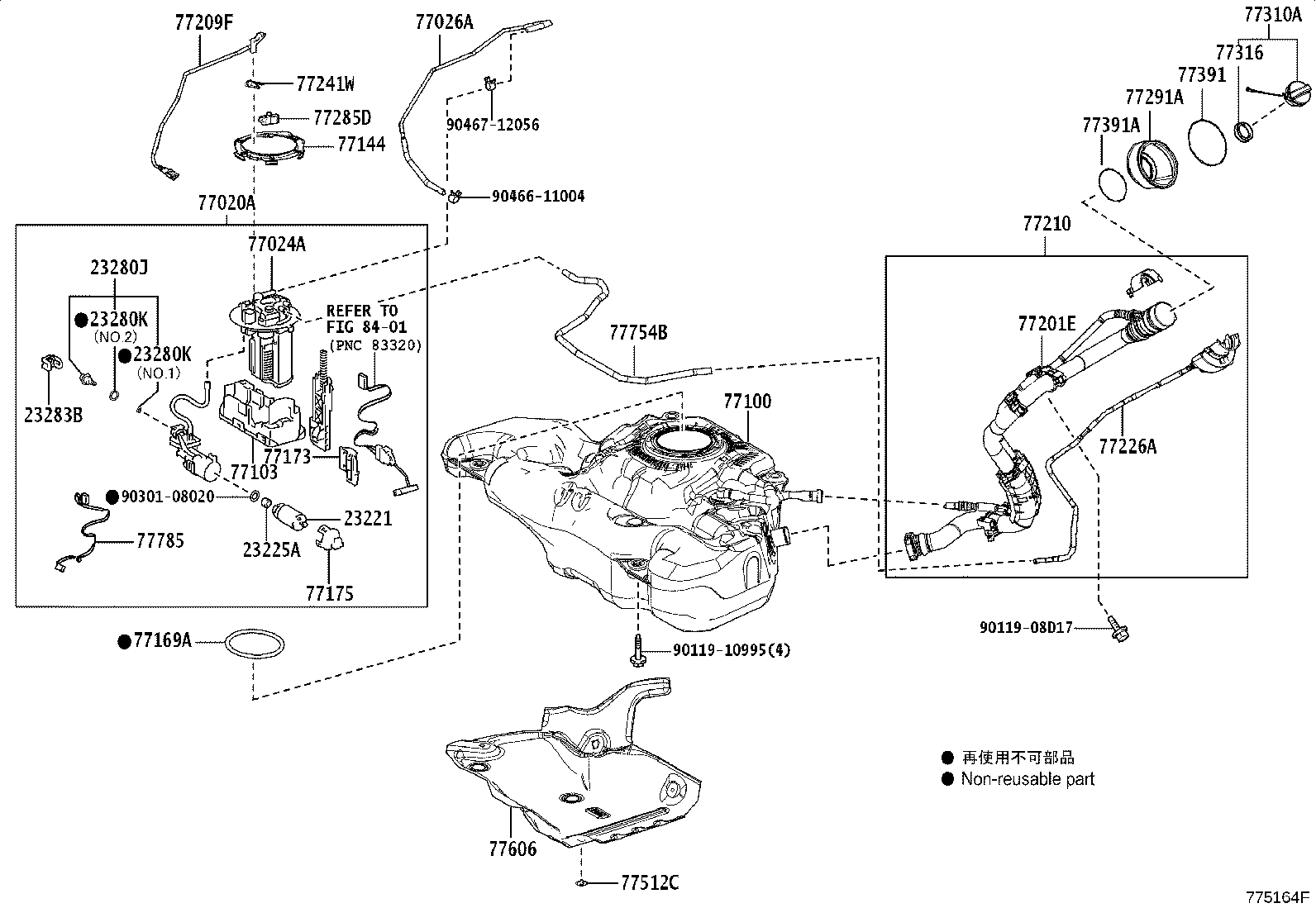

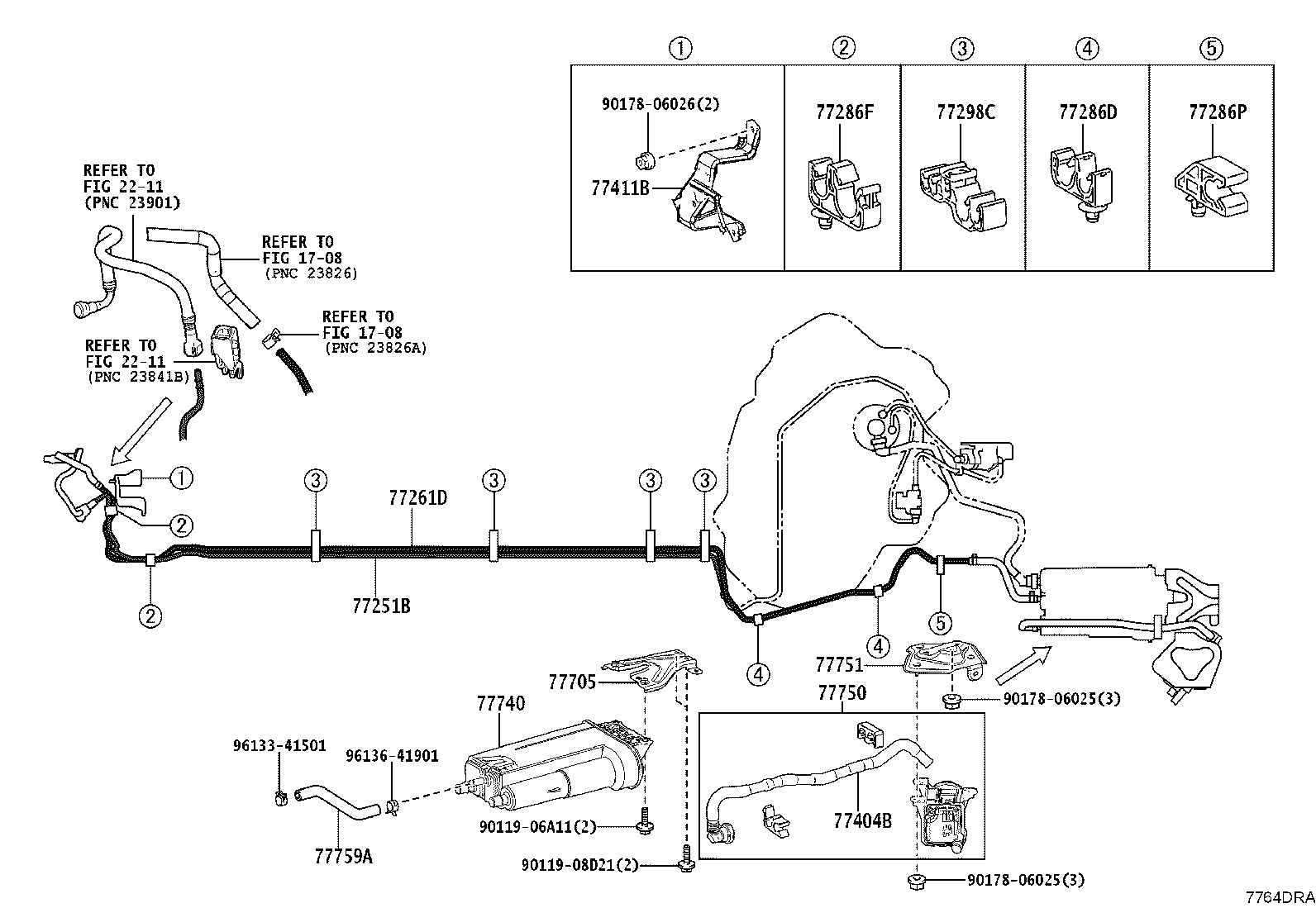

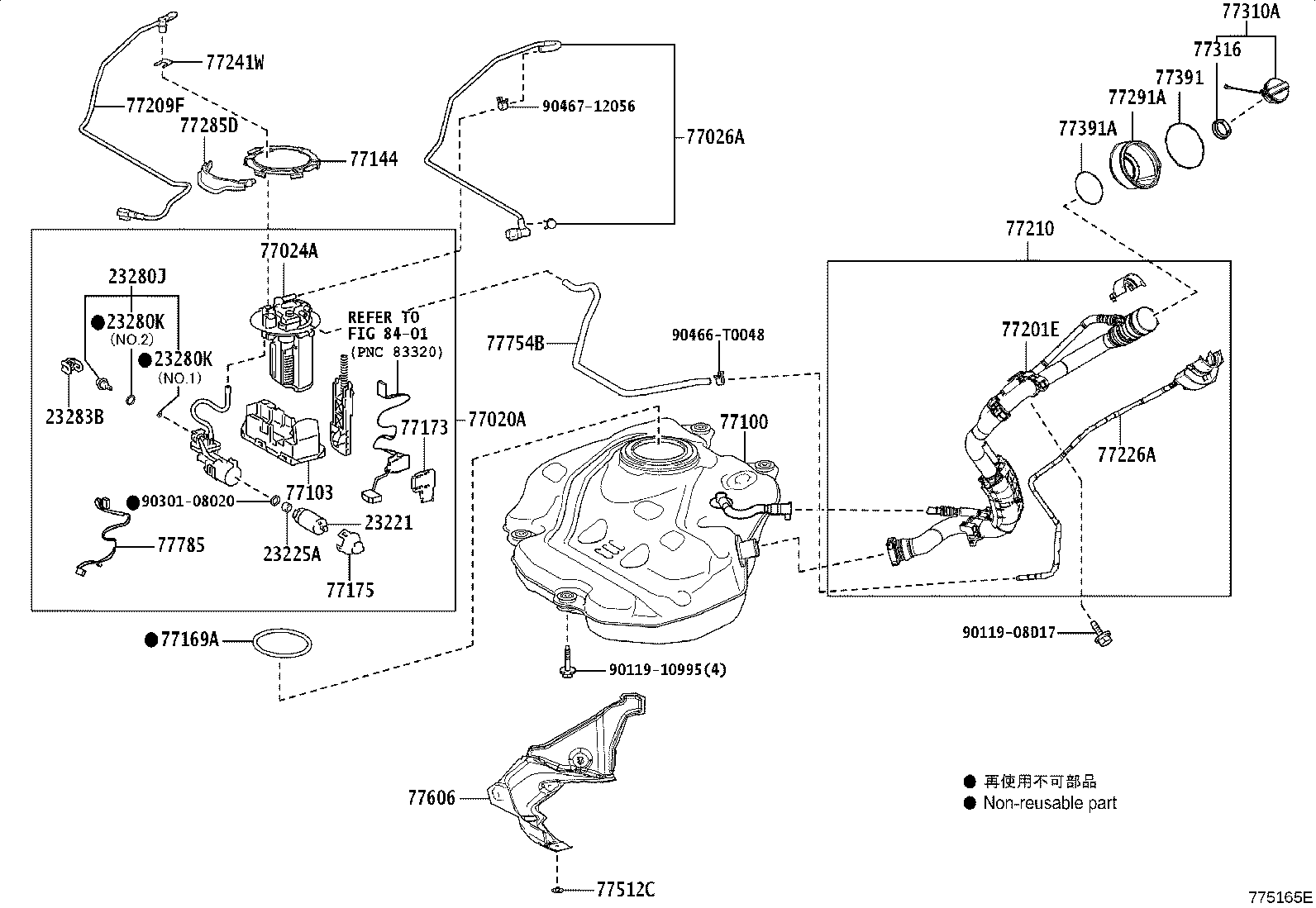

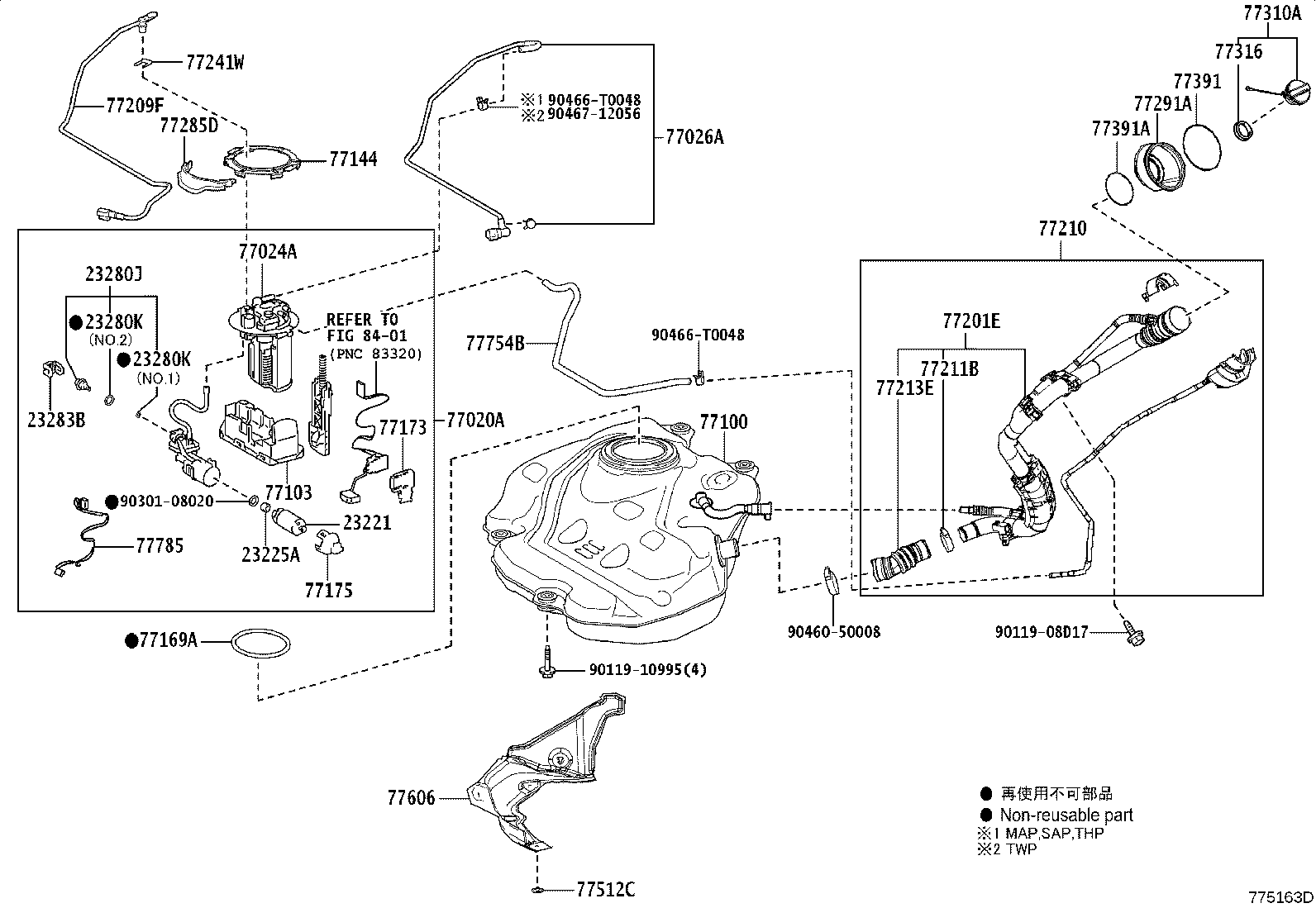

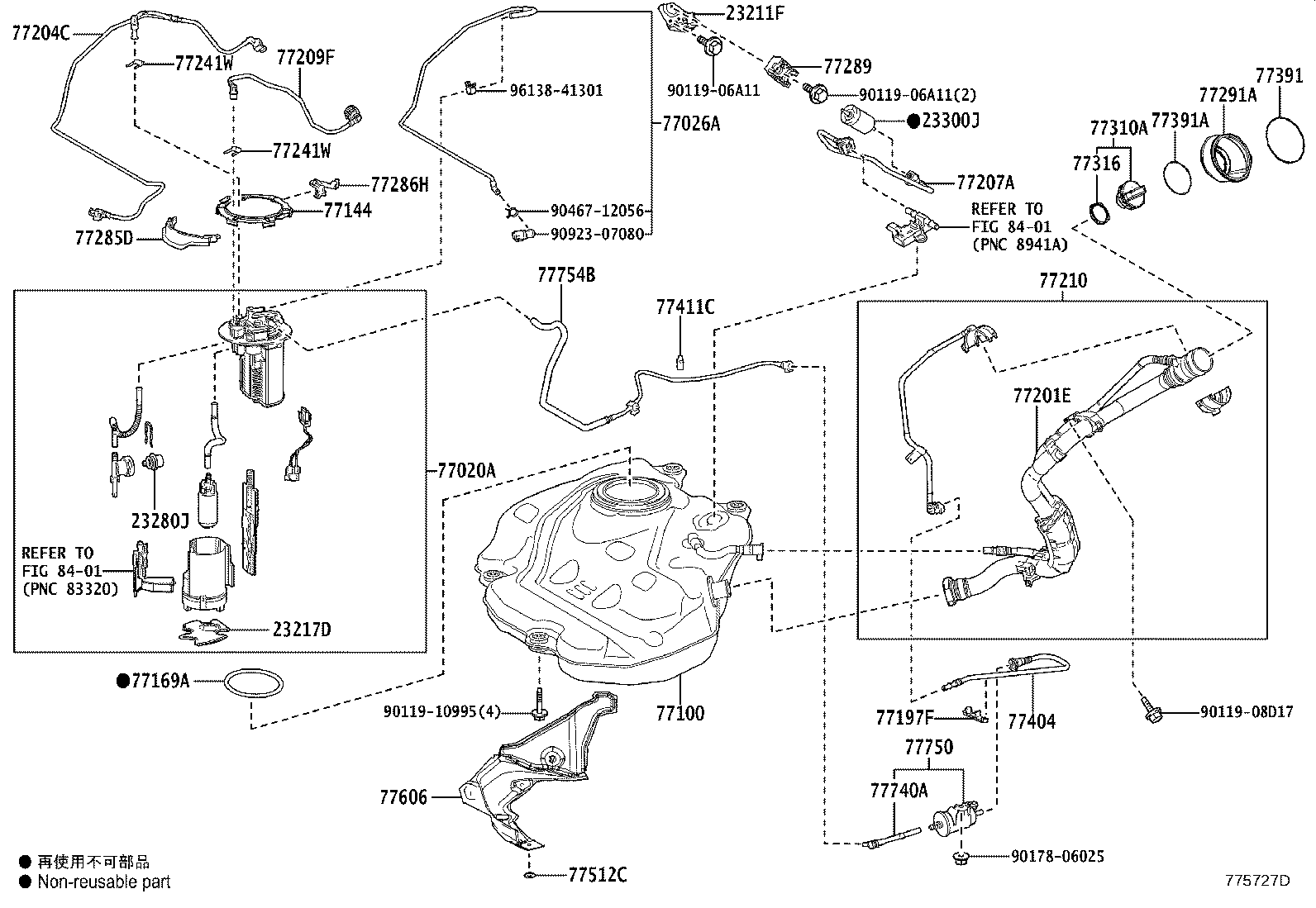

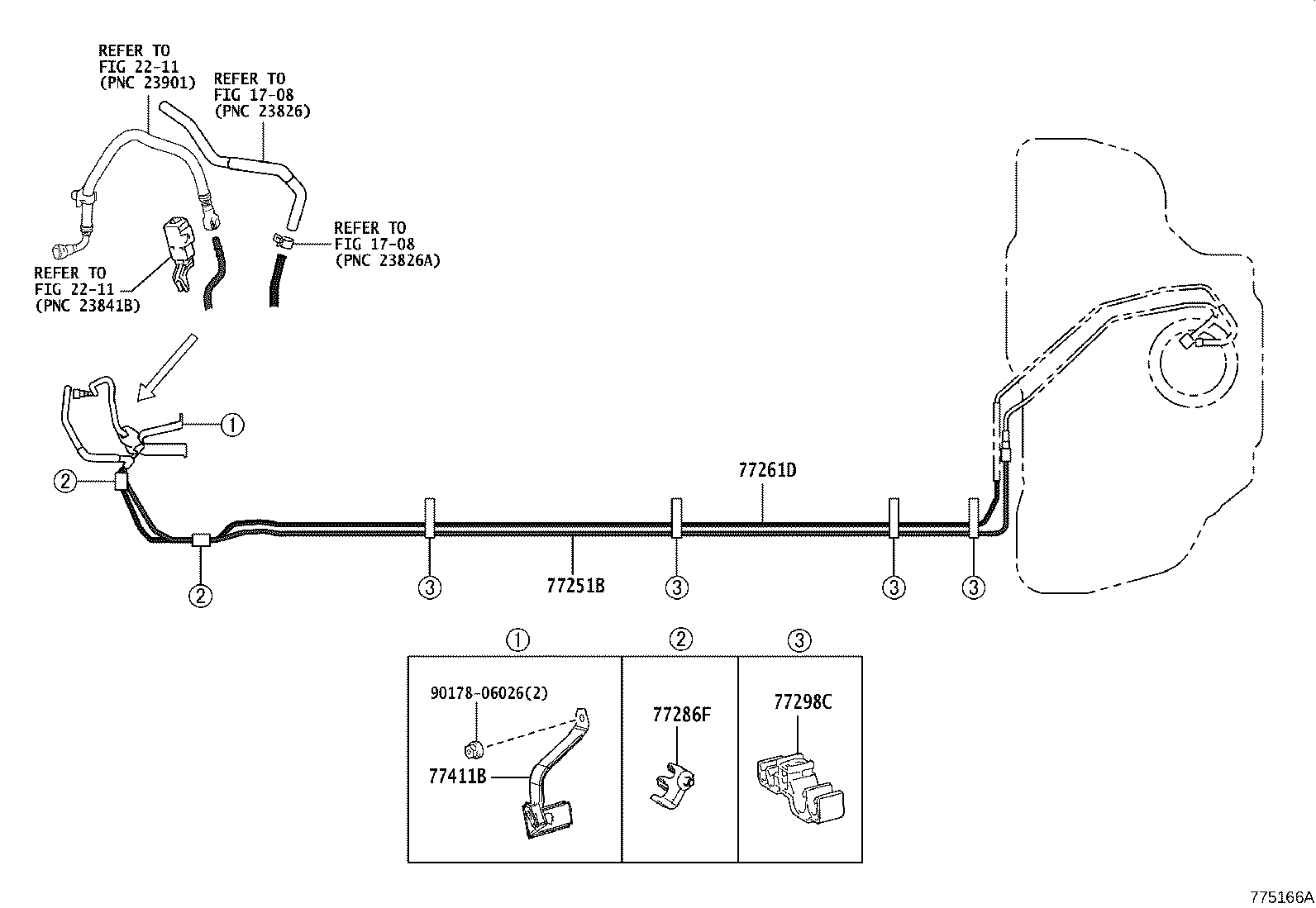

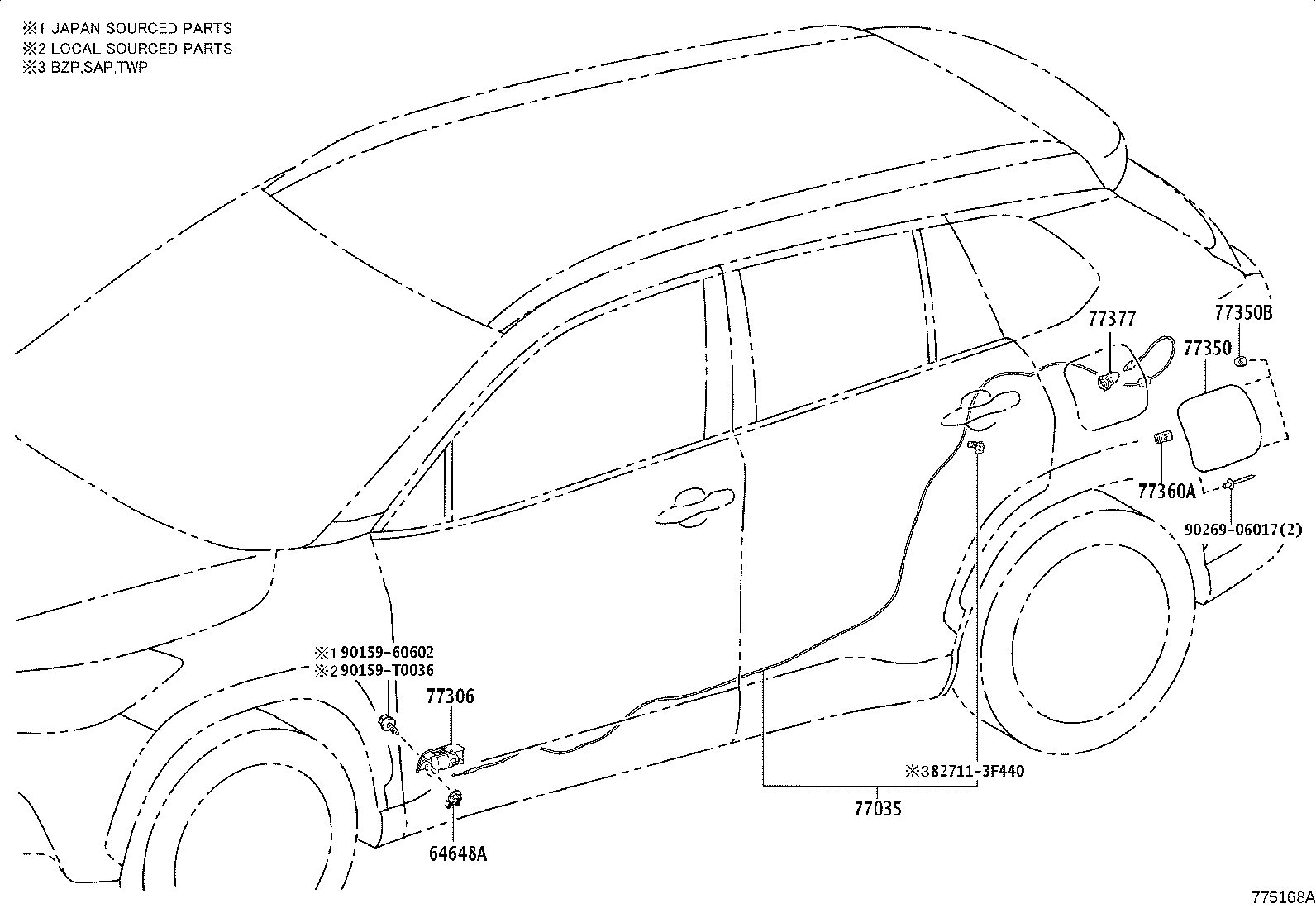

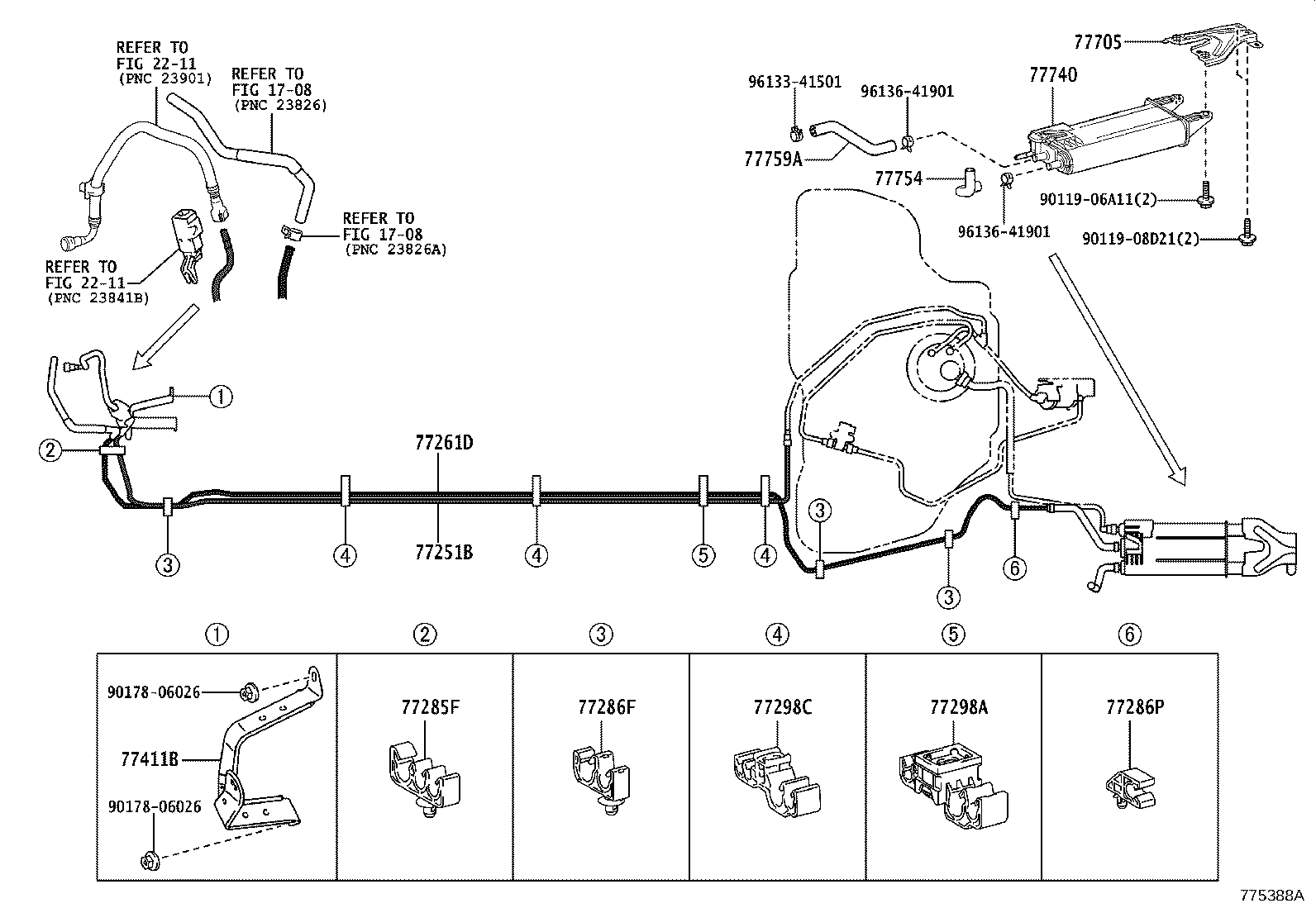

Figure 775161F 775161F 2020-07 → — Figure 775162F 775162F 2020-07 → — Figure 775163D 775163D 2020-07 → — Figure 775164F 775164F 2020-10 → — Figure 775165E 775165E 2020-10 → — Figure 775383A 775383A 2021-03 → — Figure 775384A 775384A 2021-03 → 2022-01 Figure 77646MA 77646MA 2022-01 → — Figure 77646NA 77646NA 2024-04 → — Figure 775385B 775385B 2021-03 → — Figure 775386A 775386A 2021-03 → 2022-01 Figure 775727D 775727D 2022-01 → 2025-01 Figure 7764DSA 7764DSA 2025-01 → — Figure 775166A 775166A 2020-07 → — Figure 775387 775387 2021-03 → — Figure 775388A 775388A 2021-03 → 2024-03 Figure 775388A 775388A 2024-03 → — Figure 77646OA 77646OA 2024-04 → — Figure 775167A 775167A 2020-07 → — Figure 7764DRA 7764DRA 2025-01 → — Figure 775168A 775168A 2020-07 → — Figure 775169A 775169A 2020-07 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23210A Pump Assy, Fuel W/Motor & Bracket
23211F Bracket
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B Holder, Fuel Pressure Regulator
23300J Filter Assy, Fuel
64648A Grommet, Luggage Door Lock Opener
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77103 Sub-tank Sub-assy, Fuel
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77173 Bracket, Fuel Gage
77174 Support, Fuel Suction, NO.1
77175 Support, Fuel Suction, NO.2
77197F Clamp, Evaporation Vent Tube, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77204C Tube Sub-assy, Fuel Tank Main, NO.2
77207A Tube Sub-assy, Fuel Return
77209F Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77211B Clamp (FOR FUEL FILLER PIPE)
77213E Hose, Fuel Tank TO Filler Pipe
77219A Cover, Fuel Tank Filler Pipe
77226A Tube, Fuel Tank Breather, NO.6
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77261D Tube, Fuel Tank TO Canister
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286P Clamp, Fuel Tube, NO.8
77289 Holder, Fuel Tank Pipe Setting
77289C Clamp, Fuel Tube, NO.4
77291A Shield, Fuel Tank Filler Pipe
77298A Clamp, Fuel Tube, NO.4
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77350B Cushion(FOR FUEL FILLER OPENING LID)
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77404B Hose Sub-assy, Fuel Tank Vent, NO.2
77411B Support, Fuel Tube Grommet, NO.1
77411C Support, Fuel Tube Grommet, NO.1
77512C Bracket, Fuel Tank
77606 Protector Sub-assy, Fuel Tank, NO.1
77704 Canister Sub-assy, Charcoal
77705 Bracket Sub-assy, Charcoal Canister
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77754B Hose, Charcoal Canister Outlet
77759A Hose, Charcoal Canister
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
