Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

27 part groups · 8 illustrations

Illustrations

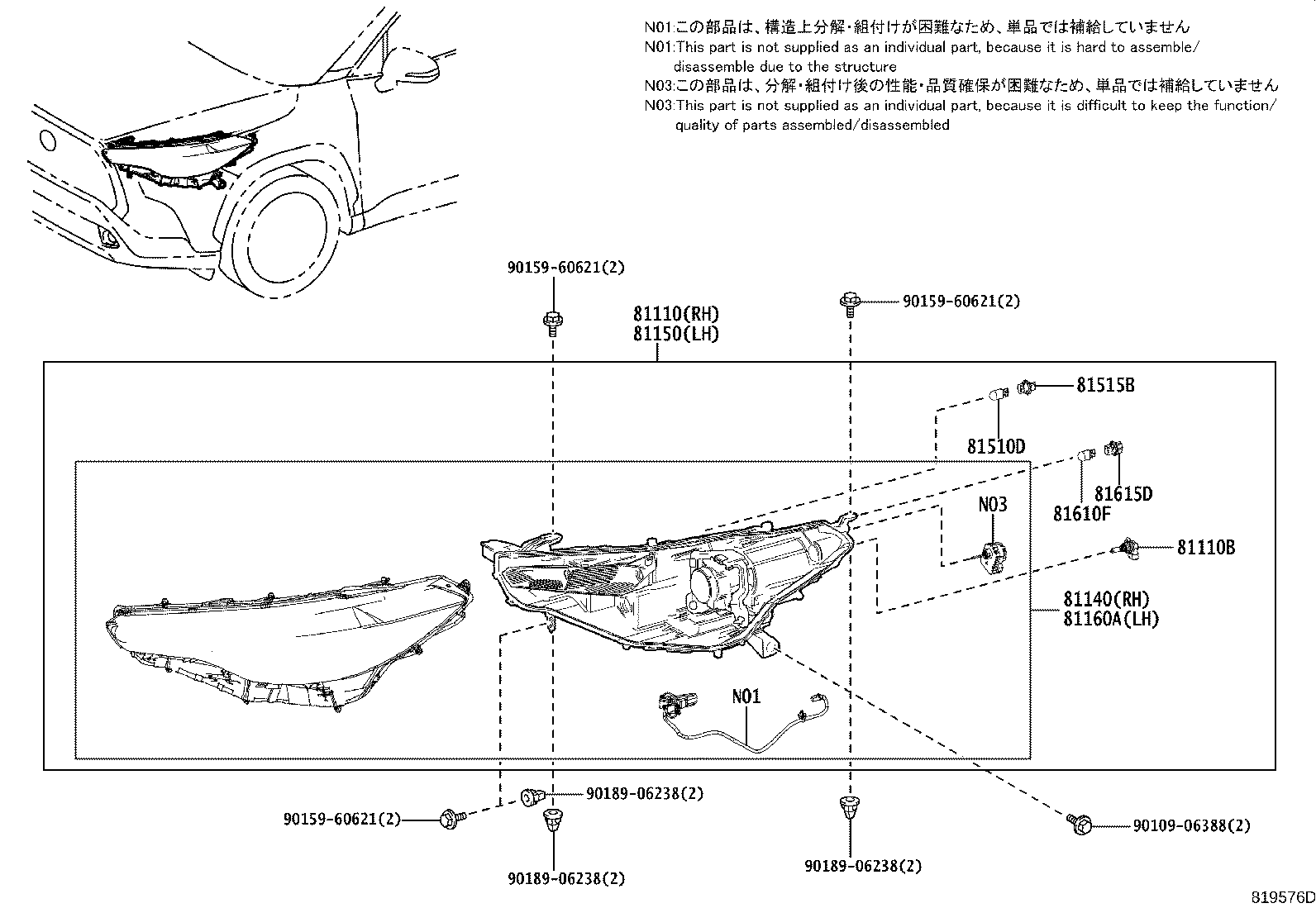

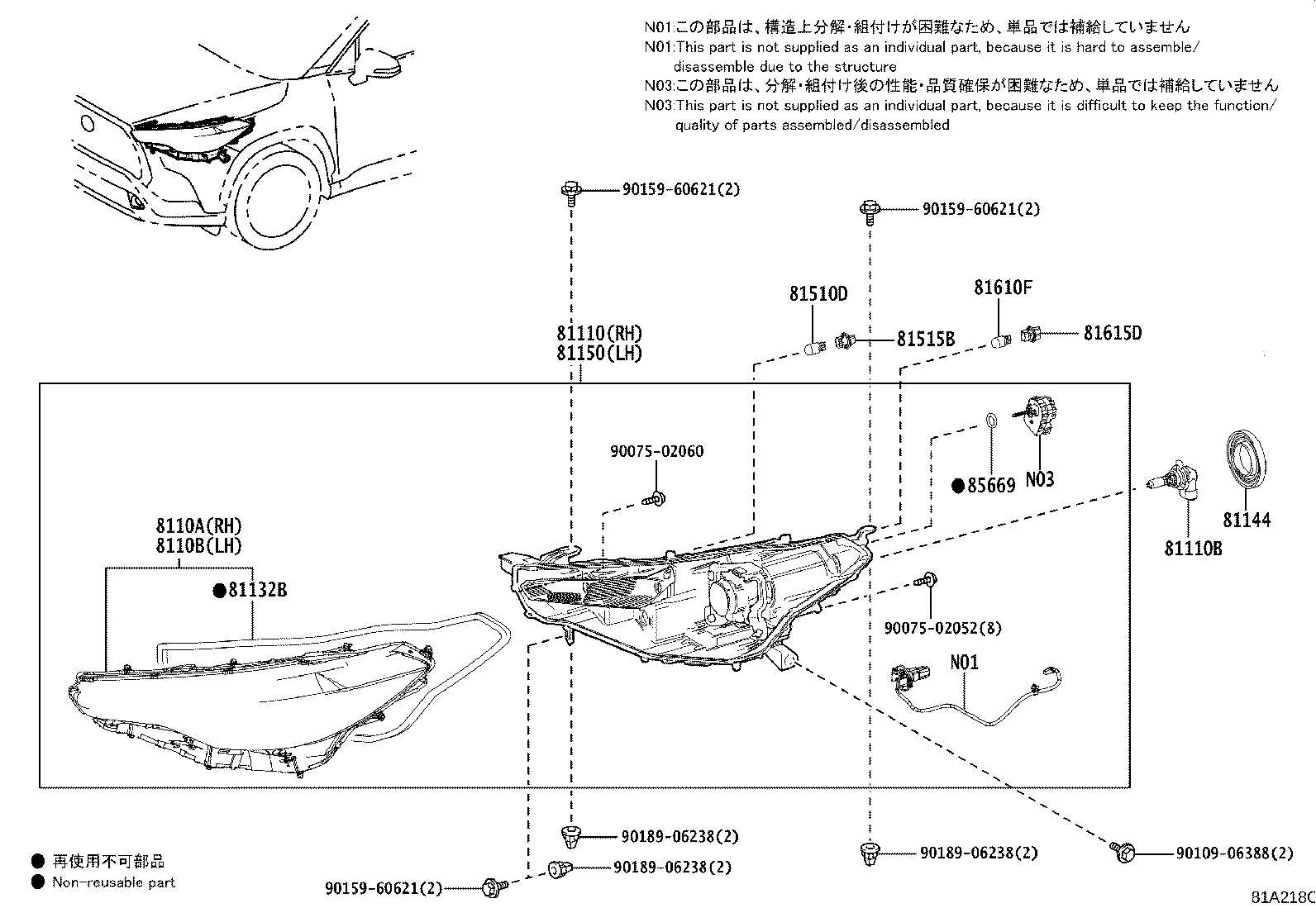

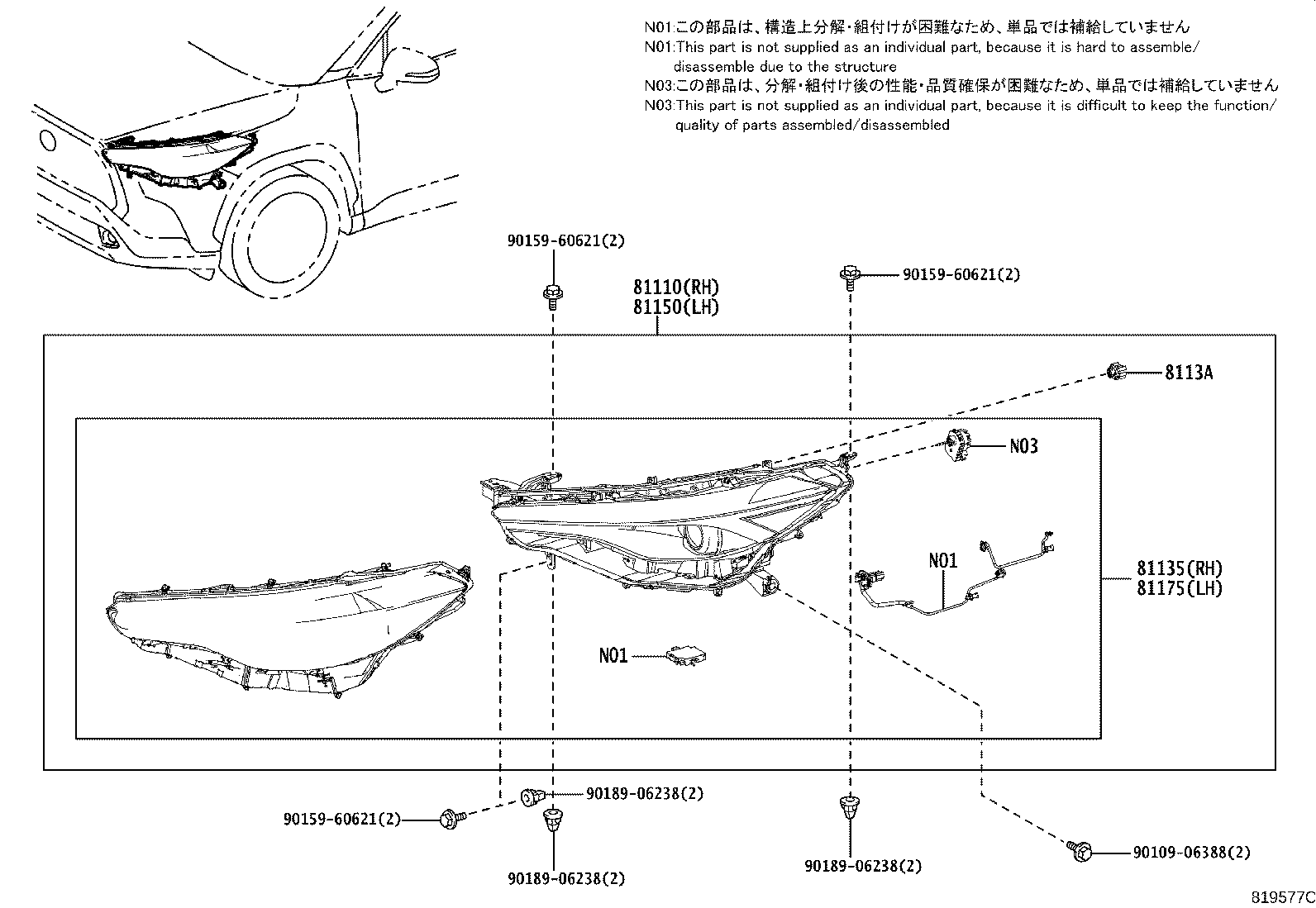

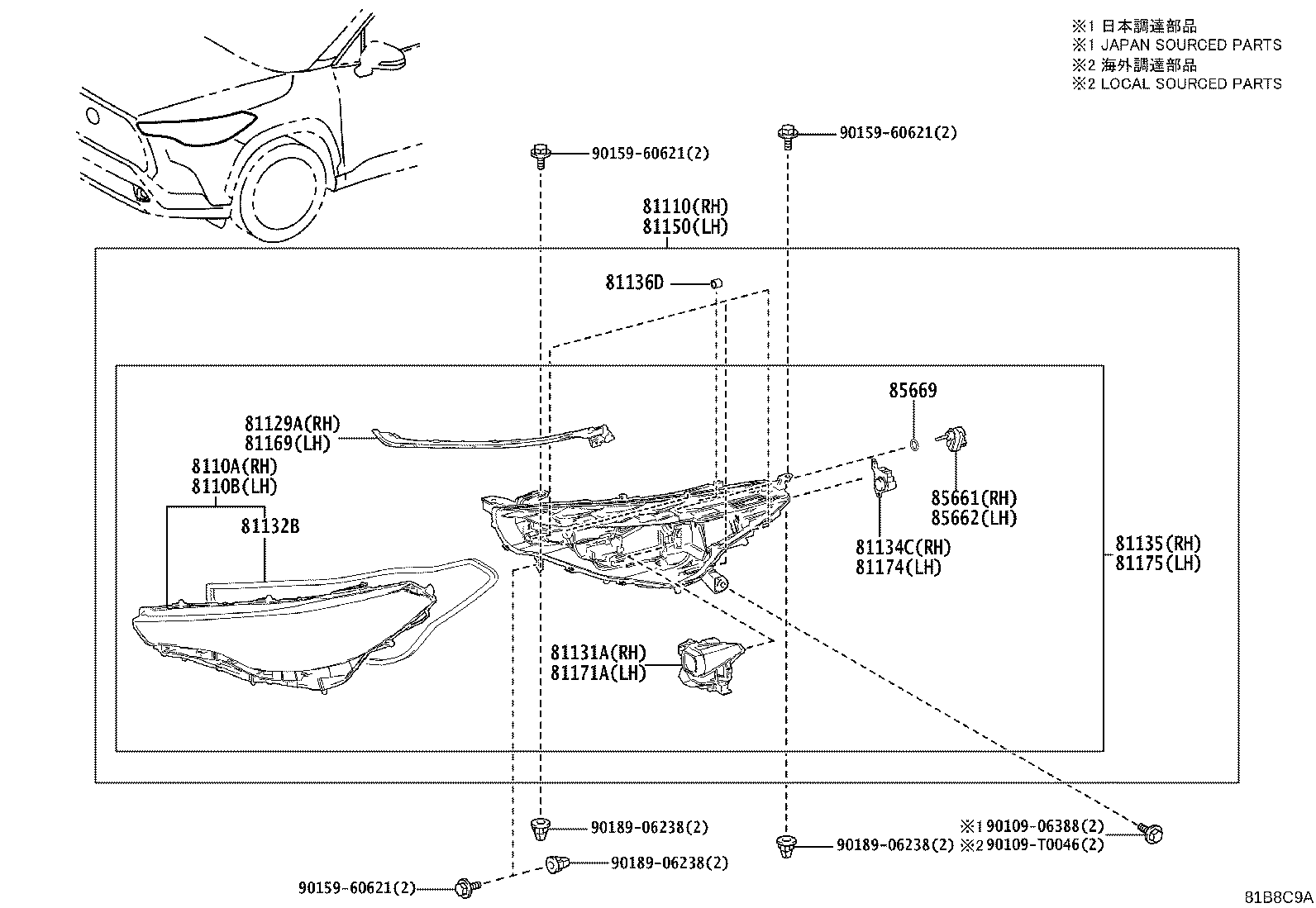

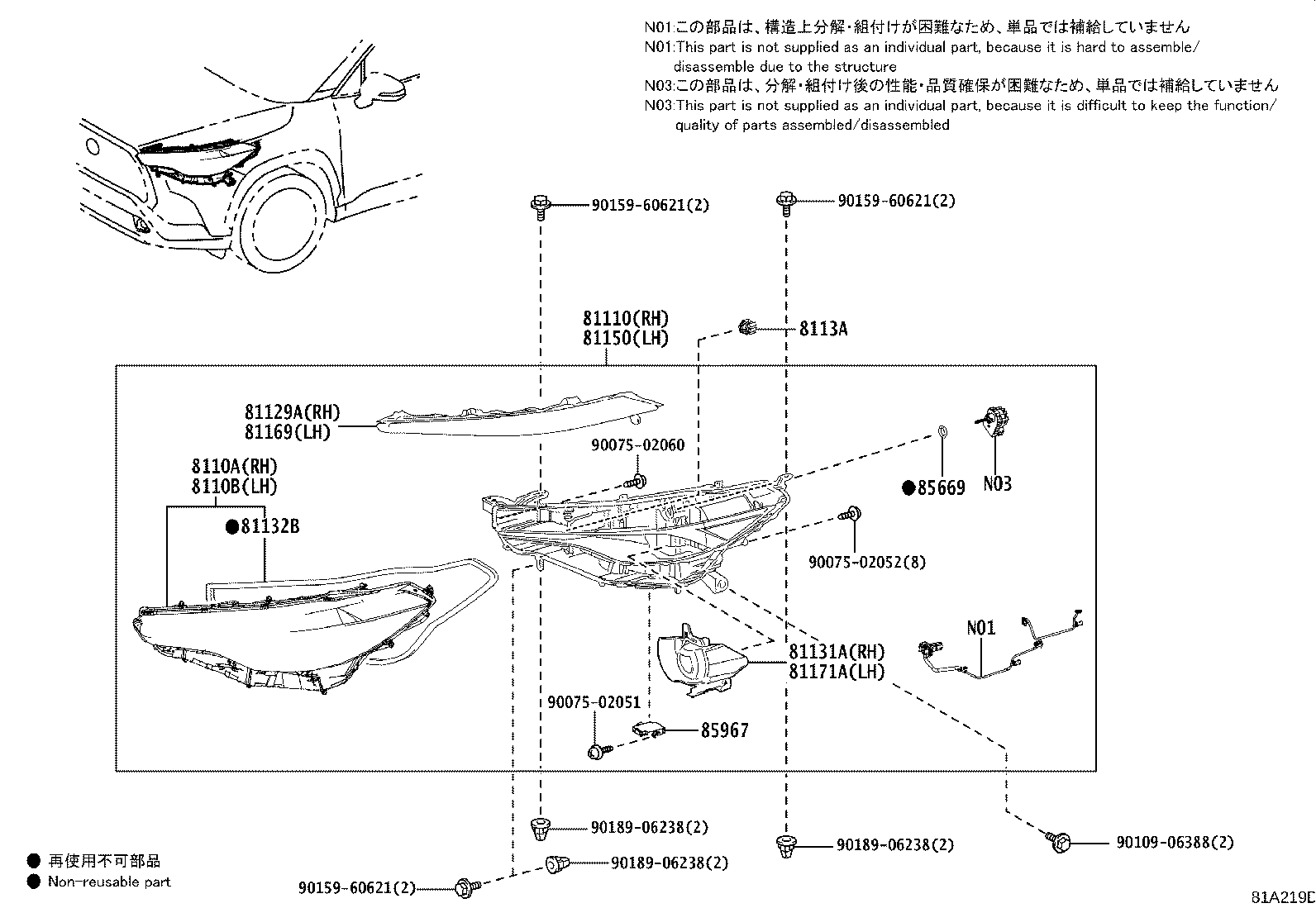

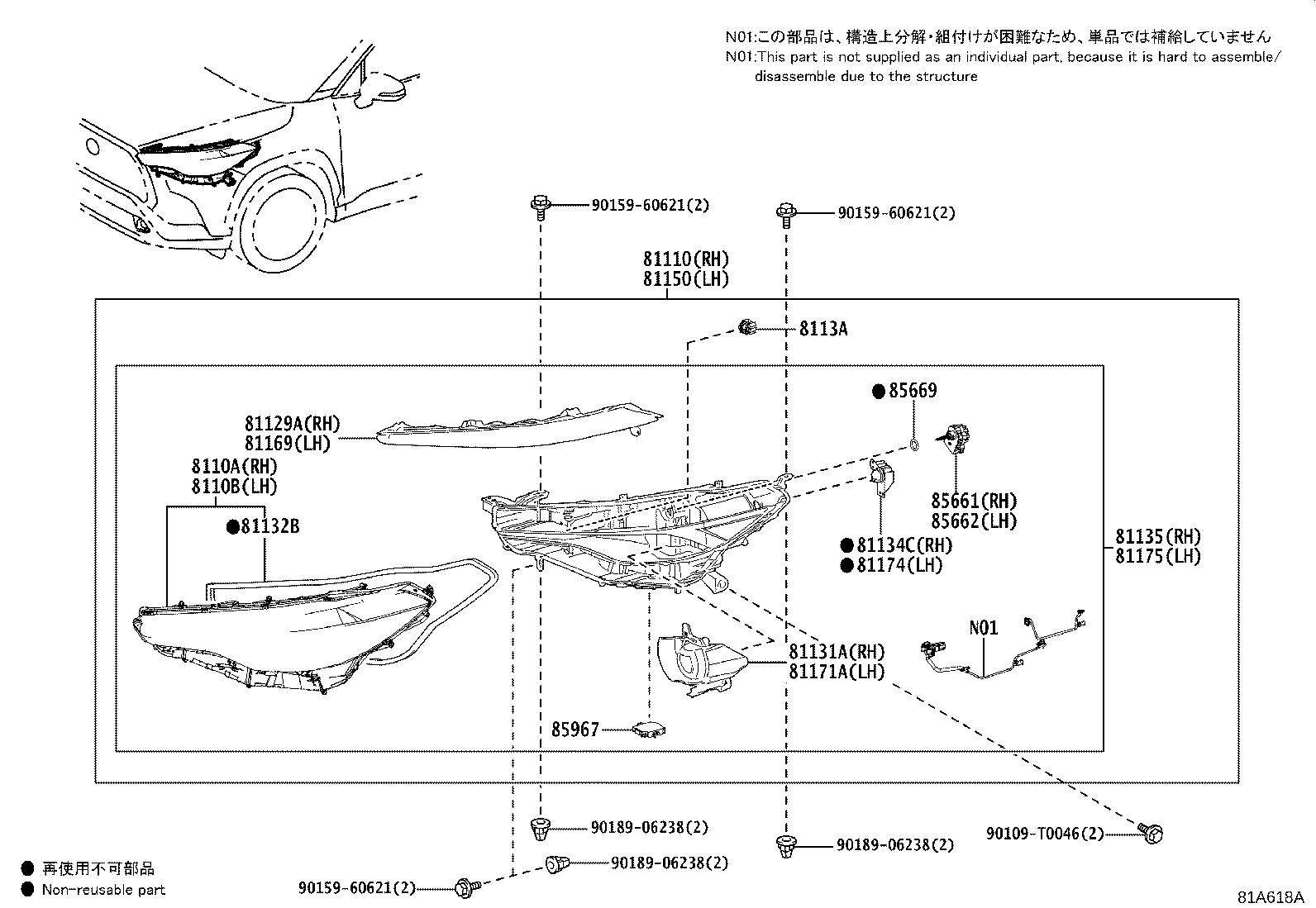

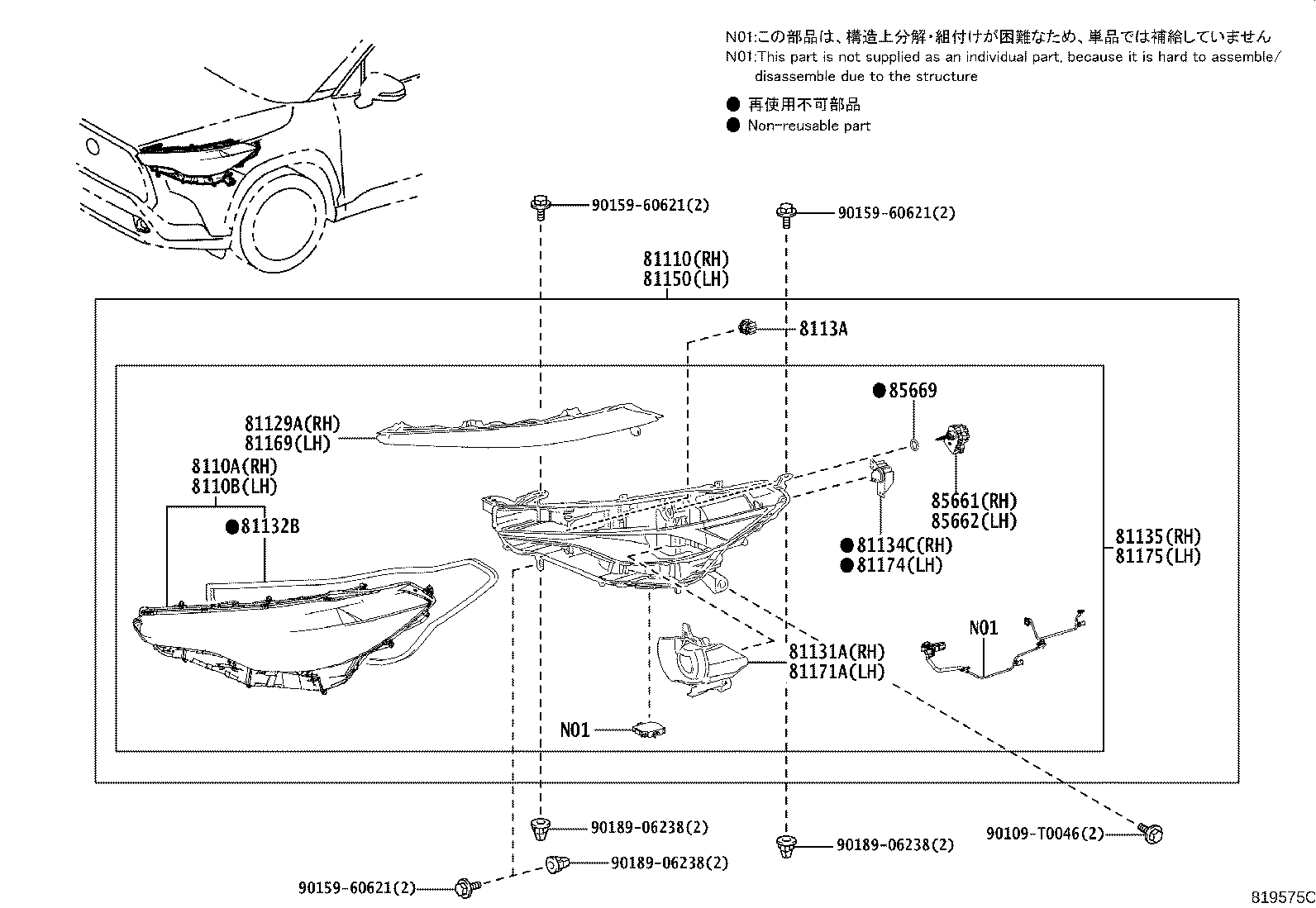

Figure 819574D 819574D 2020-07 → — Figure 819575C 819575C 2020-07 → — Figure 819576D 819576D 2020-10 → — Figure 819577C 819577C 2020-10 → — Figure 81A218C 81A218C 2021-03 → — Figure 81A219D 81A219D 2021-03 → — Figure 81A618A 81A618A 2021-12 → — Figure 81B8C9A 81B8C9A 2024-01 → —

Part groups

PNCDescription
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81129A Reflector, Headlamp, RH
81131A Unit, Headlamp, RH
81132B Gasket, Headlamp Lens
81134C Gasket, Headlamp Body, RH
81135 Unit Assy, Headlamp, RH
81136D Cover, Headlamp
8113A Led, Headlamp Front Turn Signal
81140 Unit Assy, Headlamp Led, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
81169 Reflector, Headlamp, LH
81171A Unit, Headlamp, LH
81174 Gasket, Headlamp Body, LH
81175 Unit Assy, Headlamp, LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
