Toyota Corolla Cross
2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General
Supported model
Data version 2024-12
Battery & Battery Cable
39 part groups · 20 illustrations

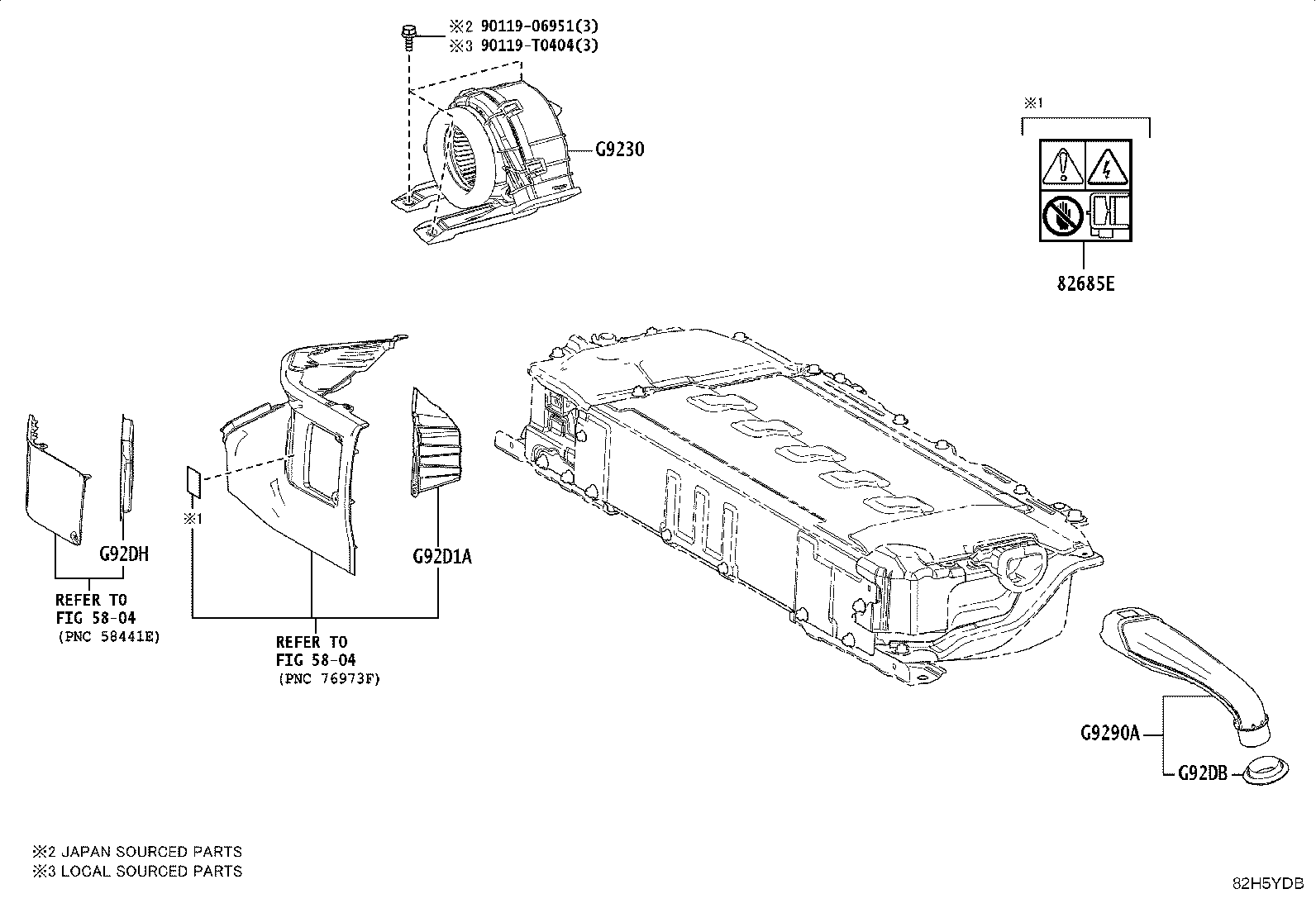

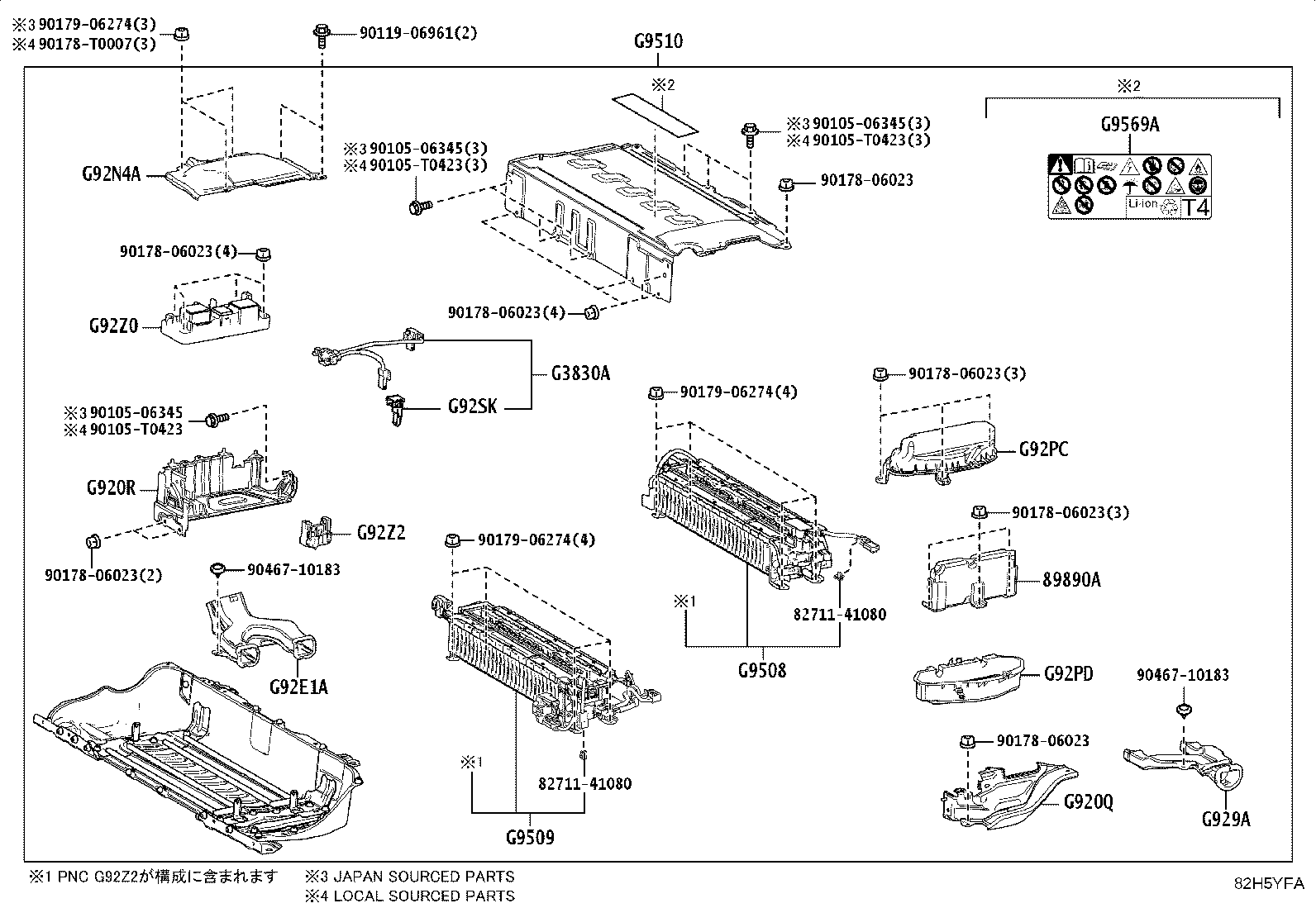

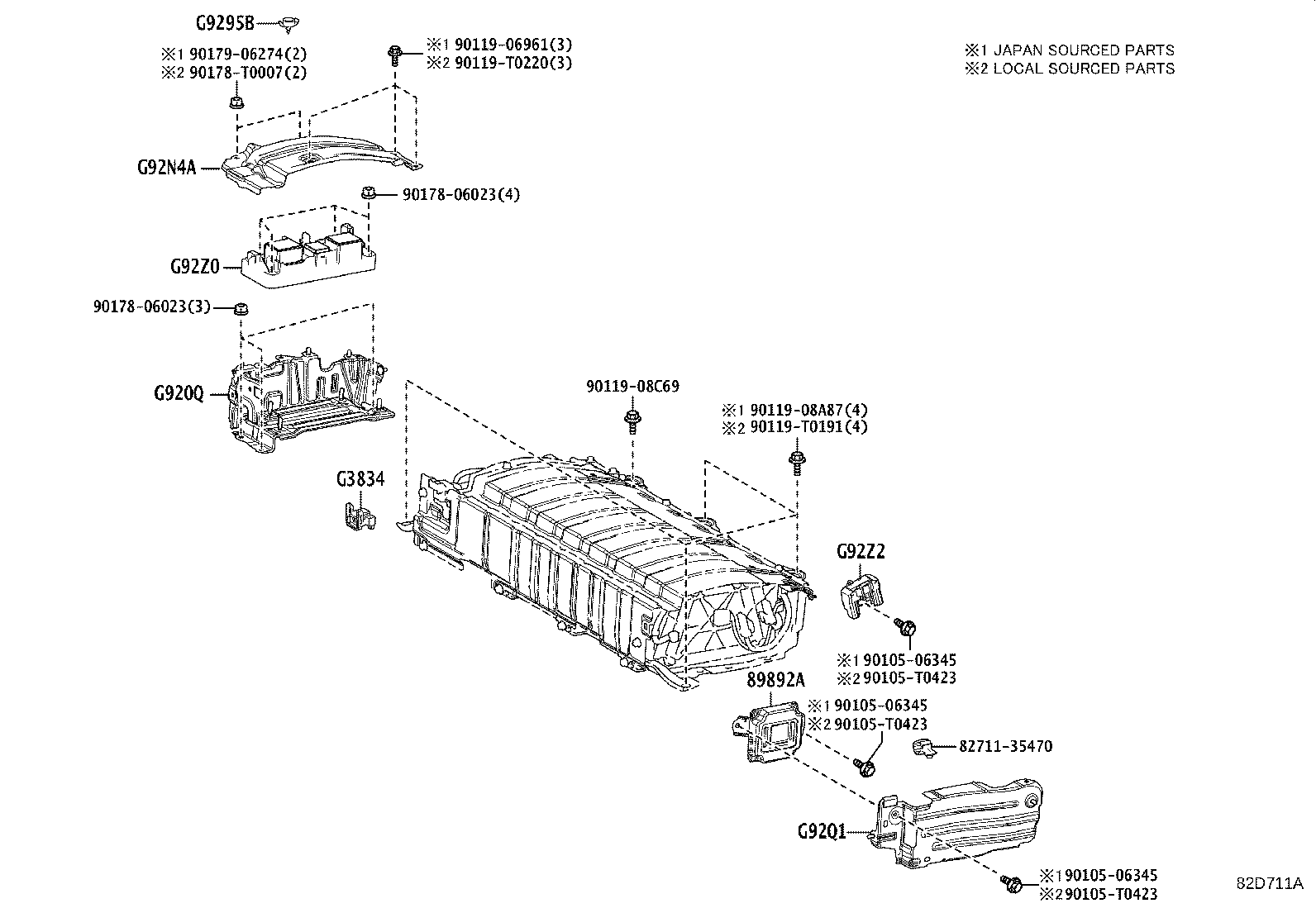

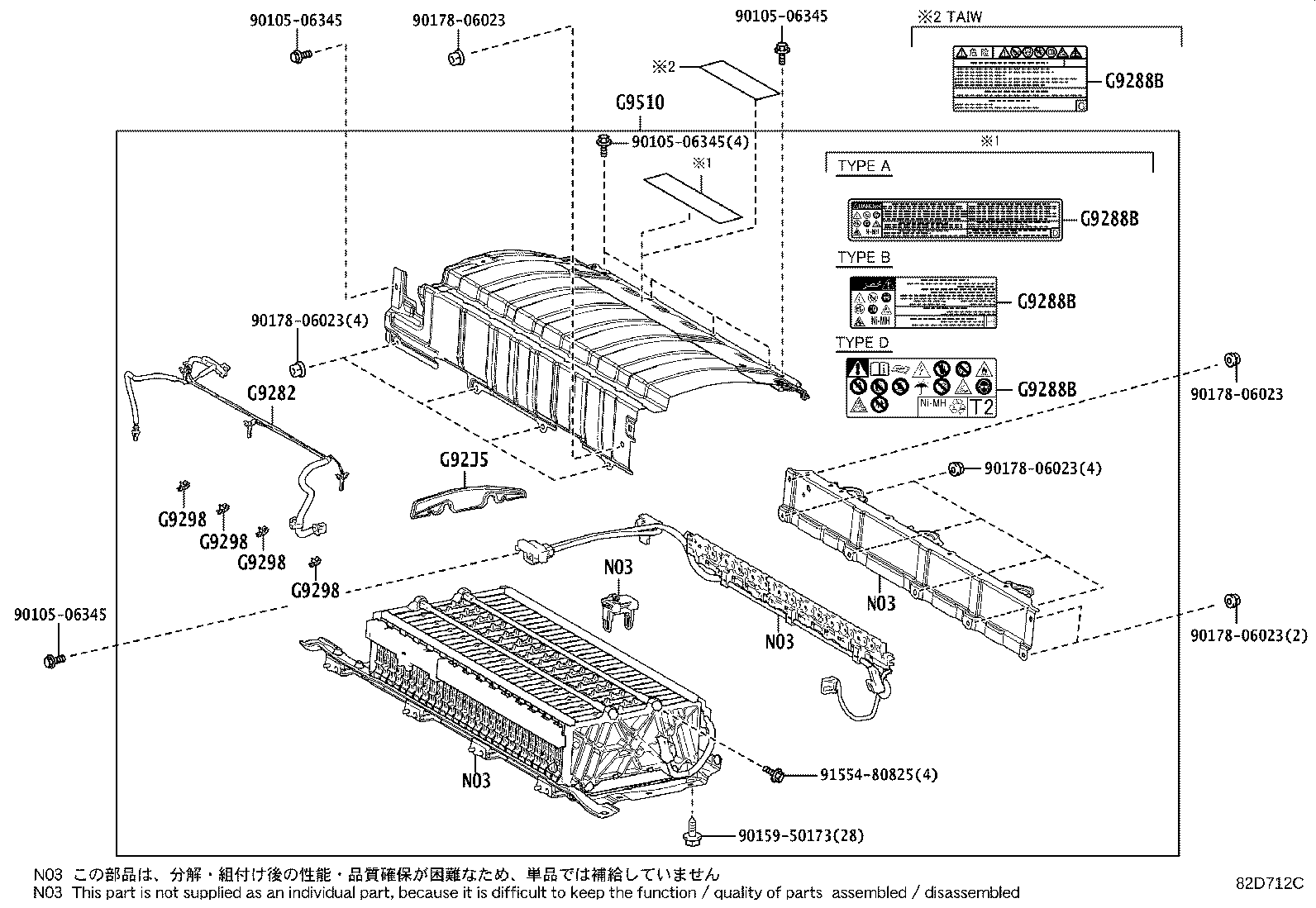

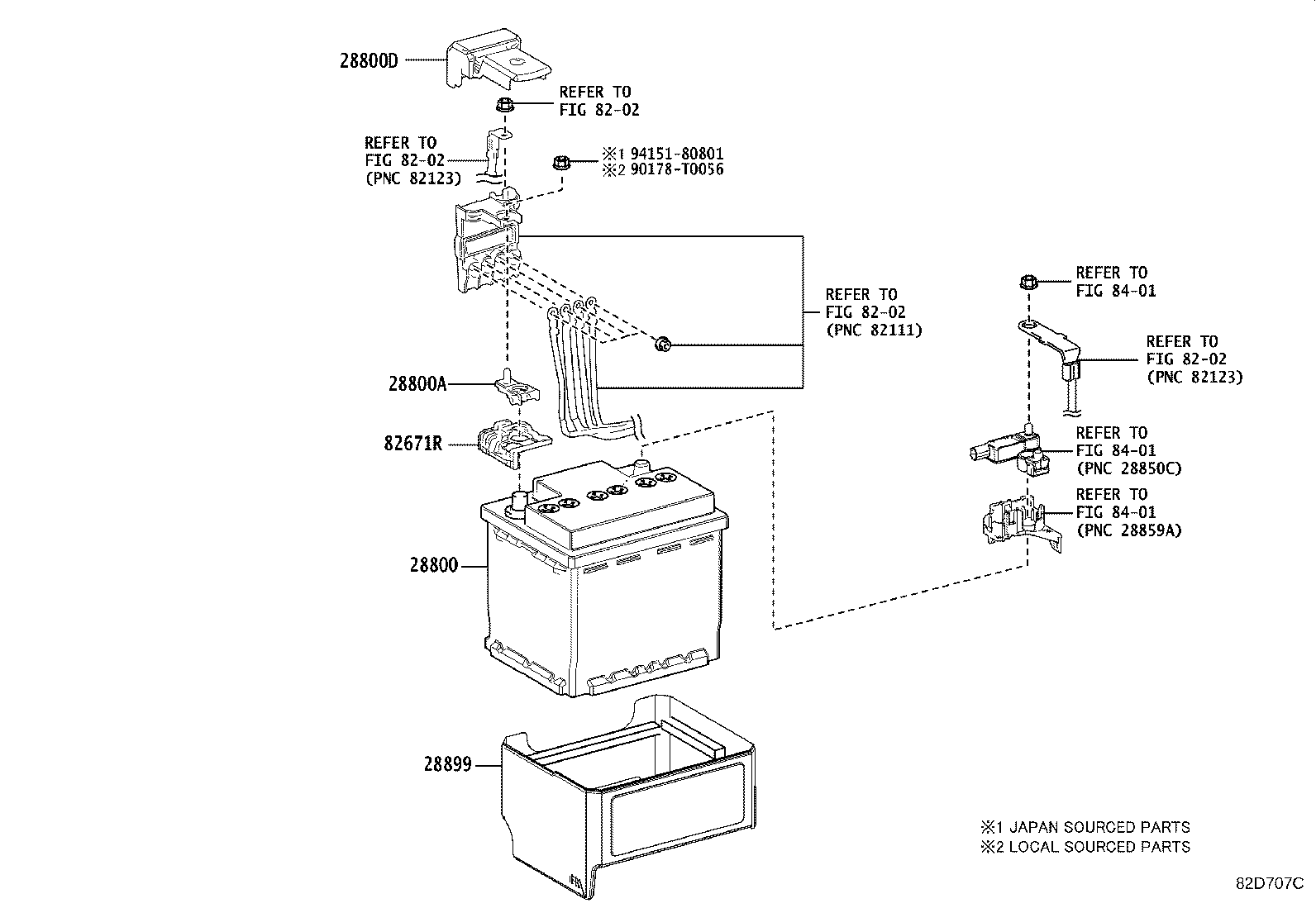

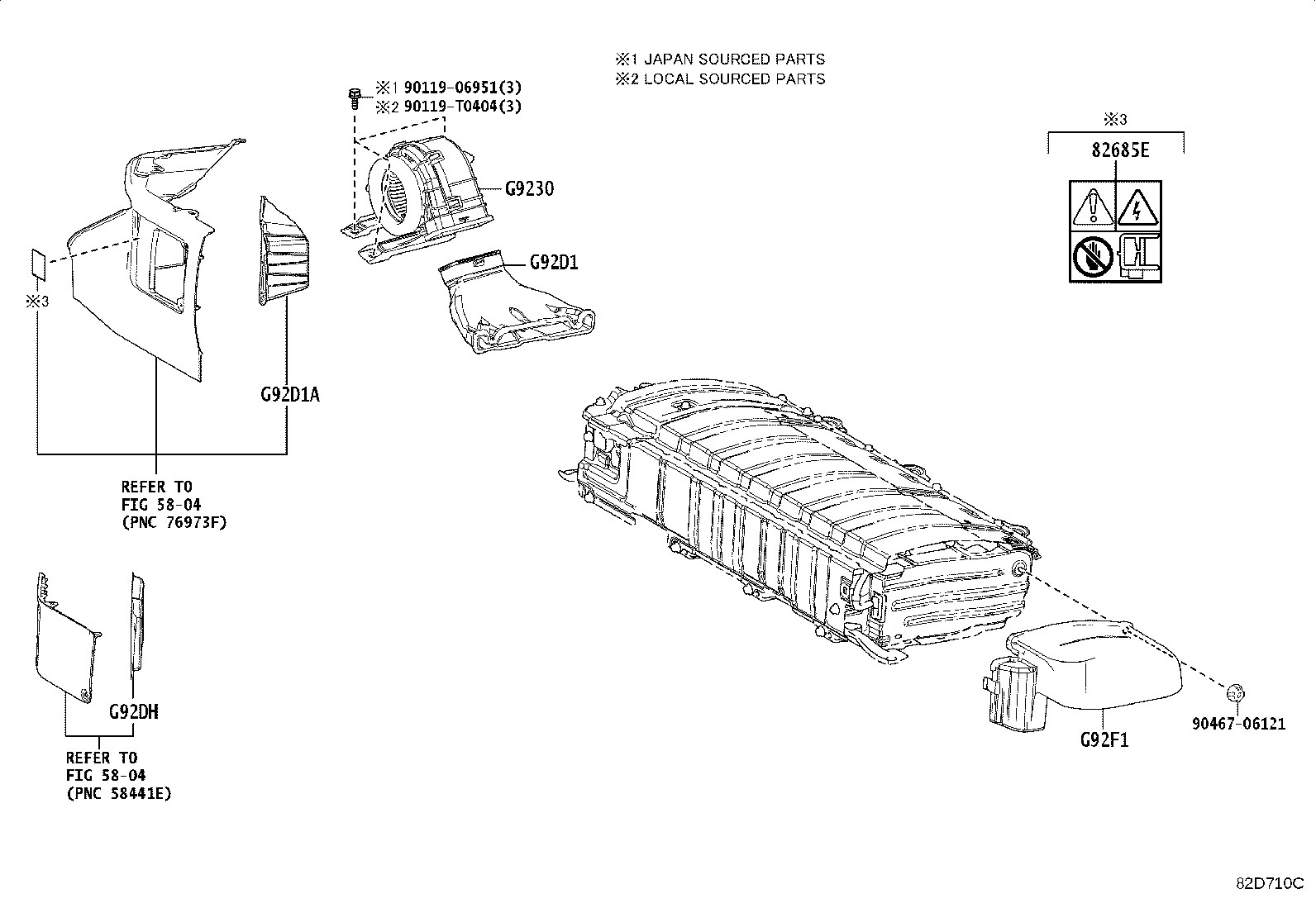

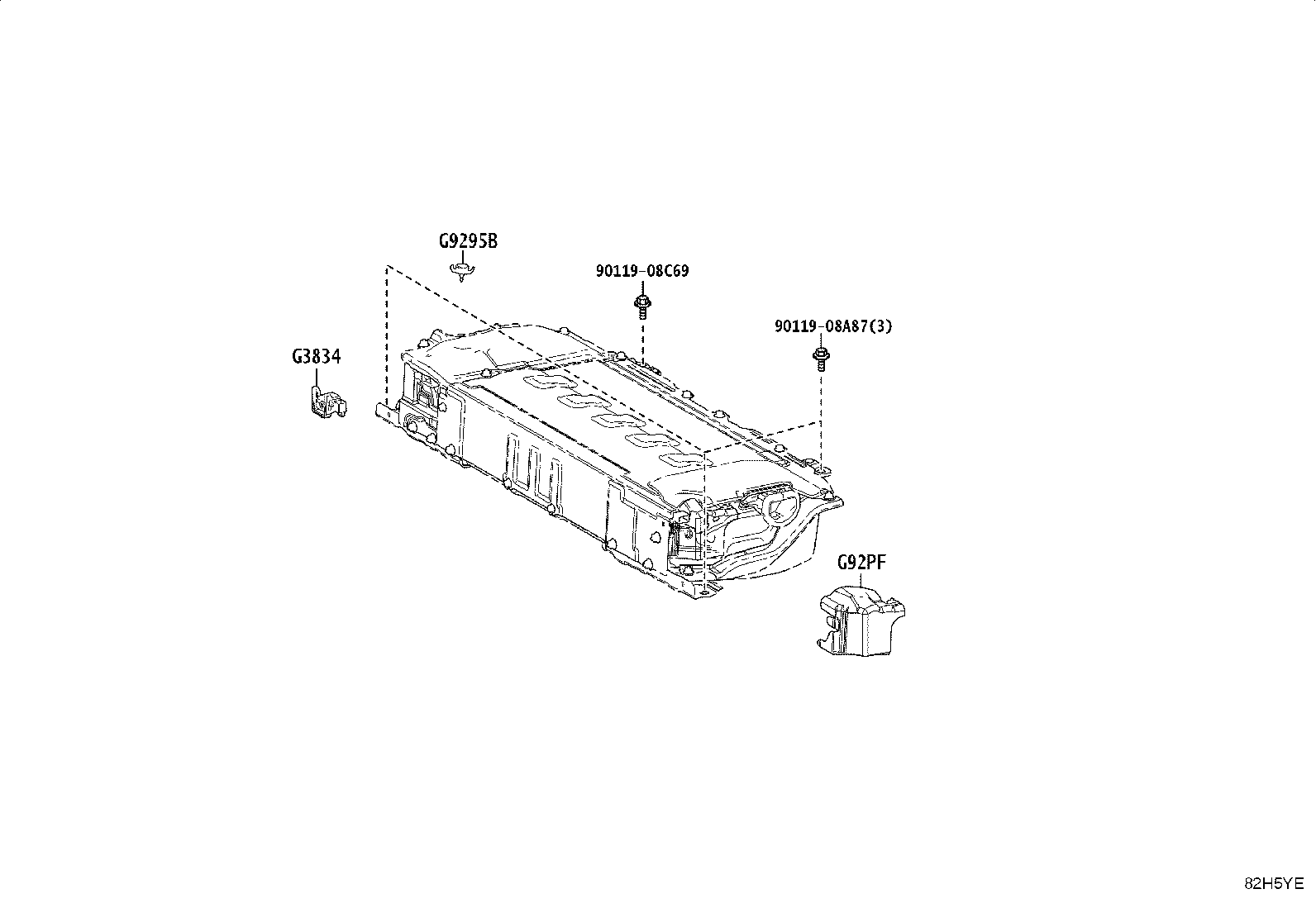

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28899 | Insulator, Battery |
| 82671R | Stopper, Battery Terminal |
| 82685E | Plate, Service Plug Caution |
| 89890A | Computer Assy, Battery |
| 89892A | Sensor, Battery Voltage |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |
| G920R | Shield Sub-assy, Hybrid Battery, NO.2 |
| G9230 | Blower Assy, Battery Cooling |
| G9282 | Thermistor, Hybrid Battery |
| G9288B | Label, Battery Caution |
| G9290A | Hose Assy, Hybrid Battery |
| G9295B | Striker, Battery Cover Lock |
| G9298 | Clamp, HV Battery |
| G929A | Hose, HV Battery, NO.1 |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D1A | Duct, EV Battery Intake, NO.1 |
| G92DB | Seal, Hybrid Battery, NO.1 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92E1A | Duct, HV Battery Intake, NO.1 LH |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92J5 | Packing, Hybrid Battery, NO.1 |
| G92N4A | Panel, HV Battery RH Cover, NO.1 |
| G92PC | Protector, HV Battery, NO.1 |
| G92PD | Protector, HV Battery, NO.2 |
| G92PF | Protector, HV Battery, NO.4 |
| G92Q1 | Panel, HV Battery Shield, NO.1 |
| G92SK | Protector, HV Wiring Harness |
| G92Z0 | Block Assy, HV Battery Junction |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9508 | Stack Sub-assy, HV Supply, NO.1 |
| G9509 | Stack Sub-assy, HV Supply, NO.2 |
| G9510 | Battery Assy, HV Supply |
| G9569A | Label, Lithium Ion Battery Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
