Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 11 illustrations

Illustrations

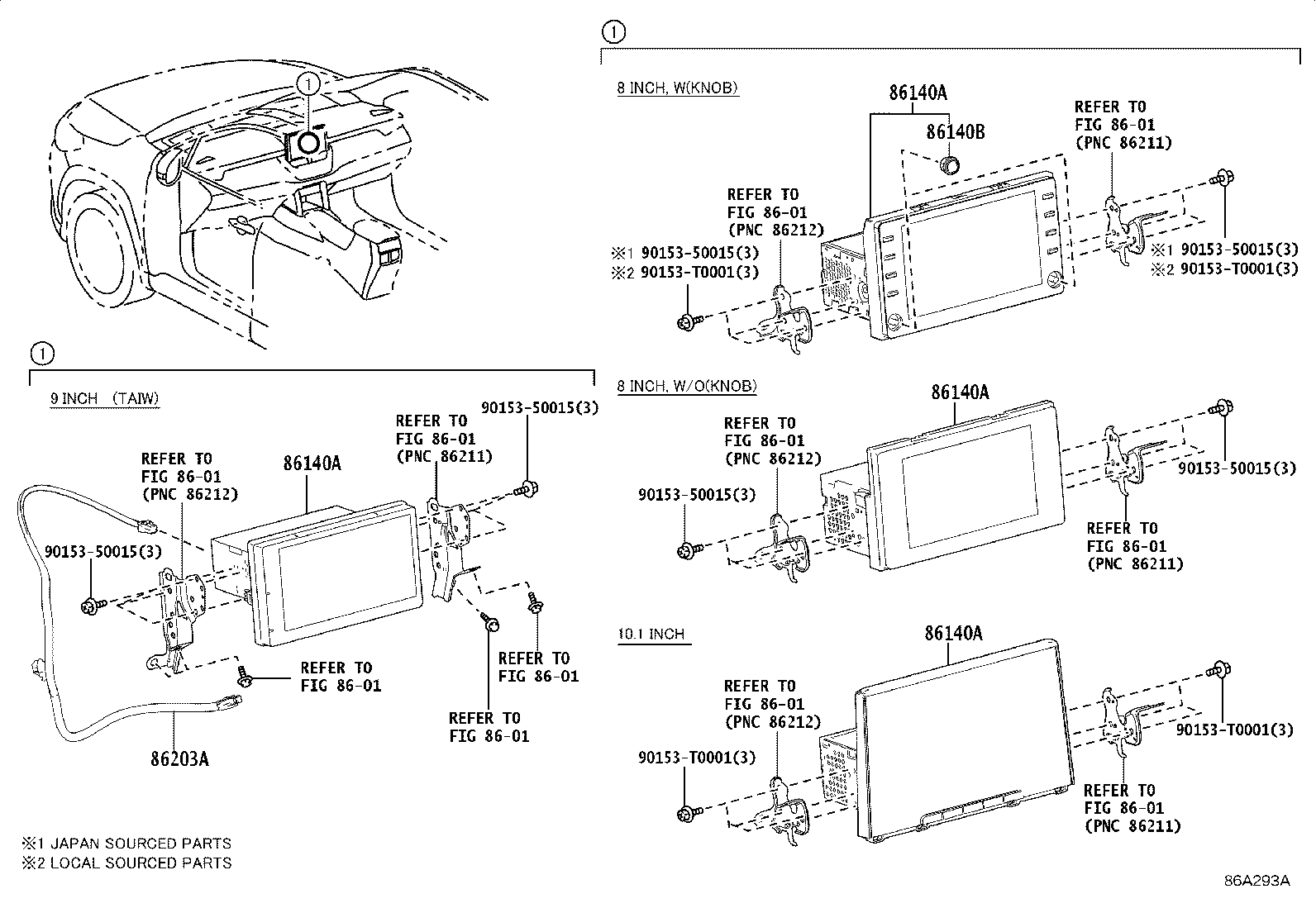

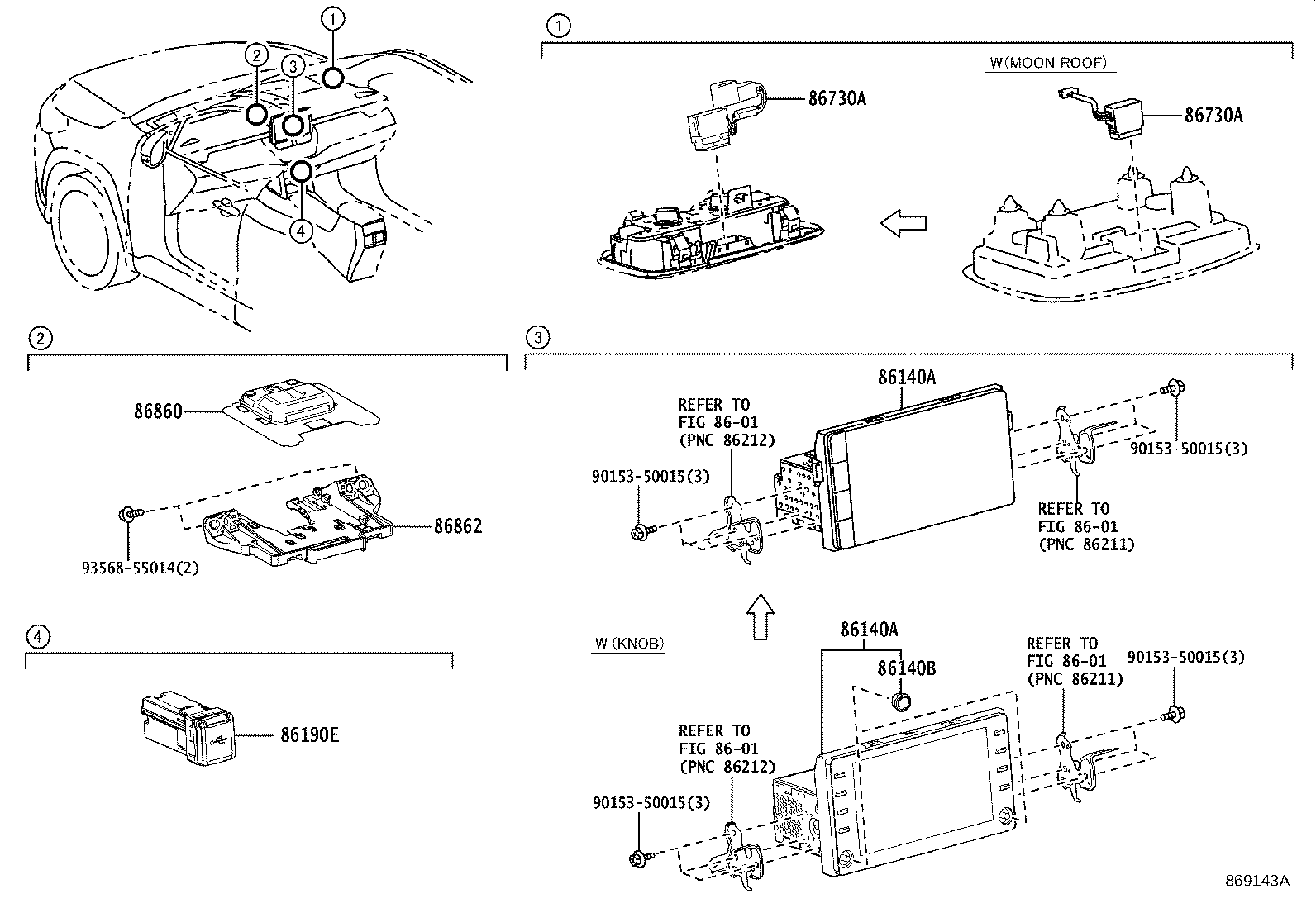

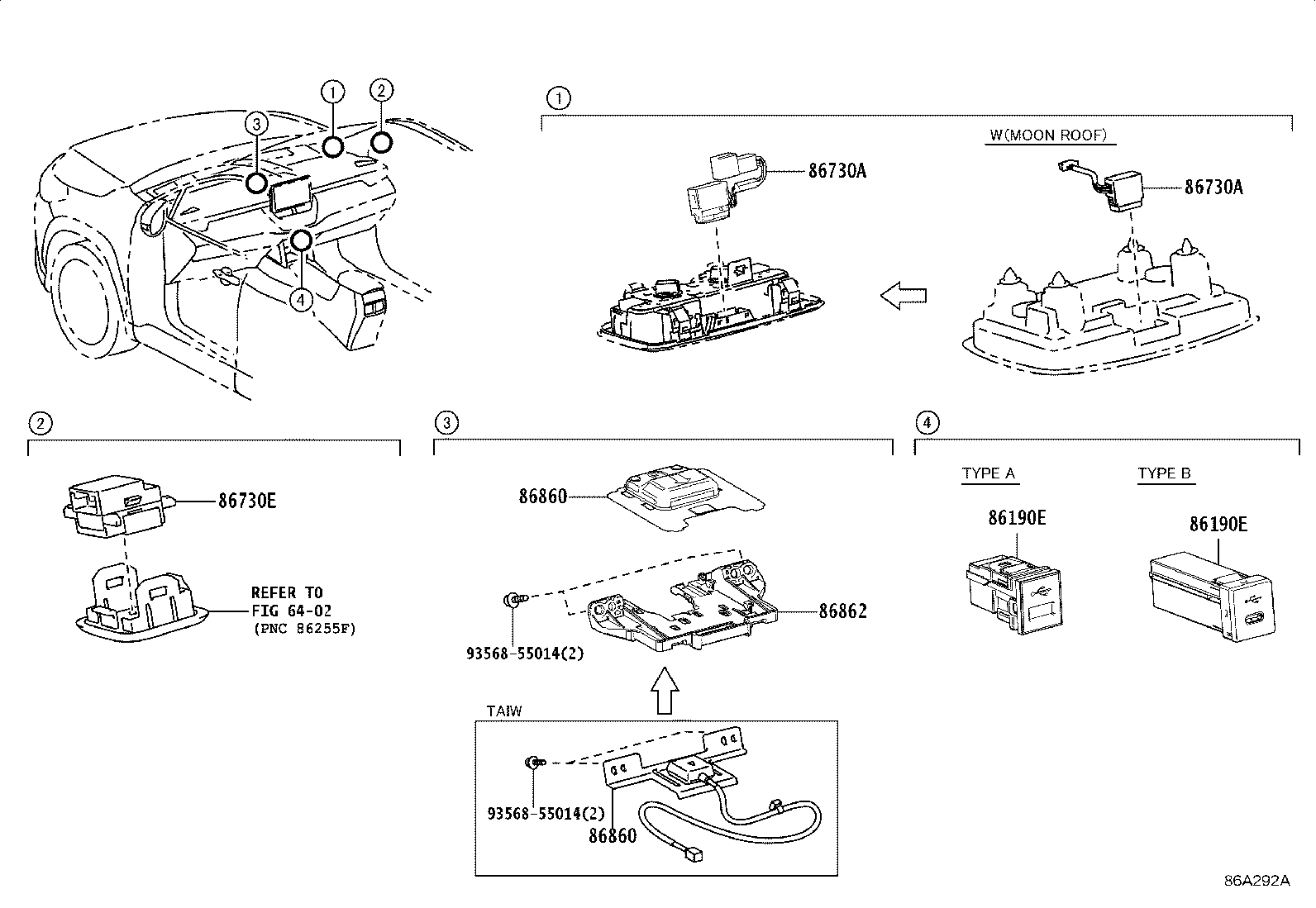

Figure 868186B 868186B 2020-07 → 2021-12 Figure 868186B 868186B 2020-07 → — Figure 869143A 869143A 2022-01 → 2024-03 Figure 86A292A 86A292A 2024-01 → — Figure 86A292A 86A292A 2024-04 → — Figure 86A292A 86A292A 2024-10 → — Figure 86A292A 86A292A 2024-11 → — Figure 86A293A 86A293A 2024-01 → — Figure 86A293A 86A293A 2024-04 → — Figure 86A293A 86A293A 2024-10 → — Figure 86A293A 86A293A 2024-11 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86190E Adapter Assy, Stereo Jack
86203A Wiring Sub-assy, Television
86271 Disc, Disc Player
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86730E Microphone Assy
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
