Toyota Corolla Cross
2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General
Supported model
Data version 2024-12

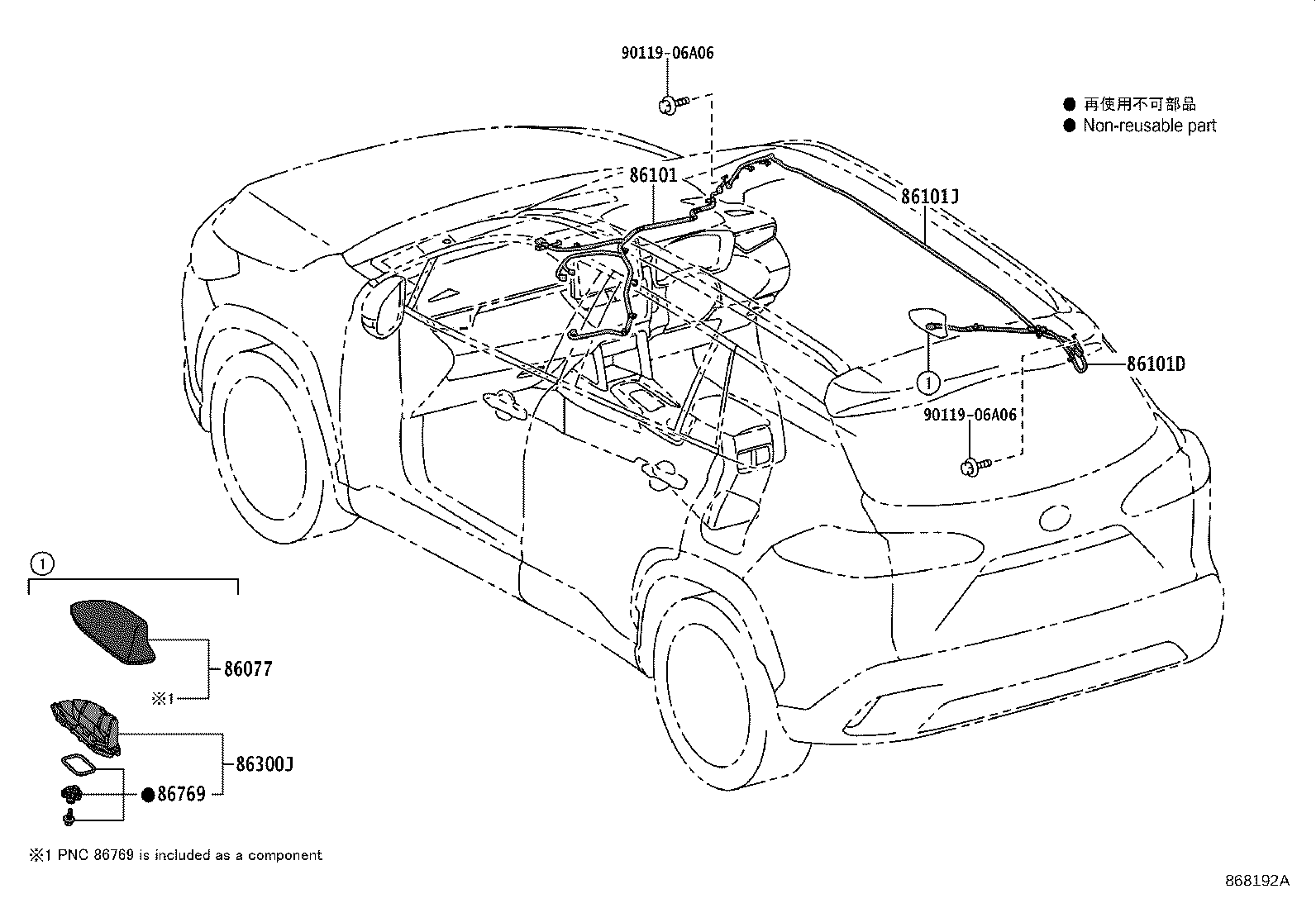

Antenna
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82818Q | Protector, Wiring Harness, NO.1 |
| 86050 | Antenna Assy, Television |
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86300J | Antenna Assy, Roof |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
