Toyota Corolla Cross
2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General
Supported model
Data version 2024-12
Telephone & Mayday
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

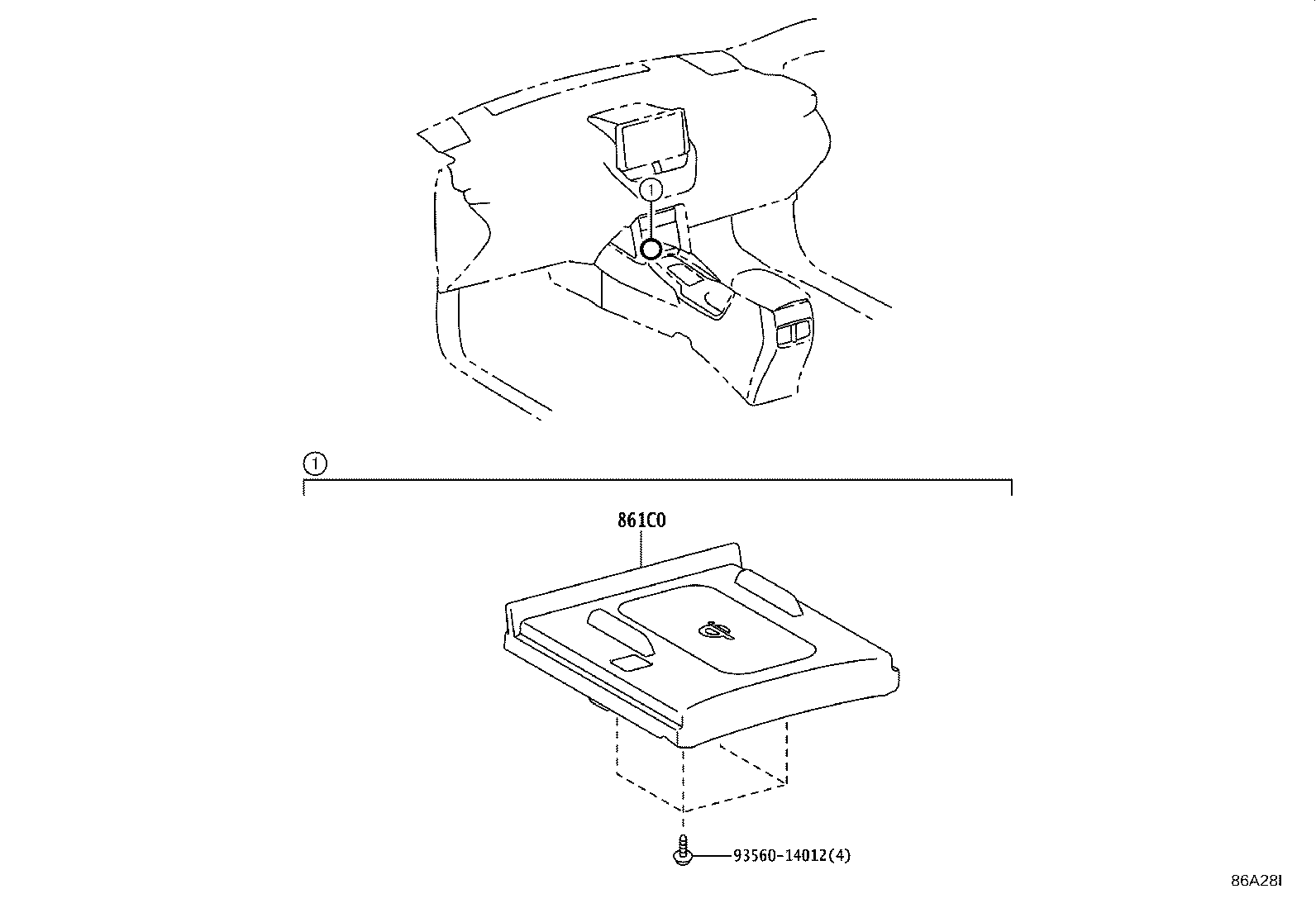

| 861C0 | Cradle Assy, Mobile Wireless Charger |

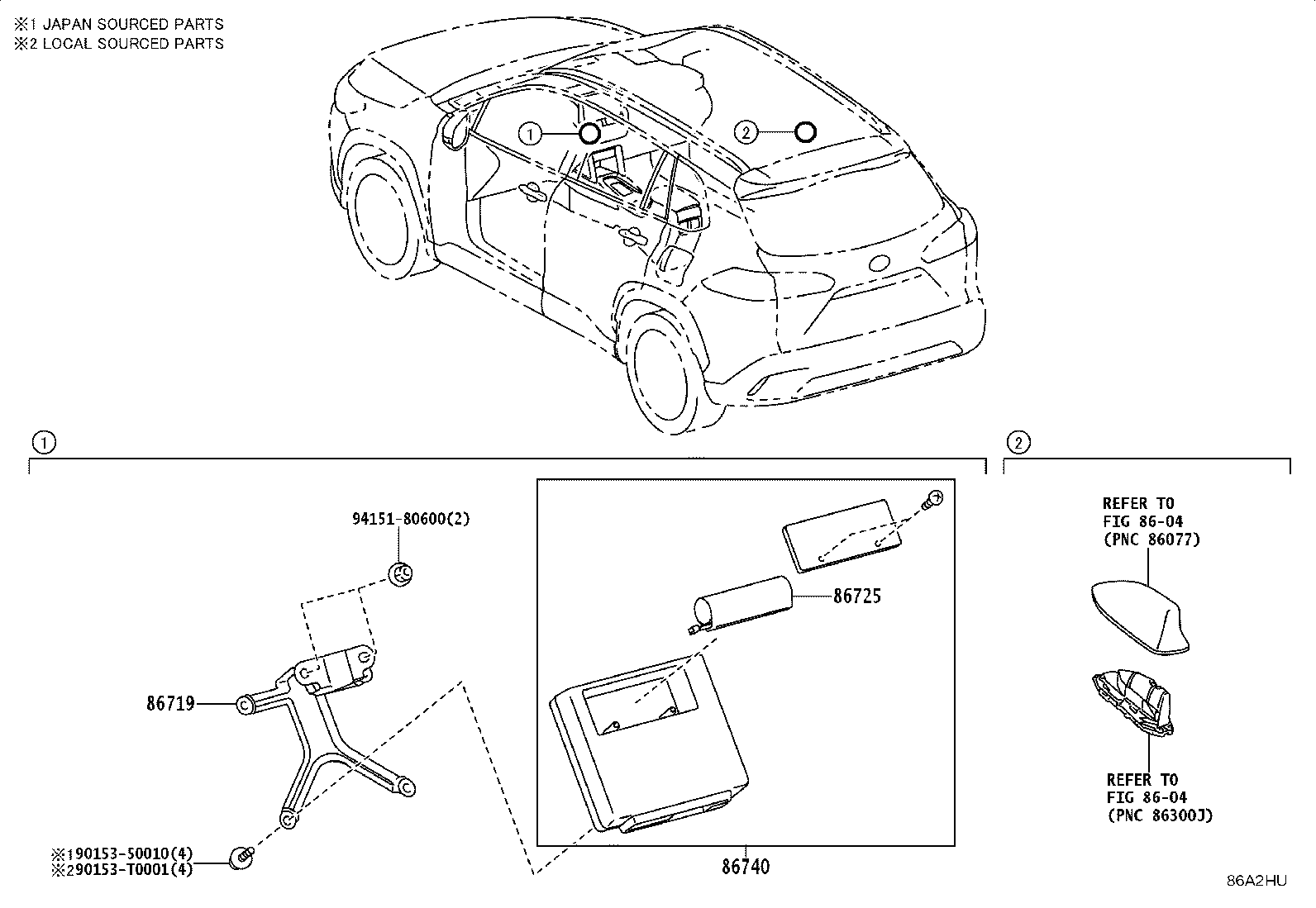

| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86742A | Cover, Transceiver |
| 86750A | Switch Assy, Mayday |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
