Toyota Corolla Cross

2020-07 → present · chassis MXGA10,ZSG10,ZVG10 · catalogue 551310 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 5 illustrations

Illustrations

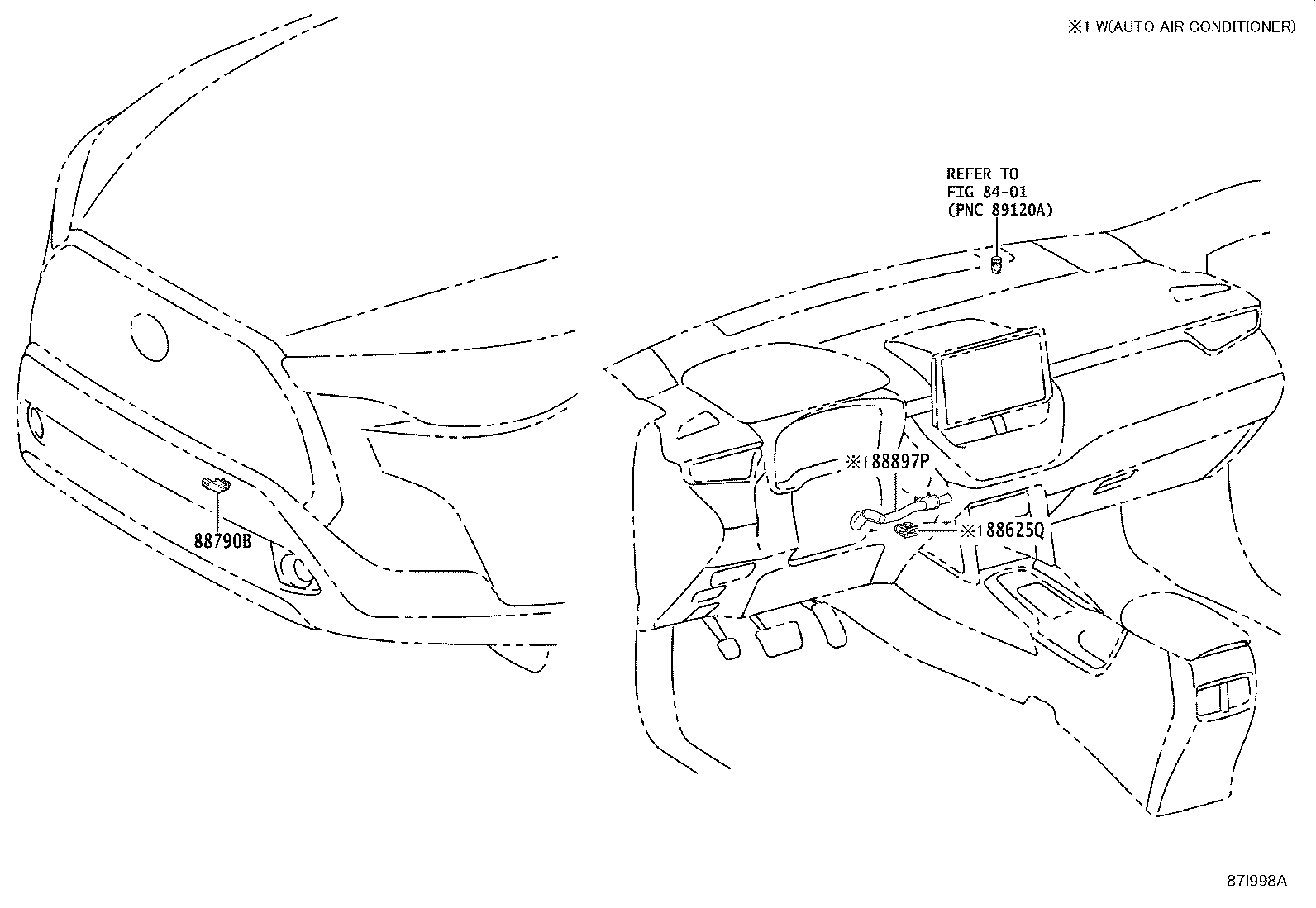

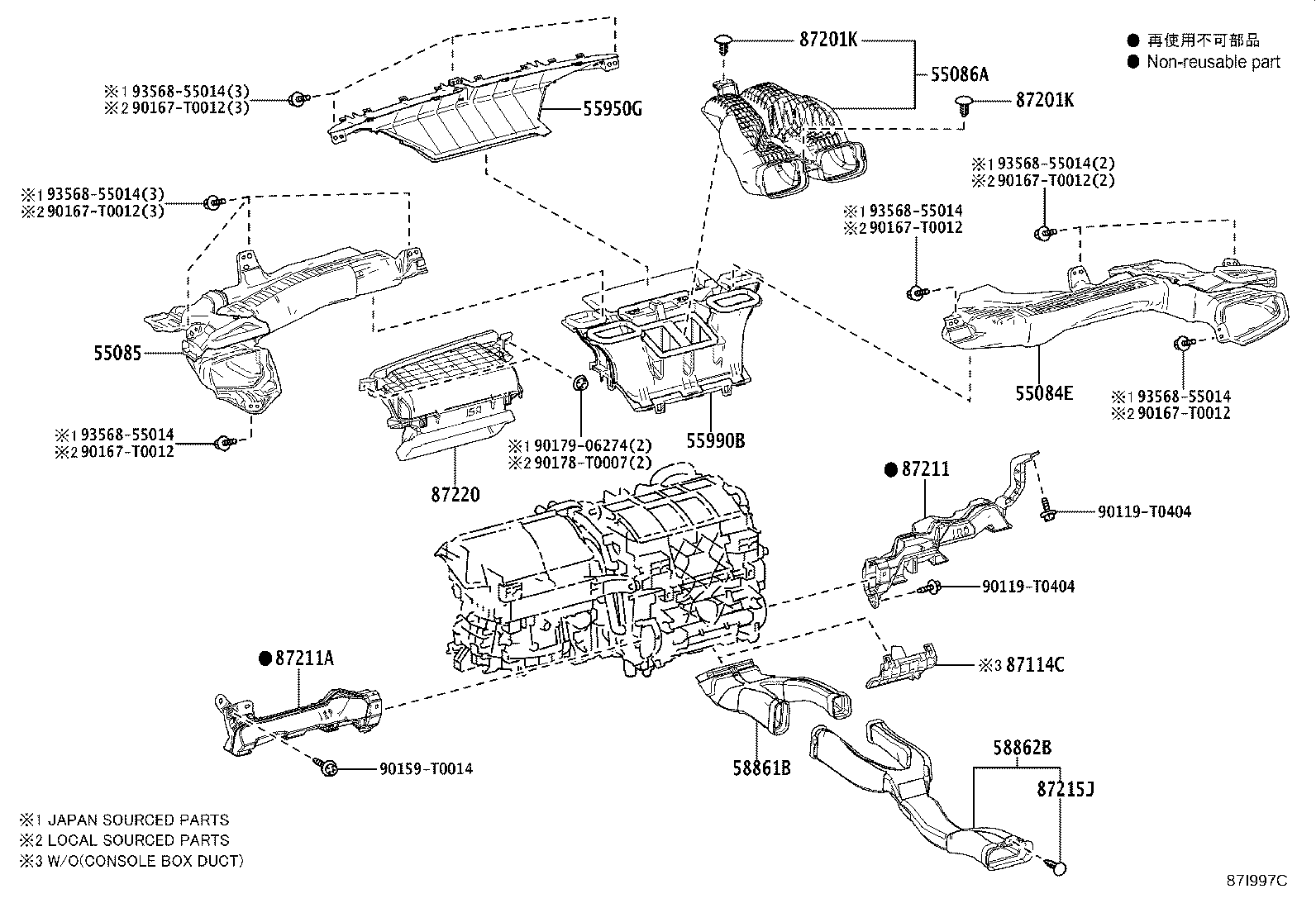

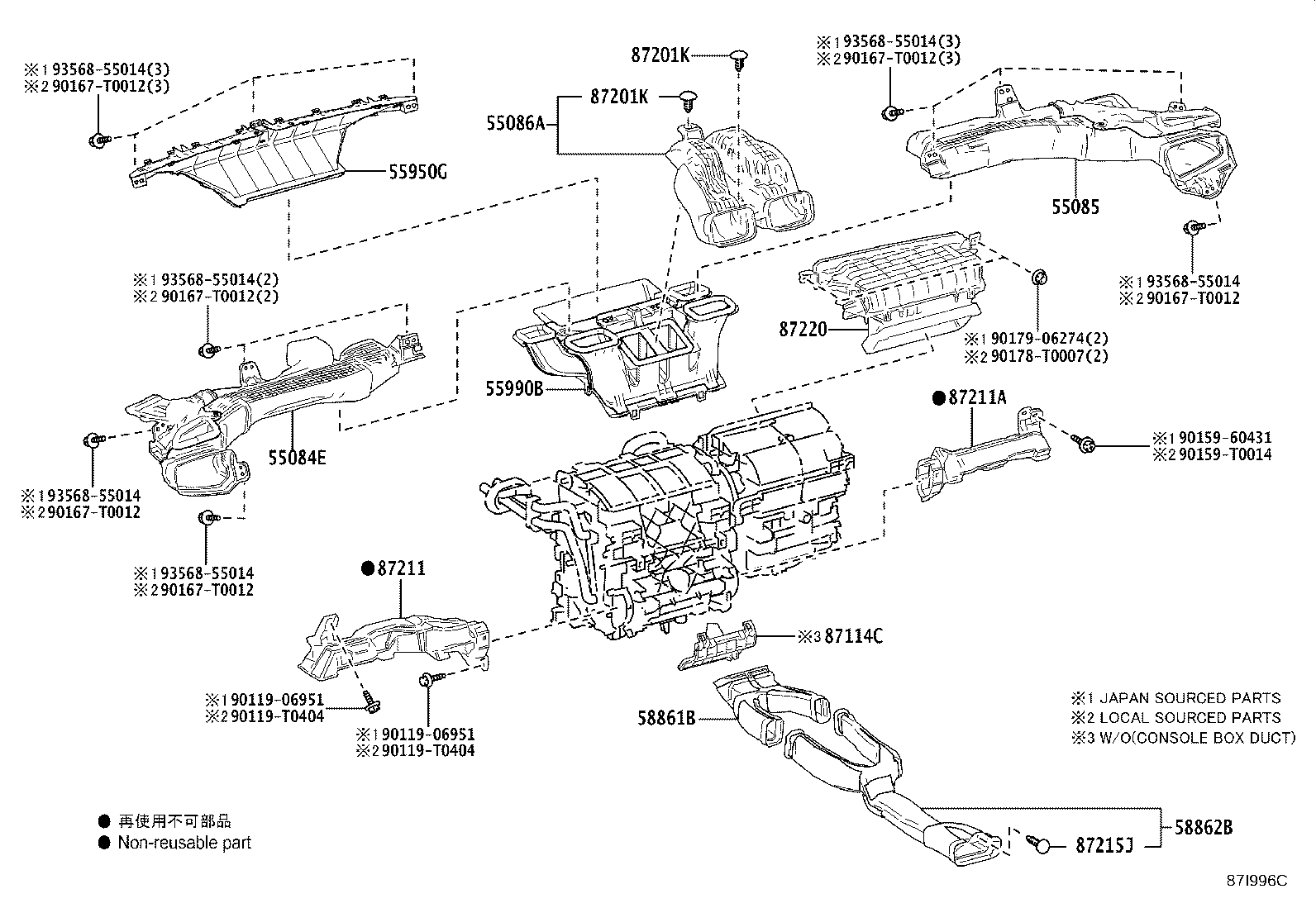

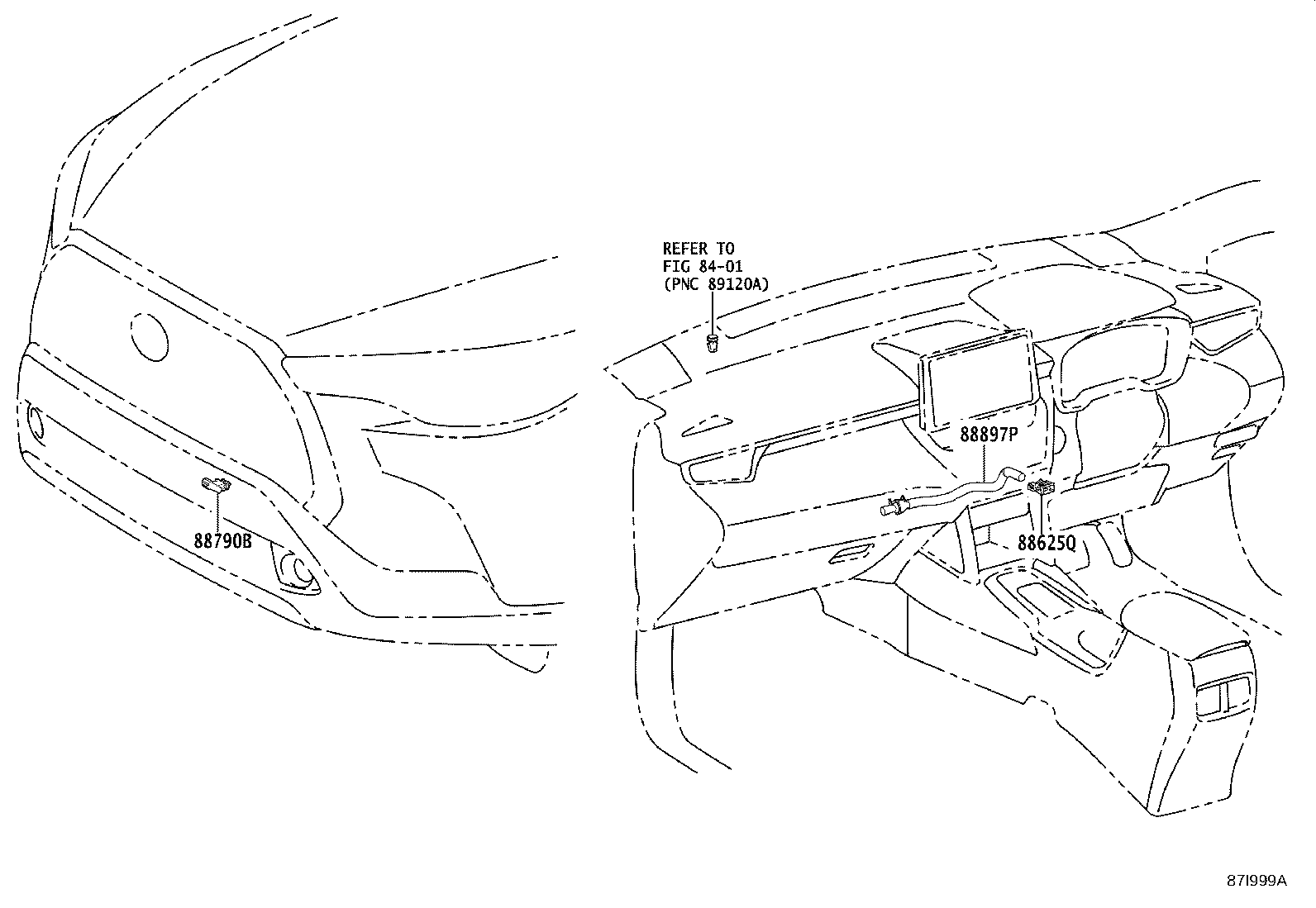

Figure 87I995C 87I995C 2020-07 → — Figure 87I996C 87I996C 2020-07 → — Figure 87I997C 87I997C 2020-07 → — Figure 87I998A 87I998A 2020-07 → — Figure 87I999A 87I999A 2020-07 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906 Cable Sub-assy, Heater Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87114C Cover, Heater
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87215J Clip (FOR AIR REAR DUCT)
87220 Duct Assy, Air
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
