Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

23 part groups · 2 illustrations

Illustrations

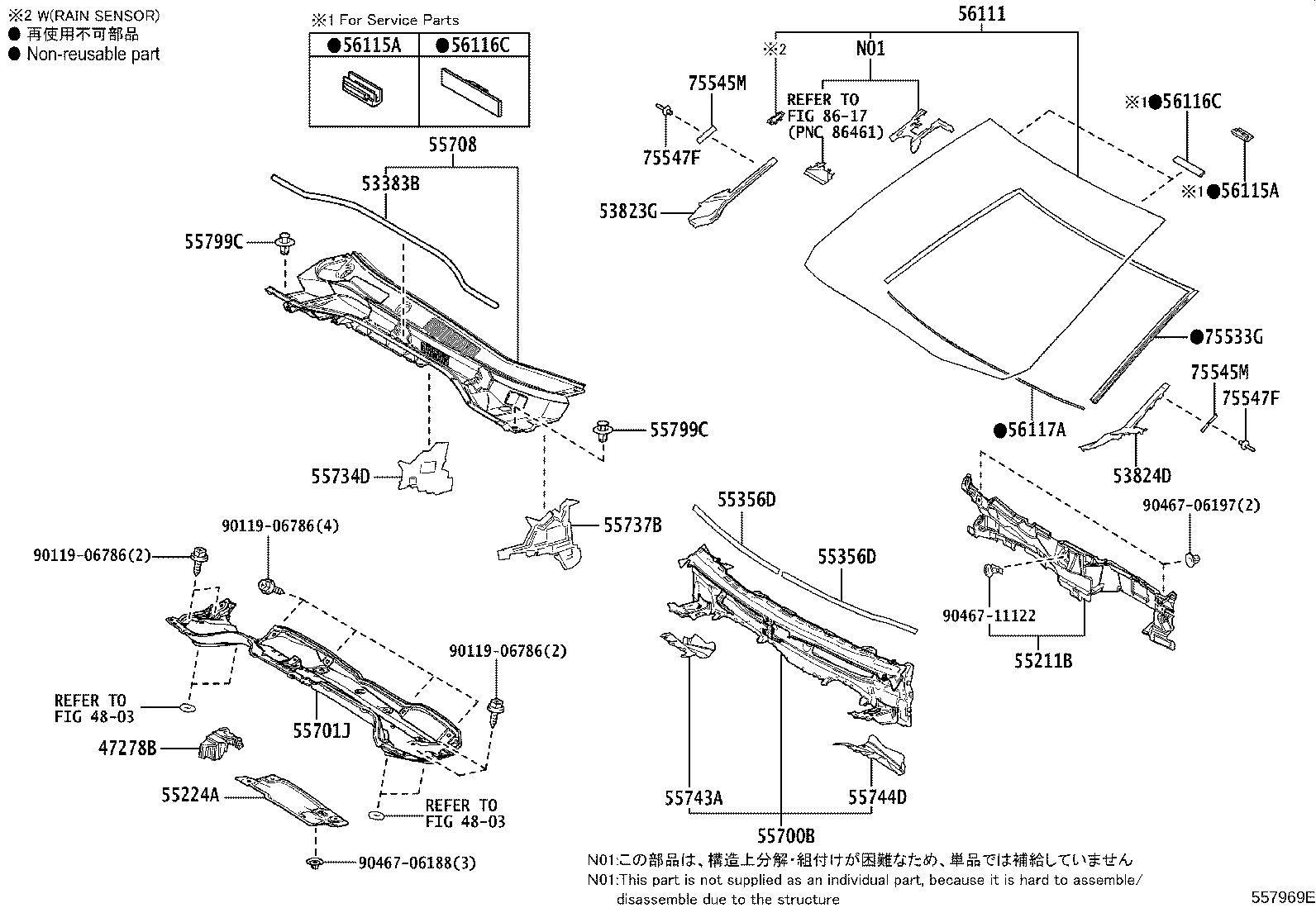

Figure 557968E 557968E 2022-07 → — Figure 557969E 557969E 2022-07 → —

Part groups

PNCDescription
47278B Cover, Brake Master Cylinder
53383B Seal, Hood TO Cowl Top
53823G Protector, Front Side Panel, NO.2 RH
53824D Protector, Front Side Panel, NO.2 LH
55211B Silencer, Front Panel
55224A Insulator, Dash Panel, Outer NO.2
55356D Cushion, Instrument Panel, NO.2
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55734D Plate, Water Guard
55737B Seal, Heater Air Duct Splash Shield, NO.1
55738D Seal, Heater Air Duct Splash Shield, NO.2
55743A Extension, Cowl TO Cowl Side, RH
55744D Extension, Cowl TO Cowl Side, LH
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
75533G Moulding, Windshield, Outside
75545M Clip, Windshield Outside Moulding
75547F Clip, Windshield Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
